Dana 35 Diff Cover

Name: Corner Armor with Tail Light System - Jeep JKU 07-18
Brand: Motobilt
SKU: MB1139
Price: 1049.00 USD
Availability: InStock

Regular price $149.00

Shipping calculated at checkout.

Unit Price: / Sku: MB4030

Fits: Jeep Wrangler YJ · Jeep Wrangler TJ

Installation difficulty: 1 / 5

Quantity:

View product details & documents

Product details

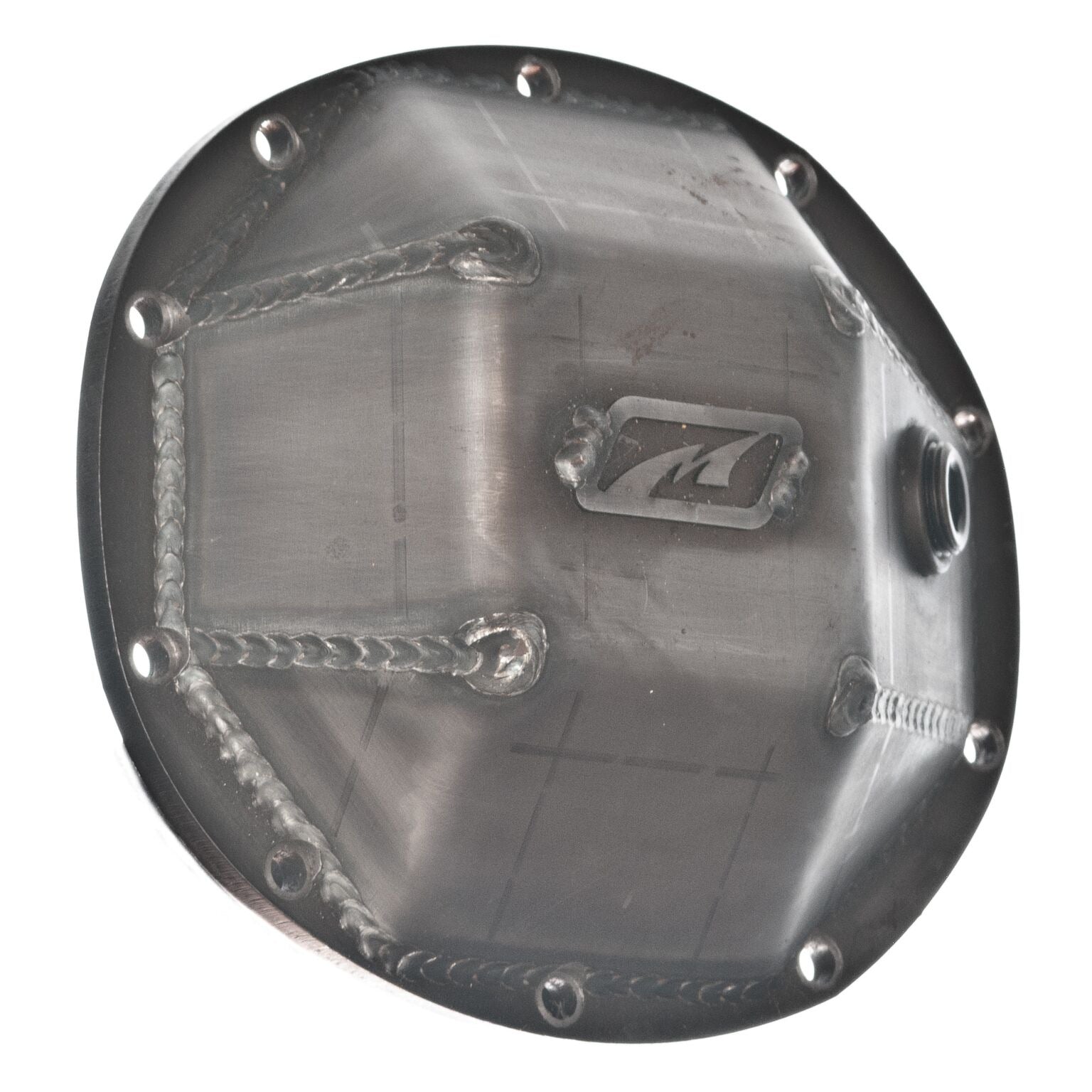

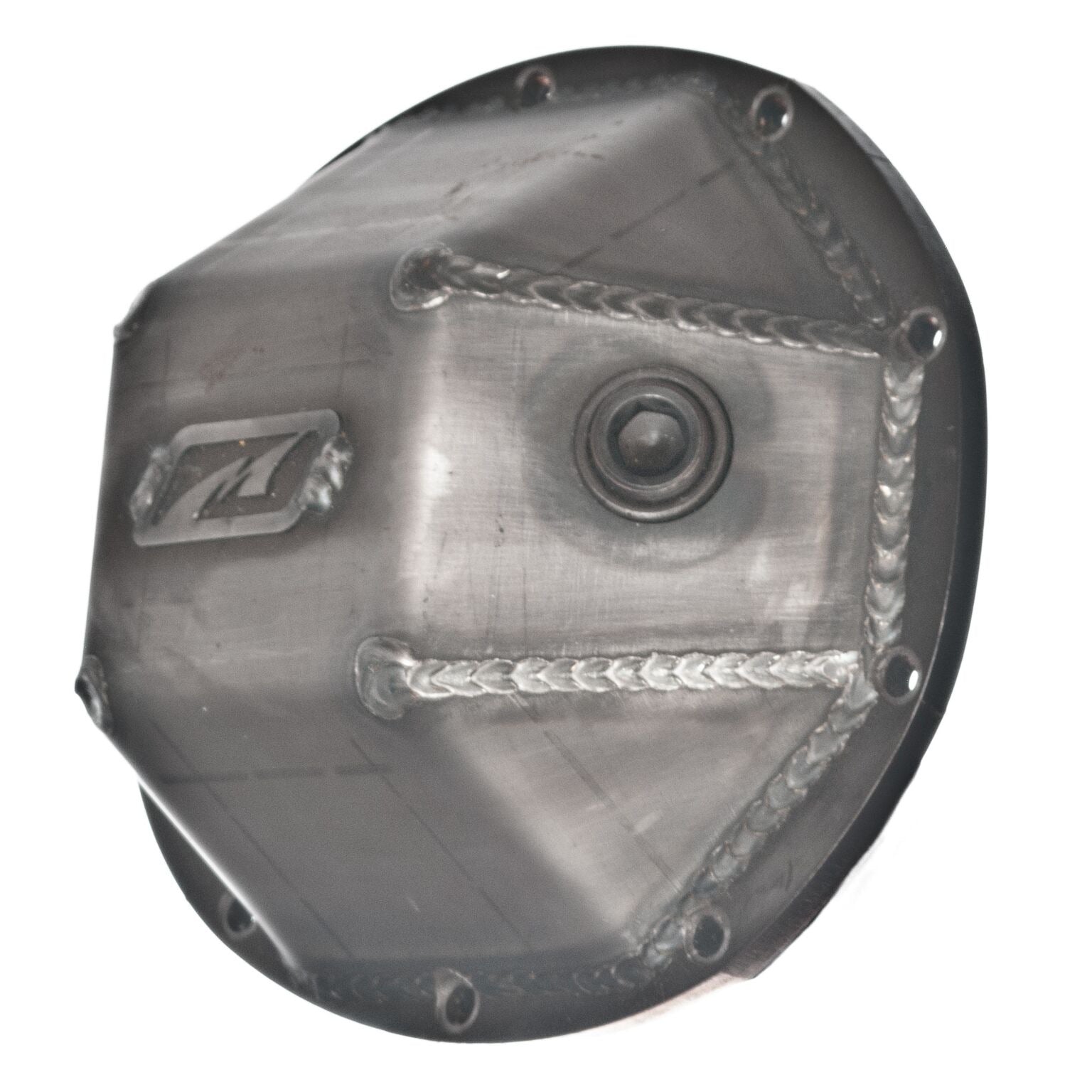

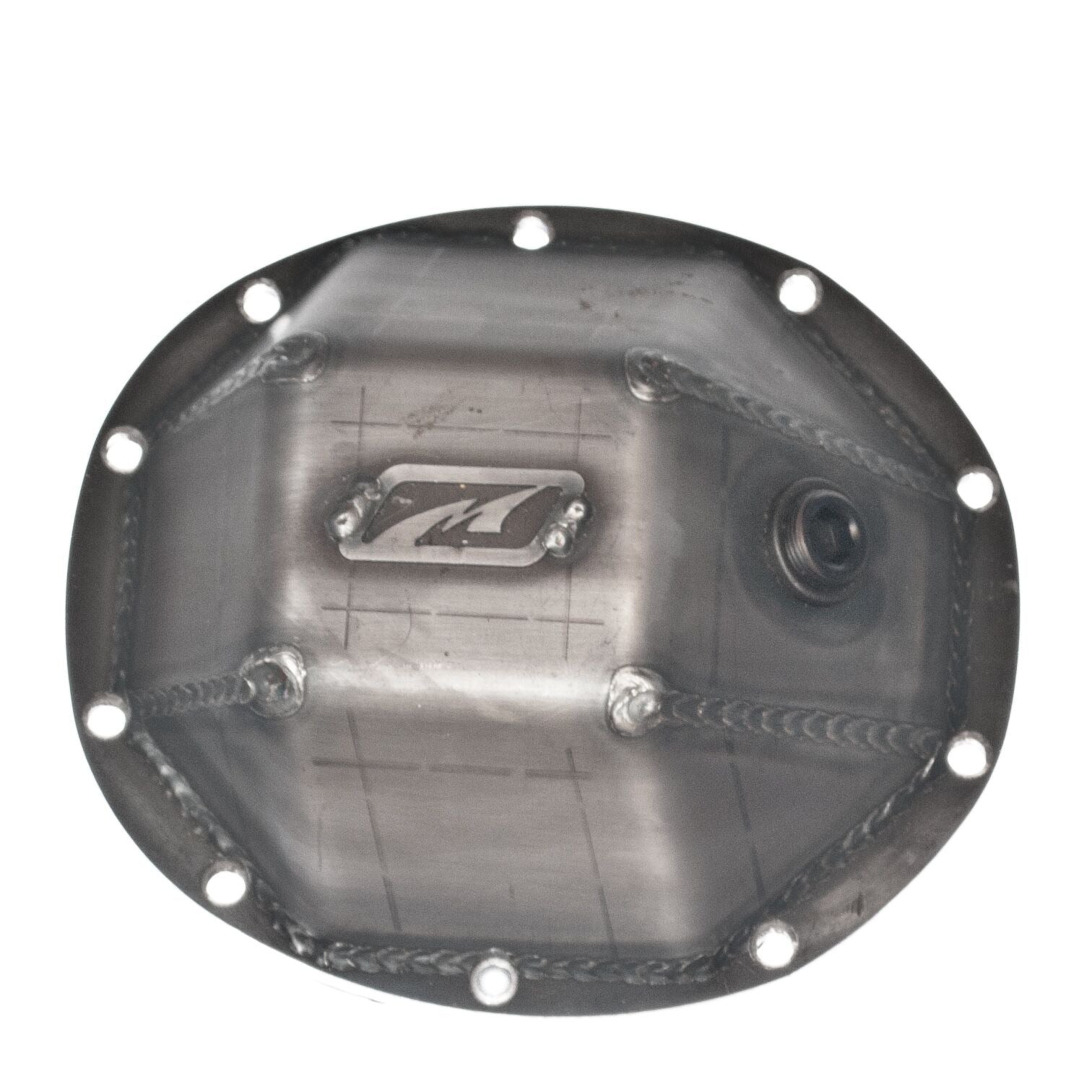

The Motobilt Dana 35 HD steel diff cover has many features that separate it from others. The Dana 35 HD steel diff cover features a 3/8 inch thick steel ring that will keep the cover from pulling away from the housing when dragging over rocks. The Dana 35 HD steel diff cover also features the proven 1/4 inch thick steel plate design with an integrated 3/4 inch NPT fill plug. The fill plug on the Dana 35 HD steel diff cover allows for easy access, especially when a truss system is commonly used.

The Dana 35 HD steel diff cover is welded both on the inside and outside of the cover to ensure maximum protection for superior strength for your front axle to protect your gears and lockers. The Dana 35 HD steel diff cover's design comes from over 14 years of diff cover testing and manufacturing experience. The diff cover ships bare steel and will need to be painted. We do not usually powdercoat ours because the diff cover is going to take abuse from rocks. Spray paint works well so you can simply touch it up. The bolts and fill plug ship with the cover.

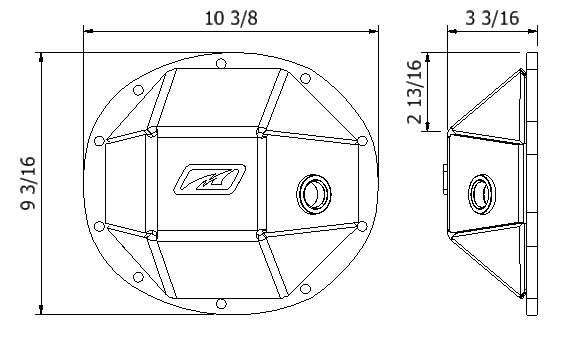

Specifications

Dana 35 HD steel diff cover
3/8 inch thick steel ring
1/4 inch thick steel plate
Integrated 3/4 inch NPT fill plug
Lifetime warranty
Sold as each
Weight = 10lbs

Note:

The diff cover ships bare steel and will need to be painted

Tools:

9/16 allen head - For the fill plug.
12 point 5/16 socket and ratchet

Instructions

Installation Instructions

Dana 35 Diff Cover

Specifications

Instructions
