Dual Rear Coilover Bypass Shock Towers

Regular price $199.00
Shipping calculated at checkout.

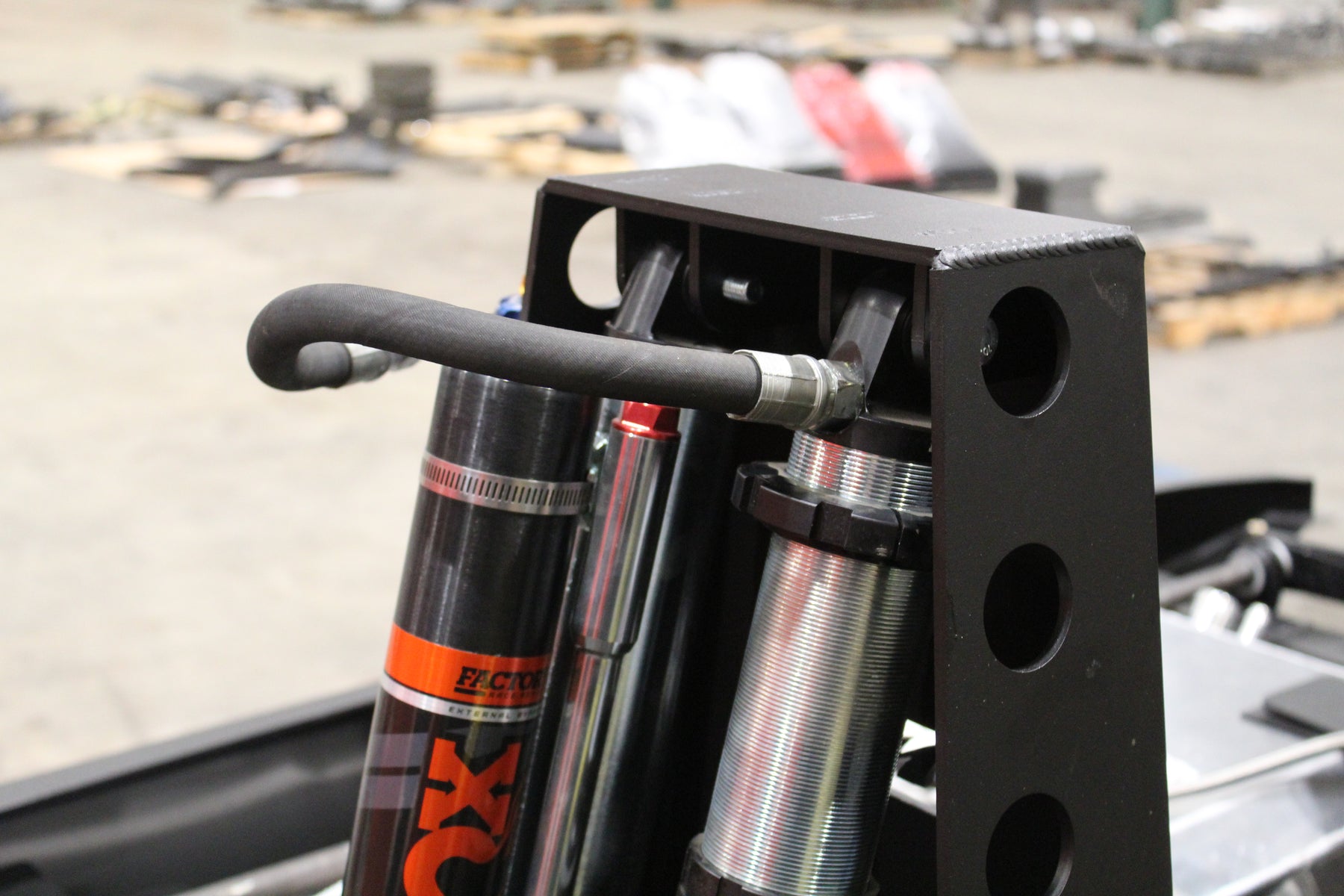

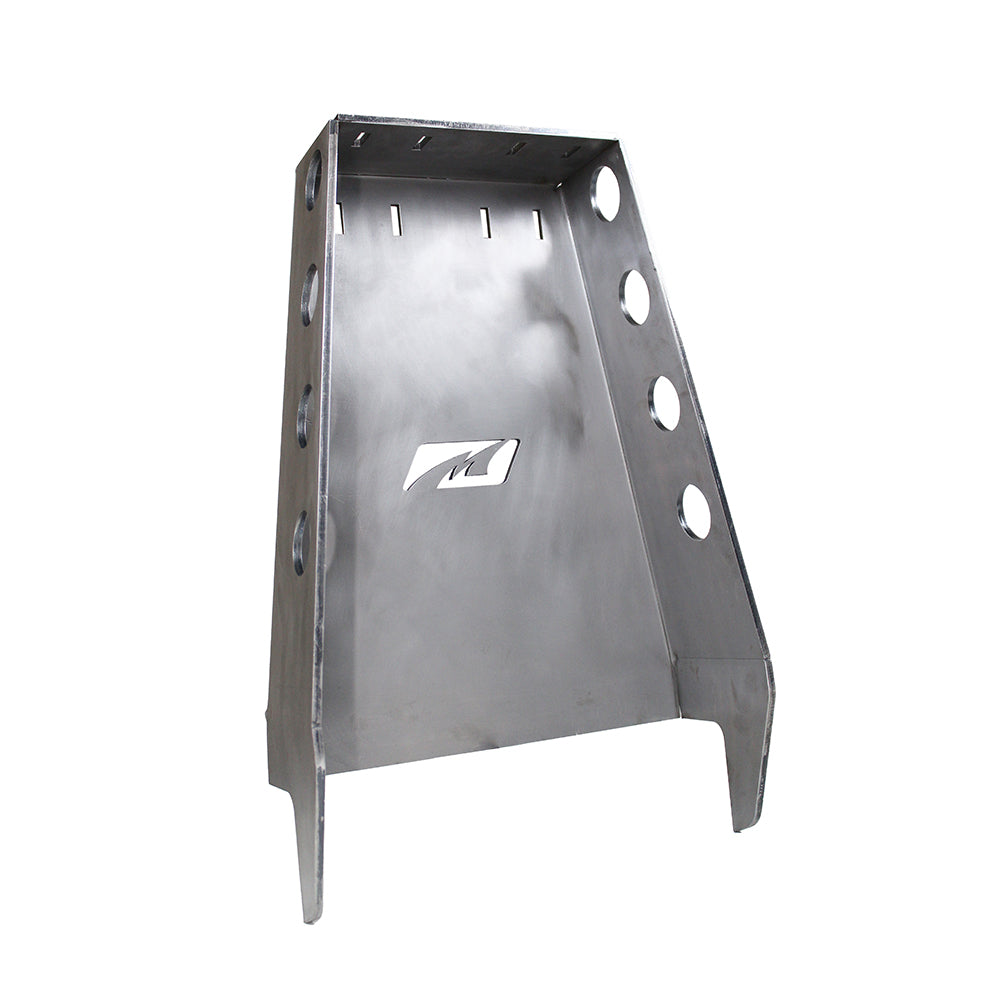

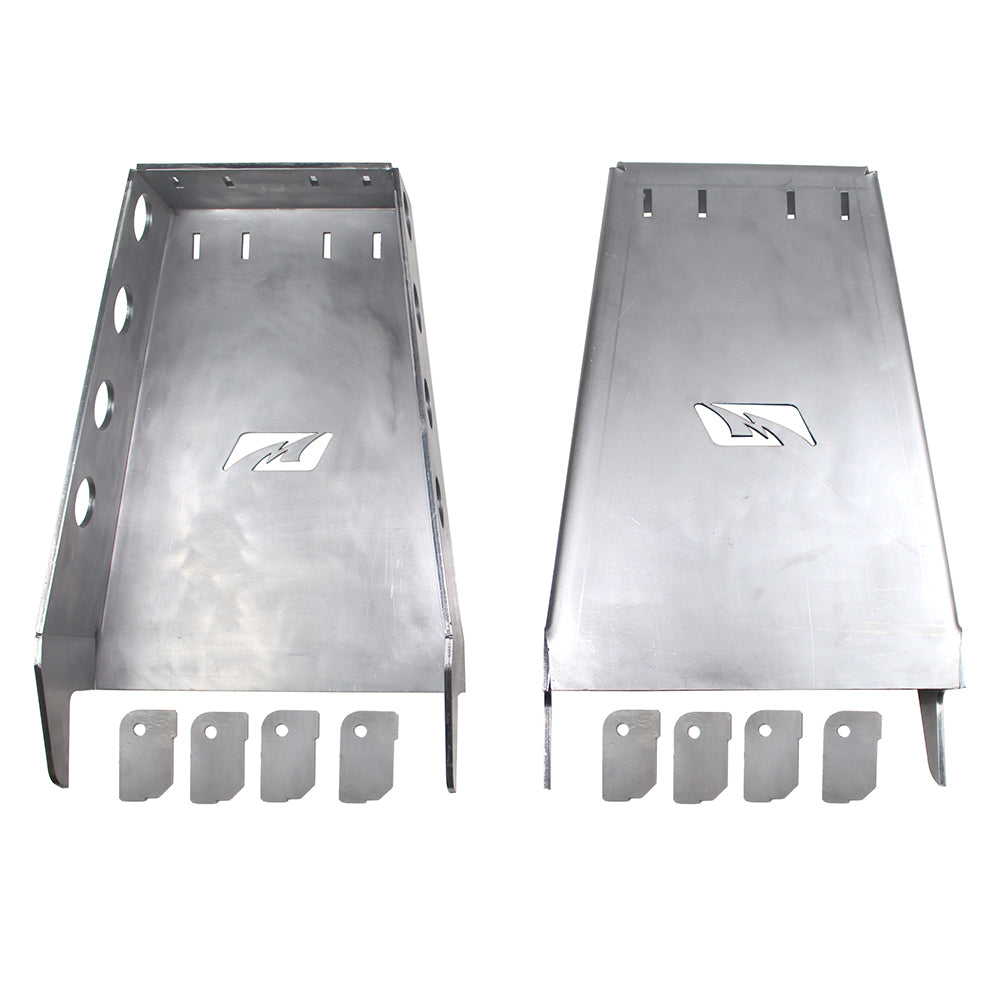

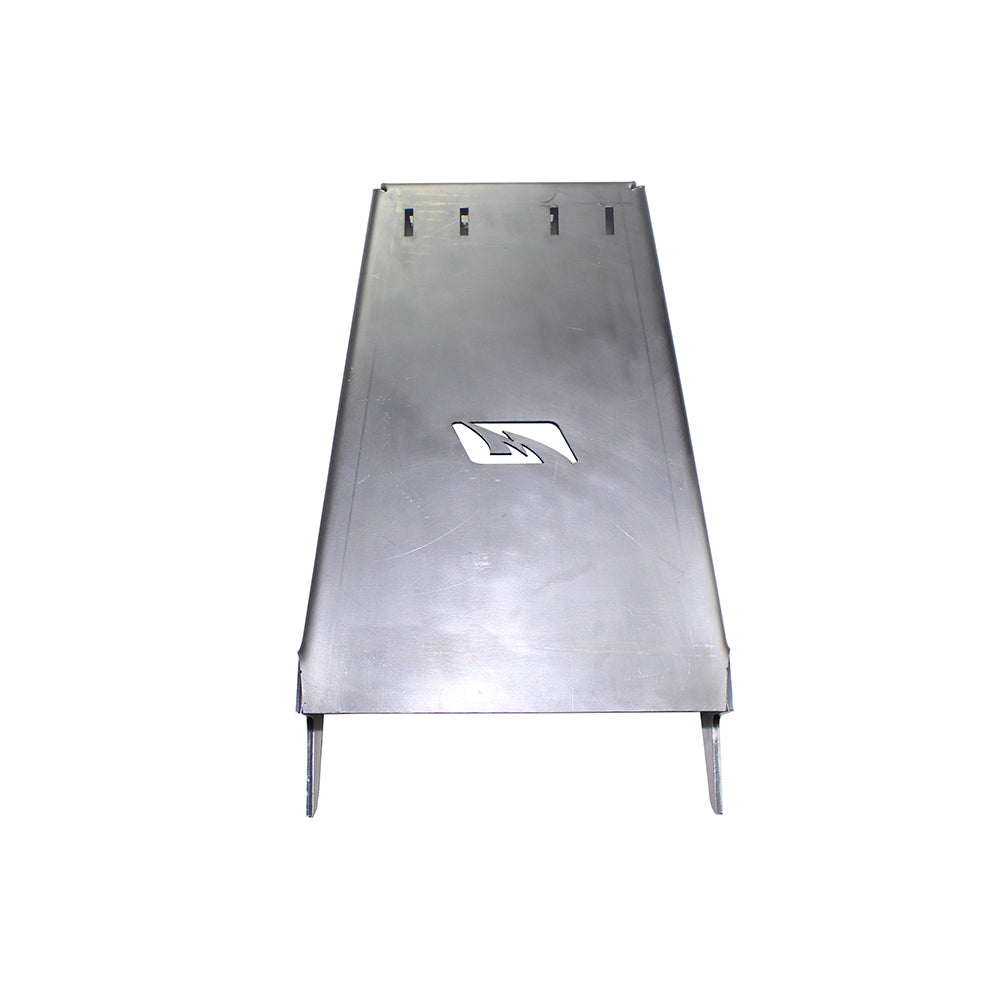

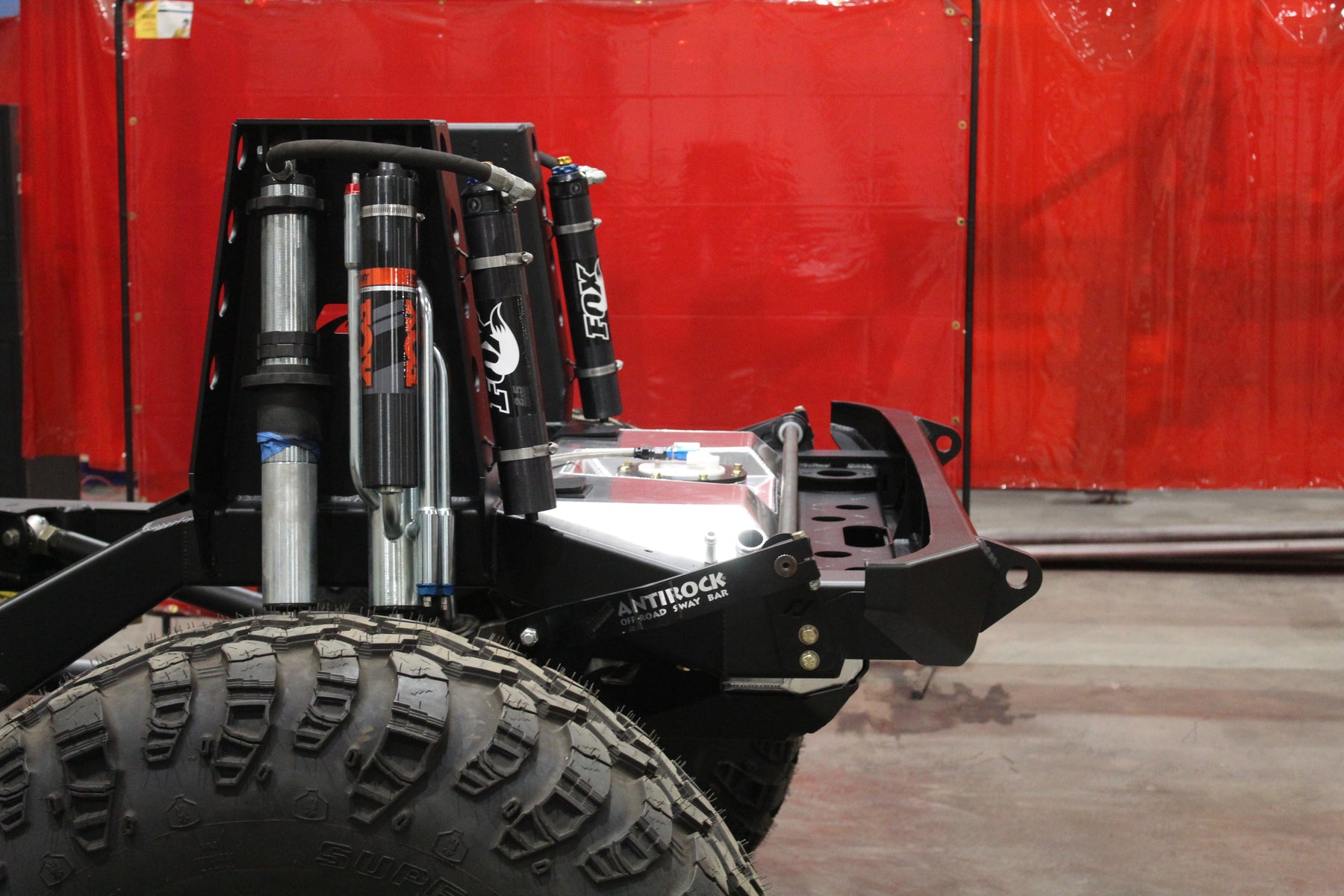

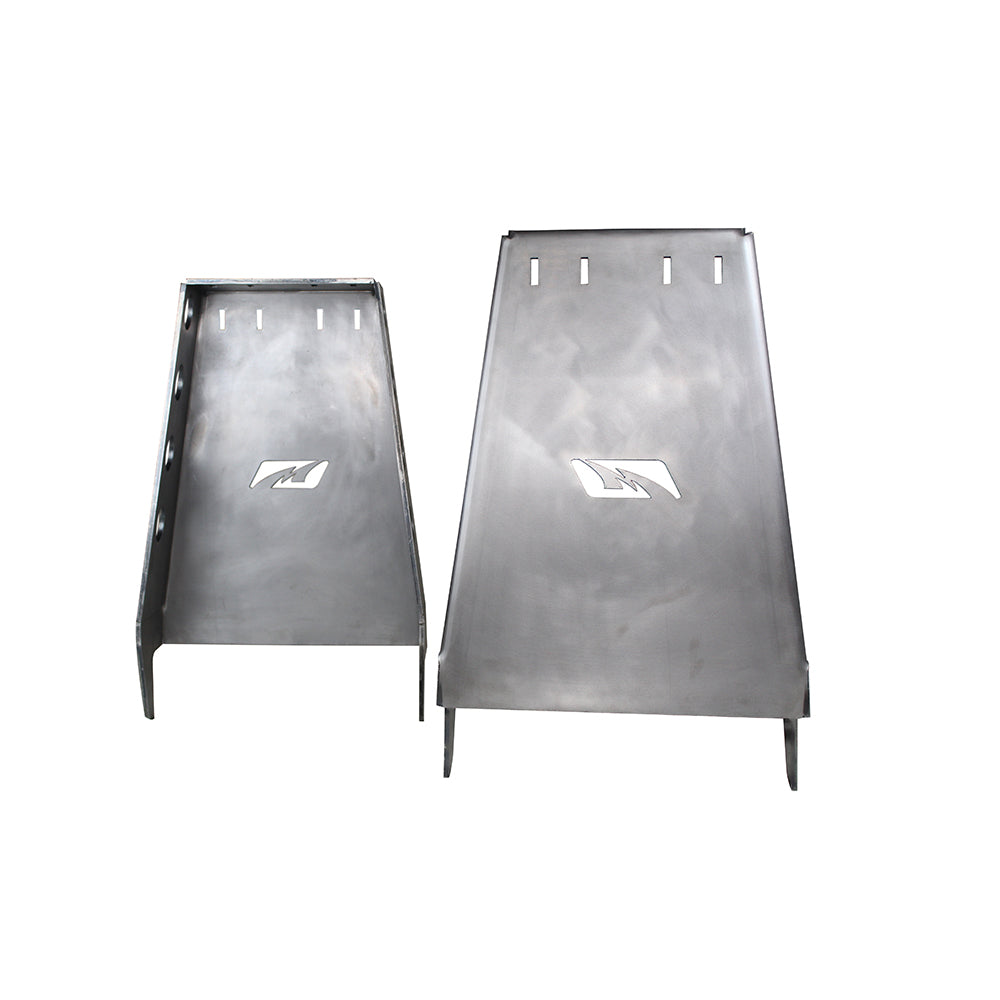

The Motobilt MB1546 Dual Rear Shock Towers were designed & developed as a dual rear shock mount solution to be used in conjunction with our MB3025 Jeep JK Back Half Kit. These rear shock towers can also be used as a solution for other custom builder projects where a dual shock mount is required.

Precision laser cut from 1/4” high grade American steel & professionally CNC press brake formed, the MB1546 Dual Rear Shock Towers feature ample space to mount 2.5 Series coil over shocks, dampening shocks or even bypass shocks. The shock spacing is 5” center to center with 12.0mm diameter shock mounting holes (can be drilled at home to 1/2” diameter if your project requires).

We have included oversized bolt access holes for easy tool access & shock bolt removal.

This item ships as unwelded & unfinished. Welding required. Sold as a pair. Weight = 61 lbs

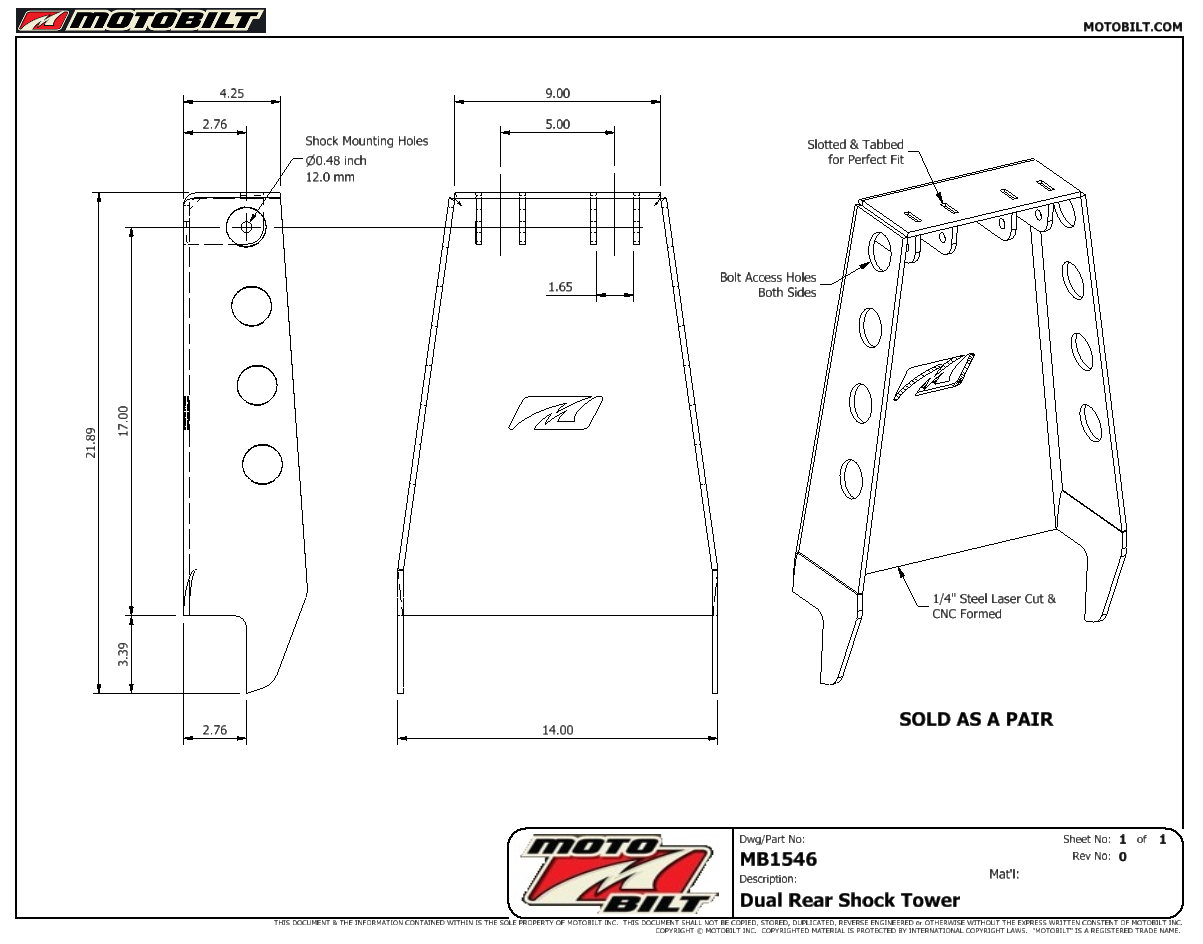

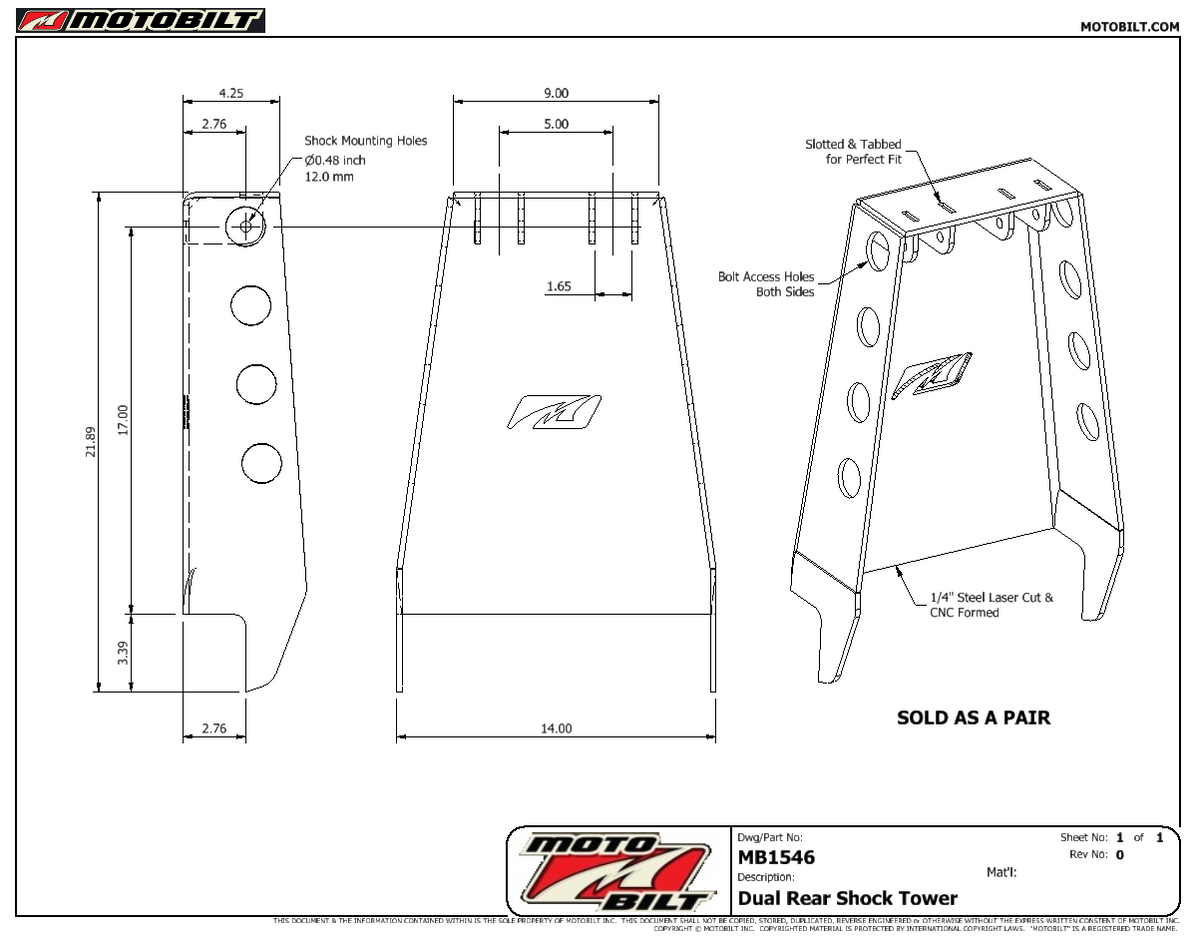

See our measured drawing in the photos above for additional details & features.
