Body mounted rocker protection has limits, especially once a Jeep JK starts seeing hard trail use and real rock contact. Builders know that when a rocker takes a hit, where that load transfers matters. If the impact loads the body and body mounts, damage follows. That is the problem these frame mounted rocker guards were built to solve.

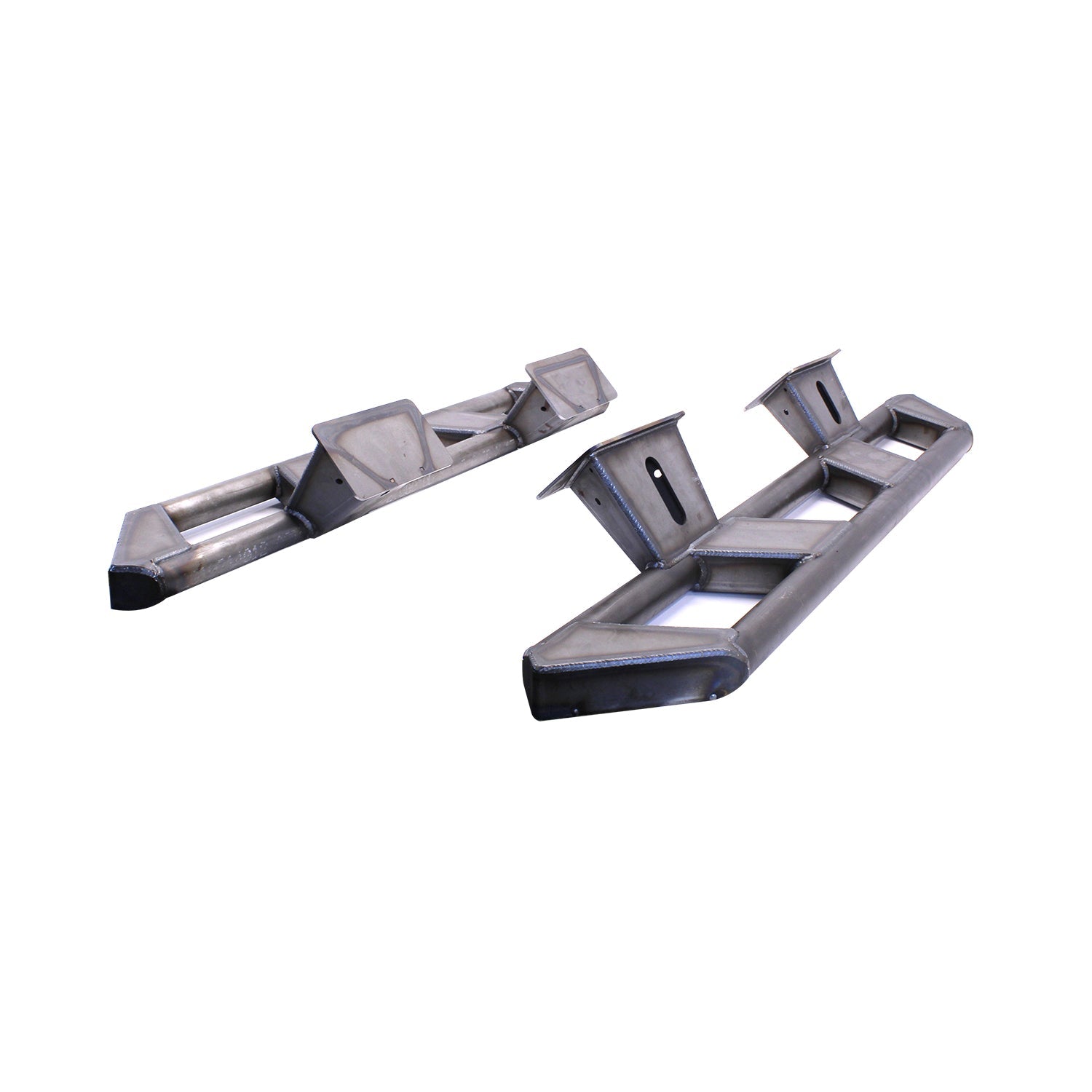

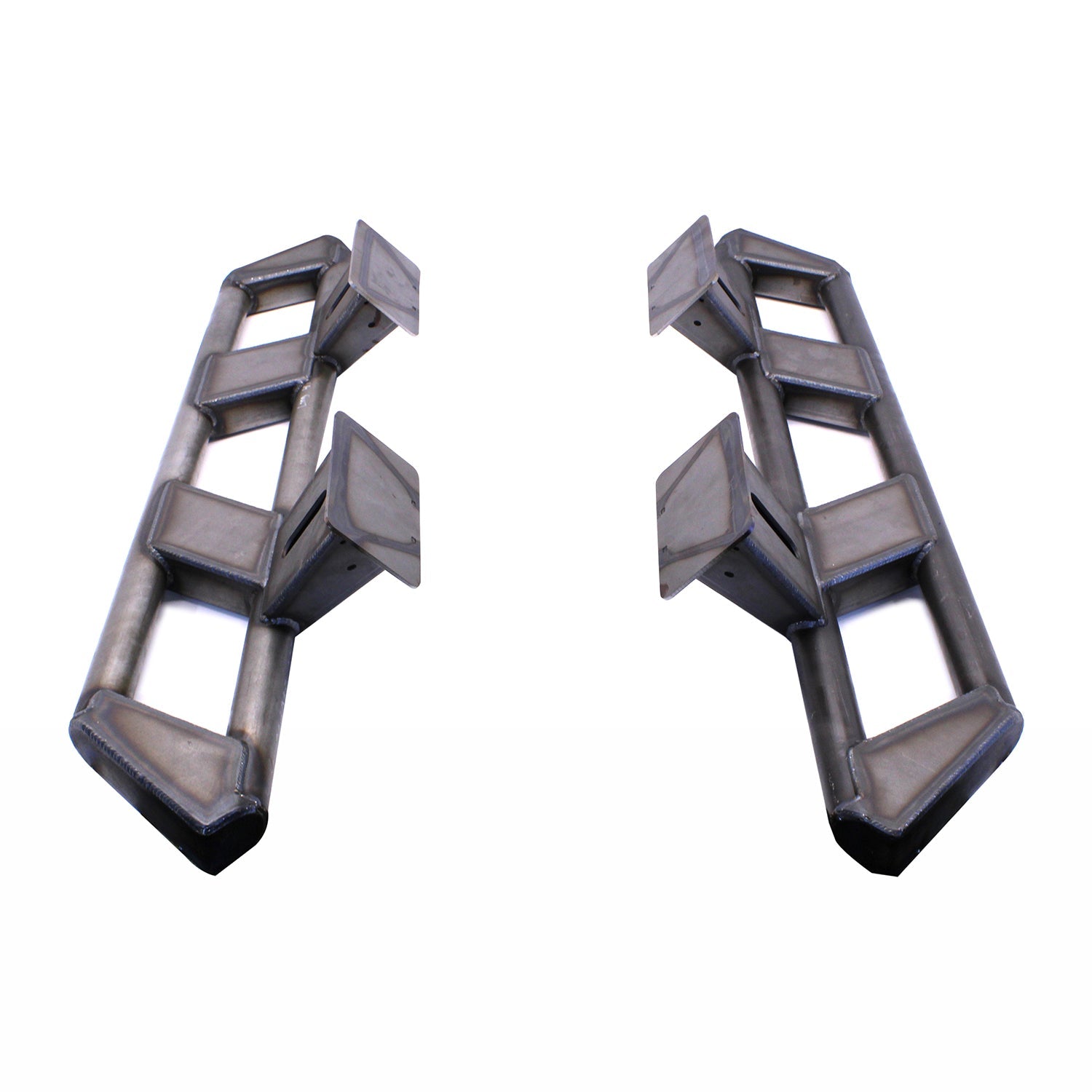

The Motobilt Frame Mounted Rocker Guards for Jeep JK 2 Door weld directly to the frame so impacts transfer into structure instead of sheet metal. When the rocker contacts rocks, ledges, or trail obstacles, the force moves into the frame where it belongs. That changes these from simple rocker protection into real structural armor. They are strong enough to be used as a jack point and built for the kind of abuse serious rock crawling delivers.
The mounting structure is built from 3/16 inch laser cut and CNC formed steel, creating boxed frame mounts that spread loads far beyond traditional tube mounts and gusseted designs. The 2 inch DOM outer tube provides a strong slider surface while formed end caps and center bracing add rigidity throughout the system. This is not body armor designed around appearance. It is chassis-mounted protection built around impact loads, strength, and durability.
Designed and manufactured by builders who understand what happens when a Jeep lands on the rocker, these frame mounted sliders were built for real trail abuse. Whether the goal is protecting body panels, using them as a functional slider, or building a Jeep for harder rock crawling, these rockers are designed to become part of the chassis protection system.
Want To Know More?
Get the Details
Find all the information you need to get the right part for your rig.
Important Information
Designed for 2007–2018 Jeep Wrangler JK 2 Door
Weld-on frame mounted rocker guard system
Constructed from 3/16 inch laser cut and CNC formed steel
Features 2 inch DOM steel tubing slider
Can be used as a high lift jack point
Works with factory fender flares
Sold as a pair
Ships fully welded in bare steel
Requires welding and coating before use
Long arm suspensions mounted outside frame rails may require Part Number MB1257
Product Specifications
Vehicle Fitment
2007–2018 Jeep Wrangler JK 2 Door
Material
3/16 Inch Steel Plate
2 Inch DOM Steel Tubing
Construction
Laser Cut and CNC Formed
Fully Welded Assembly
Mounting Style
Frame Mounted Weld-On
Finish
Bare Steel
Quantity
Sold as Pair
Manufactured
Made in the USA
Notes
Test fit before final coating or welding.
Powder coating should only be done after confirming placement.
Coating must be removed at weld locations before installation.
Always disconnect battery cables before welding on the vehicle.
Installation should be performed by an experienced welder or fabricaton.
Frequently Asked Questions
Why choose frame mounted rocker guards over body mounted rock sliders?
Frame mounted rocker guards transfer impact loads directly into the frame instead of the body and body mounts. That provides far better protection when sliding on rocks or taking hard trail impacts.
Can these rockers support the weight of the Jeep?
Yes. These rockers are strong enough to be used as a high lift jack point and are built for structural support in off-road use.
Will these work with factory fender flares?
Yes. These rocker guards are designed to work with factory fender flares on Jeep JK 2 door models.
Will these work with long arm suspension systems?
Some long arm suspensions that mount outside the frame rails can interfere with the mounting brackets. For those applications, Motobilt offers the long arm version under Part Number MB1257.
Are these bolt-on rock sliders?
No. These are weld-on frame mounted rocker guards intended for builders who want structural protection tied directly into the chassis.
