15 Gallon Fuel Cell w/ -AN Fittings 30x12x9

15 Gallon Fuel Cell w/ -AN Fittings 30x12x9

Name: 15 Gallon Fuel Cell w/ -AN Fittings 30x12x9
Brand: Motobilt
SKU: MB5005-3AN
Price: 439.00 USD
Availability: InStock

Regular price $439.00

Shipping calculated at checkout.

Unit Price: / Sku: MB5005-3AN

Fits: Jeep Wrangler TJ / LJ

Select Option:

Quantity:

View product details & documents

Product details

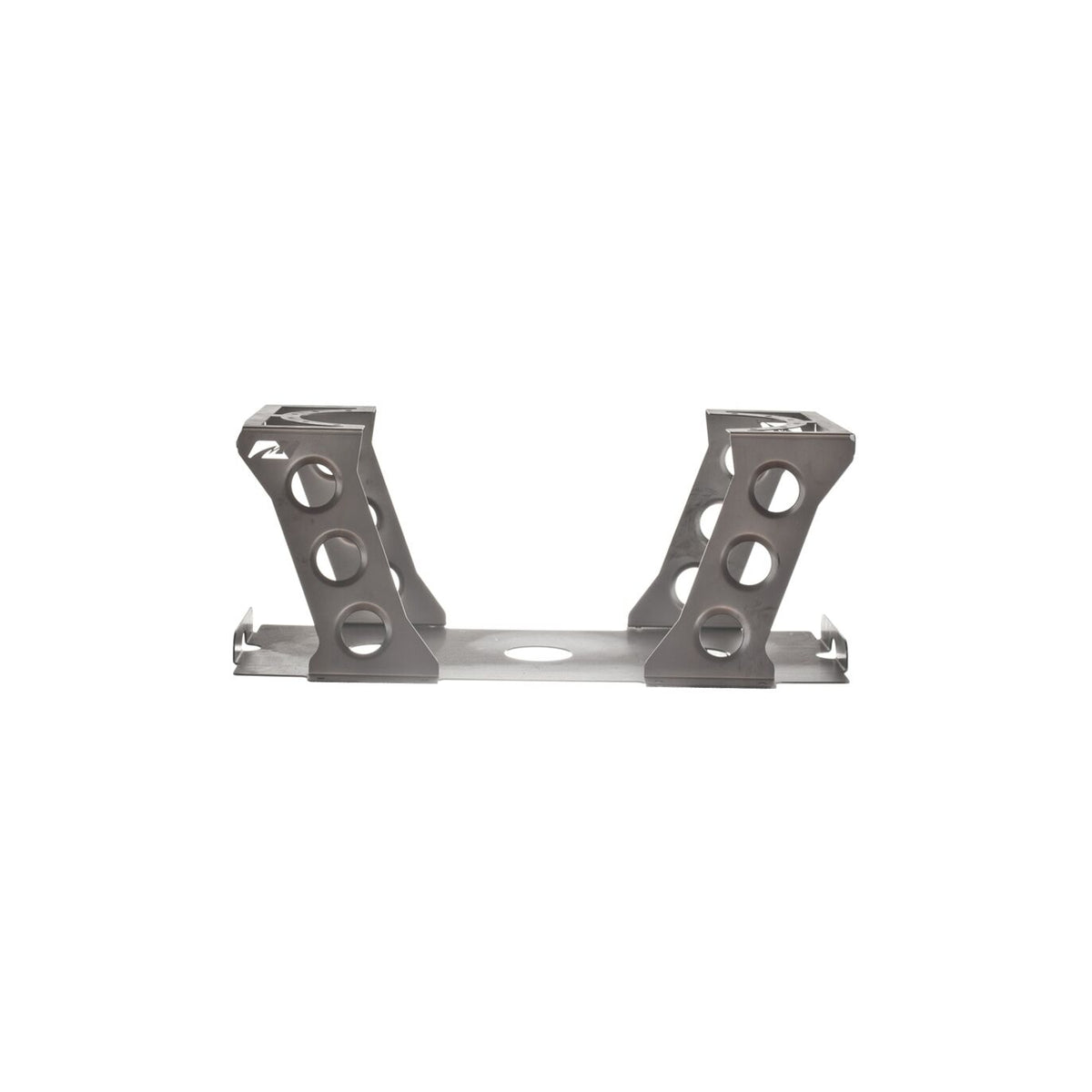

The Motobilt 15 Gallon Fuel Cell is a tank that utilizes an external fuel pump. Motobilt offers a solution for relocating the fuel tank in your vehicle. The Motobilt MB5005-3AN was designed to fit in the back bed of your Jeep, truck, or buggy. It is 30 inches L x 12 inches H x 9 inches W and can fit behind your seat if you choose. The tank has a capacity of roughly 15 US gallons. The Motobilt fuel tank is CNC cut from 1/8 inch aluminum and formed on a press brake, is TIG welded for ultimate strength, and includes a large D-ring style cap. This can be converted to remote fill by purchasing a different filler neck system that utilizes a 12 bolt, 5.38 bolt circle flange. The Motobilt MB3000 fuel cell mount will fit this tank perfectly. The kit consists of three parts: the main under-tank plate and two clamp bodies. The under tank plate is CNC Laser Cut from 1/8 inch high strength steel plate. You can weld your own mounting brackets to the bottom if needed or utilize the 8 bolt holes already in the mount.

The 2 clamp-down bodies capture the top and all four sides of the tank and bolt securely to the mounting base. These parts are CNC Laser Cut but from 18 gauge steel. The parts are formed on a hydraulic press brake. This mount will ensure your fuel cell is mounted securely. The Motobilt tank features 3 number 8 -AN fittings on top of the tank which are tig welded into place. The fittings are for the vent line with an included rollover valve pre-installed inside the tank. The tank also includes a fuel pick-up with hose and mount inside the tank and a return line fitting. When installing the fuel cap assembly, we recommend using Permatex 80016 Form-A-Gasket number 2 Sealant to seal the contact surfaces. This is a sealant we have used in the shop numerous times over the years for sealing filler caps on fuel cells.

This fuel cell is used for applications where you are extending the wheelbase and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed. This kit works perfectly with the Motobilt Jeep TJ Back Half kit or Motobilt Jeep LJ back half kit, where the frame rails are moved up and in for ultimate clearance.

Specifications

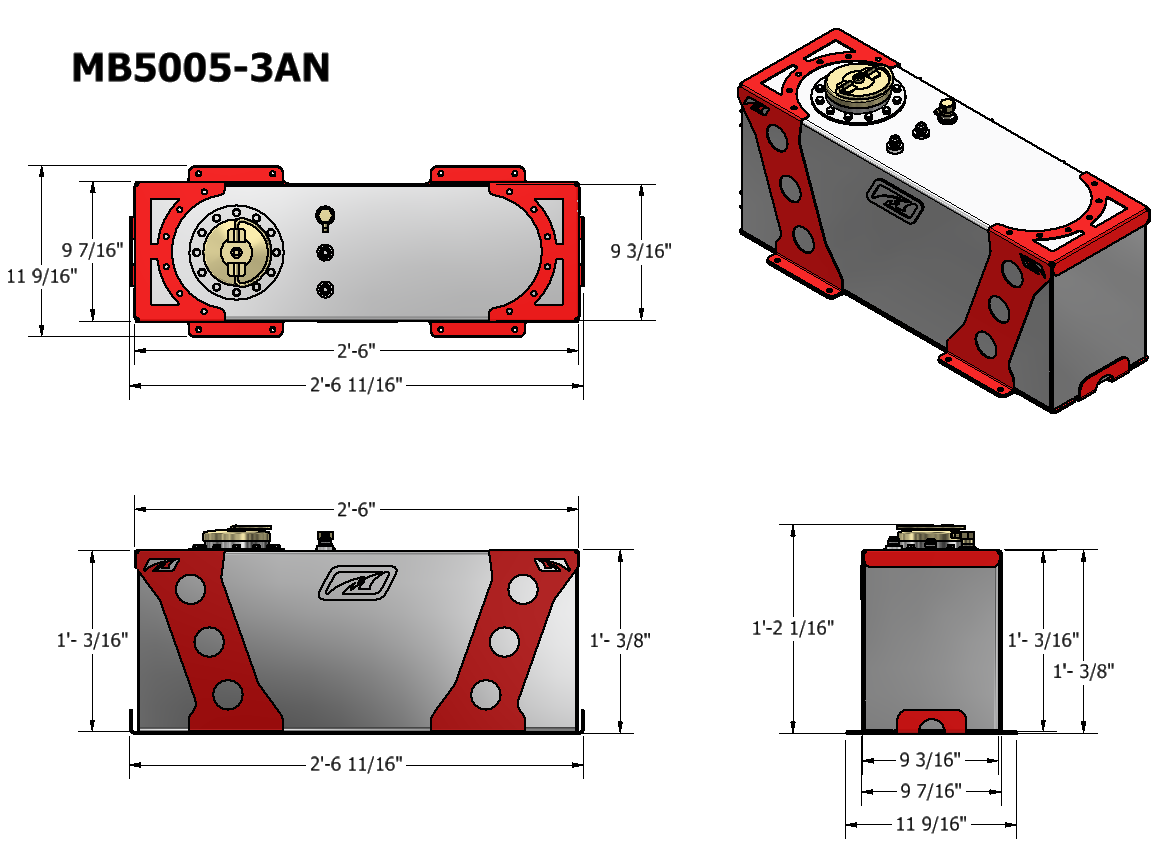

Dimensions: 30 inch L x 12 inch H x 9 inch W
15 US gallons capacity
CNC cut from 1/8 inch aluminum
Press brake-formed
Includes a large D-ring style cap

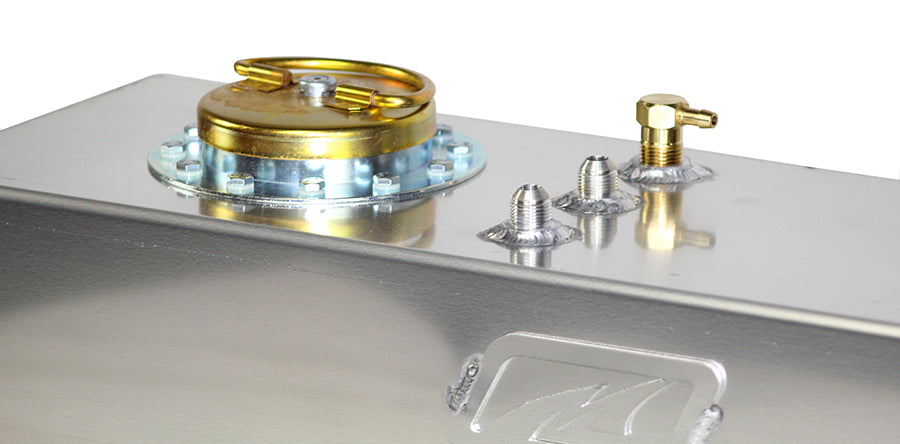

2 number 8 -AN fittings on top of the tank which are tig welded into place
1 tig welded threaded insert with a 90-degree brass rollover valve with barbed hose end
Fuel cell mount with dimple dies available under the related parts tab.
Weight:

Fuel cell alone = 15lbs
With Mount = 40lbs

Note:

This Fuel Cell Does Not mount in between the frame rails. It will only mount inside the bed of the Jeep
Mount sold separately PN MB3000. (See Related Parts)
This fuel cell is used for applications where you are extending the wheelbase and the rear axle would contact the factory fuel tank. It would also be used in situations where more ground clearance is needed.
We recommend using Permatex 80016 Form-A-Gasket number 2 Sealant to seal the contact surfaces including the fuel filler cap assembly as the gasket can deteriorate due to ethanol.
Fuel cell and mount package is available by using the drop-down menu option.

FOR OFF-ROAD USE ONLY.
