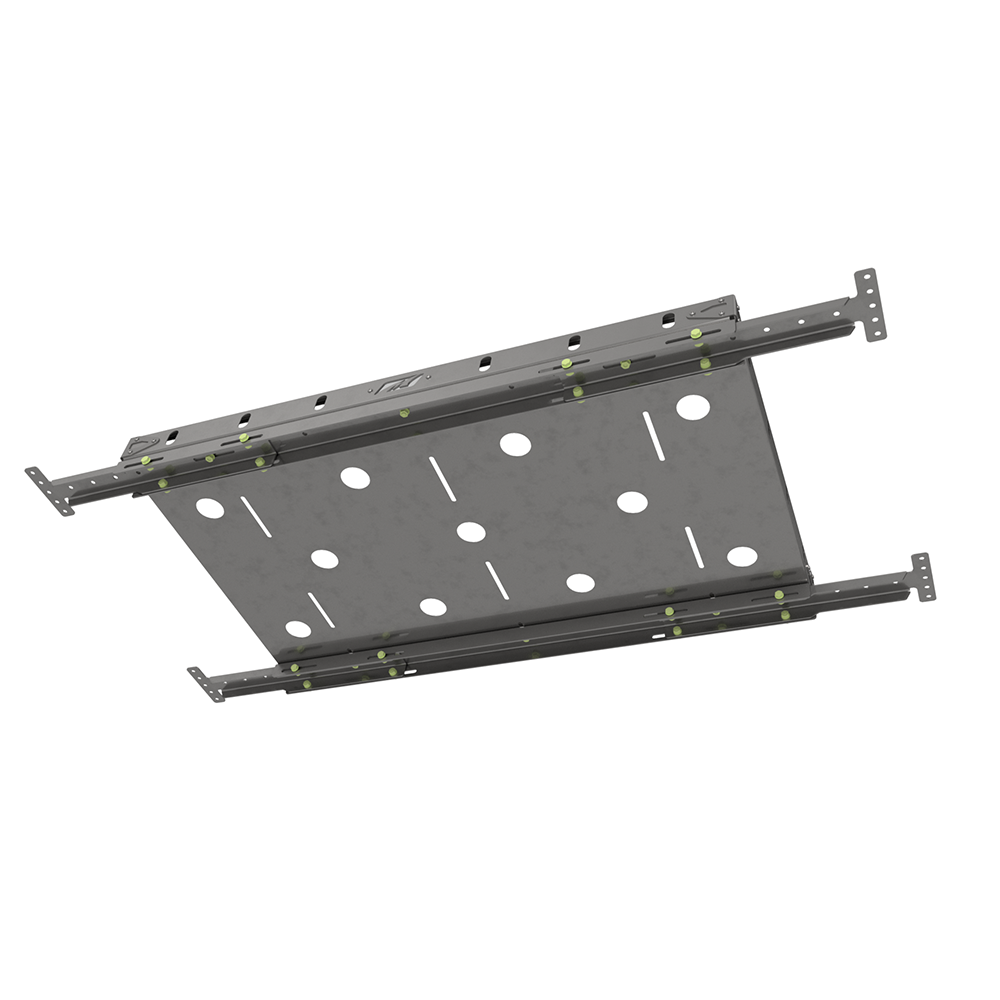

The Motobilt TJ, LJ, YJ Cargo Rack System is a great raised storage solution for your Jeep TJ, LJ or YJ Wrangler. This can also be used in the bed of the Jeep Gladiator with our adapter brackets that allow installation to the bed rails.
Cargo racks come powder coated black or bare metal & include assembly hardware.

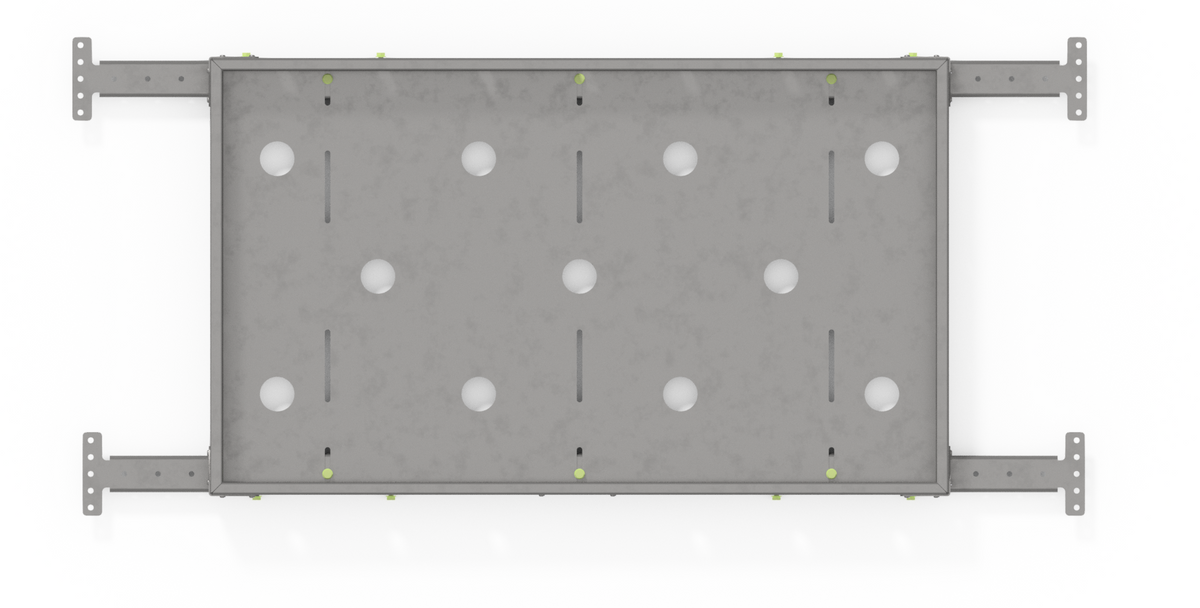

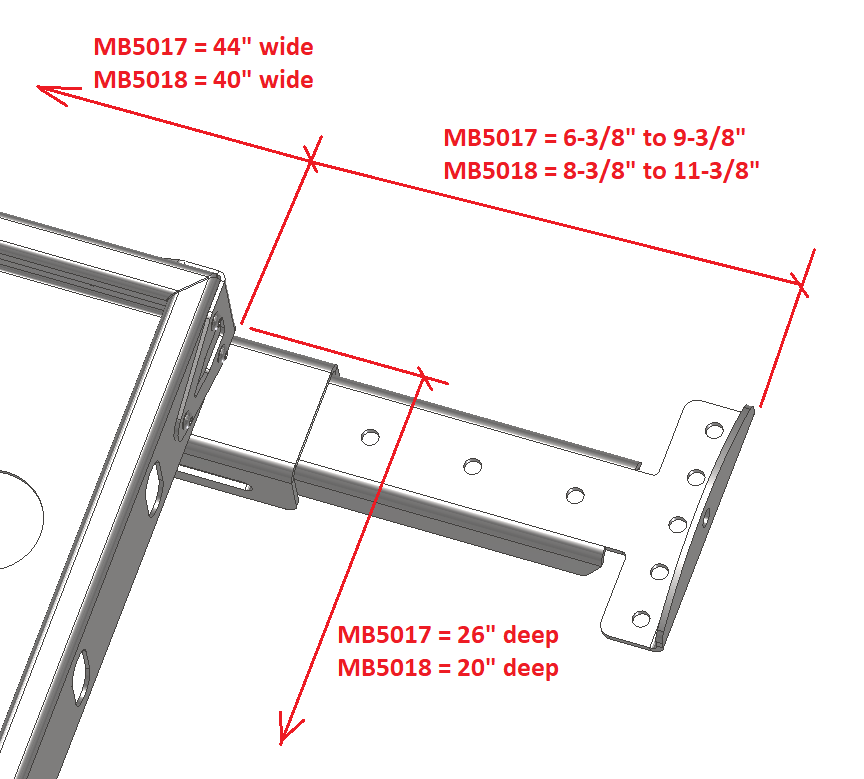

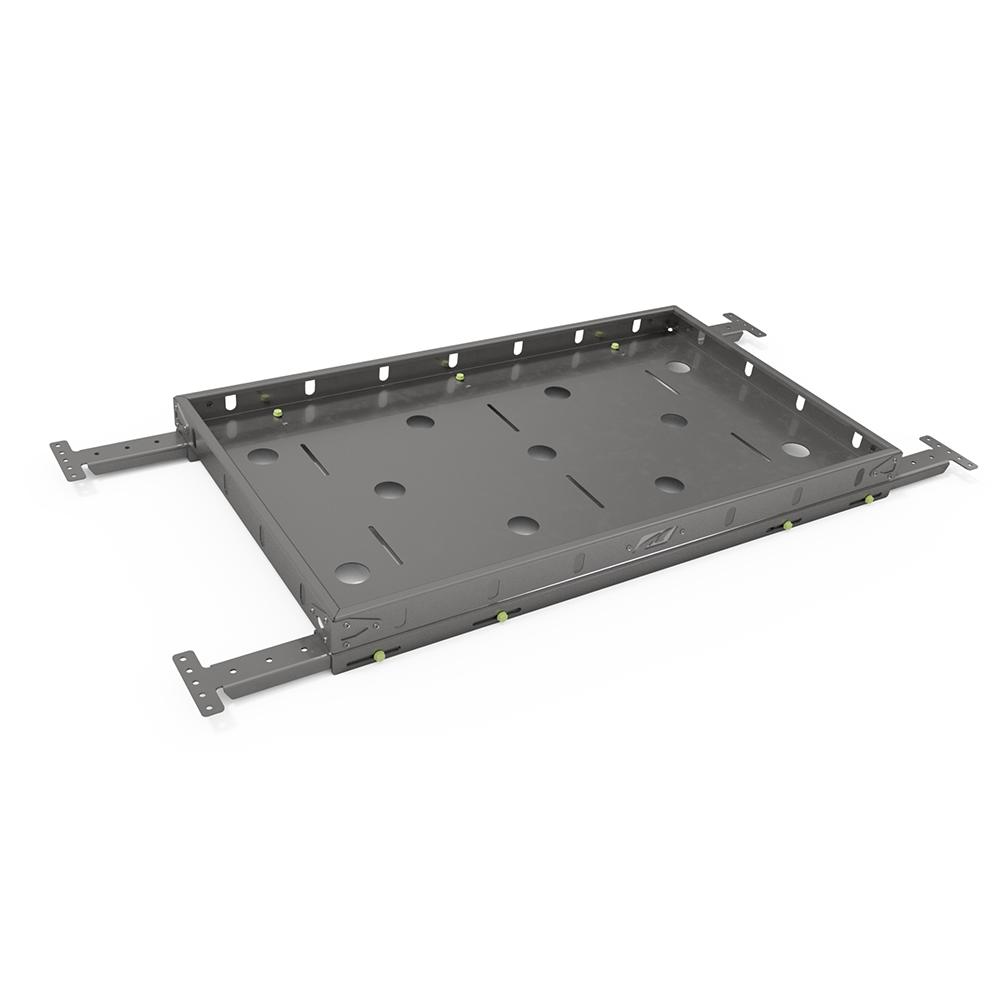

Constructed from 14 Ga CNC laser cut & CNC press brake formed high grade steel, the 8.0 cu. ft. Cargo Tray measures 44"W x 26"L x 2.5"D. The Cargo Tray features multiple tie down locations for safely securing your cargo over even the roughest of trails.
Rated at 200 lb carrying capacity, the Motobilt TJ, LJ, YJ Cargo Rack System is one of the strongest & highest rated carrying capacity cargo racks available on the market, thus, you have the assurance that your heavy extra cargo will be secure.
We've included four bolt-on corner reinforcements, which are functional for added corner strength & add an extra custom styling cue to your vehicle.

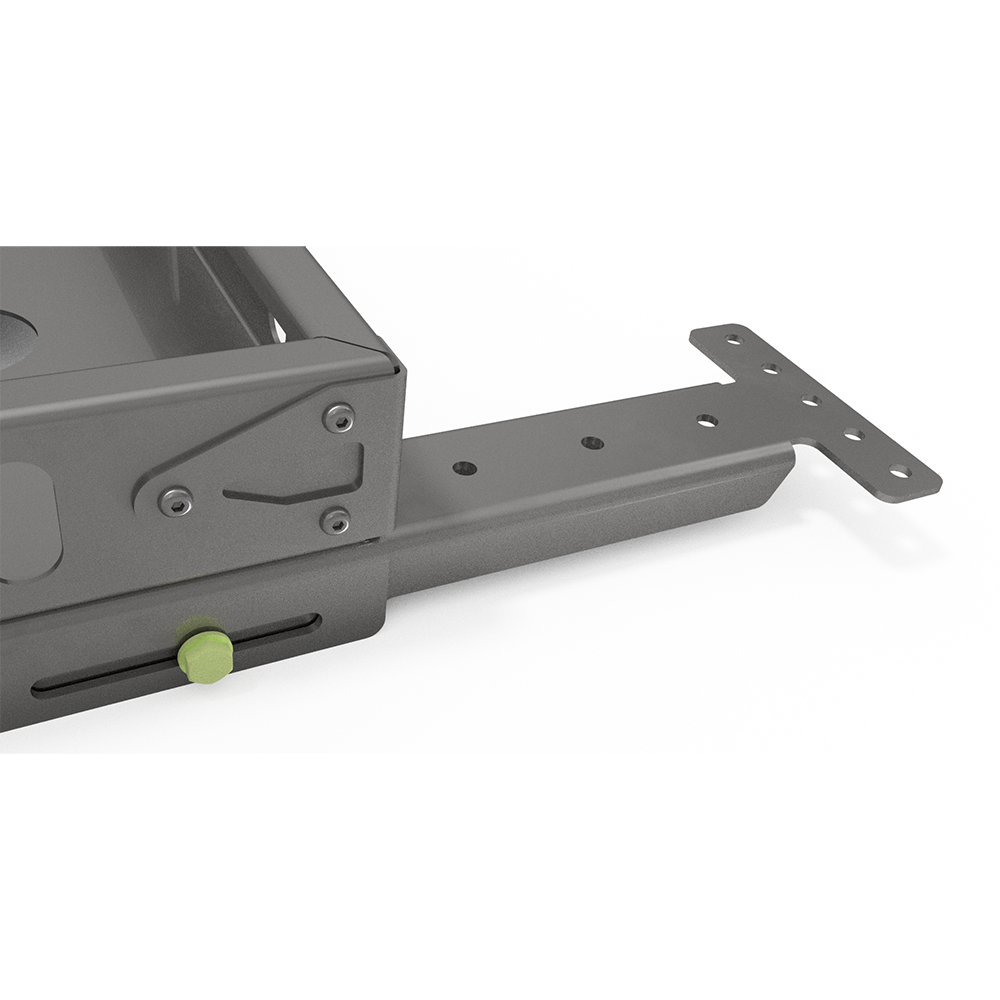

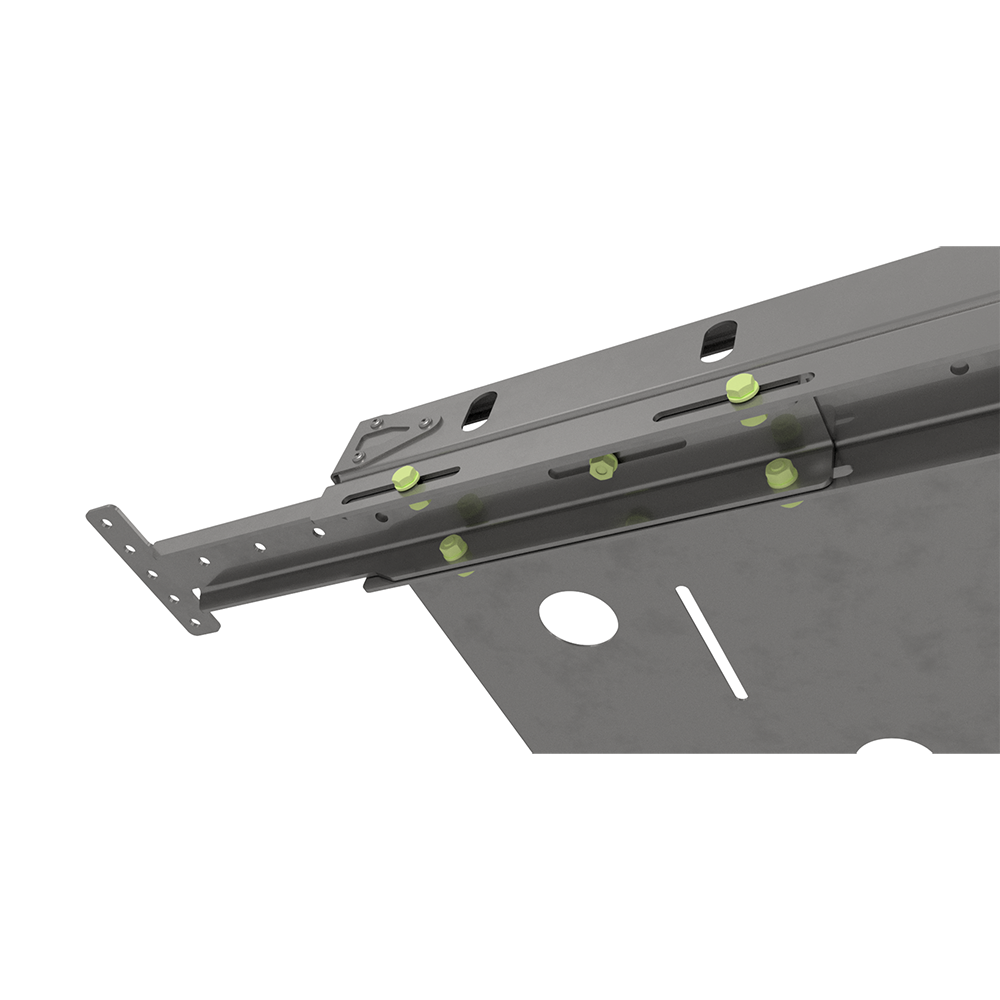

The adjustable Universal Mounting Beams are constructed using 11 Ga high grade CNC laser cut & CNC formed steel. The Mounting Beams can be mounted with a hard top, with a soft top (up) or without a top at all. The Mounting Beams reuses your factory top mounting locations & factory hardware & can be positioned in multiple locations for adjustability.
The Mounting Beams also include extra tie down points & extra mounting holes to bolt-on other accessories.
For the 2 Door Jeep TJ, LJ or YJ, the Cargo Rack can be mounted with the rear seat folded in the "down" position only or with the rear seat removed.
