Crusher Series Front Bumper w/ Bull Bar for Jeep JL / JT Gladiator Motobilt

MB1078-B

Crusher Front Bumper w/ Bull Bar for Jeep JL / JT Gladiator

Name: Crusher Front Bumper w/ Bull Bar for Jeep JL / JT Gladiator
Brand: Motobilt
SKU: MB1078-B
Price: 839.00 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$839.00

Shipping calculated at checkout.

Installation Difficulty:

Compatible With:

JLJLUJT

Product variants

Quantity

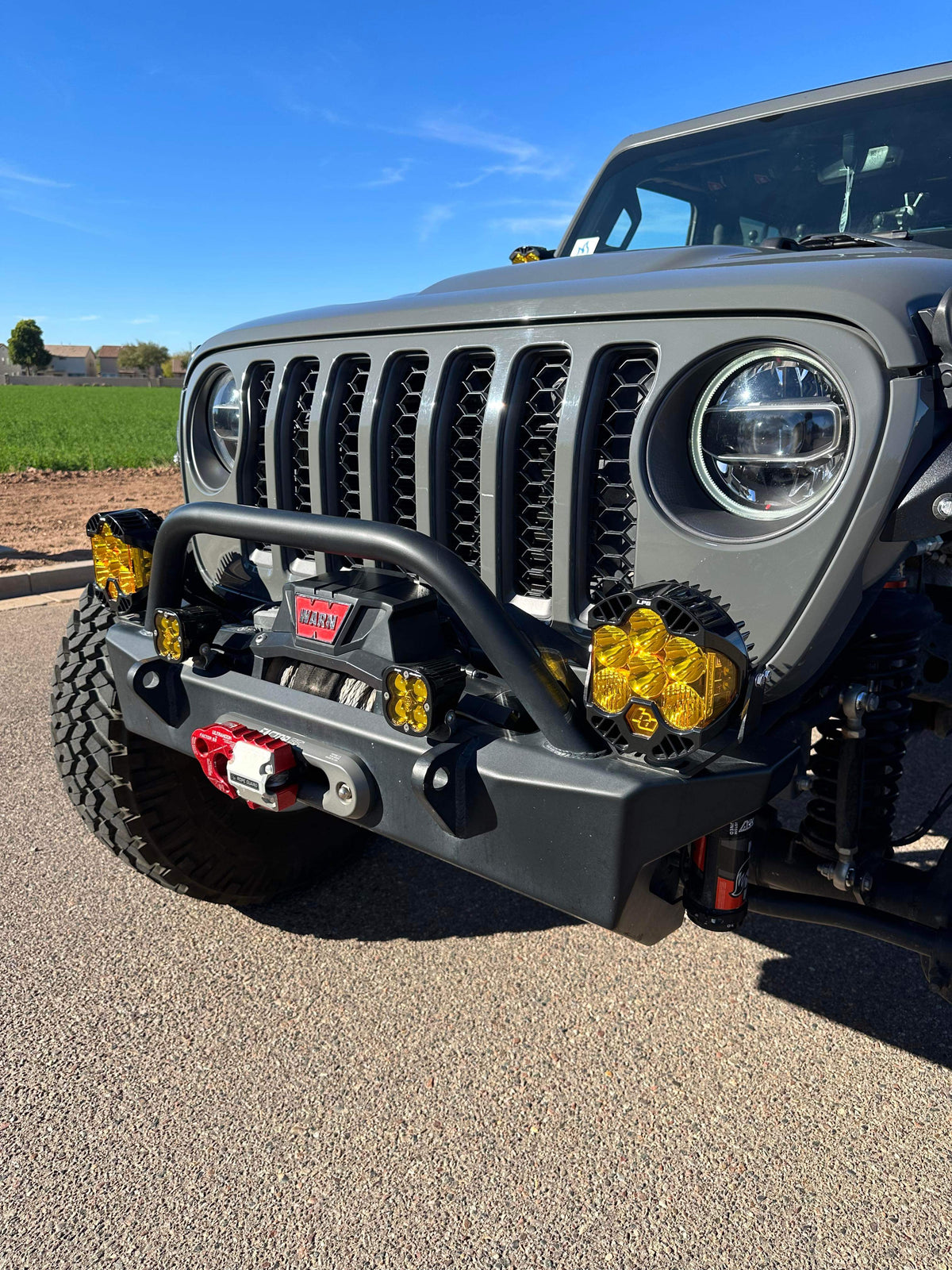

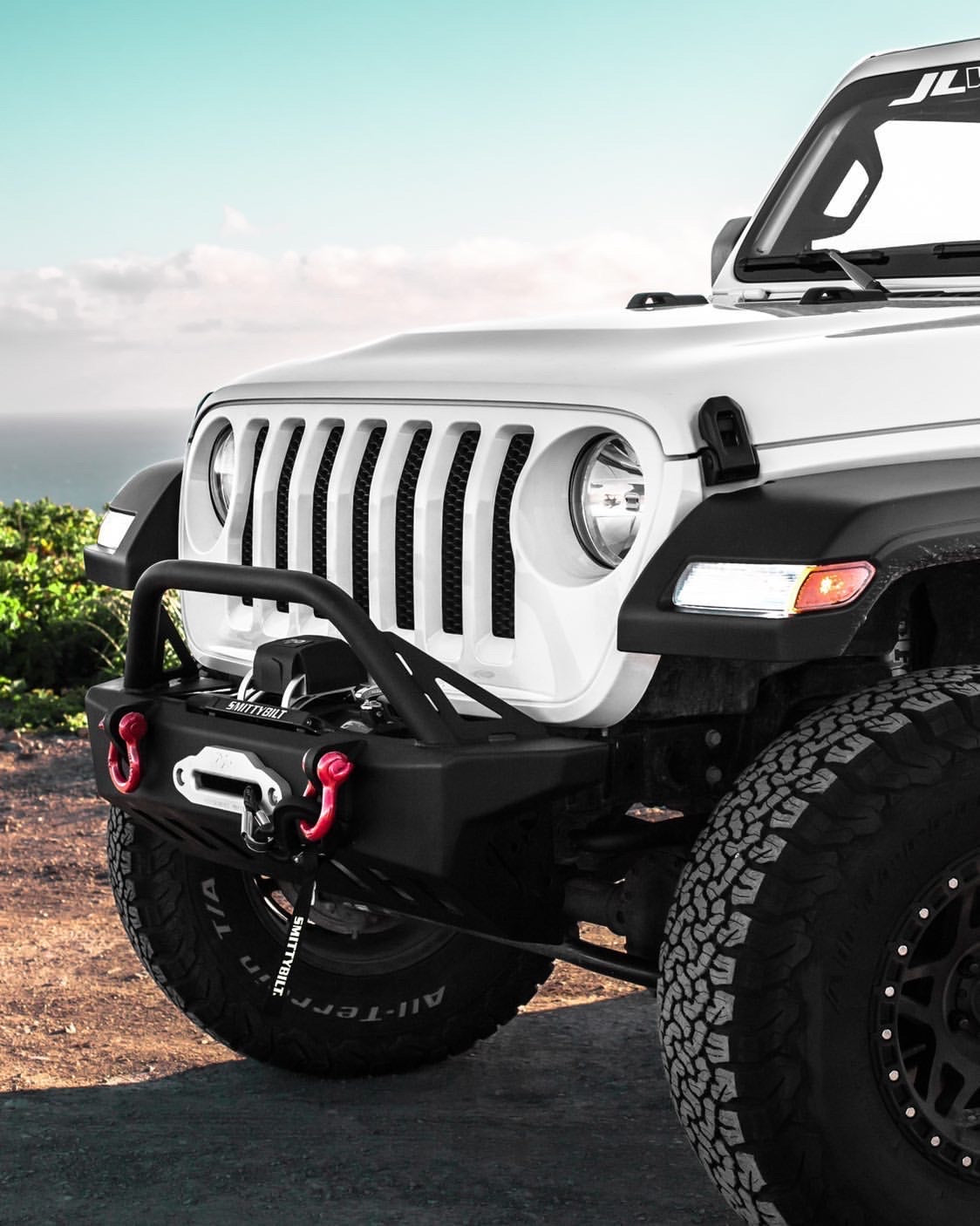

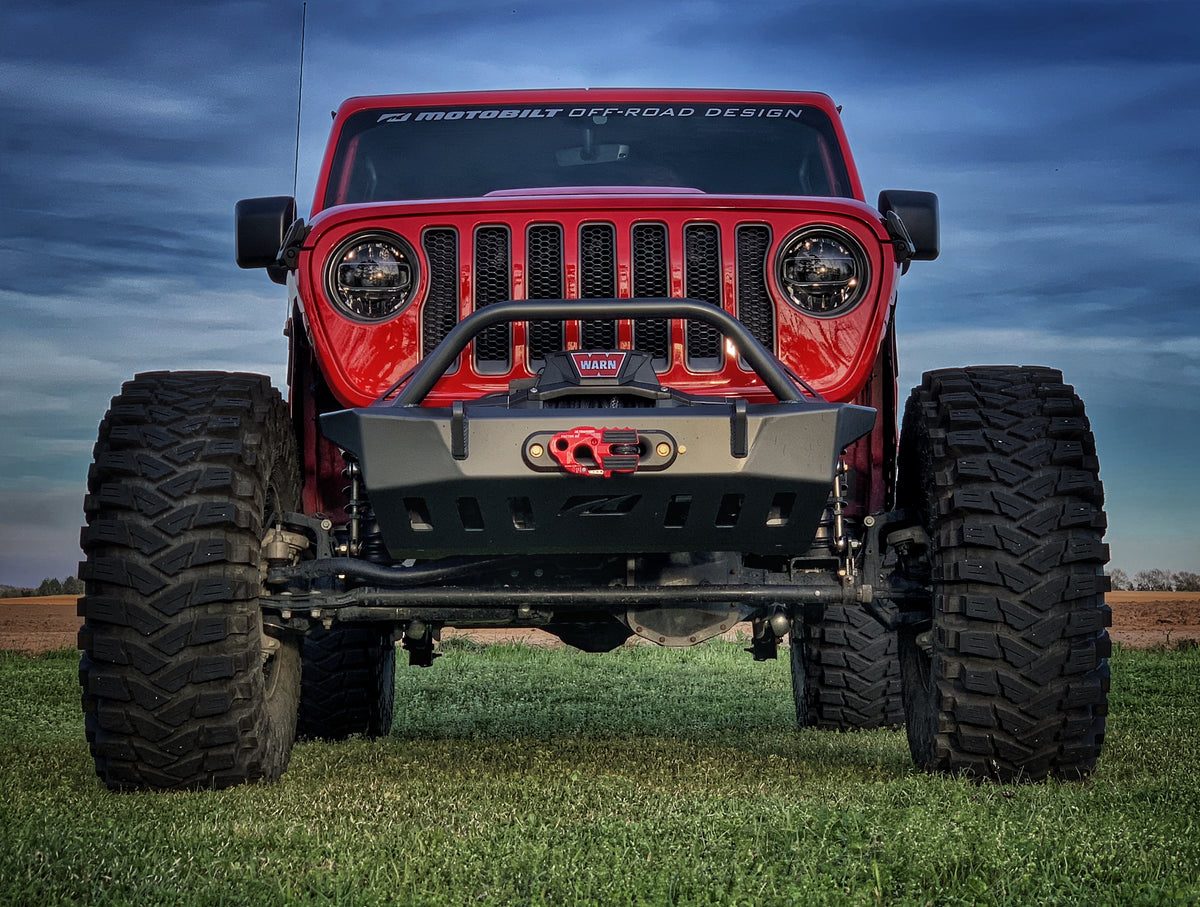

Jeep JL and JT recessed winch bumper with bull bar mounts winch low for better clearance, protection, and recovery strength.

Assembly Instructions

Once you add a winch to a Jeep JL or JT, the factory bumper and many aftermarket options start to create new problems. High-mounted winches sit out in front of the grille, affecting airflow and putting more leverage on the frame. They also reduce approach angle and leave the winch more exposed to trail damage.

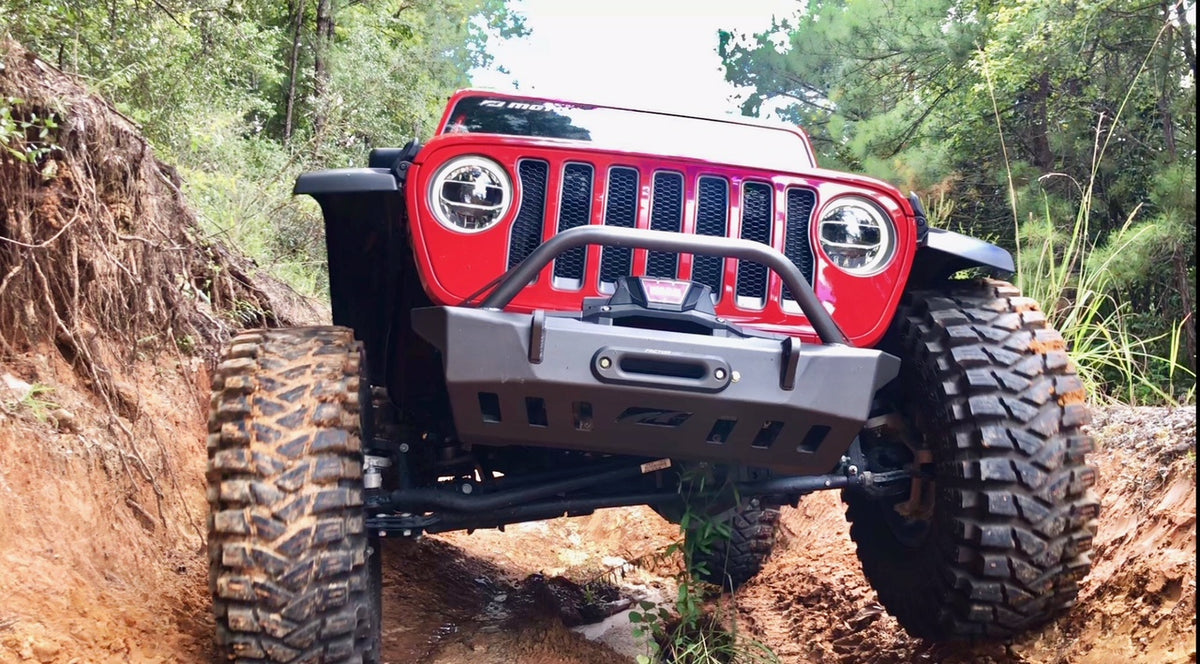

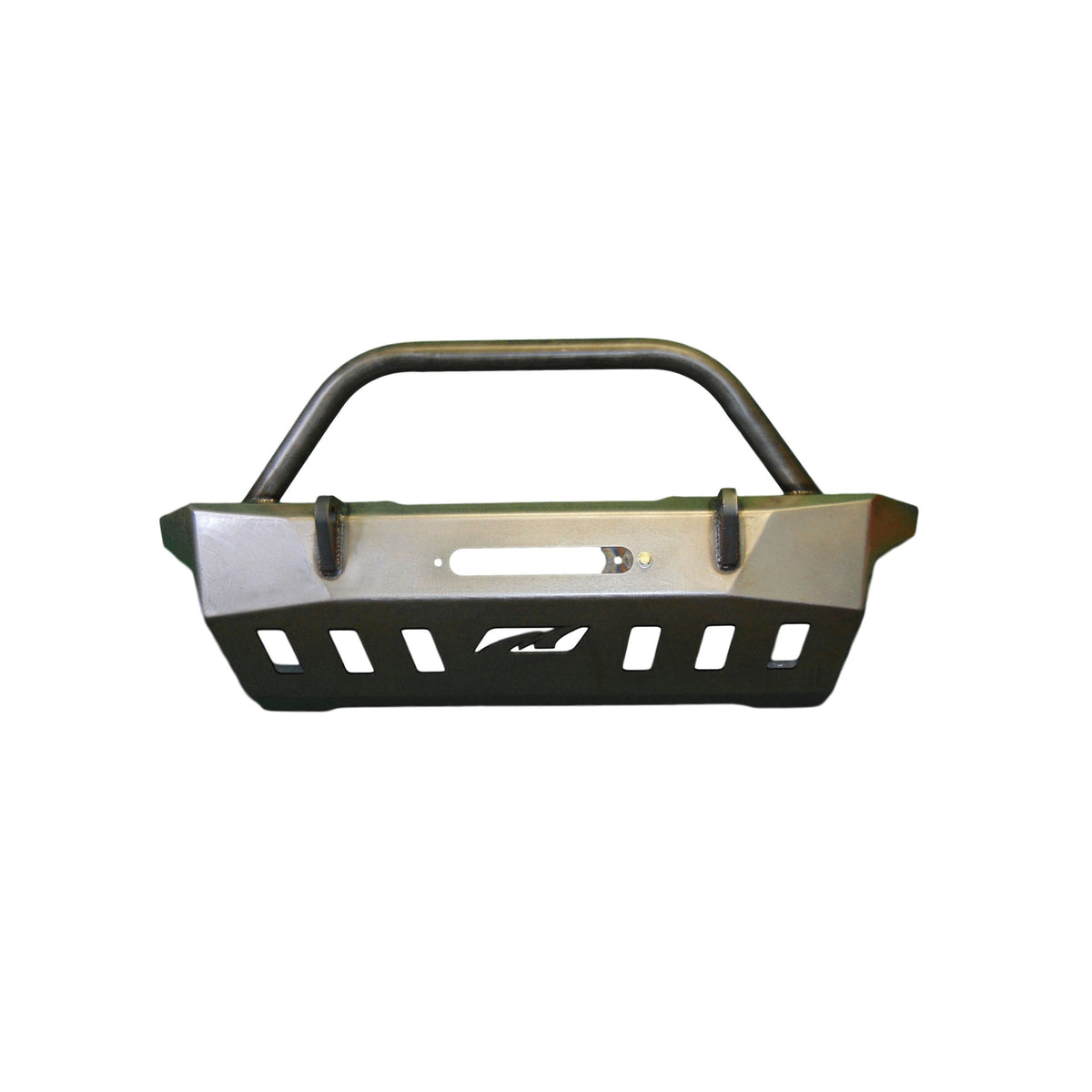

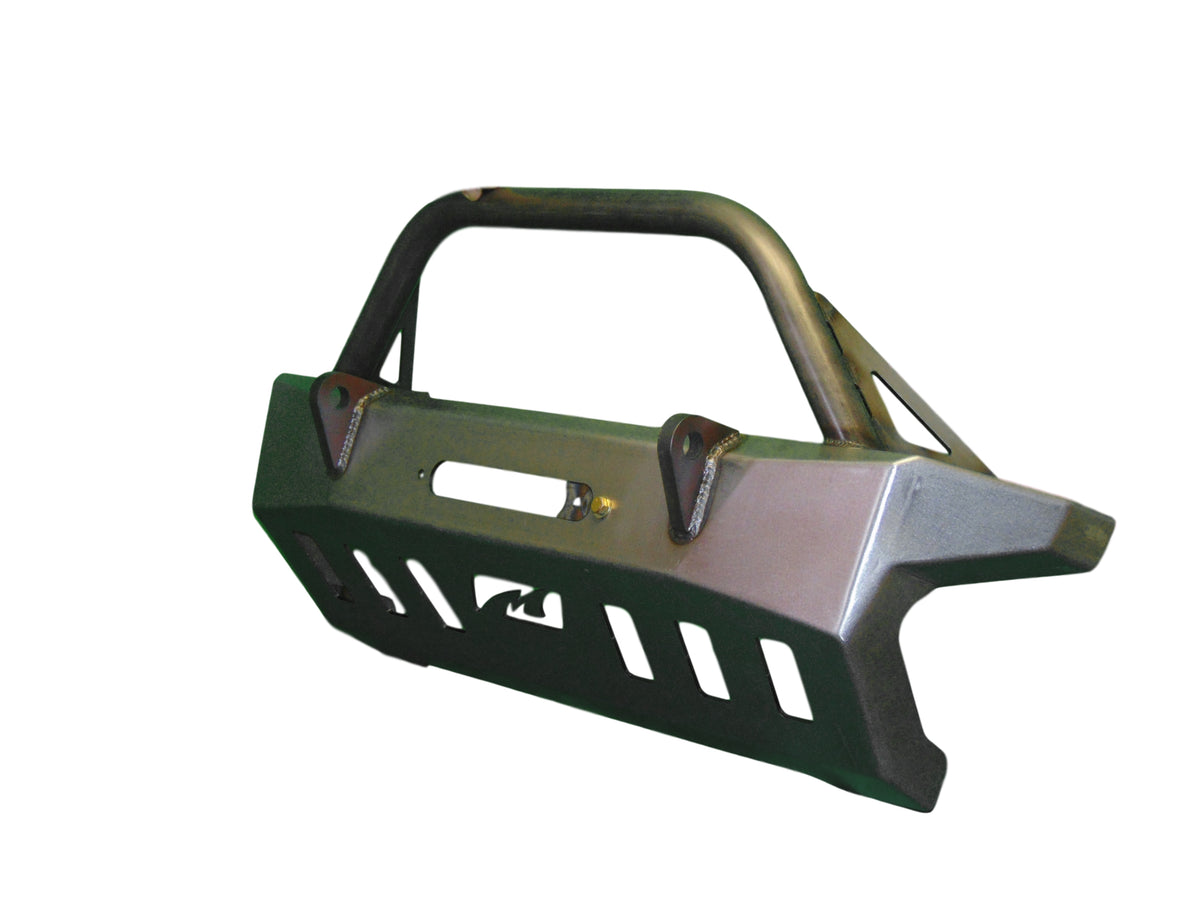

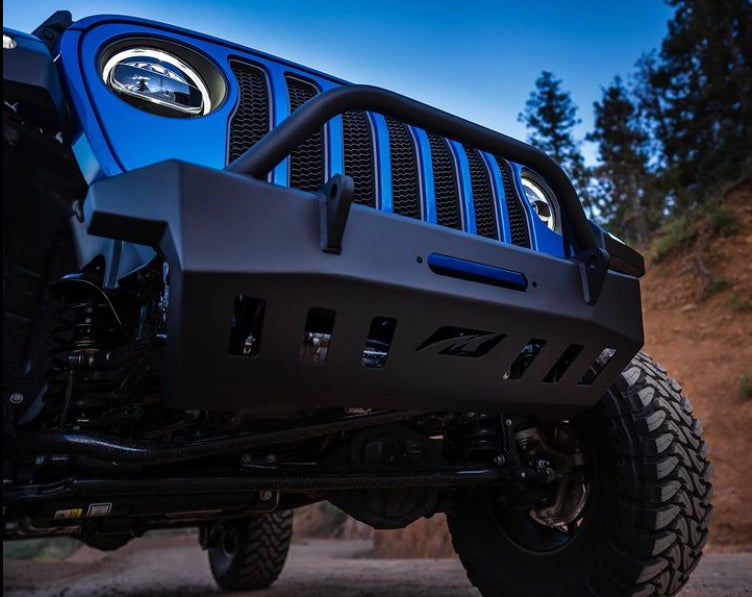

The Motobilt Crusher recessed winch bumper with bull bar is designed to keep the winch low and tight between the frame rails. This improves weight distribution and protects the winch while maintaining a better approach angle. The integrated skid plate helps protect the front crossmember and underside when the front end comes into contact with obstacles.

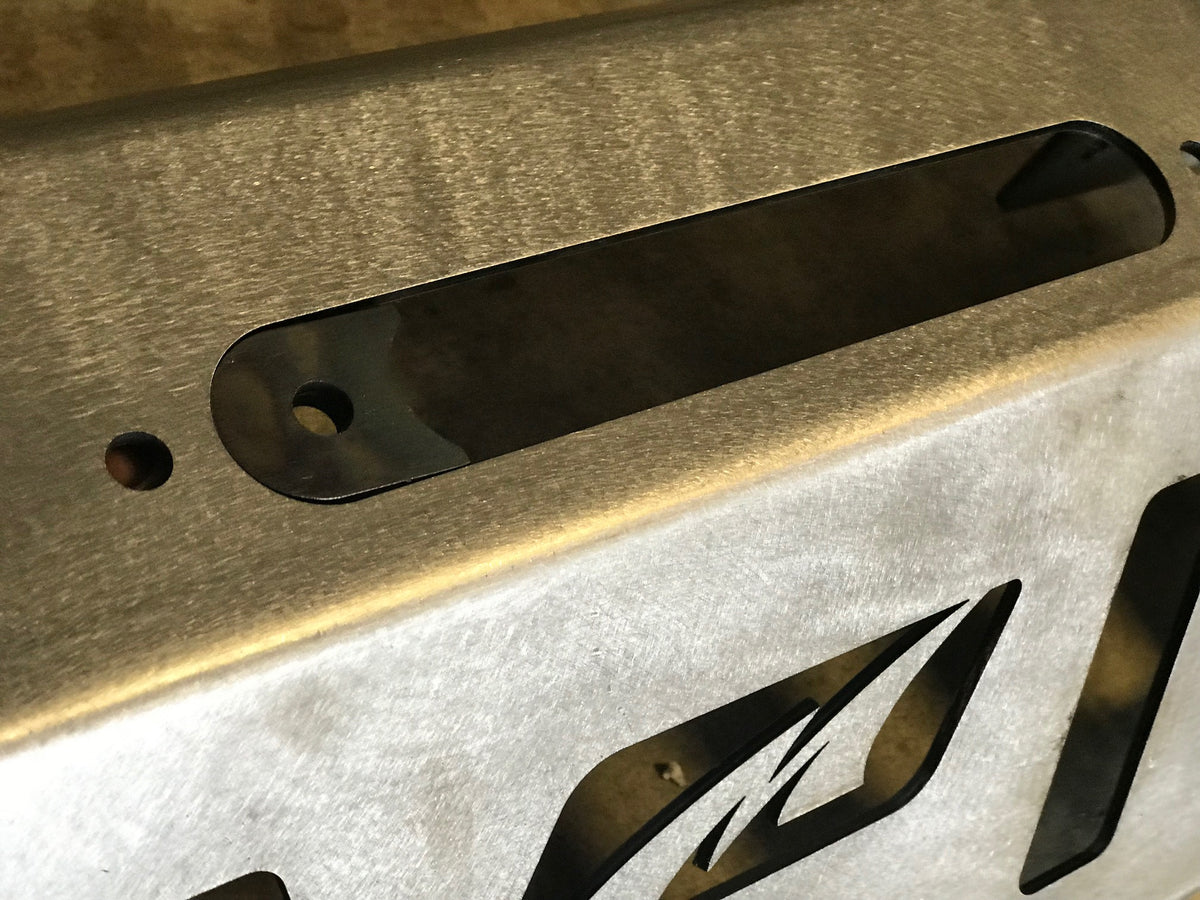

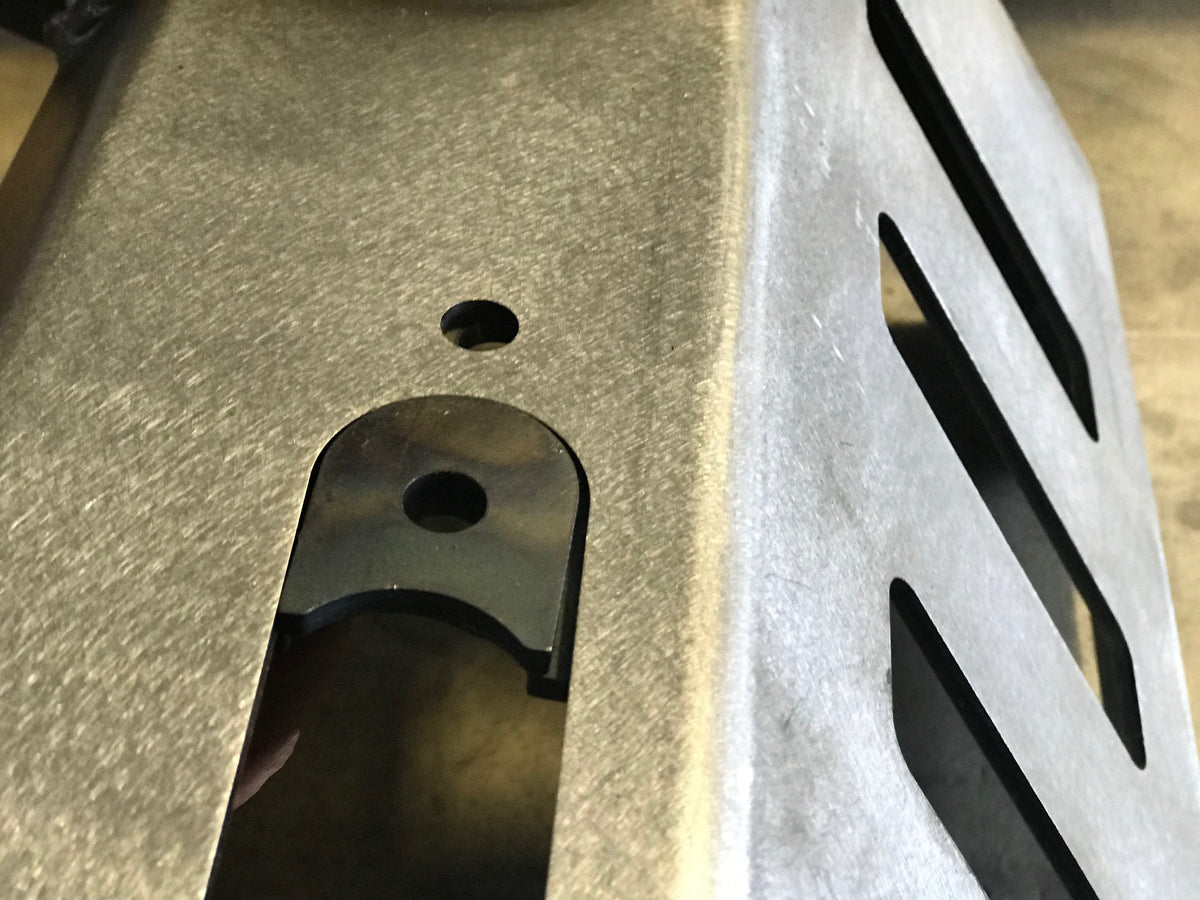

The bumper is built from 3/16 inch thick steel plate that is laser cut and CNC formed. Recovery points are constructed from 3/4 inch thick laser cut D-ring mounts that pass through the bumper and are welded on both sides. This ties the recovery points directly into the structure so they can handle real recovery loads.

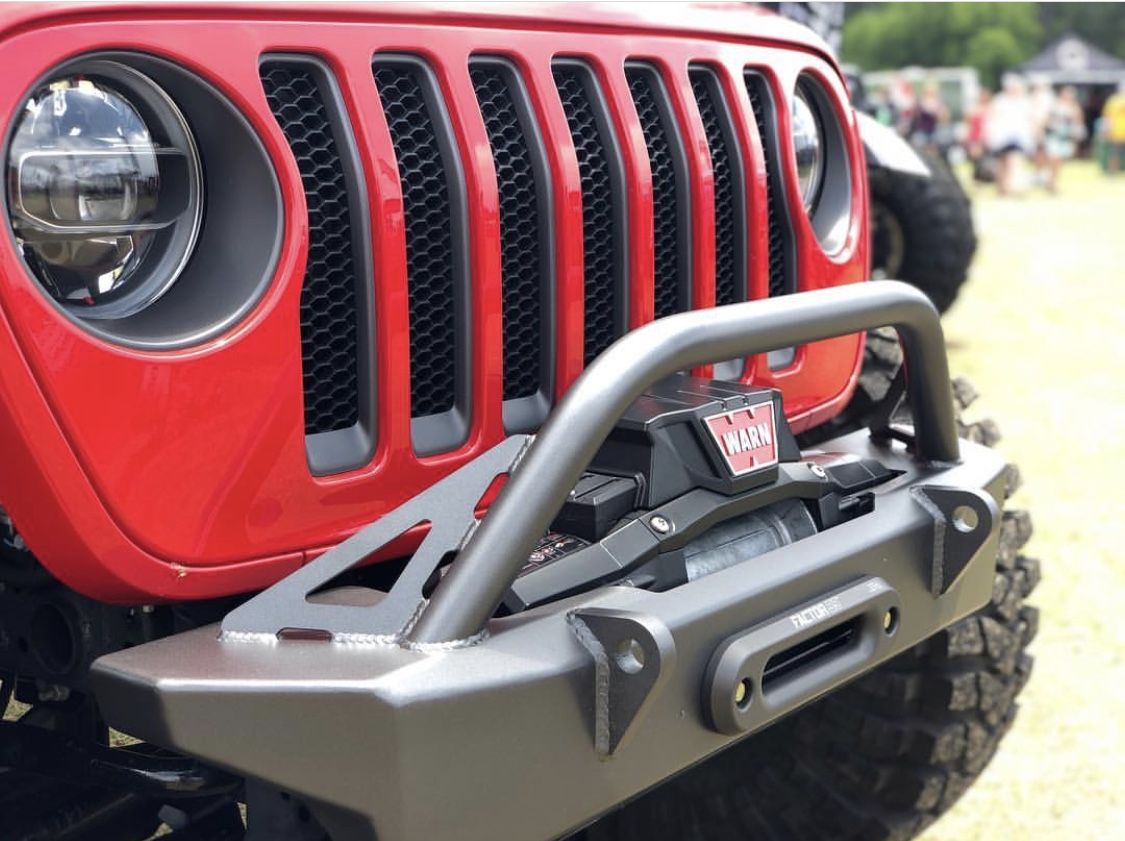

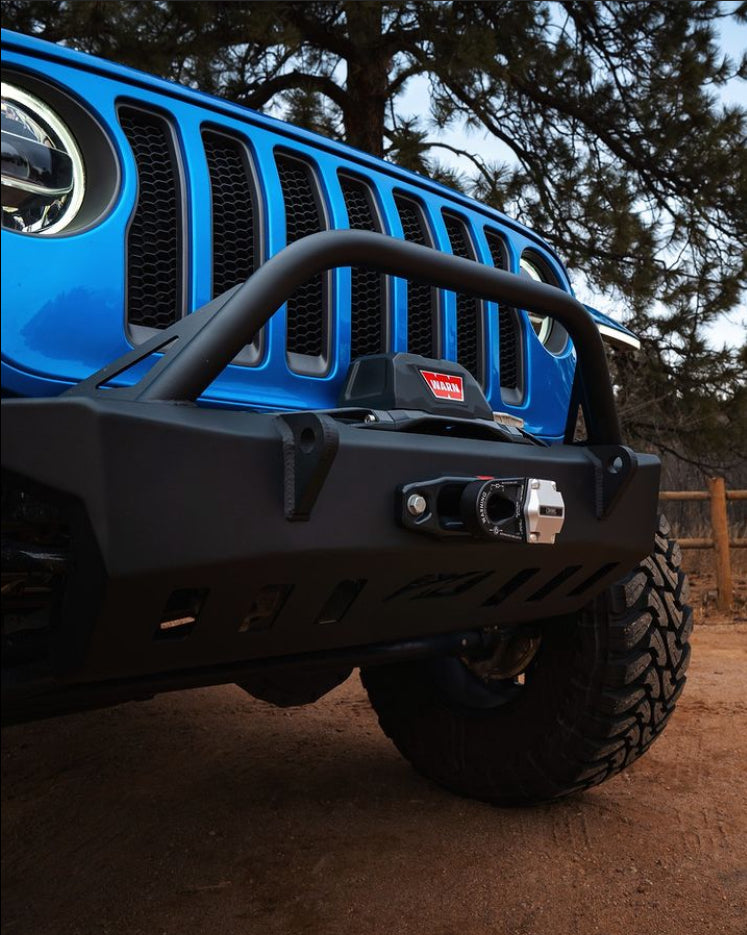

The addition of the bull bar adds protection for the winch and front grille without creating unnecessary bulk. It is built from 1.75 inch DOM tubing with .120 wall thickness, the same type of material used in roll cages and chassis fabrication. The shorter bull bar design keeps the profile tight while still providing protection where it matters.

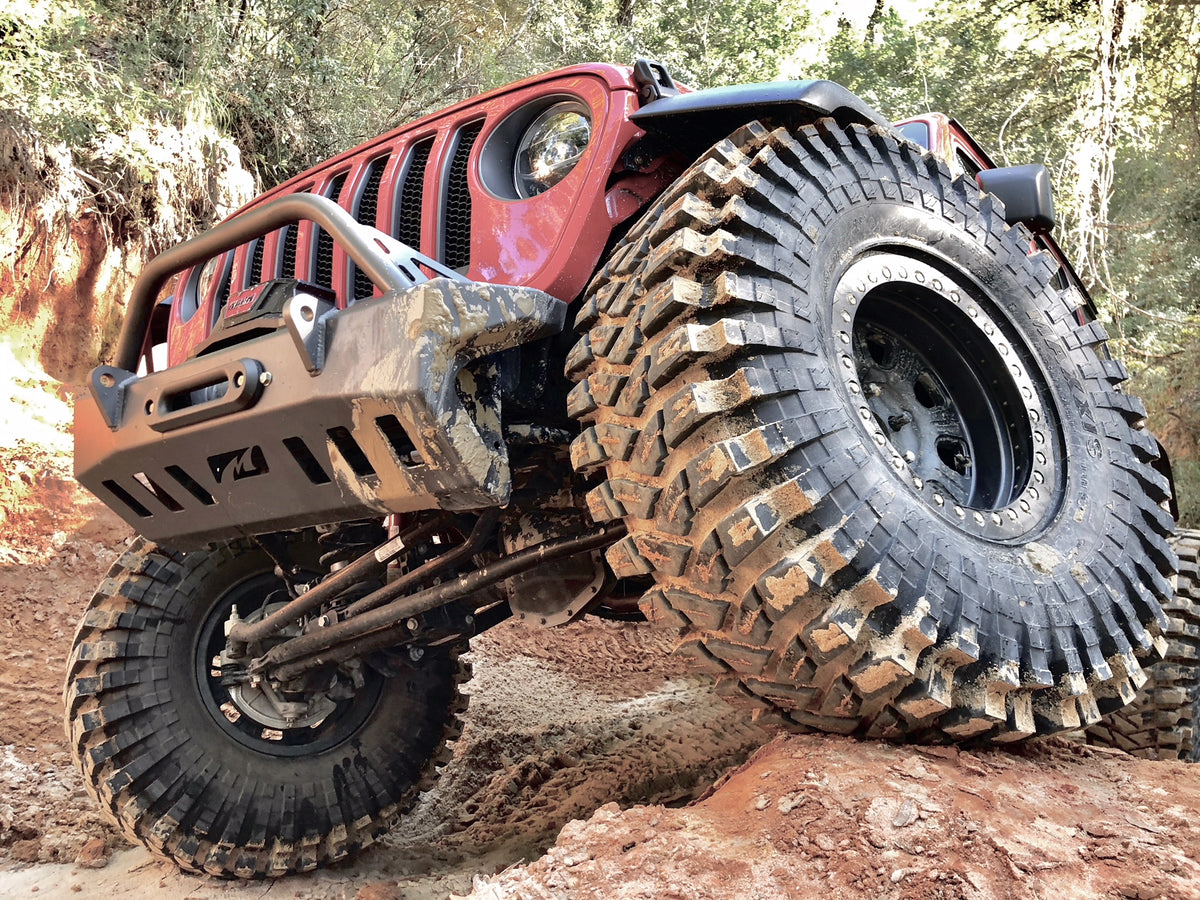

At 46 inches wide, the bumper keeps the front end narrow for better tire clearance and improved approach angle, especially when running up to 40 inch tires. Like other Motobilt Crusher series components, this bumper reflects real fabrication experience and focuses on function, clearance, and strength.

Want To Know More?

Get the Details

Find all the information you need to get the right part for your rig.

Important Information

Designed for 2018–current Jeep Wrangler JL / JLU and 2020–current Jeep Gladiator JT
Recessed winch mount positions winch between frame rails
Improves approach angle and winch protection
Built-in skid plate for underside protection
Constructed from 3/16 inch steel plate
3/4 inch thick D-ring mounts pass through bumper and are welded inside and out
Bull bar constructed from 1.75 inch DOM tubing with .120 wall thickness
Accepts standard 10 inch x 4.5 inch winch mounting pattern
Tested with Warn VR EVO and Warn Zeon series winches
Does NOT work with Superwinch EXP or offset winches such as Warn 9.5ti
Works with factory sway bars including Rubicon and compatible with Anti-Rock
Measures 46 inches wide for improved tire clearance
Mounting holes for auxiliary lights are not included but can be added by the builder

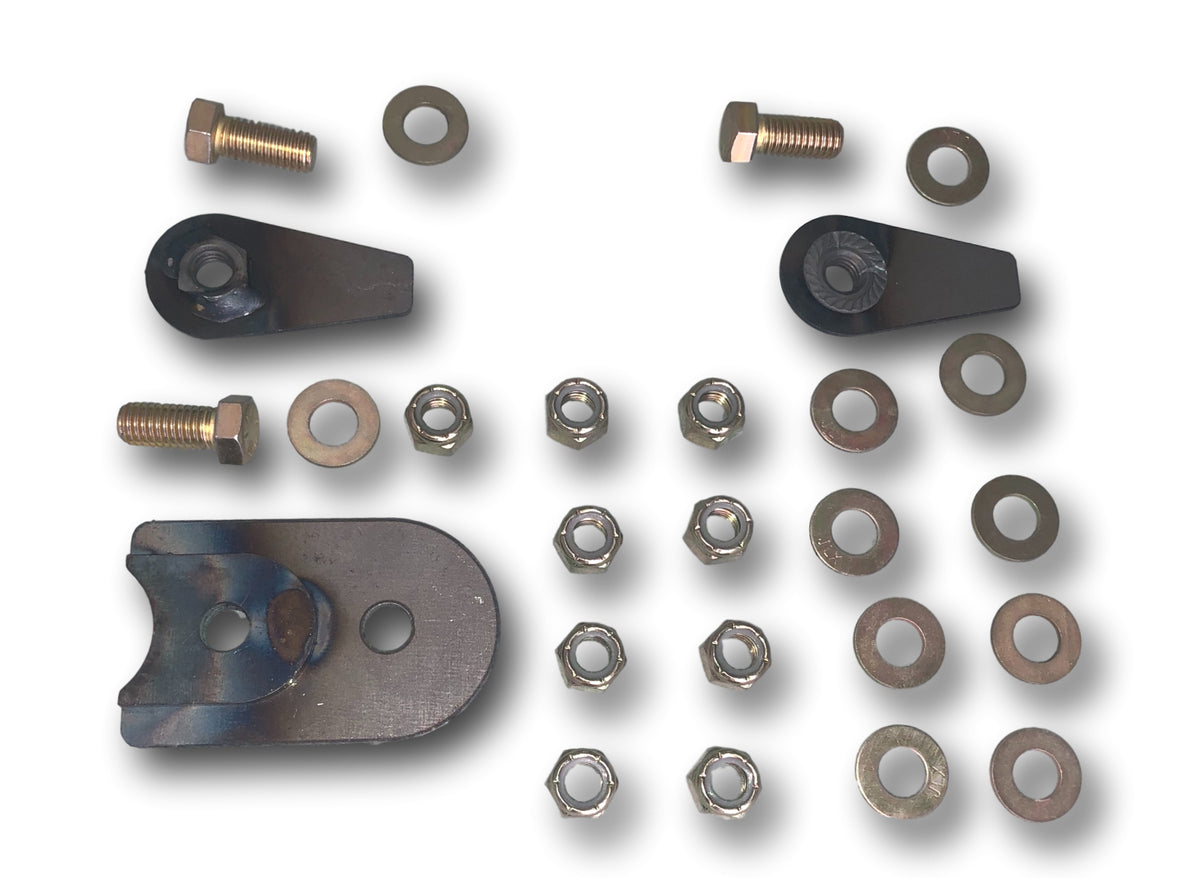

Includes all necessary mounting hardware
Ships bare steel and must be painted or powder coated before installation

Product Specifications

Vehicle Fitment

2018–Current Jeep Wrangler JL / JLU

2020–Current Jeep Gladiator JT

Material

3/16 inch steel plate

3/4 inch steel D-ring mounts

1.75 inch x .120 wall DOM tubing (bull bar)

Dimensions

Not provided

Width

46 inches

Weight

Approx. 86 lbs

Winch Mounting Pattern

10 inch x 4.5 inch standard pattern

Manufactured

Made in the USA

Notes

Test fit bumper before final coating or installation.
Paint or powder coat the bumper to prevent corrosion.
Some Jeep frames may require slight enlargement of mounting holes due to manufacturing tolerances.
Fairlead spacer may be included depending on production run.
Auxiliary light mounting holes can be drilled to fit your preferred lighting setup.

Frequently Asked Questions

What is the advantage of a recessed winch bumper on a Jeep JL or JT?

A recessed winch bumper places the winch lower and closer to the frame, improving approach angle, protecting the winch, and keeping weight closer to the chassis.

What does the bull bar add to this bumper?

The bull bar provides added protection for the winch and grille area without significantly affecting clearance. It is built from DOM tubing for strength and durability.

Will this bumper fit my winch?

It fits winches with a standard 10 inch by 4.5 inch mounting pattern and has been tested with Warn VR EVO and Zeon series winches. It does not work with offset winches like the Warn 9.5ti or Superwinch EXP.

Does this bumper affect tire clearance?

Yes. The 46 inch overall width keeps the bumper narrow, allowing better clearance for larger tires up to 40 inches.

Can I run factory sway bars with this bumper?

Yes. It works with factory sway bars including Rubicon models and is compatible with Anti-Rock systems.
