Comp Cut Corner Guards for Jeep LJ 04-06

Comp Cut Corner Guards for Jeep LJ 04-06

Name: Comp Cut Corner Guards for Jeep LJ 04-06
Brand: Motobilt
SKU: MB1061
Price: 449.00 USD
Availability: InStock

Regular price $449.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1061

Fits: Jeep Wrangler LJ

Quantity:

View product details & documents

Product details

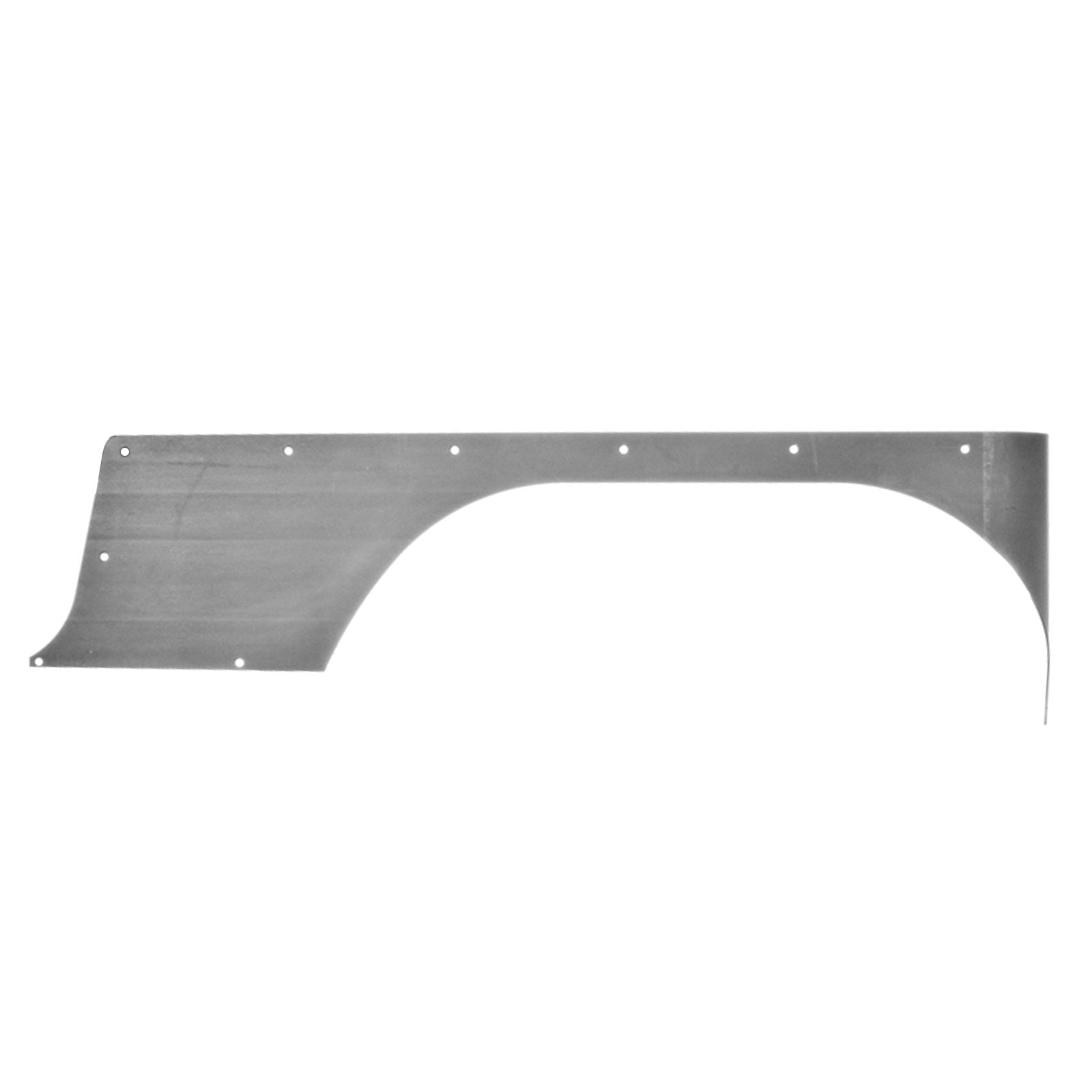

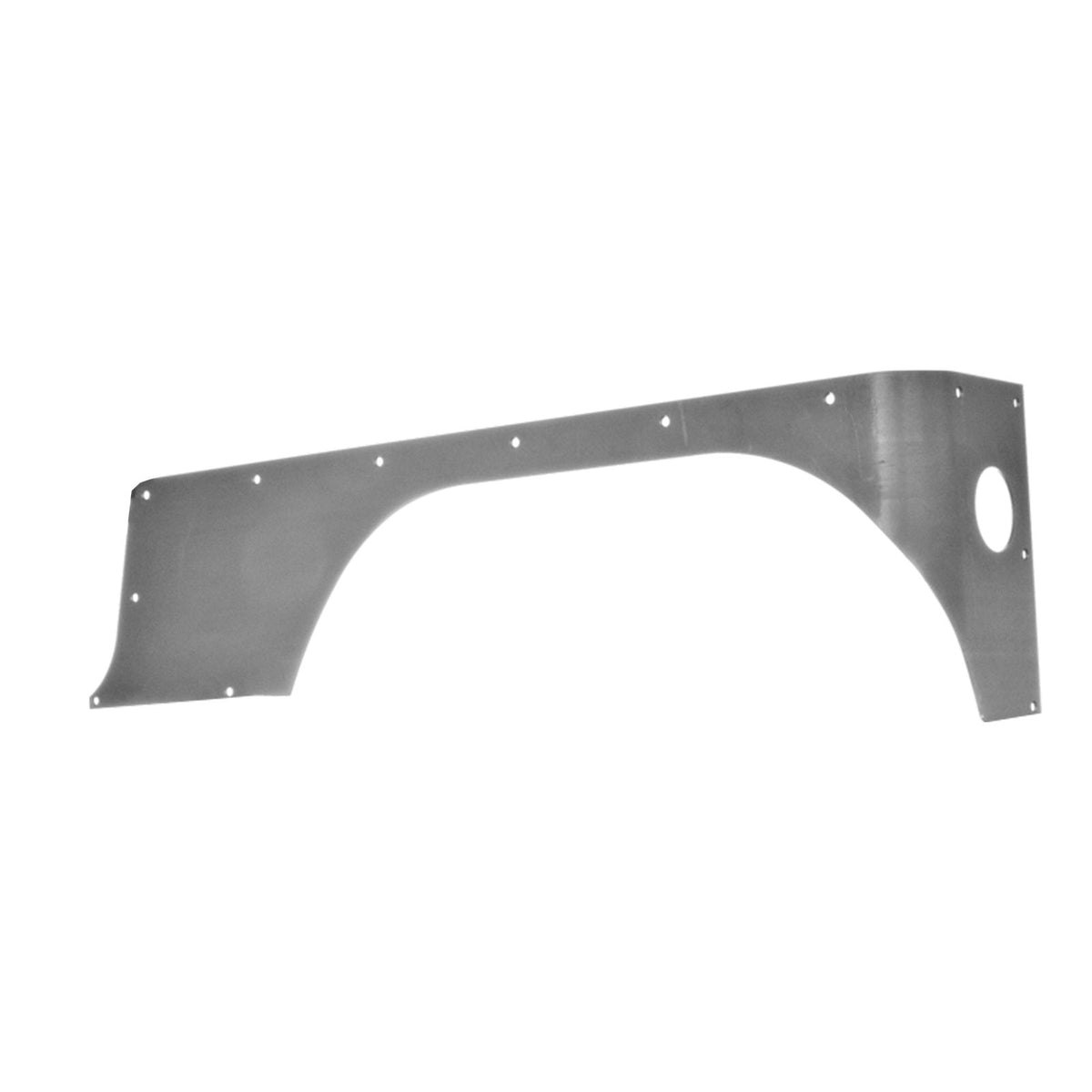

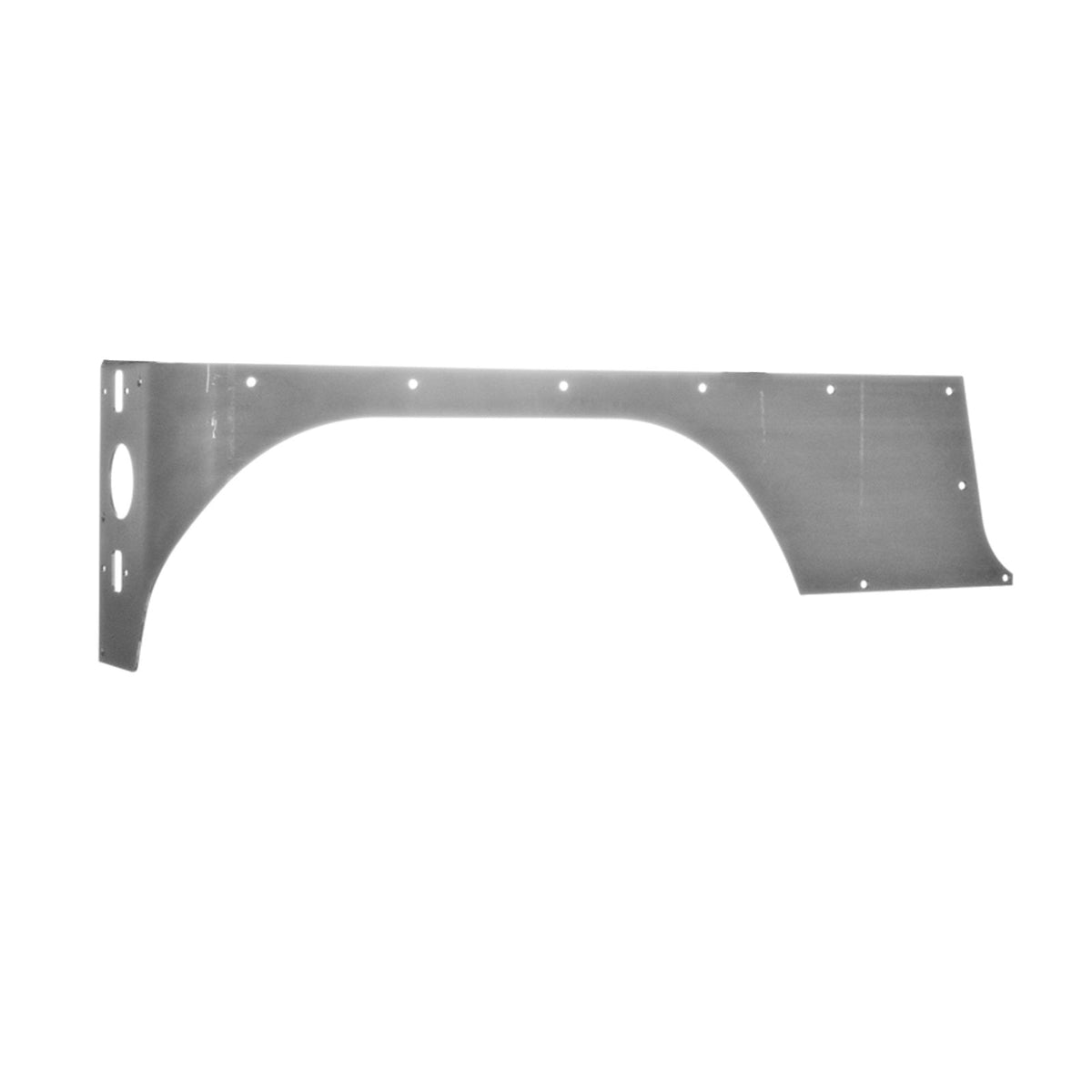

The Motobilt Competition Cut Corner Guards for the Jeep LJ Unlimited replace the factory rear sheet metal corners with heavy duty armor designed for serious off‑road use. Each guard is laser cut and CNC formed from 3/16 inch thick steel plate to match the body lines of the LJ while providing significantly more strength than the factory panels. The competition cut profile increases tire clearance and improves departure angle for builds running larger tires or stretched suspensions. All mounting holes are countersunk so the supplied hardware sits flush once installed, creating a smooth outer surface that will not catch on obstacles.

Important information

Installation requires trimming the factory rear corner sheet metal.

Drilling is required for installation.

Ships raw steel and must be painted or powder coated to prevent rust.

Product specifications

Fits 2004‑2006 Jeep LJ Unlimited

Laser cut and CNC formed 3/16" steel plate

Countersunk mounting holes

Hardware included

Made in the USA

Sold as pair.

Notes

Often paired with Motobilt LJ rocker guards.

Test fit all components before paint or powder coat.

Additional product details & documents

The Motobilt Jeep LJ competition cut corner guards are designed for serious off roading. They provide complete protection from your door to your tail gate keeping your Jeep's body safe no matter the terrain. These corners were engineered utilizing the latest in technology. First they are modeled in the most advanced software to ensure the best possible fit. Next, an in house Motobilt CNC laser cuts the 3/16 inch thick high strength steel plate. Finally using specially made tooling they are cnc formed to precise tolerances.

The design and fabrication process allows for a great fit on your Jeep LJ. Every aspect of production from design, fabrication, to shipping is all done in house at Motobilt. This allows us to ensure the best in American made quality. The competition cut allows you to run much larger tires and gives room to stretch your wheel base. These corners are perfect with our Jeep LJ back half kit. You can really move the rear axle back to get the wheel base you need and provide a great departure angle for those really big rocks!

When installing these corner guards you will need to cut much of the factory sheet metal away including the boxed in portion on the interior of your stock corners. Usually this requires the factory body mount to be removed also. A good way to reinforce this area is to tie the roll cage into the rear section of the frame. All of the mounting locations are countersunk to keep the side of your Jeep clean and slick. Flush mount hardware is included. Most of the hardware uses a through hole with a nyloc nut on the back side. There are a few locations where the back side can not be accessed so a nut sert is provided and will be used in these locations.

Specifications

Jeep LJ competition cut corner guards
CNC laser cuts the 3/16 inch thick high strength steel plate

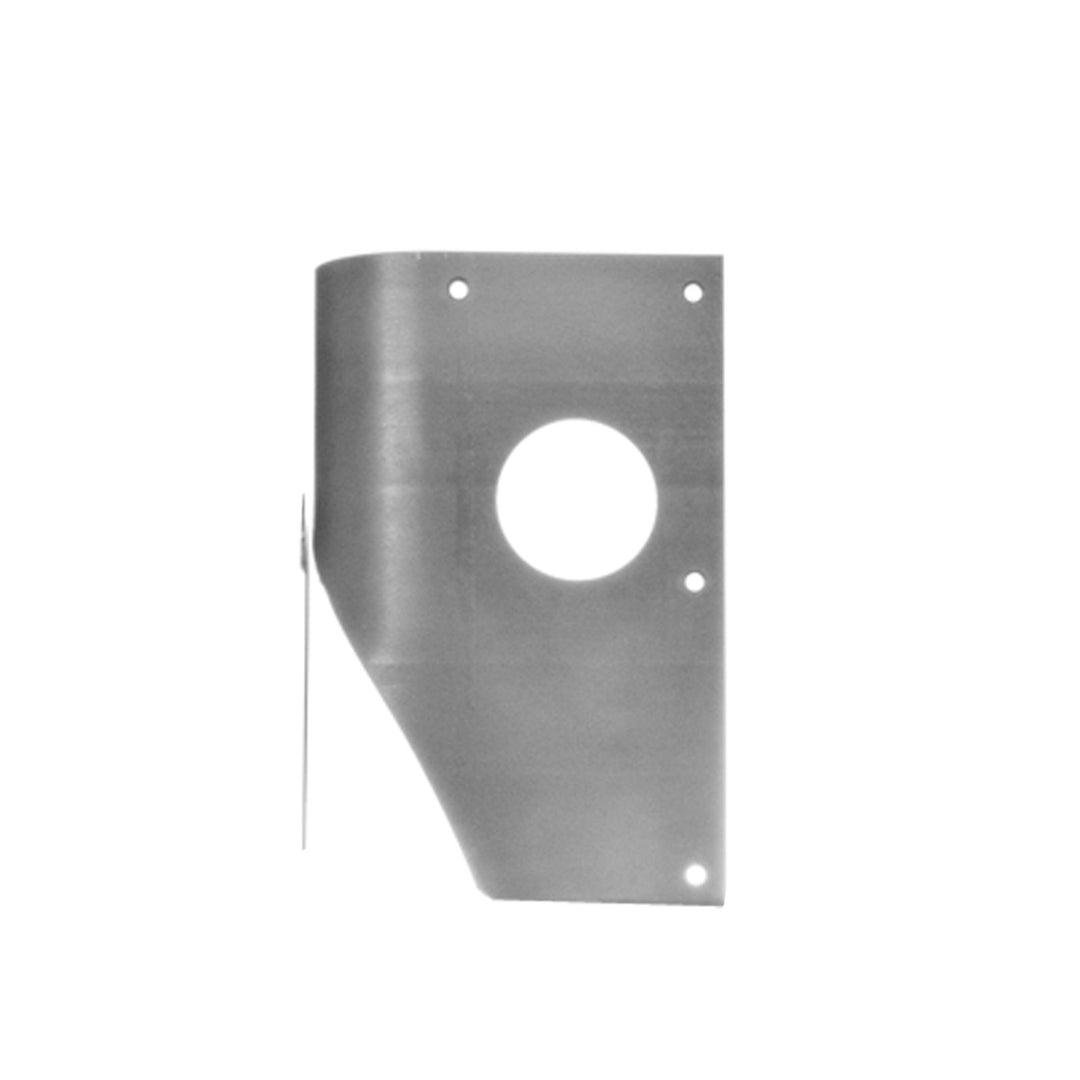

4.5 inch hole laser cut in back for a flush mount led taillight
Hardware included
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as pair
Weight = 50lbs

Compatible Rocker Guards:

MB1062 Comp rocker guards
MB1062-S. Comp rocker guards with step

Note:

There are a few locations where the back side cannot be accessed so a nut sert is provided and will be used in these locations
Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Please test fit all of your Motobilt products before you paint them
