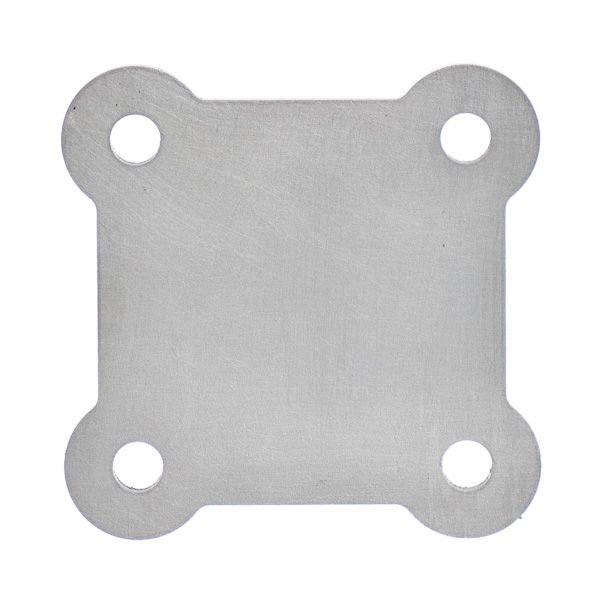

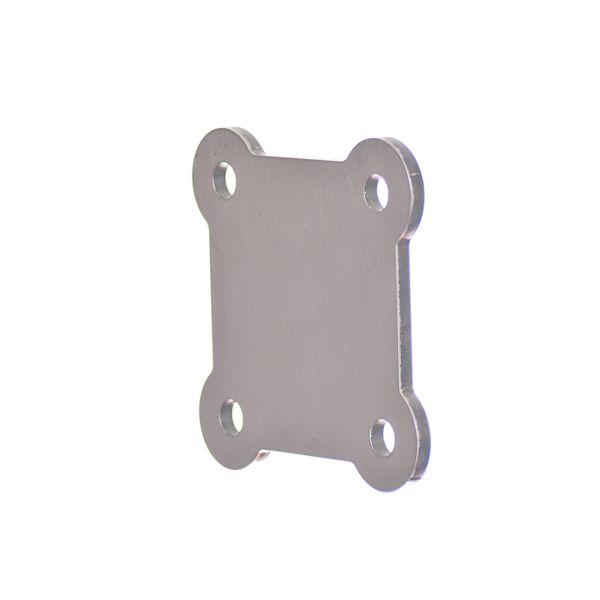

Motobilt Offers a Small Roll Cage Foot is CNC Laser cut from 3/16 inch steel plate approximately 3.625 inch x 3.625 inch with (4) 3/8 inch holes. Made smaller to fit in smaller spaces where the larger roll cage foot might not fit. Sold as a single plate. Bolt hole pattern is 2.5 inch x 2.5 inch. This is considered a universal tab for mounting roll cages and other parts. When mounting a roll cage it is recommended to use two plates per mounting point. One on top and bottom of the sheet metal tub.
Features:
Small Roll Cage Foot
CNC Laser cut from high strength 3/16 inch steel plate
Approximately 3.625 inch x 3.625 inch
Bolt hole pattern is 2.5 inch x 2.5 inch
Bolt hole diameter is 3/8 inch
Sold as each
Note:
This is considered a universal tab for mounting roll cages and other parts
When mounting a roll cage it is recommended to use two plates per mounting point
