Dana 35 Spring Perch 2.5" x 2.5"

Name: Dana 35 Spring Perch 2.5" x 2.5"
Brand: Motobilt
SKU: MB4066
Price: 45.00 USD
Availability: InStock

Regular price $45.00

Shipping calculated at checkout.

Unit Price: / Sku: MB4066

Quantity:

View product details & documents

Product details

When building or updating leaf spring axles, at some point you may need to add or replace damaged or worn out spring perches.

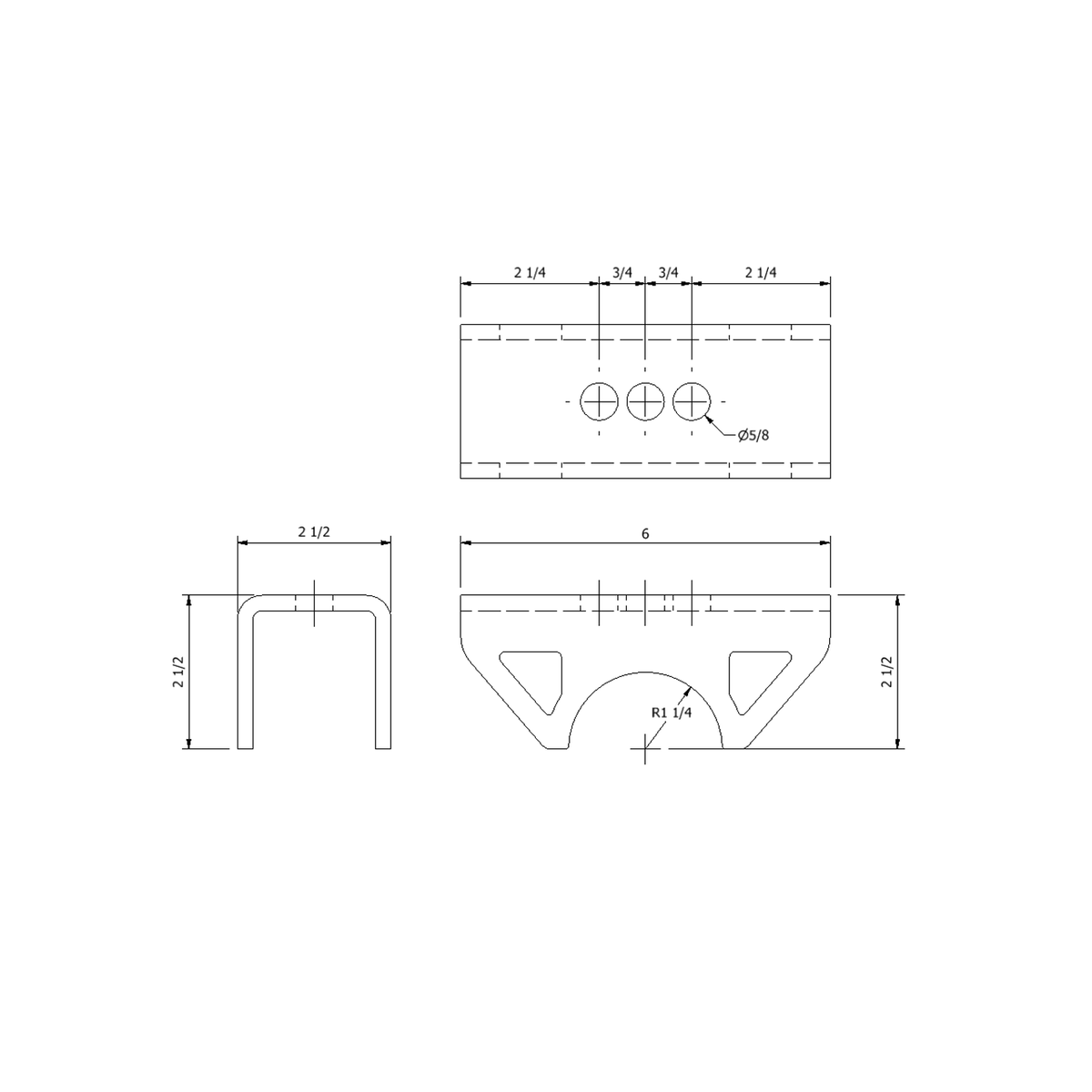

This weld-on kit is designed for axle tubes measuring 2-1/2" outside diameter. These work well when installing a spring over onto a Dana 35 rear axle. The top mounting surface measures 6" x 2-1/2" & includes three (3) 5/8" diameter holes. The extra holes allow you position your leaf spring either on the center of the axle tube, 3/4" forward of the axle tube or 3/4" rearward of the axle tube. The top mounting surface sits 2-1/2" above the center of the axle tube.

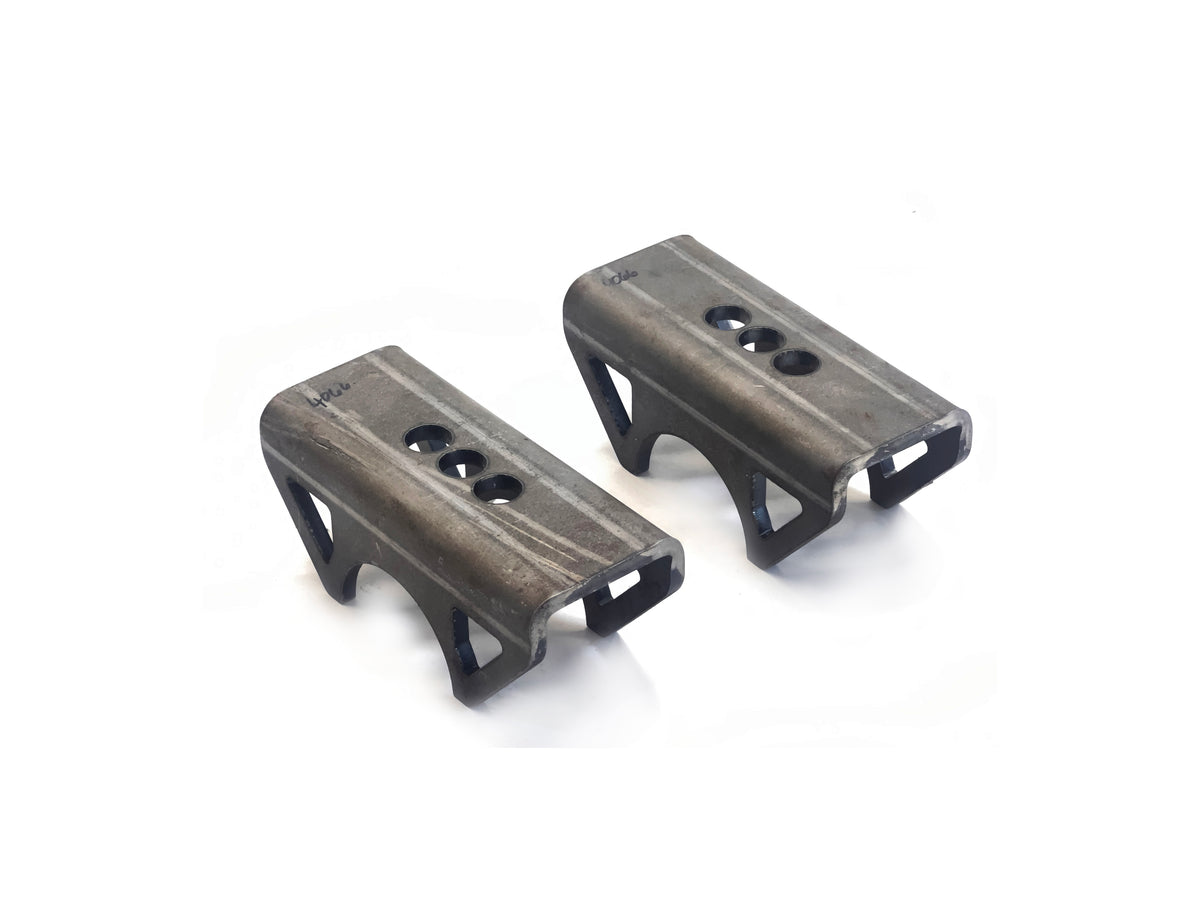

The spring perches are constructed from 1/4" thick high grade steel & professionally formed using a CNC press brake.

Product ships as a pair as raw steel & require welding to your axle tubes.
