Straight Tab for Poly Bushing

Name: Straight Tab for Poly Bushing
Brand: Motobilt
SKU: MB2090
Price: 2.99 USD
Availability: InStock

Regular price $2.99

Shipping calculated at checkout.

Unit Price: / Sku: MB2090

Quantity:

View product details & documents

Product details

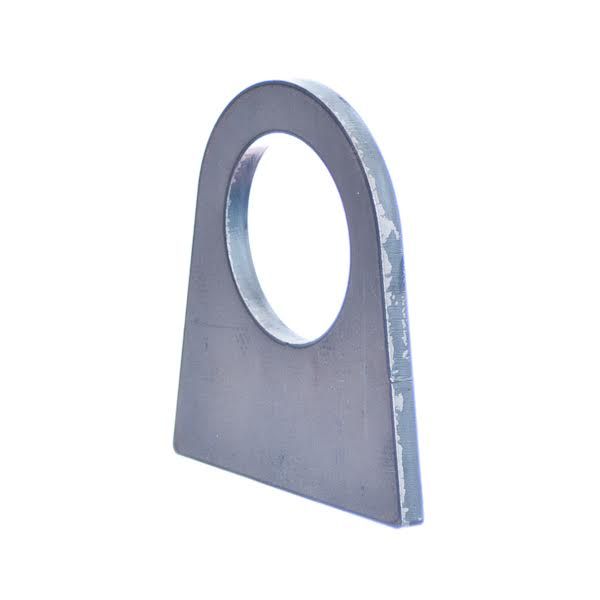

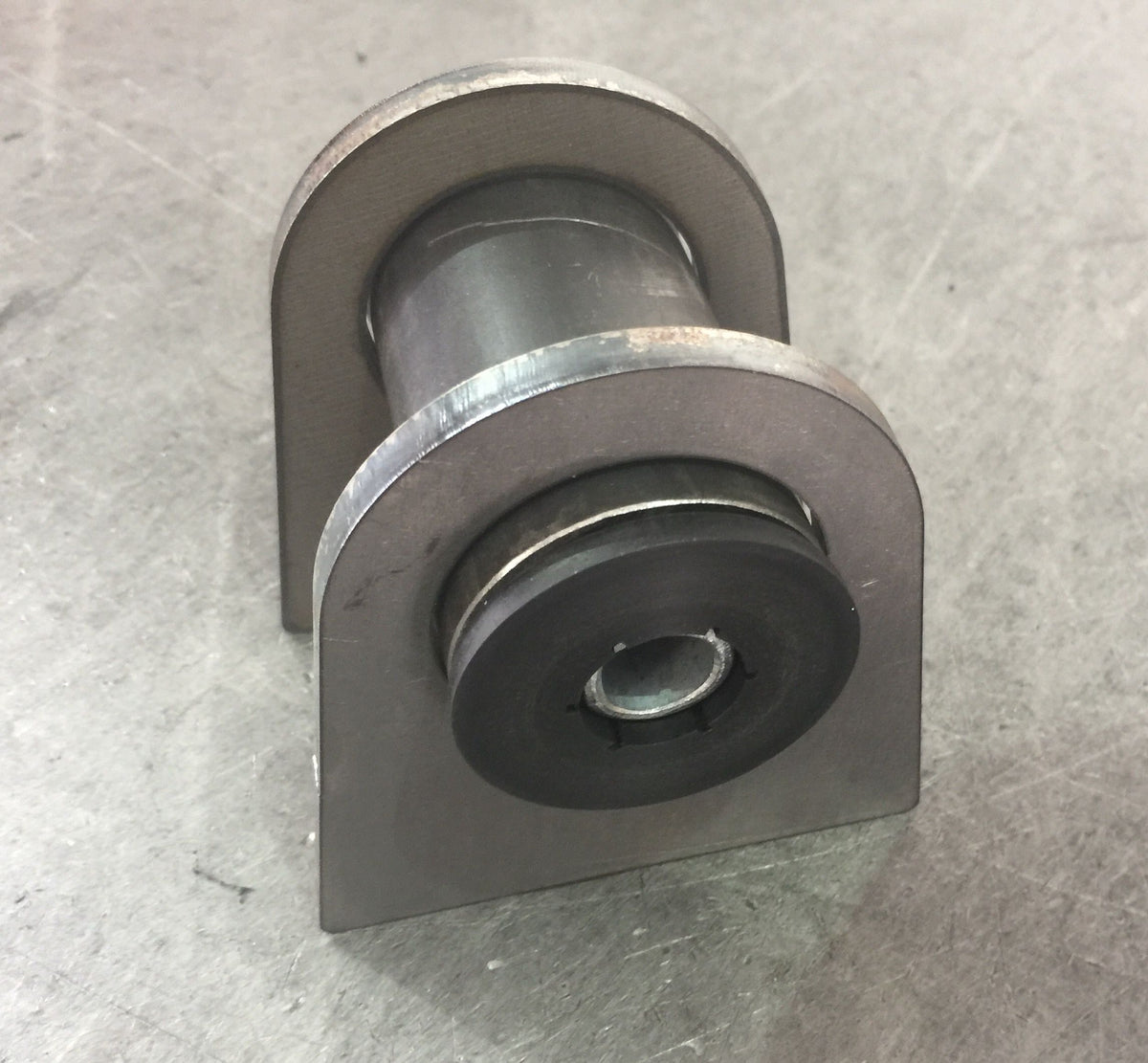

The Motobilt MB2090 is a straight tab for mounting spring eye bushings. This tab is CNC cut from 1/4 inch steel plate. Made to fit 1.75 inch OD round tube. Using two of these tabs will allow you to mount a leaf spring bushing on just about anything.

The tab is 3.5 inch wide at the base. From the center of the hole to the bottom of the tab is 2.0625 inch. This extra length allows you much flexibility in mounting. You can cut the tab down, put a bend in it, cut it at an angle, or even notch it to fit your application.

Features:

Straight Tab for Mounting Spring Eye Bushings
CNC cut from 1/4 inch steel plate
Fit 1.75 inch OD round tube
3.5 inch wide at the base
Center of the hole to the bottom of the tab is 2.0625 inch
Sold as each

Some uses are:

Shackle mount
Motor mount
Crossmember mount
Control arm mount
Roll cage mount
The possibilities are endless!

Note:

Require at least 2 typically for a mount
Tube and bushing are not included
