Rocker Guards w/Tube Step for Jeep LJ Unlimited with Comp Corners

Rocker Guards w/Tube Step for Jeep LJ Unlimited with Comp Corners

Name: Rocker Guards w/Tube Step for Jeep LJ Unlimited with Comp Corners
Brand: Motobilt
SKU: MB1062-S
Price: 589.00 USD
Availability: InStock

Regular price $589.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1062-S-FND

Fits: Jeep Wrangler LJ

Select Option:

Quantity:

View product details & documents

Product details

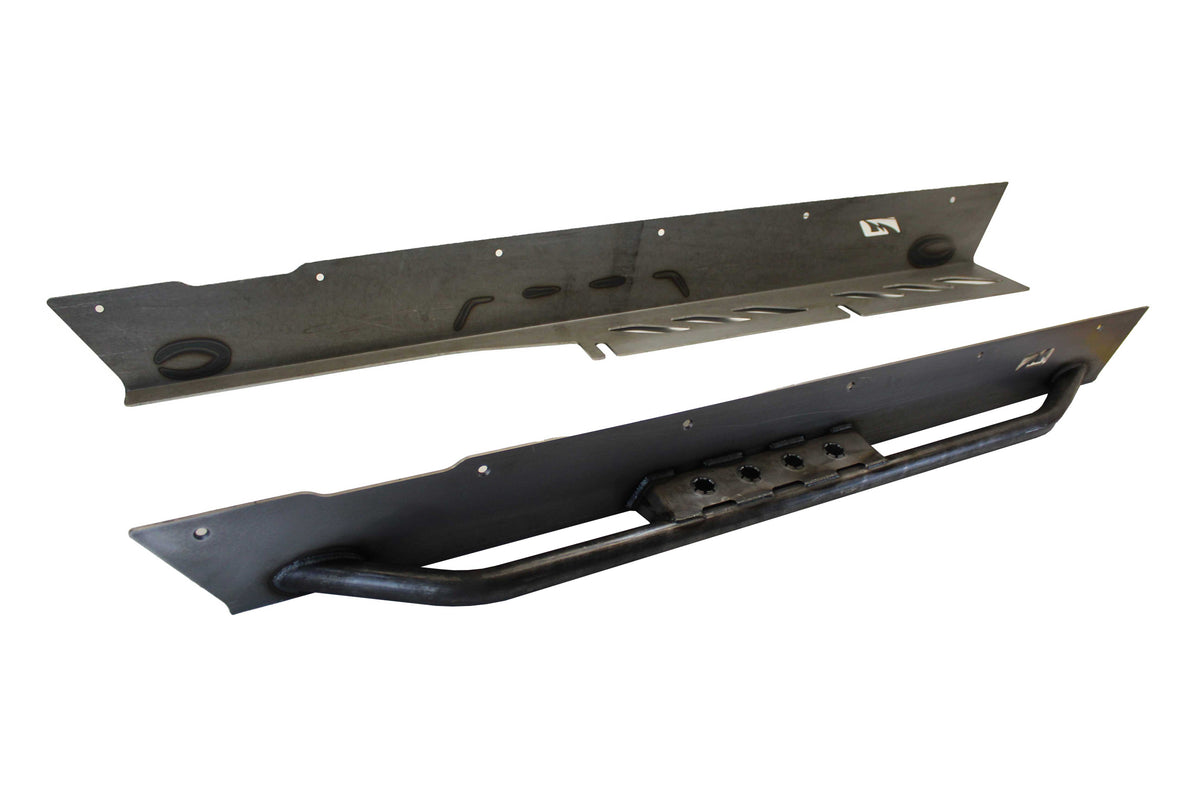

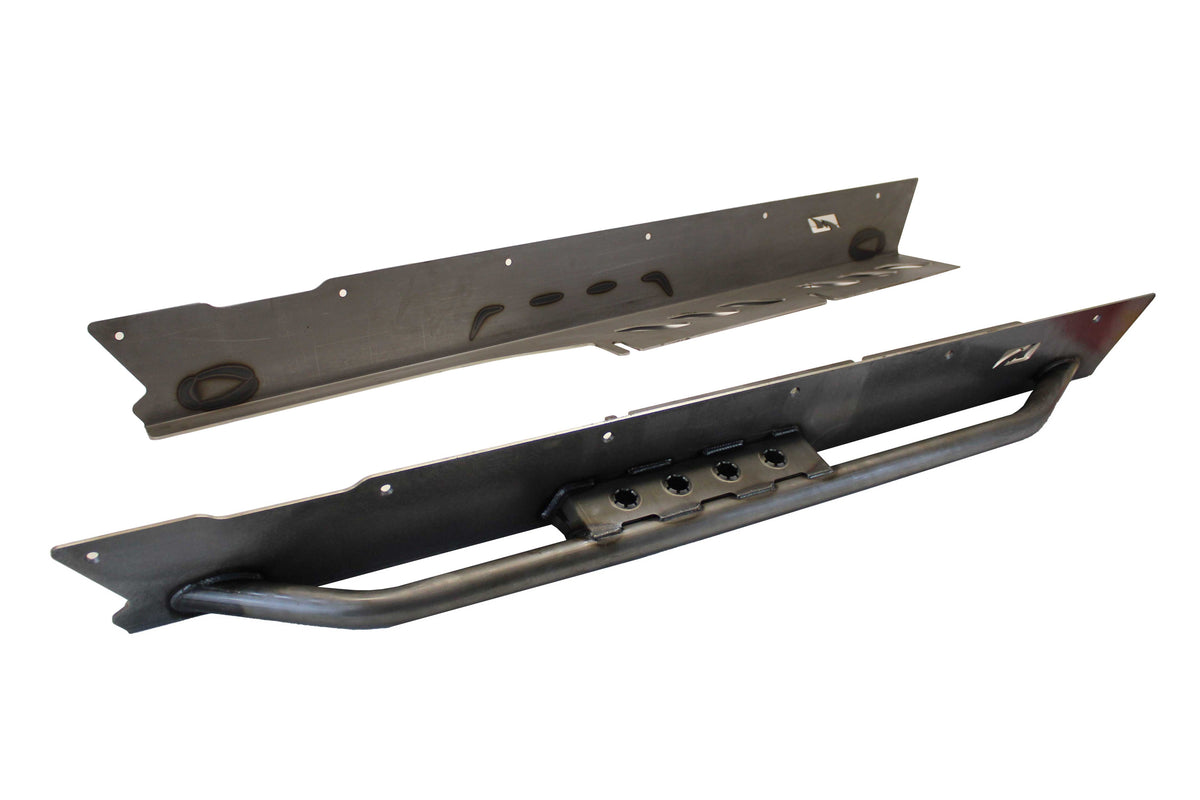

The Motobilt LJ Rocker Guards with Tube Step combine heavy duty rocker protection with a functional step for lifted vehicles. Each guard is laser cut and CNC formed from 3/16 inch thick steel plate and wraps underneath the Jeep to tie into the factory body mounts for improved strength. The integrated tube step provides easier entry into lifted Jeeps while maintaining a tight profile along the body. Countersunk mounting holes keep the included hardware flush with the outer surface for a clean finished look.

Important information

Drilling required for installation.

Ships raw steel and must be painted or powder coated.

Product specifications

Fits 2004-2006 Jeep LJ Unlimited

3/16 inch steel rocker guards

Integrated tube step

Countersunk hardware included.

Made in the USA

Sold as pair.

Notes

Designed to match competition cut rear corners.

Additional product details & documents

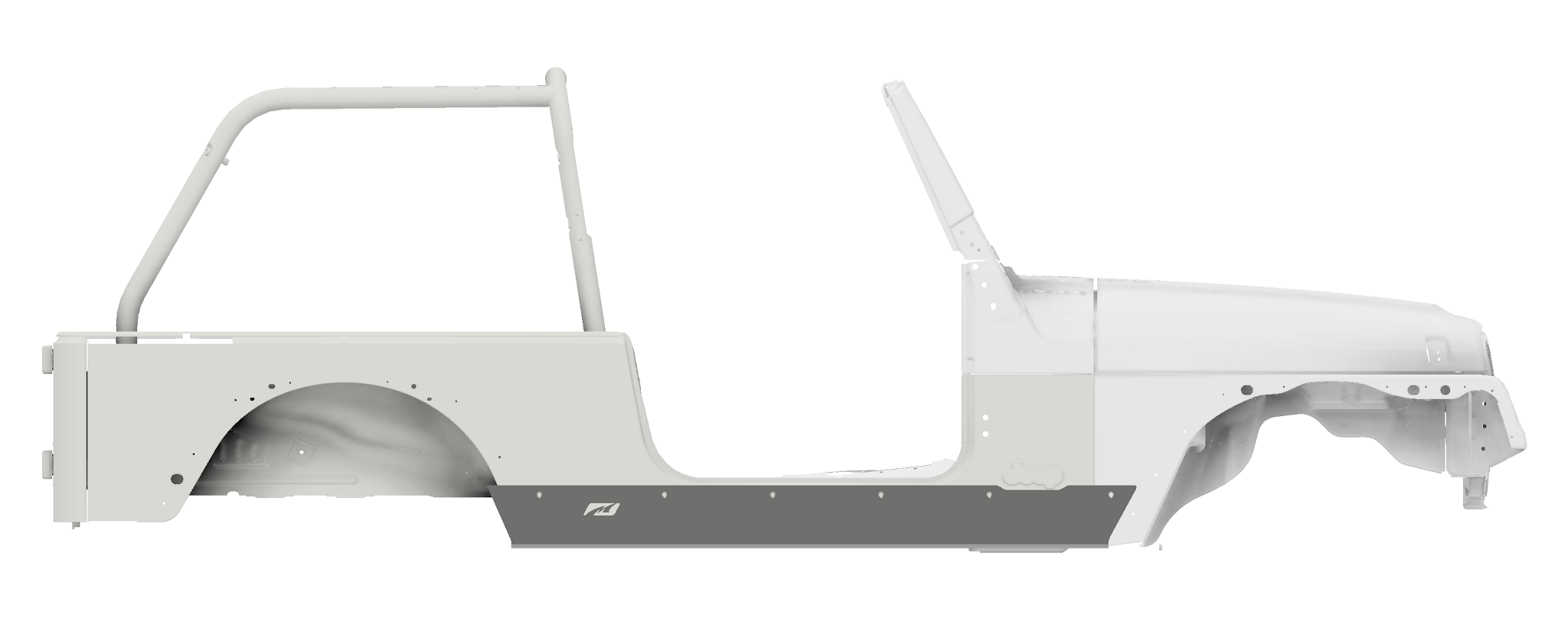

The Motobilt Jeep LJ Rocker Guards for competition or stretch cut corners with tube step are in-house laser cut from 3/16 inch high strength steel. The Rocker Guards extend up to the bottom edge of the door and bend underneath the jeep to protect it. They completely cover the front and the back past the wheel well opening. This extra length when used with the Motobilt comp cut or stretch cut corners allows for a more proportional look and additional protection.

The slots in the bottom make it easier to wash mud and debris out. A heavy duty step is made from 1.75 inch DOM steel tube with an integrated grimple plate for additional grip when getting in and out of the Jeep. Motobilt Jeep LJ Rocker Guards are countersunk and ship bare metal with hardware included. Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. These work well with Motobilt LJ competition corners PN MB1061. Our rocker guards are formed so that they wrap under neath the body of your jeep and tie into the factory body mounts.

This allows for the ultimate in under body protection and strength. We also slot the lower portion of the rocker guards to make it easy to clean out your rockers after a hard day of wheeling.

Weight: 85lbs (approx.)

Specifications

Features:

Jeep LJ Rocker Guards for Competition and Stretch Cut Corners with tube step
Laser cut from 3/16 inch high strength steel
Step is made from 1.75 inch DOM steel tube
Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
Works with or without a body lift.
67 1/2”s long at the top of the rocker and the notched version is 66 1/2”s
Sold as pair

Compatible Motobilt Corner Guards:

MB1061 Comp Cut Corner Guards
MB1065 Blank Corner Guards

Note:

Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
This extra length when used with the Motobilt comp cut (MB1061) allows for a more proportional look and additional protection

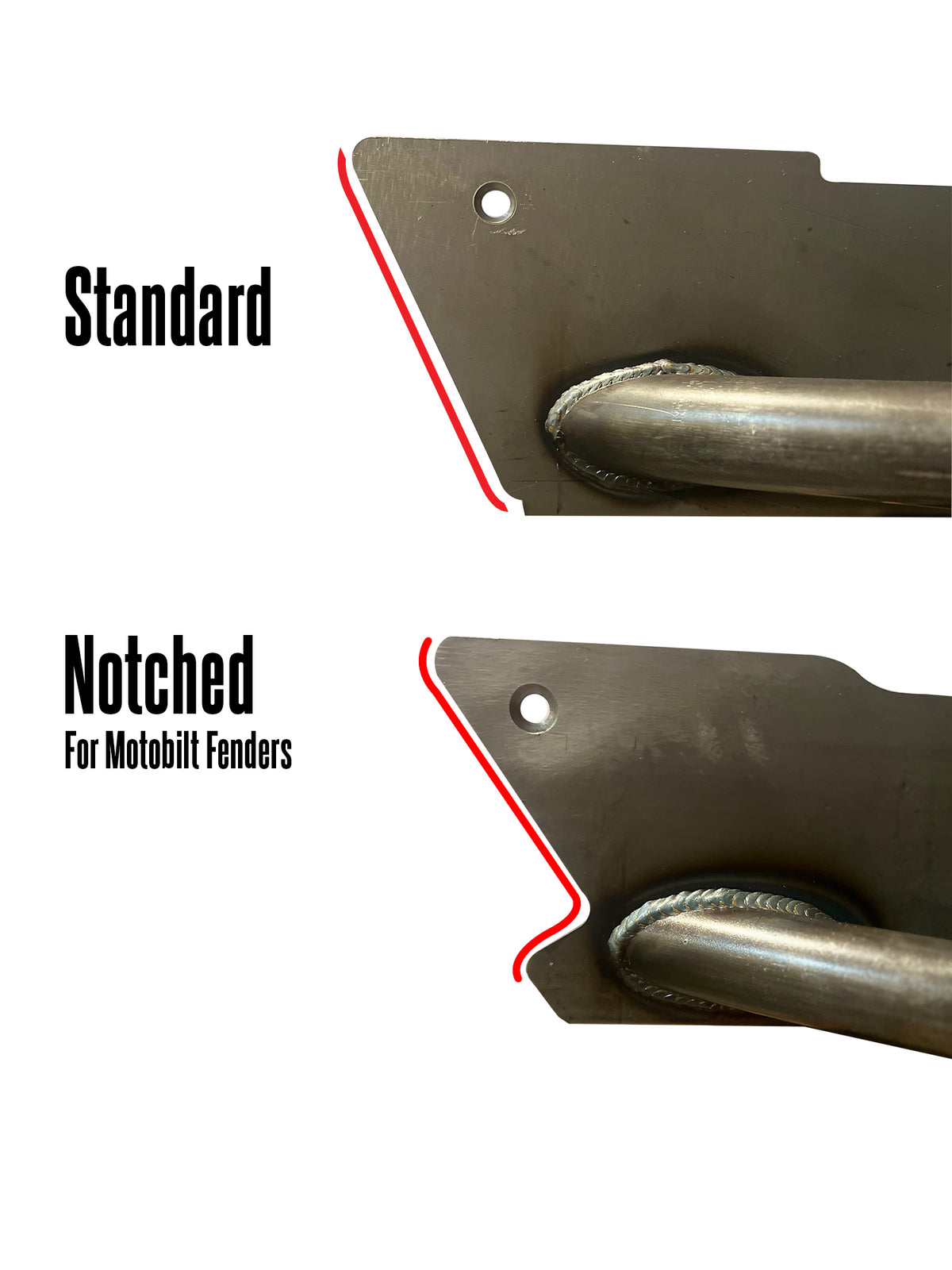

If running the Motobilt front fenders, then choose the drop down menu option for our fenders. They are shorter and have a notch cut out to clear the Motobilt fenders.
