Compatible With:
YJ
When you stretch a Jeep YJ to match an LJ-length wheelbase, the factory body becomes the limiting factor. The rear wheel opening is no longer in the correct location, and the overall tub length does not match the new chassis.

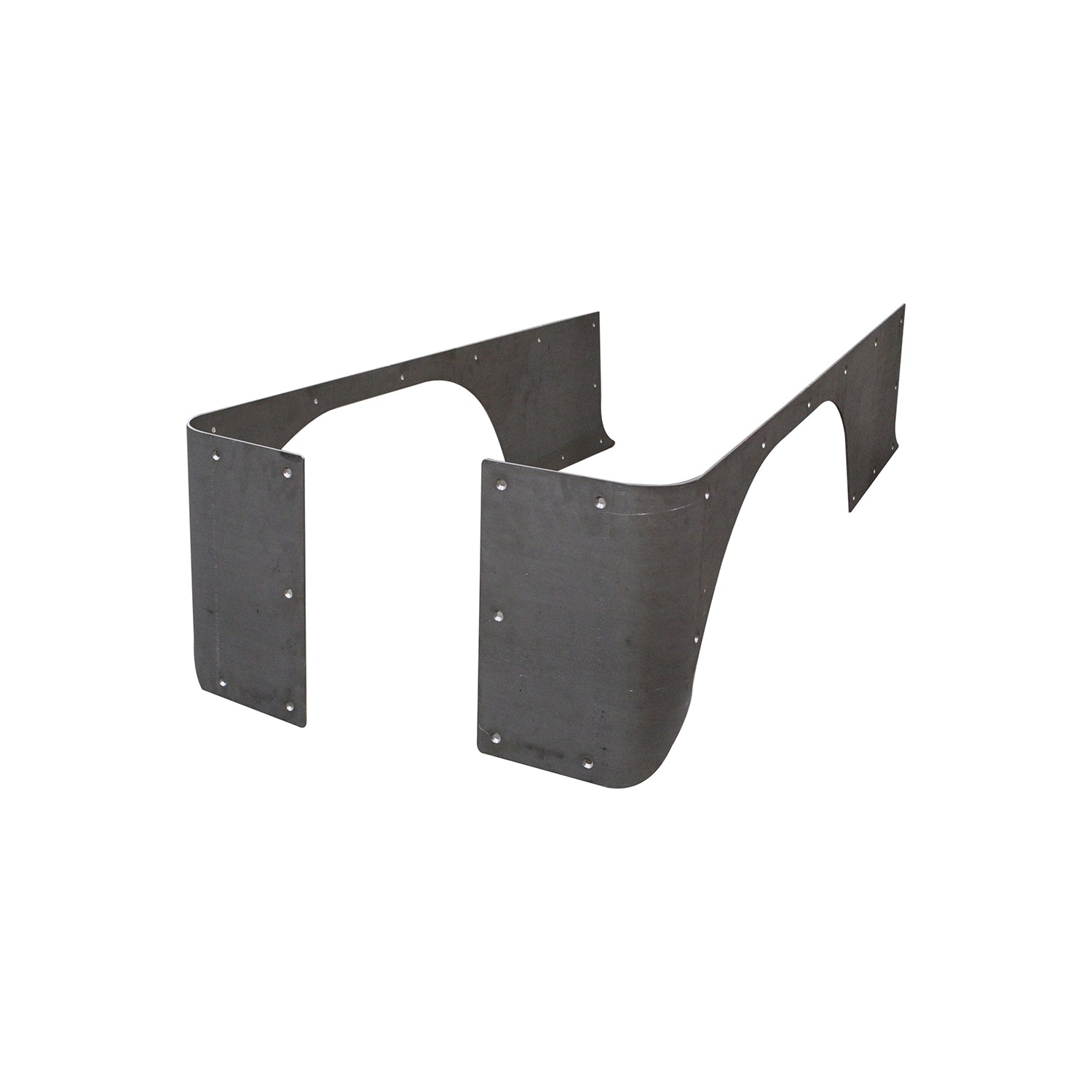

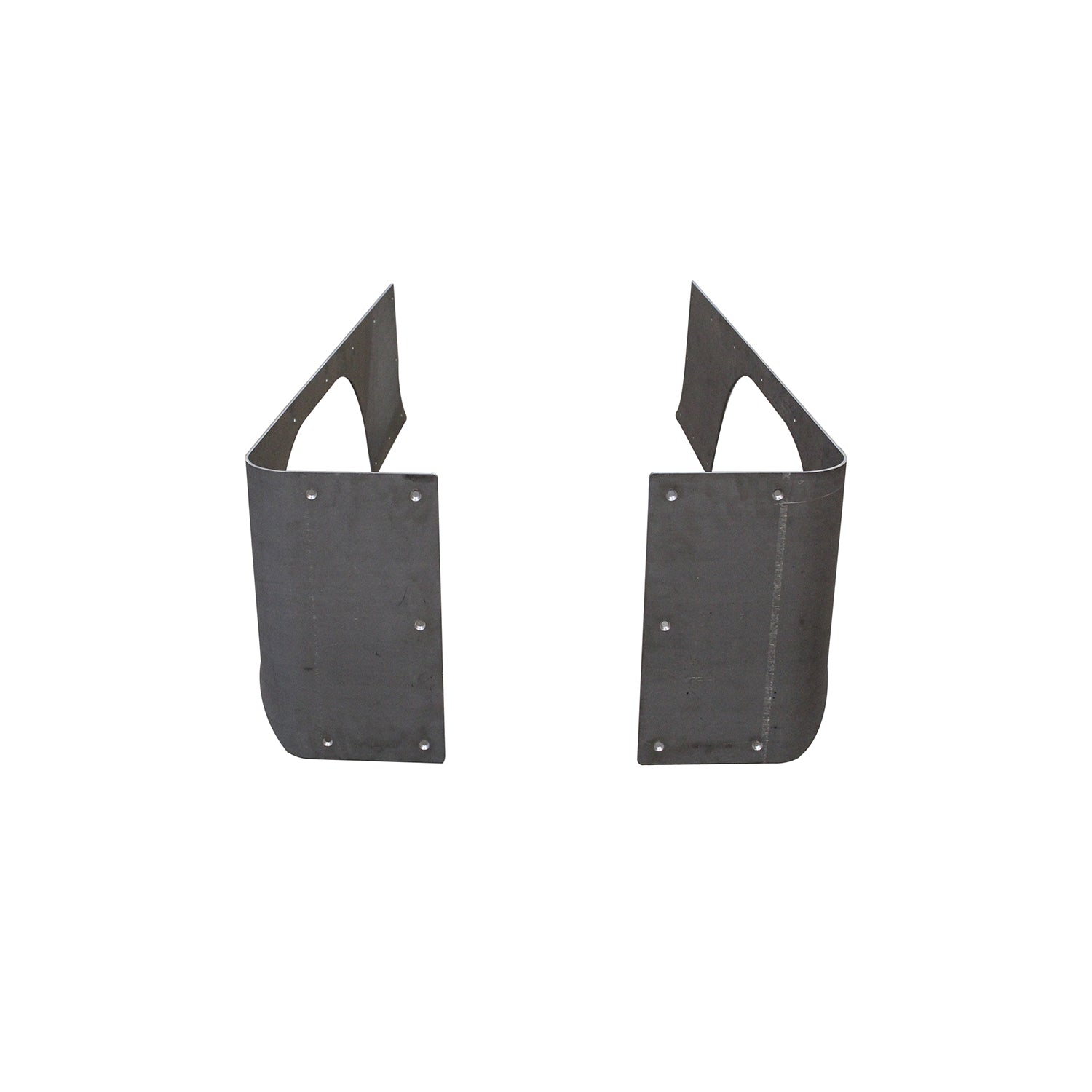

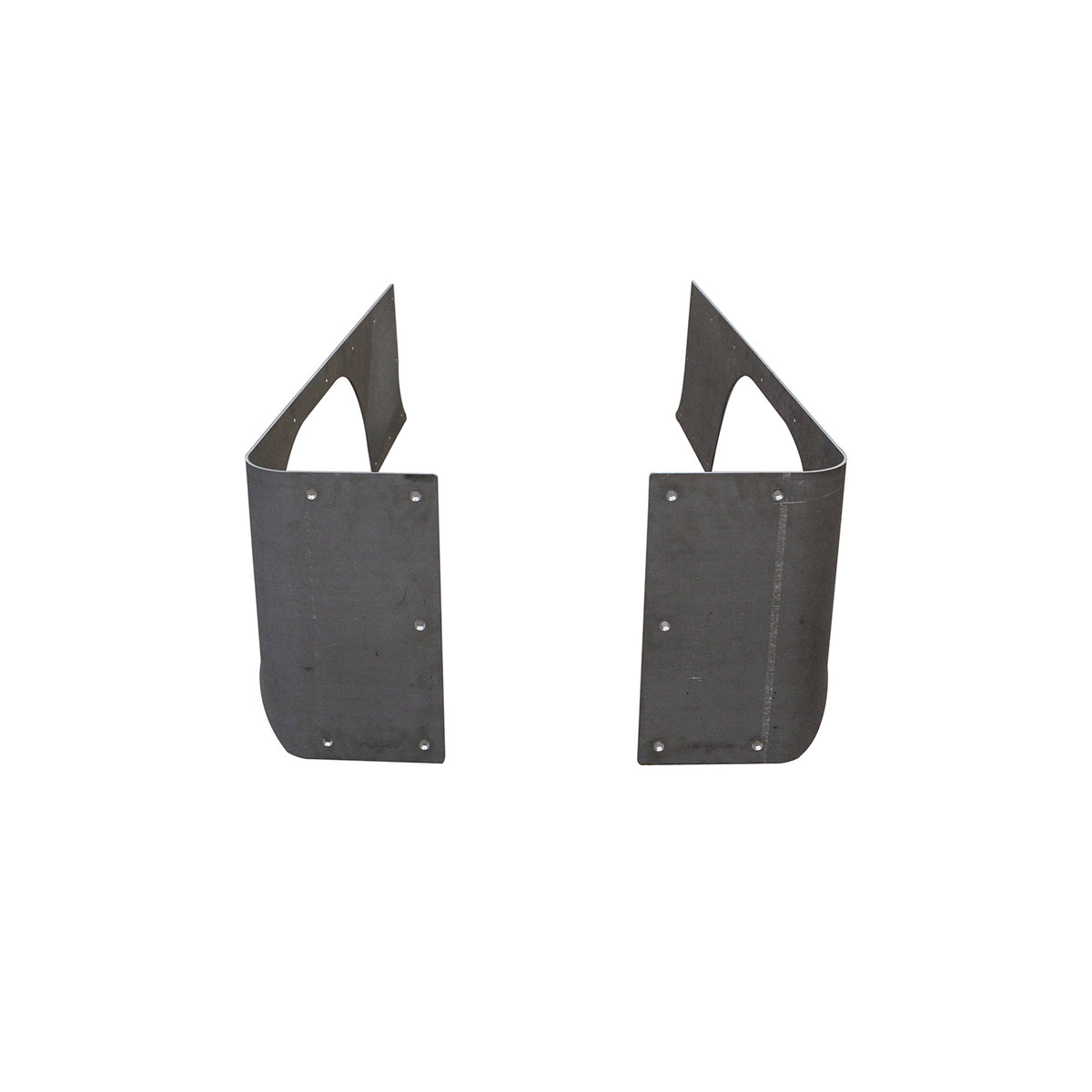

The Motobilt 15 inch stretch corner armor solves this by effectively converting your YJ tub to LJ length.
These corners extend the body approximately 15 inches and reposition the wheel opening to match a stretched rear axle location. Because the wheel opening is already cut and placed into the panel, your rear wheelbase must also be stretched 15 inches to align correctly with the new body.
This removes the guesswork from stretching a factory tub and gives you a clean, repeatable way to match the body to a stretched chassis.
Unlike over-the-rail designs, this corner keeps the factory upper sheet metal rail exposed. This is important for builders who want to retain the ability to run a soft top or hard top. Because the upper rail is not covered, the factory top mounting surfaces remain usable.
The design leaves the rear open for customization. There are no pre-cut tail light holes or mounting provisions, allowing you to place lighting exactly where it fits your build.
A drop down tailgate is required with this setup. Motobilt offers a compatible option with part number MB1168.
Installation requires cutting and modifying the factory tub. The system is designed to work with additional Motobilt components that complete the stretch, including inner fenders and floor extensions.
This setup is ideal for builders who want LJ-length wheelbase, clean body lines, and the ability to retain factory-style tops while running larger tires and increased suspension travel.
To properly convert a Jeep YJ to LJ-length wheelbase, the following components are required:
These components work together to extend the chassis, body, and wheel opening location to properly match a 15 inch wheelbase stretch.
Want To Know More?
Find all the information you need to get the right part for your rig.
Vehicle Fitment
1987–1995 Jeep Wrangler YJ
Material
3/16 inch Steel
Manufactured
Made in the USA
Does this convert my YJ tub to LJ length?
Yes. These corners extend the body approximately 15 inches, making the tub LJ-length when installed correctly.
Do I have to stretch my wheelbase to use these?
Yes. The wheel opening is fixed in the panel, so your rear axle must be stretched 16 inches to match.
Can I run a soft top or hard top with these corners?
Yes. The factory upper body rail is not covered, allowing you to retain top mounting surfaces.
Do these include tail light cutouts?
No. There are no tail light provisions so you can place lighting wherever it works best for your build.
What other parts do I need to complete the stretch?
Common supporting components include MB5529 inner fenders, MB1172 stretch floor panel, and the MB1168 drop down tailgate
