AAM 11.5 Diff Cover

Diff Cover to fit AAM 11.5" Rear Axle

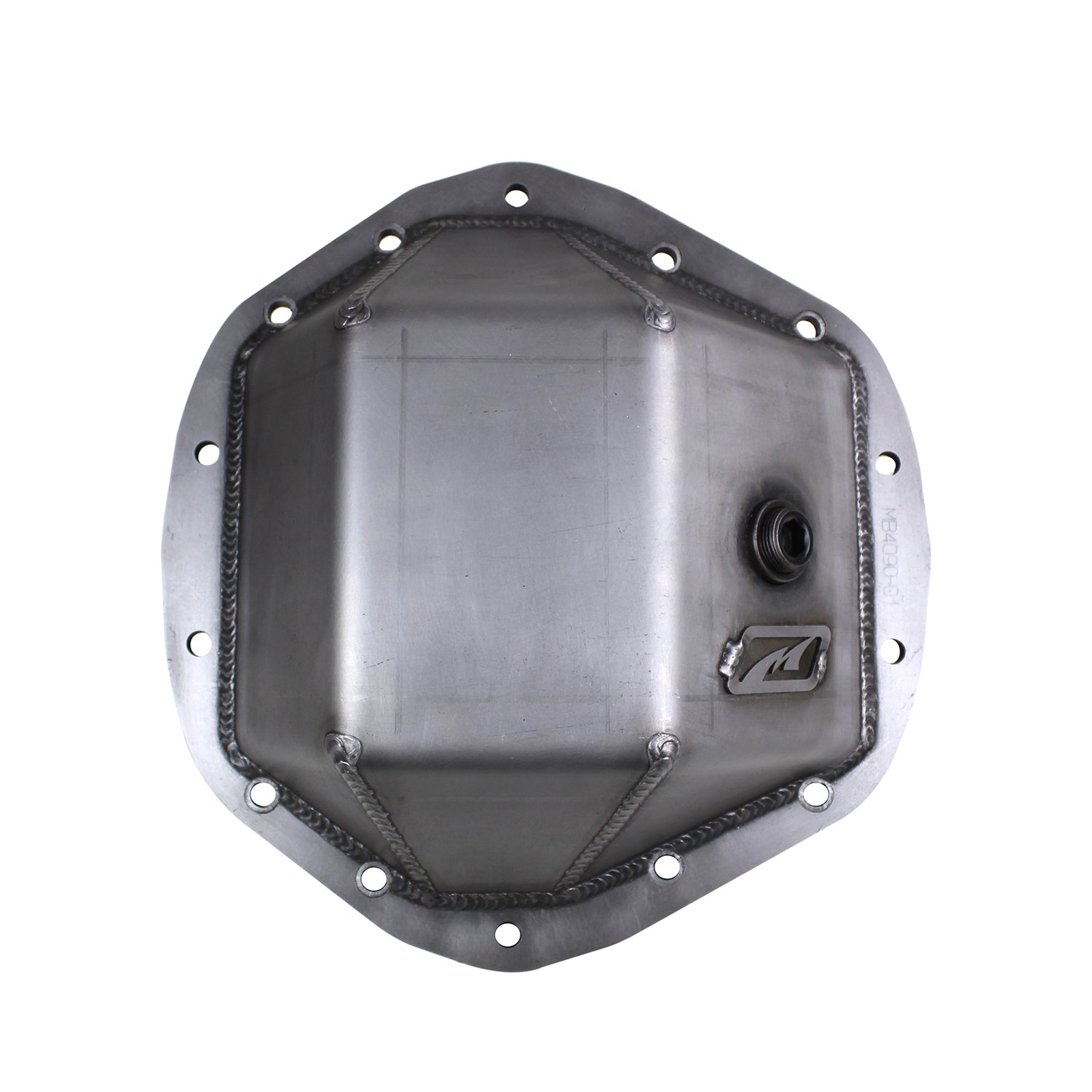

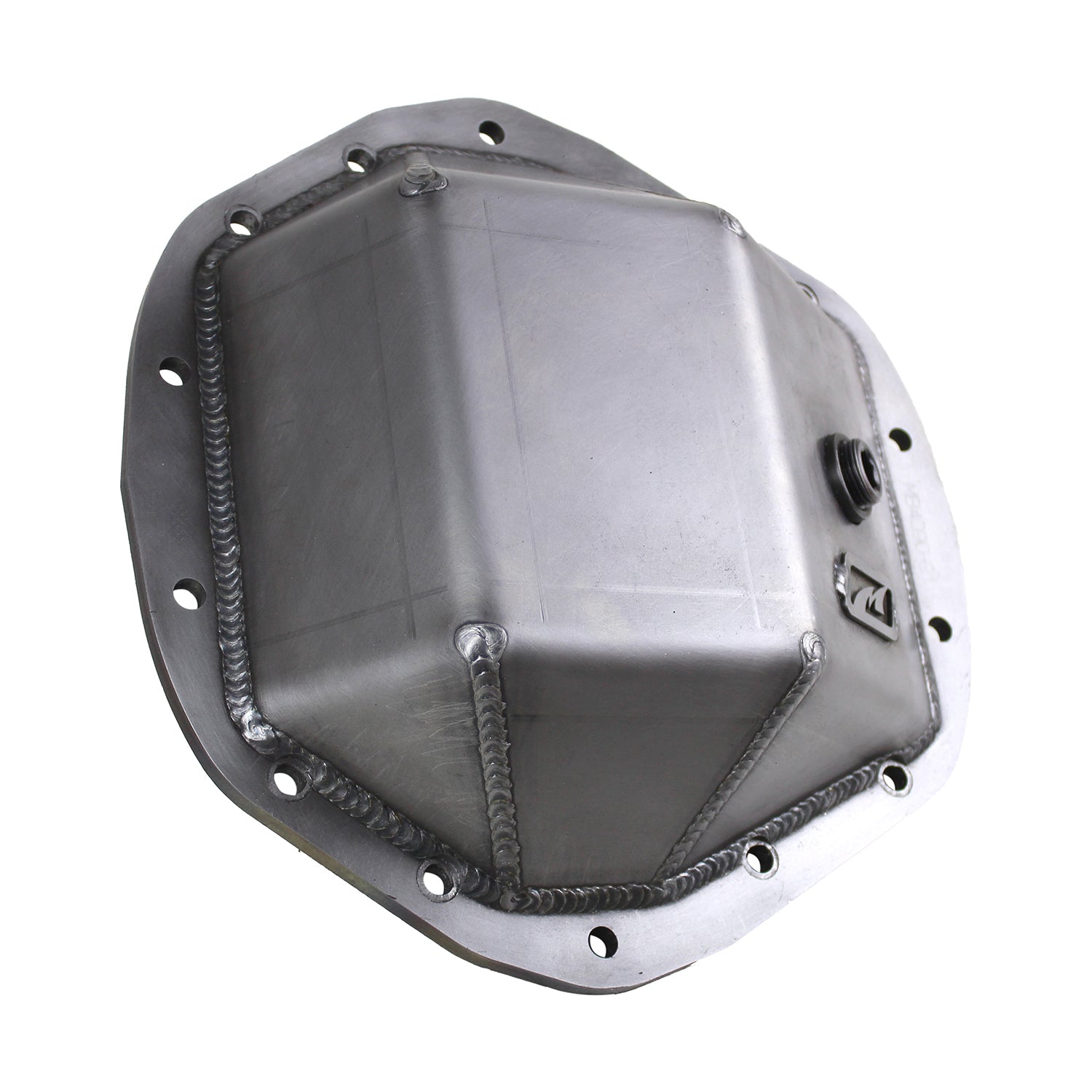

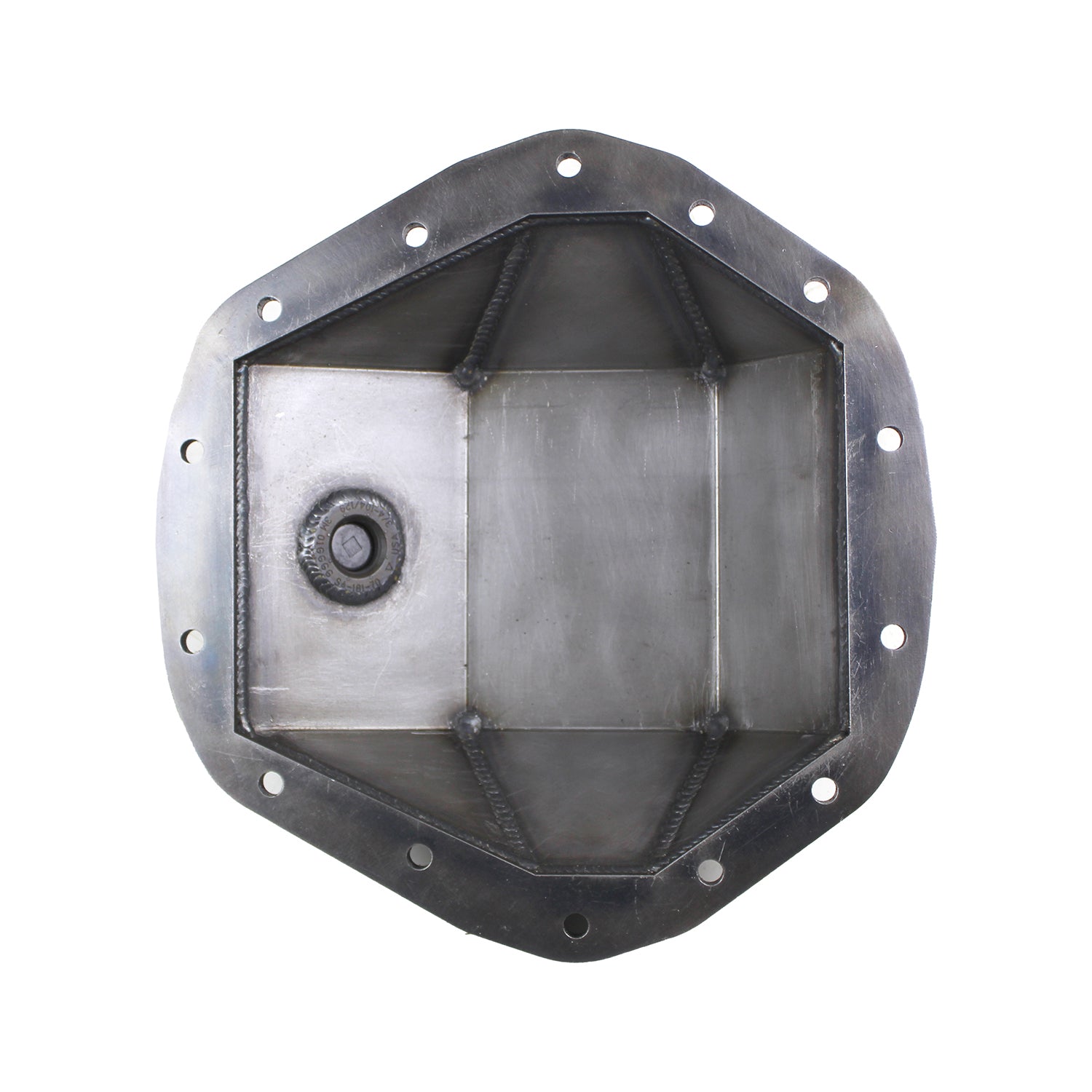

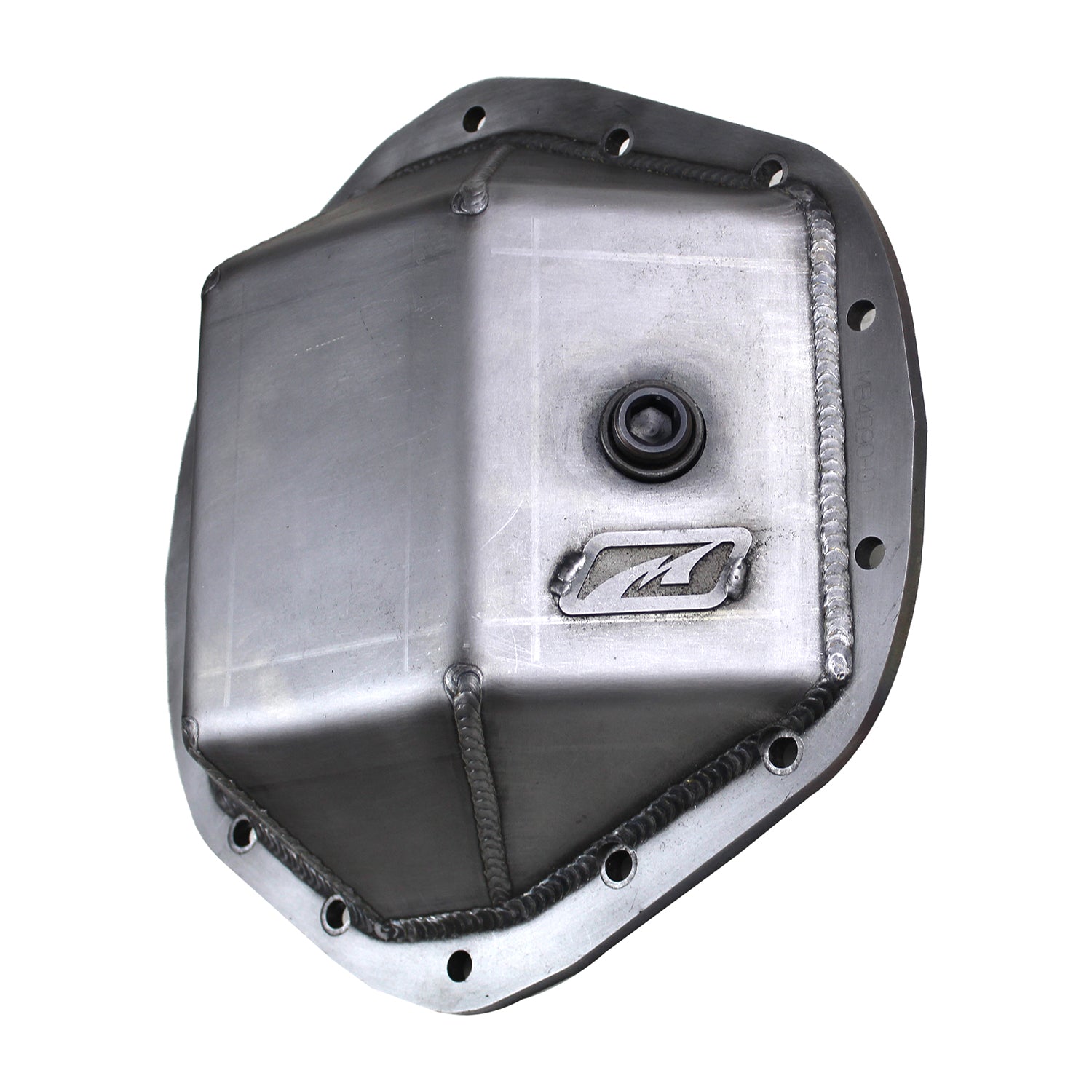

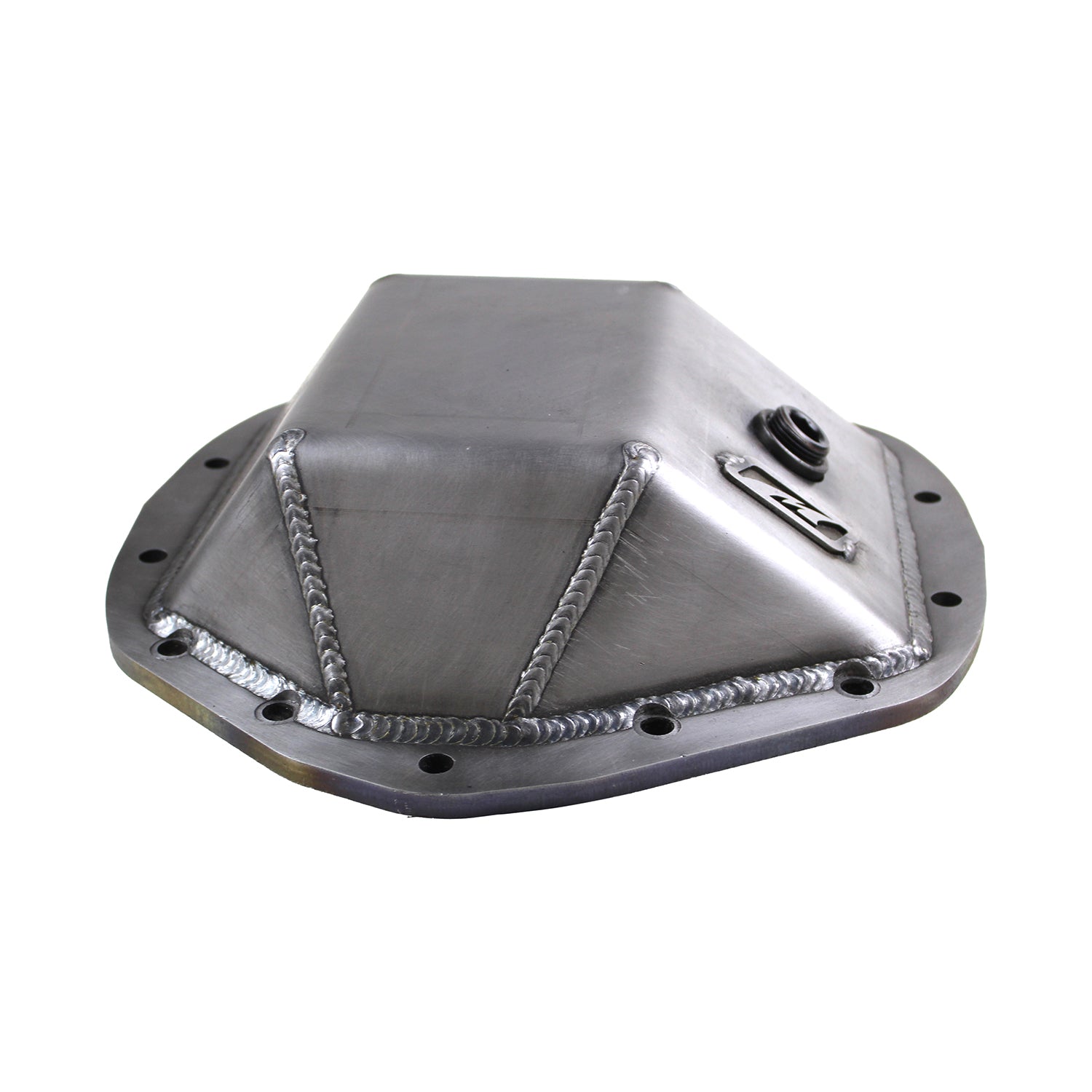

The Motobilt AAM 11.5 HD steel diff cover has many features that separate it from others. The AAM 11.5 HD steel diff cover features a 3/8 inch thick laser cut steel ring that will keep the cover from pulling away from the housing when dragging over rocks. The diff cover also features our proven 1/4 inch thick CNC one piece formed steel plate shell design with an integrated 3/4 inch NPT fill plug. The fill plug on the AAM 11.5 HD steel diff cover allows for easy access. The diff cover is welded both on the inside and outside to ensure maximum penetration for superior strength. The diff cover ships bare steel and will need to be painted. We do not usually powder coat them because the diff cover is going to take abuse from rocks. Spray paint works well so you can simply touch it up. The bolts and fill plug ship with the cover.

Specifications

• 3/8 inch thick laser cut steel ring
• 1/4 inch thick CNC formed steel plate
• Integrated 3/4 inch NPT fill plug
• Lifetime warranty
• Sold as each
• Weight = 13lbs

Note:

• Ships bare steel will need to be painted

Instructions

Installation Instructions
