Upper Link Bracket - Axle Side

Name: Upper Link Bracket - Axle Side
Brand: Motobilt
SKU: MB1539-175-300
Price: 39.99 USD
Availability: InStock

Regular price $39.99

Shipping calculated at checkout.

Unit Price: / Sku: MB1539-175-300

Select Axle Tube Diameter:

Quantity:

View product details & documents

Product details

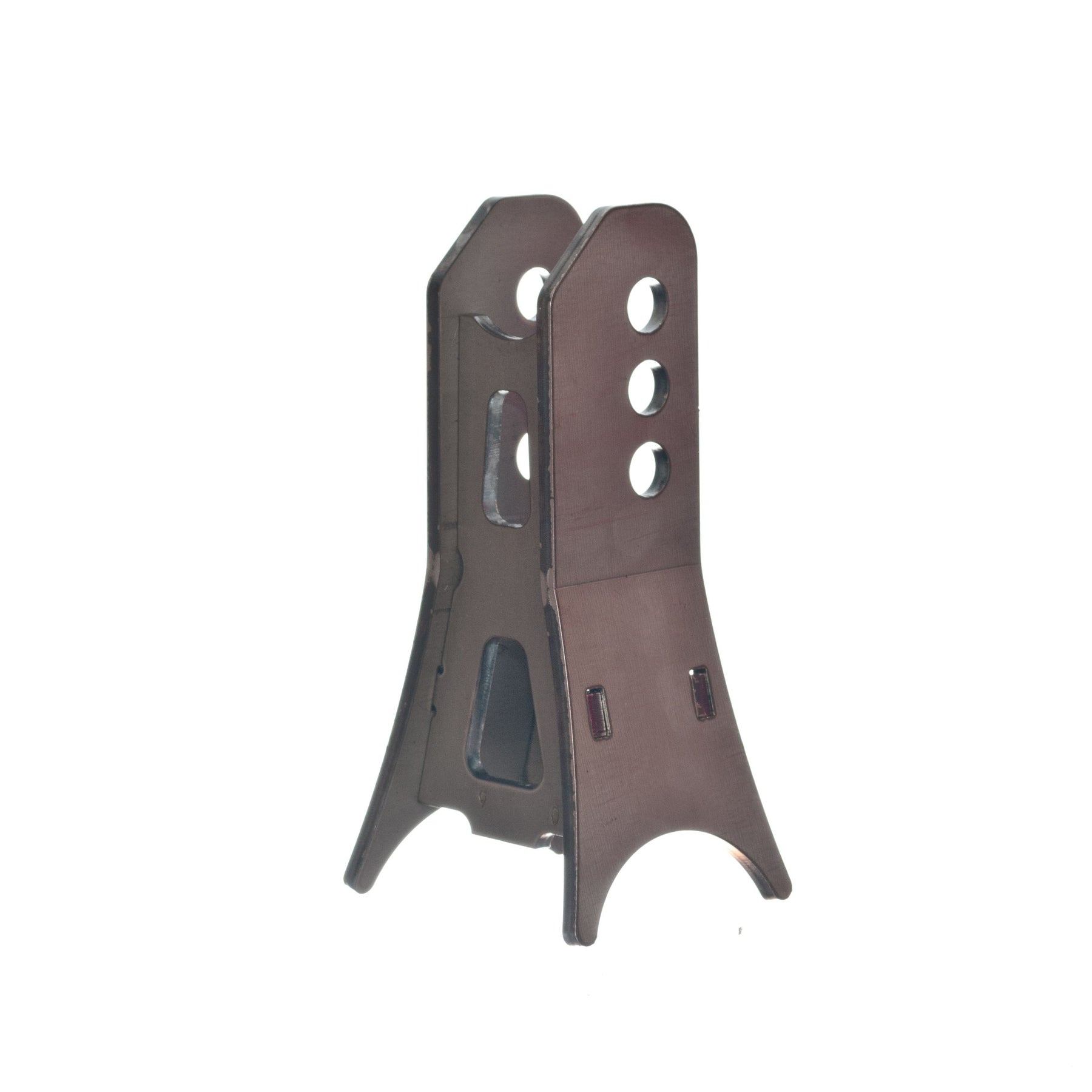

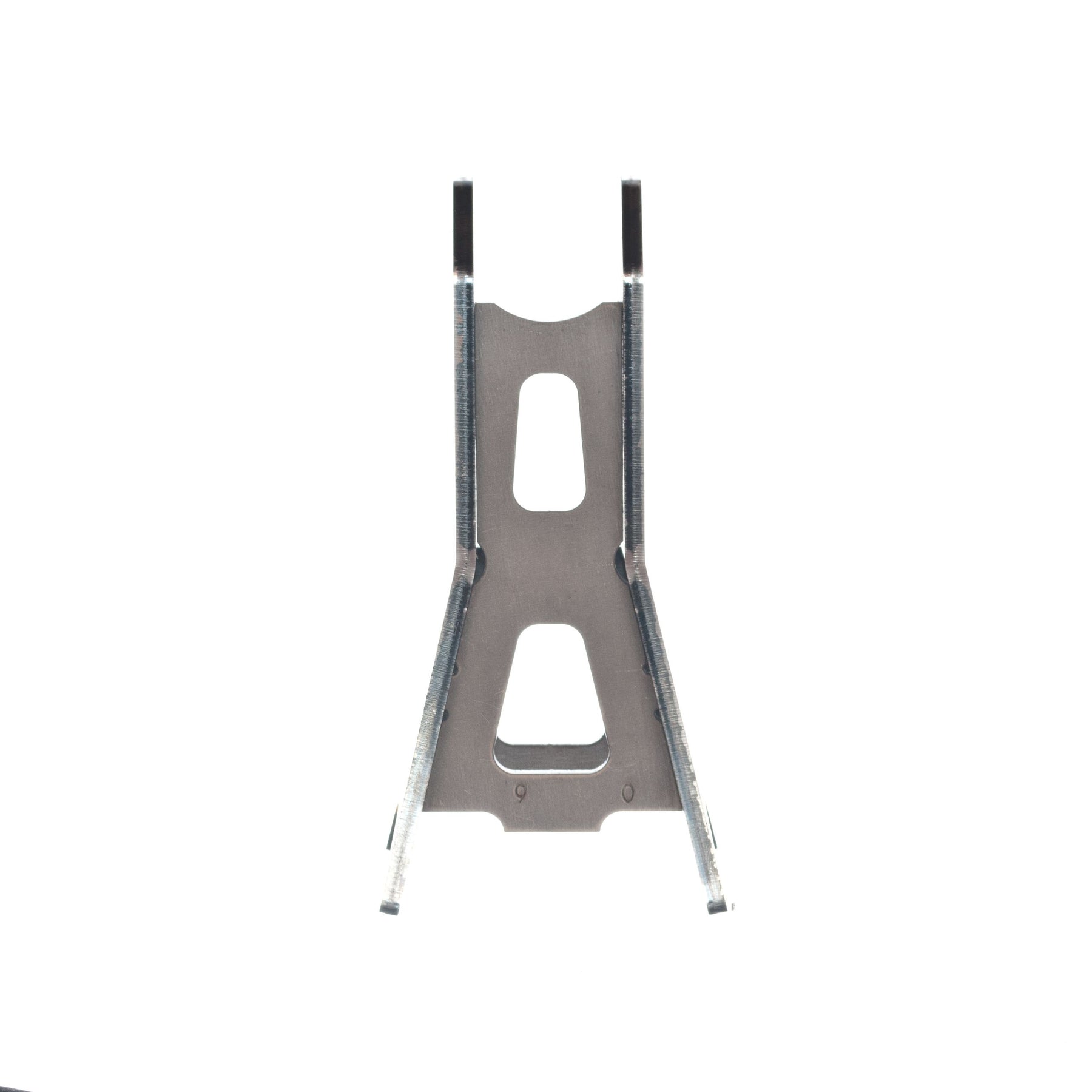

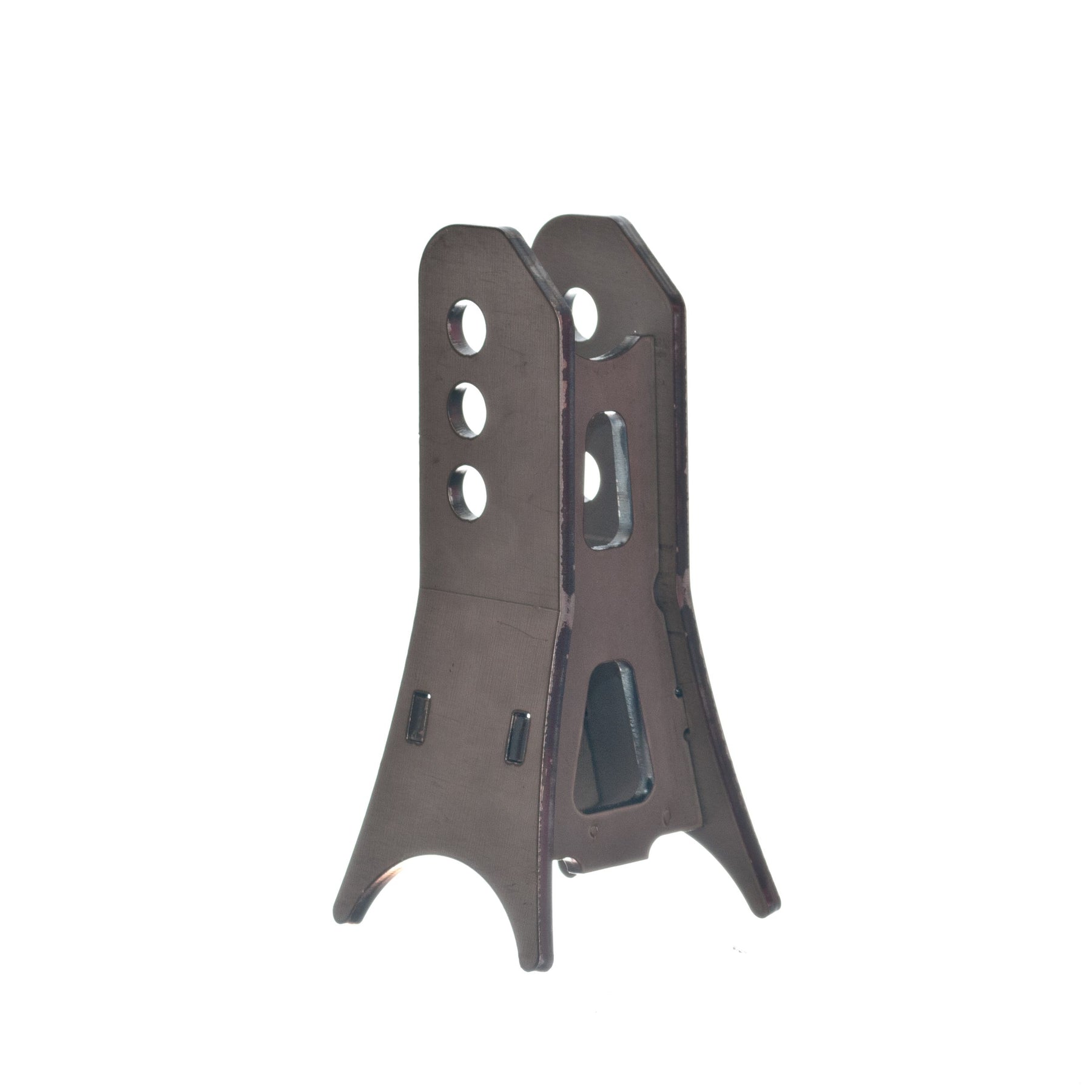

The Motobilt Axle Side Upper link Bracket is an adjustable tower design created to work with many applications. The tower comes in 3 inch axle tube diameter configuration. There are 3 link mounting holes that are each 5/8 inch in diameter and are separated in 1 inch increments. These towers can be used in a variety of different scenarios but are especially well suited when installing a 3 link suspension. The towers mounting width for the rod ends is 1.75 inch. This is the same size we use with the Jeep YJ, TJ, LJ 4 link kits that can be converted to a 3 Link in front. These are laser cut in house at Motobilt from 1/4 inch thick steel plate. CNC formed so they tab and slot design will allign itself perfectly.

Specifications

Adjustable link tower
3”, 3.25” and 3.5” axle tube diameters available
Mounting width for the rod ends is 1.75 inch
Laser cut 1/4 inch thick steel plate
3 link mounting holes that are each 5/8 inch in diameter and are separated in 1 inch increments.
Sold as each
Weight = 8lbs

Note:

These will need to be welded together
Works with many applications
