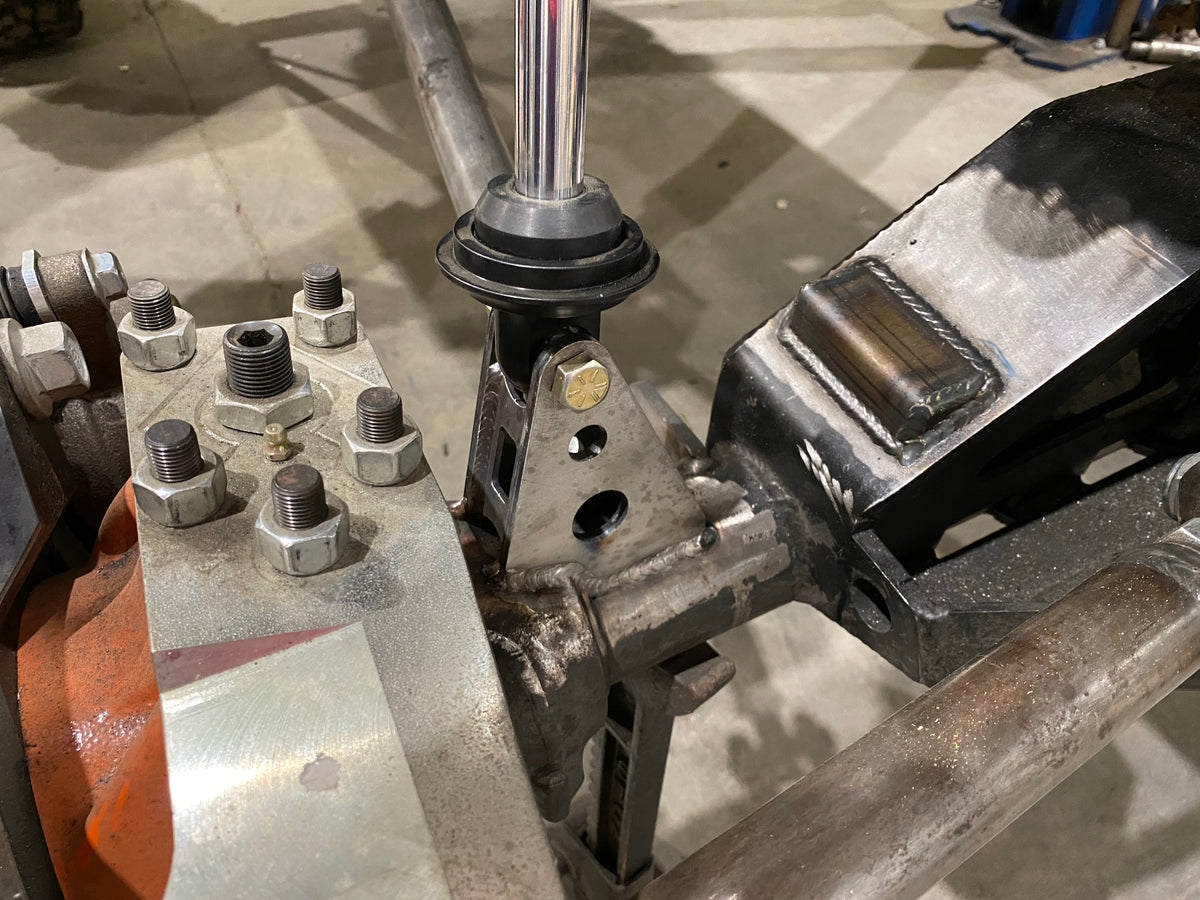

Dana 60 Kingpin Coilover Tab

Name: Dana 60 Kingpin Coilover Tab
Brand: Motobilt
SKU: MB2006
Price: 3.99 USD
Availability: InStock

Regular price $3.99

Shipping calculated at checkout.

Unit Price: / Sku: MB2006

Fits: Jeep Wrangler YJ · Jeep Wrangler TJ

Quantity:

View product details & documents

Product details

ScotCoilover mounting tab for Dana 60 front kingpin style axle housings. Mounting coilover shocks to a Dana 60 front kingpin style axle has a couple challenges and the Motobilt MB2006 tab answers them. The tab is contoured on the bottom edge (weld surface) to follow the axle tube and contour of the Dana 60 kingpin inner C. The tab is CAD designed from paper templates I have used many times over the years to hand fabricate a similar part. The part is laser cut in house from 1/4 inch high strength steel plate and has a 1/2 inch mounting hole for the shock.

It should be noted this tab can be used to mount coilovers and standard gas shocks. The tab raises the mounting location vertical on the axle to help the coils clear high steer arms on the king pin style Dana 60 front axle. Sold individually. You will need 2 tabs to mount 1 coil over. If you are installing on both axles front and back you will need 8 tabs.

Specifications

Coilover mounting tab for Dana 60 front kingpin
1/2 inch Shock mounting hole is 4.25 inch from the base
CNC Laser cut from 1/4 inch high strength steel plate
Raises coilover up to clear high steer arms
Sold individually so you will need 2 tabs for each coil over.

Note:

This tab can be used to mount coilovers and standard gas shocks
You will need 2 tabs per coil over.
