Product Description
Stretching the rear axle on a Jeep YJ requires more than simply relocating suspension components. Once the axle is moved back 6 inches, the factory rear body becomes a limiting factor for tire clearance, suspension travel, and body protection. Builders often find themselves modifying the rear corners to accommodate larger tires and create the clearance needed for serious off-road use.
The Motobilt 6" Stretch Corner Armor with Recessed Tail Light Mounts is designed specifically for Jeep YJ builders moving the rear axle back 6 inches. These corners provide protection for the modified rear body while creating a clean, finished appearance for stretched wheelbase builds. The design complements the body modifications commonly required during a wheelbase stretch and helps protect the rear corners from rocks, obstacles, and trail abuse.
Constructed from 3/16-inch A36 steel, these corners are built to withstand the abuse that comes with rock crawling and aggressive trail use. The heavy-duty steel construction helps protect the rear quarter panels from impacts while complementing the body modifications commonly required during a wheelbase stretch.
Builders pushing a stretched Jeep YJ into serious trail use quickly discover that factory rear tail lights are vulnerable once larger tires, suspension upgrades, and aggressive departure angles become part of the build. Rear corners are frequently dragged across rocks and obstacles during rock crawling, making exposed factory lighting susceptible to damage.

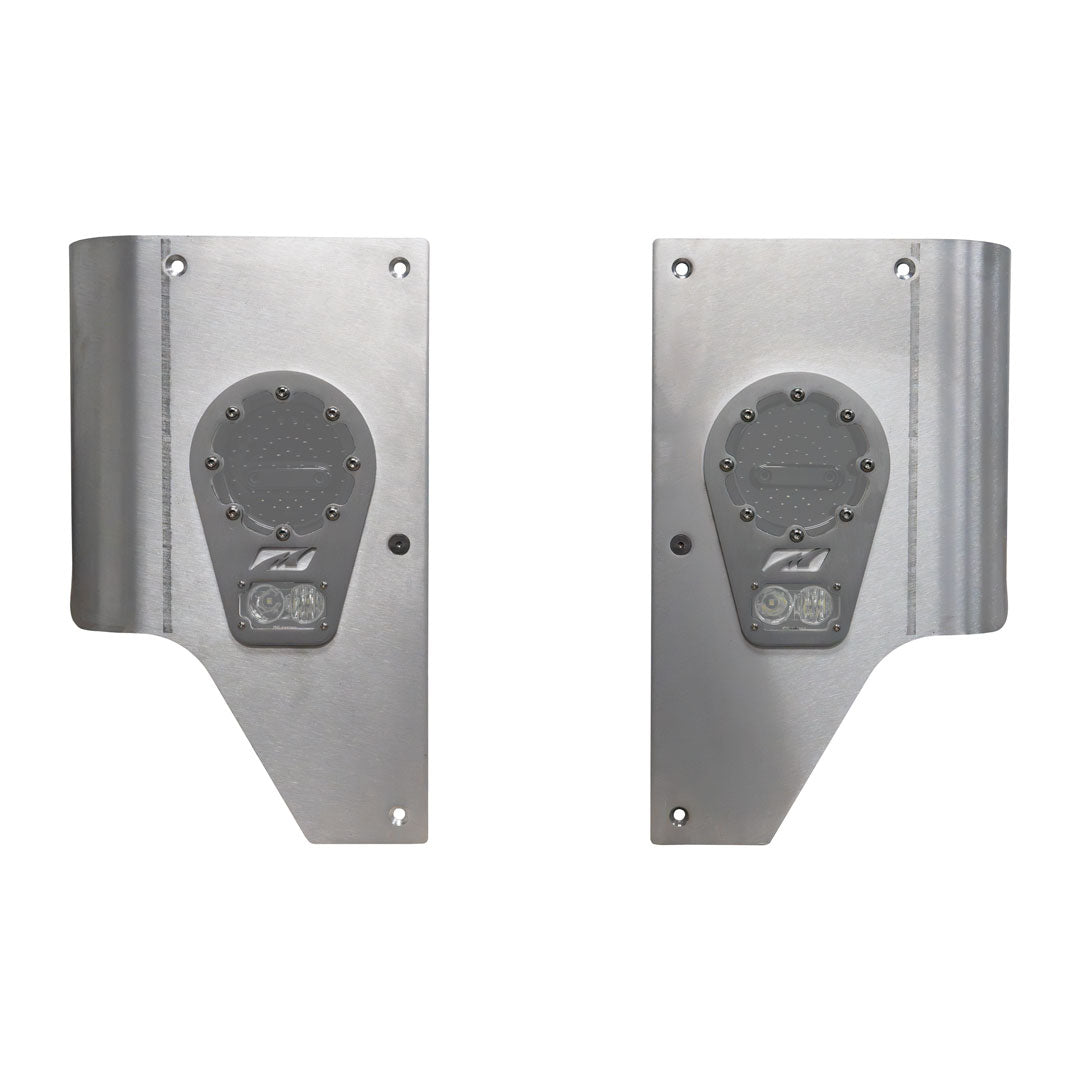

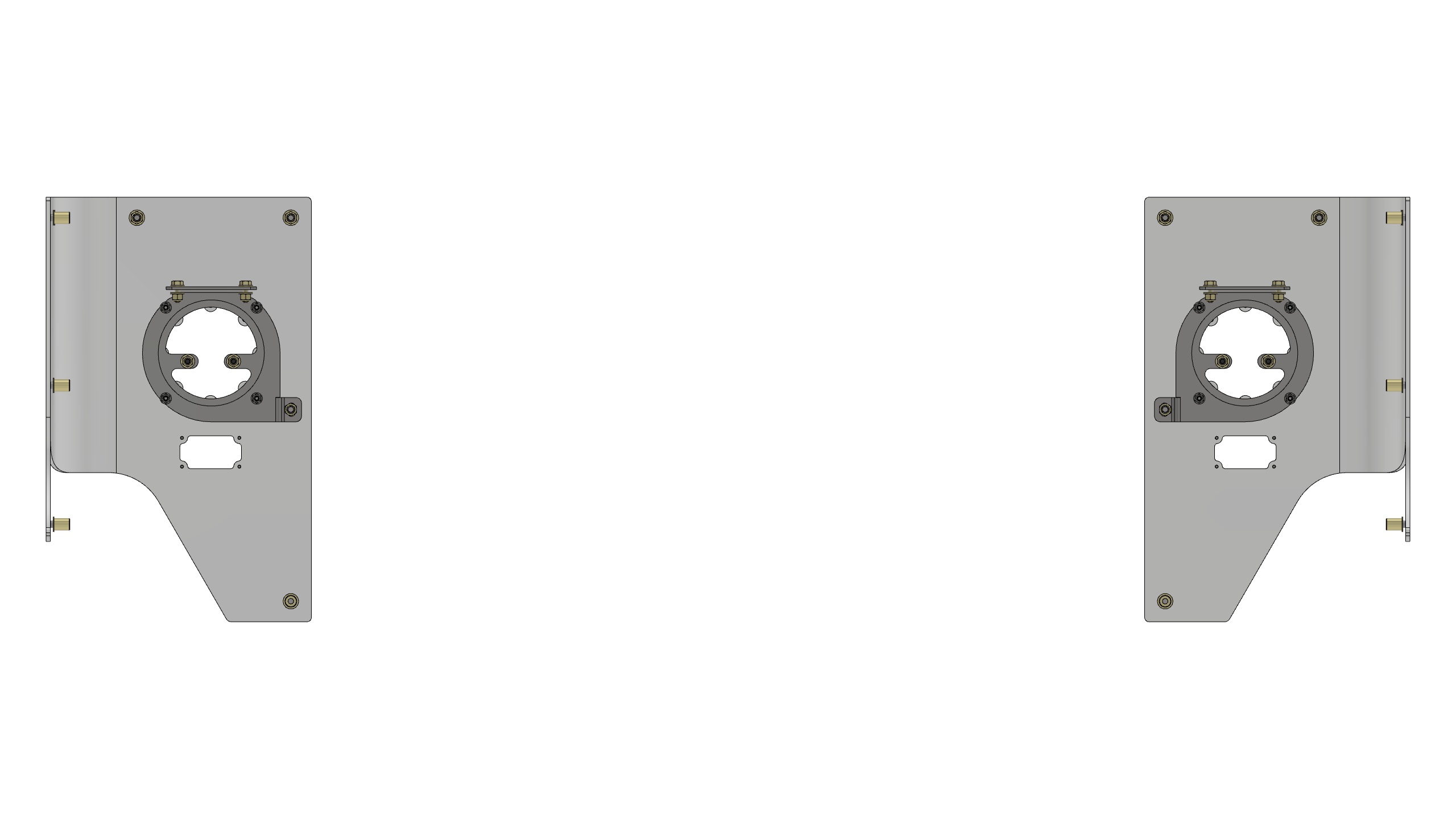

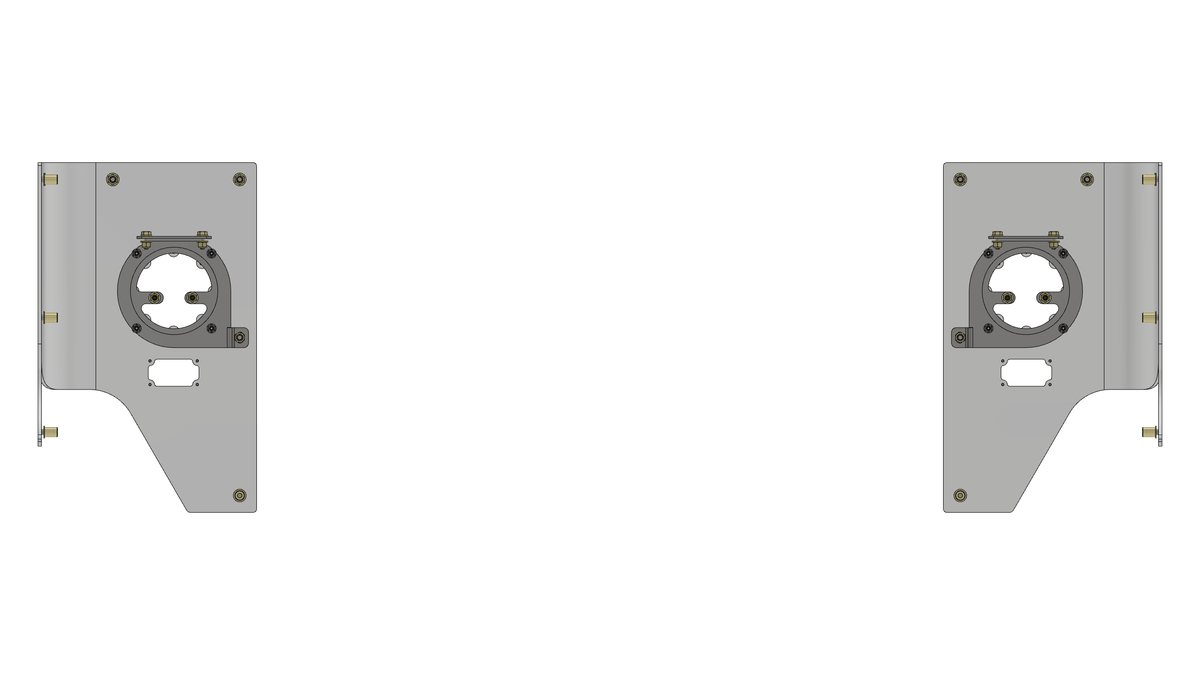

The Motobilt 6" Stretch Corner Armor is designed around a fully recessed tail light system that helps protect the lighting deep inside the armor structure rather than leaving it exposed on the outside of the body. Internal mounting brackets position the lights safely within the corner armor while outer trim rings create a clean finished appearance that complements the overall build.
These corners are designed around the Baja Designs S2 auxiliary light platform and the Motobilt recessed tail light system. The compact S2 package allows the lighting to be integrated cleanly into the corner armor while maintaining a functional and protected rear lighting solution for stretched Jeep YJ builds.
The corners are also designed around a drop tailgate configuration and pair with the Motobilt MB1168 Tailgate. Together, these components create a cohesive rear body package for builders modifying their Jeep beyond factory limitations.
Like many Motobilt products, these corners were developed from real fabrication experience. Builders stretching wheelbases, increasing tire size, and modifying suspension systems often discover that factory sheet metal quickly becomes a limitation. These corners solve that problem while integrating cleanly with the rest of the build. They pair perfectly with the Motobilt MB1231 series rocker guards, allowing builders to create a complete armor package from the rocker panels to the rear corners.
Tail lights and Baja Designs S2 auxiliary lights are sold separately. Motobilt recommends Tail Light Kit MB6504.
Designed and manufactured in the USA, the Motobilt 6" Stretch Corner Armor is built for fabricators and off-road enthusiasts creating capable Jeep YJ builds for serious trail use.
Important Information
-
Fits 1987-1995 Jeep YJ
-
Designed for 6-inch rear axle stretch applications
-
Constructed from 3/16-inch A36 steel
-
Designed for the Motobilt recessed tail light system
-
Compatible with Motobilt Tail Light Kit MB6504
-
Designed around Baja Designs S2 auxiliary lights
-
Baja Designs S2 lights sold separately
-
Tail lights sold separately
-
Designed for use with a drop tailgate configuration
-
Pairs with the Motobilt MB1168 Tailgate
-
Made in the USA
-
Works with Motobilt MB1231, MB1231-FND, MB1231-S, and MB1231-S-FND rocker guards
-
Installation requires cutting and body modification
Product Specifications
Vehicle Fitment
1987-1995 Jeep YJ
Material
3/16" A36 Steel
Dimensions
18.5" H × 11.5" W × 65.25" D
Weight
95 lbs
Manufactured
Made in the USA
Related Motobilt Systems
MB1168 Tailgate
MB6504 Tail Light Kit
Baja Designs S2 Auxiliary Lights
MB1231 Rocker Guards
MB1231-FND Rocker Guards
MB1231-S Rocker Guards
MB1231-S-FND Rocker Guards
Installation Notes
-
Designed for Jeep YJ builds utilizing a 6-inch rear axle stretch.
-
Installation requires cutting and modification of the factory body.
-
Test fit all armor components before final welding, painting, or powder coating.
-
Verify tire clearance and suspension travel during mock-up.
-
Designed for use with the Motobilt recessed tail light system.
-
Designed around Baja Designs S2 auxiliary lights.
-
Tail lights and auxiliary lights are sold separately.
-
Designed for use with the Motobilt MB1168 Tailgate.
-
Best results are achieved when paired with the MB1231 series rocker guard systems.
Frequently Asked Questions
Why are these corners designed for a 6-inch stretch?
These corners are specifically designed around moving the rear axle back 6 inches on a Jeep YJ. The additional wheelbase helps create room for larger tires and can improve stability on technical terrain.
What tail lights are these corners designed for?
These corners are designed around the Motobilt recessed tail light system. Internal mounting brackets position the lights inside the armor structure to help protect them from trail damage. Motobilt recommends Tail Light Kit MB6504.
Can I install auxiliary or work lights in these corners?
Yes. These corners are designed around the Baja Designs S2 auxiliary light platform. The compact S2 package integrates cleanly into the corner armor while maintaining a protected lighting solution. Lights are sold separately.
What tailgate works with these corners?
These corners are designed around a drop tailgate configuration and pair with the Motobilt MB1168 Tailgate.
Will these work with Motobilt rocker guards?
Yes. These corners were designed to work with the Motobilt MB1231, MB1231-FND, MB1231-S, and MB1231-S-FND rocker guard systems.
Is fabrication required for installation?
Yes. These corners are intended for stretched wheelbase builds and require cutting and modification of the factory body during installation.
