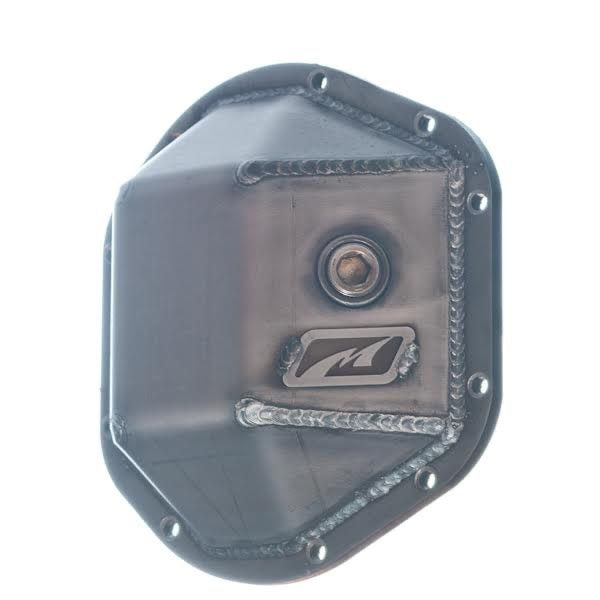

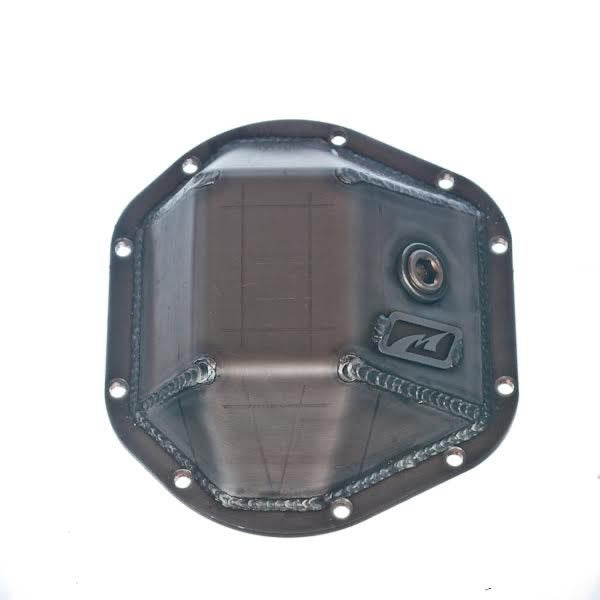

Dana 44 Diff Cover

The Motobilt Dana 44 steel diff cover has many features that separate it from others. The Dana 44  steel diff cover features a 3/8 inch thick steel ring that will keep the cover from pulling away from the housing when dragging over rocks. The Dana 44 steel diff cover also features the proven 1/4 inch thick steel plate design with an integrated 3/4 inch NPT fill plug. The fill plug on the Dana 44 HD steel diff cover allows for easy access, especially when a truss system is commonly used.

The Dana 44 steel diff cover is welded both on the inside and outside of the cover to ensure maximum penetration for superior strength. The Dana 44 steel diff cover's design comes from over 14 years of diff cover testing and manufacturing experience. The diff cover ships bare steel and will need to be painted. We do not usually powdercoat ours because the diff cover is going to take abuse from rocks. Spray paint works well so you can simply touch it up. The bolts and fill plug ship with the cover.

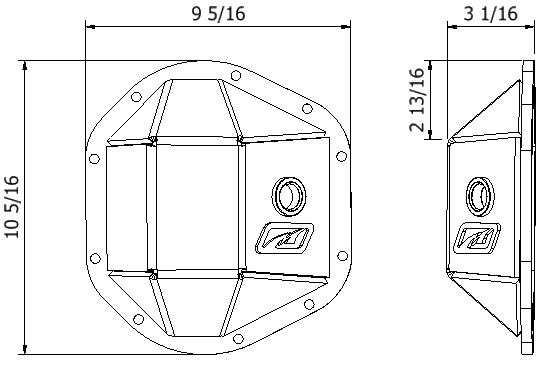

Specifications

• Dana 44  steel diff cover
• 1/4 inch thick steel plate
• 3/8 inch thick steel ring
• Integrated 3/4 inch NPT fill plug
• Sold as each
• Lifetime warranty
• Weight = 11lbs

Note:

• Ships bare steel and will need to be painted

Tools:

• 9/16 allen head - For the fill plug.
• 12 point 5/16 socket and ratchet

Instructions

Installation Instructions
