Super Duty Dana 60 Axle Truss 05-up

Name: Super Duty Dana 60 Axle Truss 05-up
Brand: Motobilt
SKU: MB4076
Price: 309.00 USD
Availability: InStock

Regular price $309.00

Shipping calculated at checkout.

Unit Price: / Sku: MB4076

Quantity:

View product details & documents

Product details

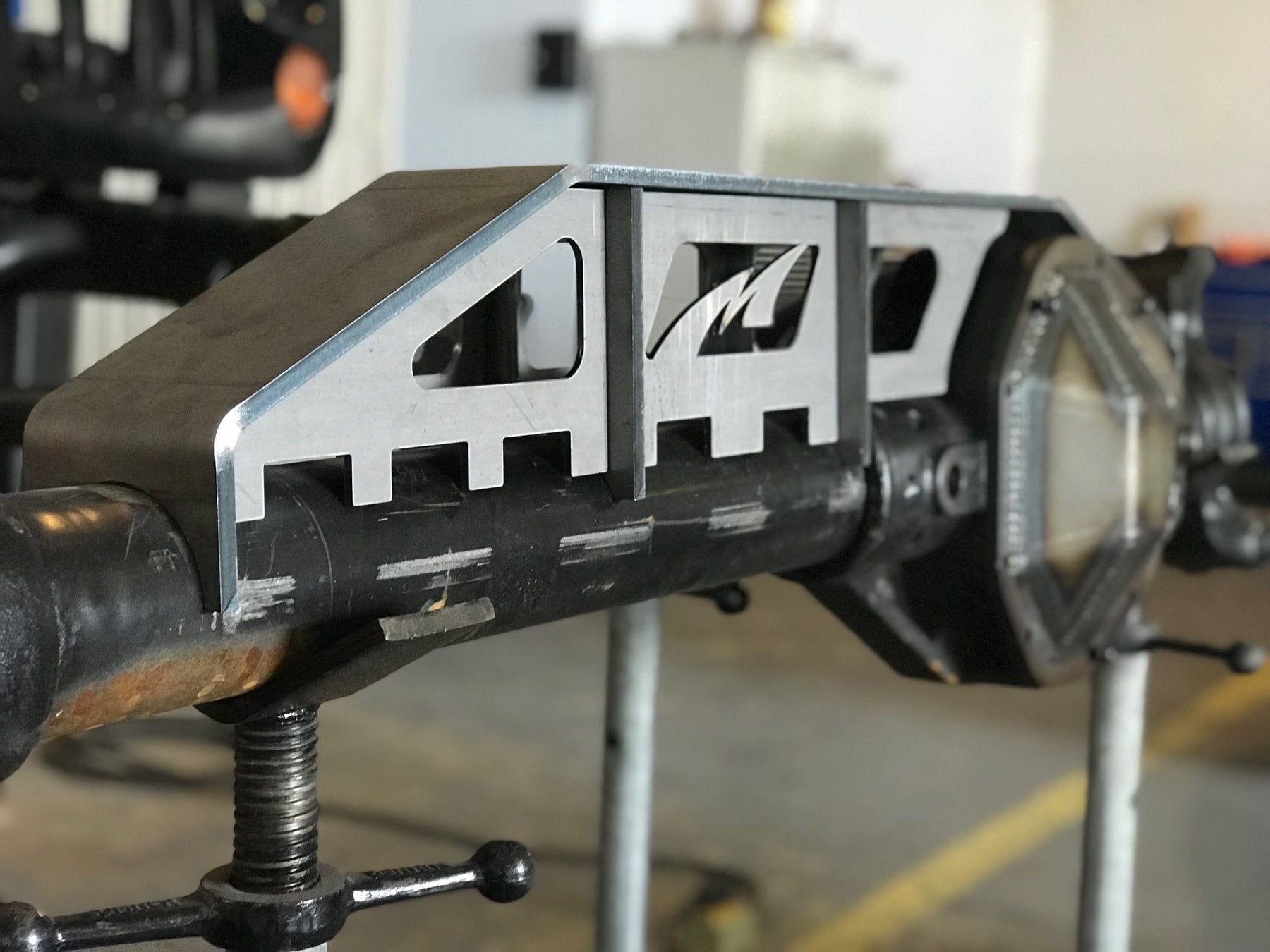

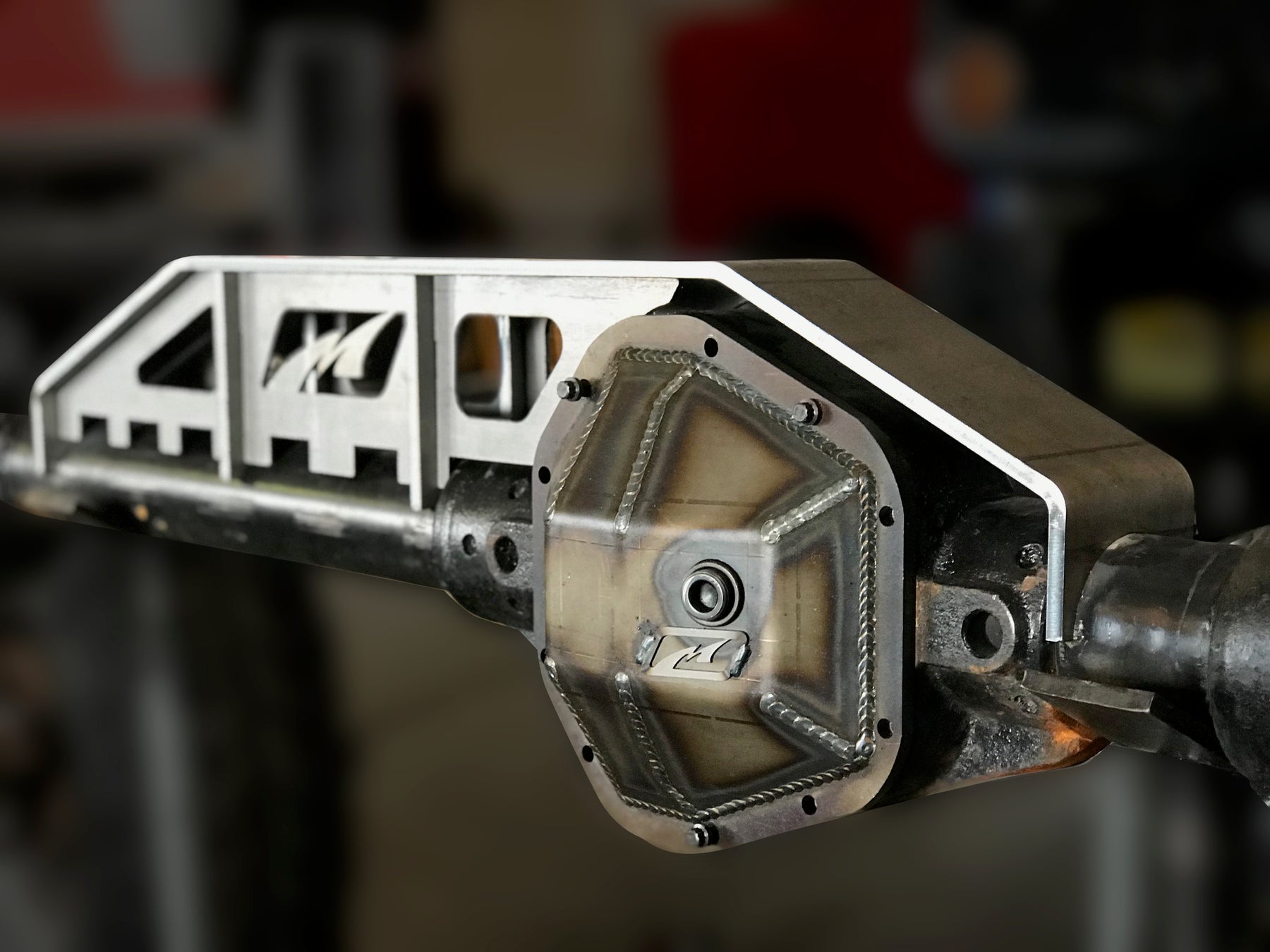

The Ford Super Duty Dana 60 truss from Motobilt will greatly increase the strength of your front axle. The main structure of this axle truss is laser cut and cnc bent from 3/8 inch thick steel plate. Supporting the main truss are 3/8 inch and 3/16 inch structural bracing. The top portion of the truss is approximately 5.5 inches wide and provides ample room for a suspension link mount to be welded onto it. Can be used for a 3 or 4 link setup.

Features:

Material: Steel
Thickness: 3/8 Inch
3/8 inch thick laser cut steel plate main truss
3/8 inch and 3/16 inch steel plate support structure
Full length span of axle for increased strength
Large flat mounting surface for link brackets.
Notes: Requires removal of factory brackets and housing on driver's side must be trimmed aproximately 2 inches
Fits: 2005 and Up Ford Super Duty
Weight: 55lbs (approx.)

Notes:

Approximately 2”s of the short side cast housing will have to be removed along with the other factory brackets.

Suggested Parts:

MB4082 - High Steer Brackets
MB4015 - Super Duty Dana 60 Lower Link Mount Kit
MB4043 - Super Duty Dana 60 heavy Duty Diff Cover
MB1542-175-350 - Track Bar Bracket Adjustable
