Spare Tire Carrier for Jeep JK /JKU- 8x6.5

Spare Tire Carrier for Jeep JK /JKU- 8x6.5

Name: Corner Armor with Tail Light System - Jeep JKU 07-18
Brand: Motobilt
SKU: MB1139
Price: 1049.00 USD
Availability: InStock

Regular price $669.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1084-8LUG

Fits: Jeep Wrangler JK / JKU

Quantity:

View product details & documents

Product details

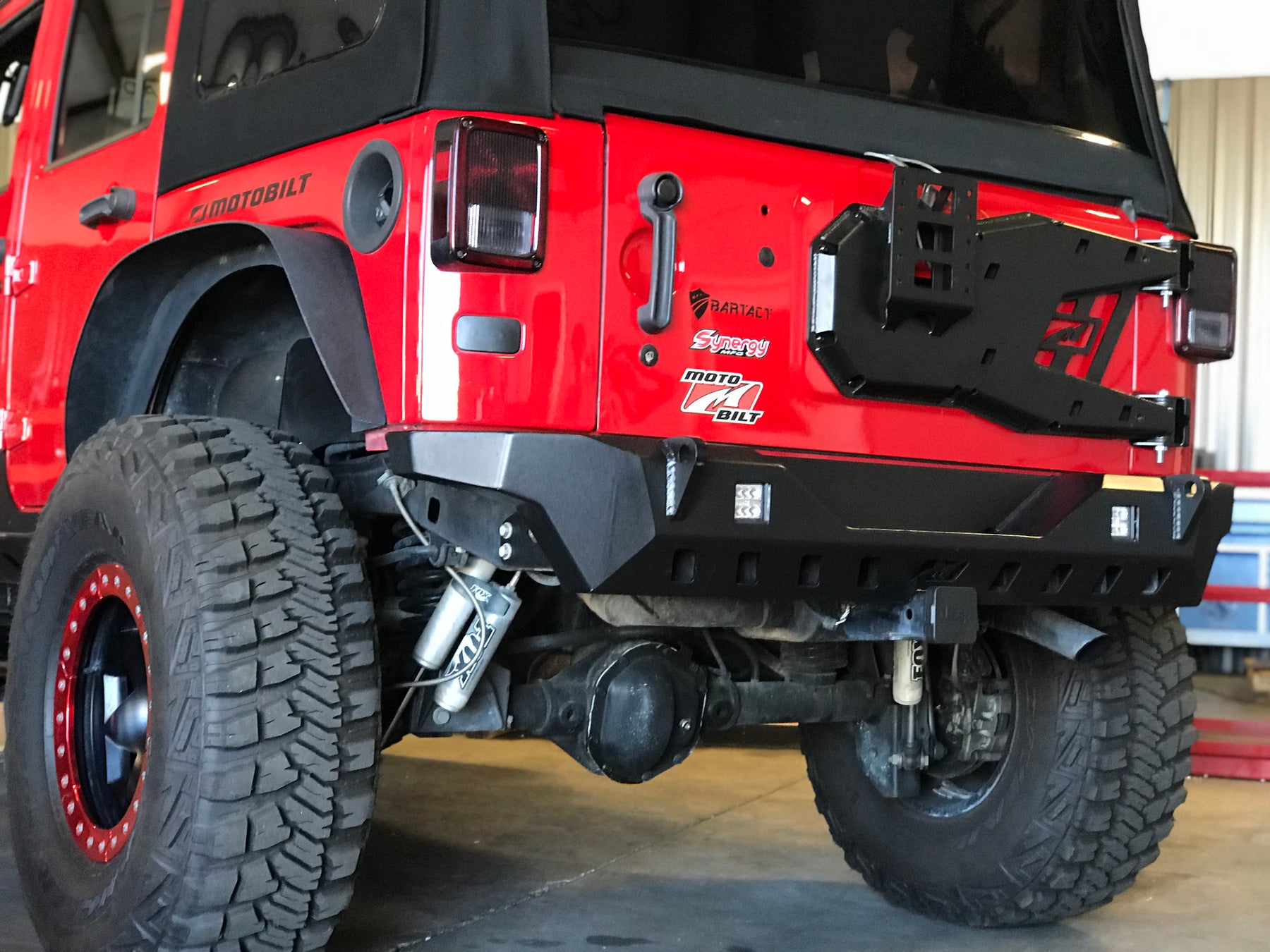

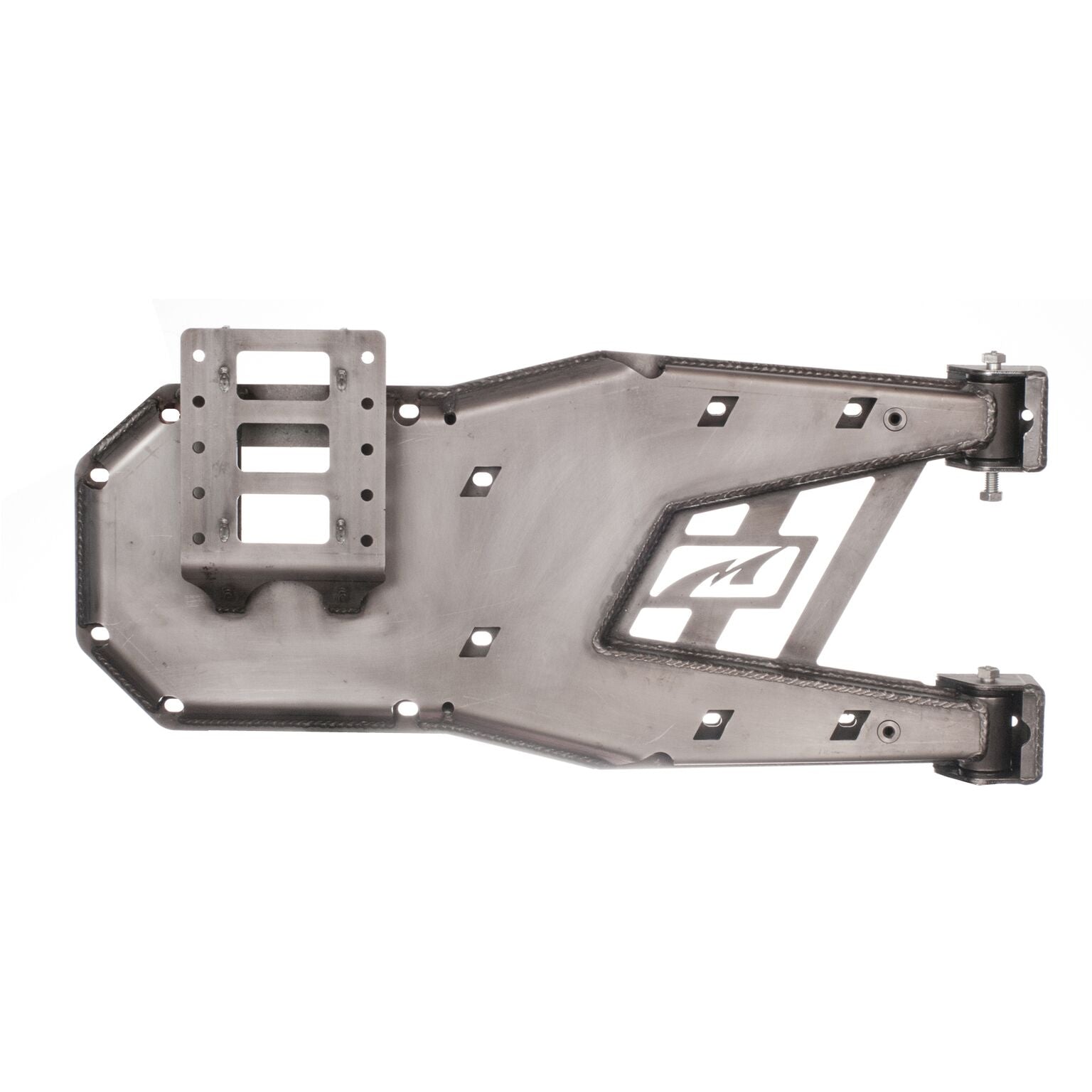

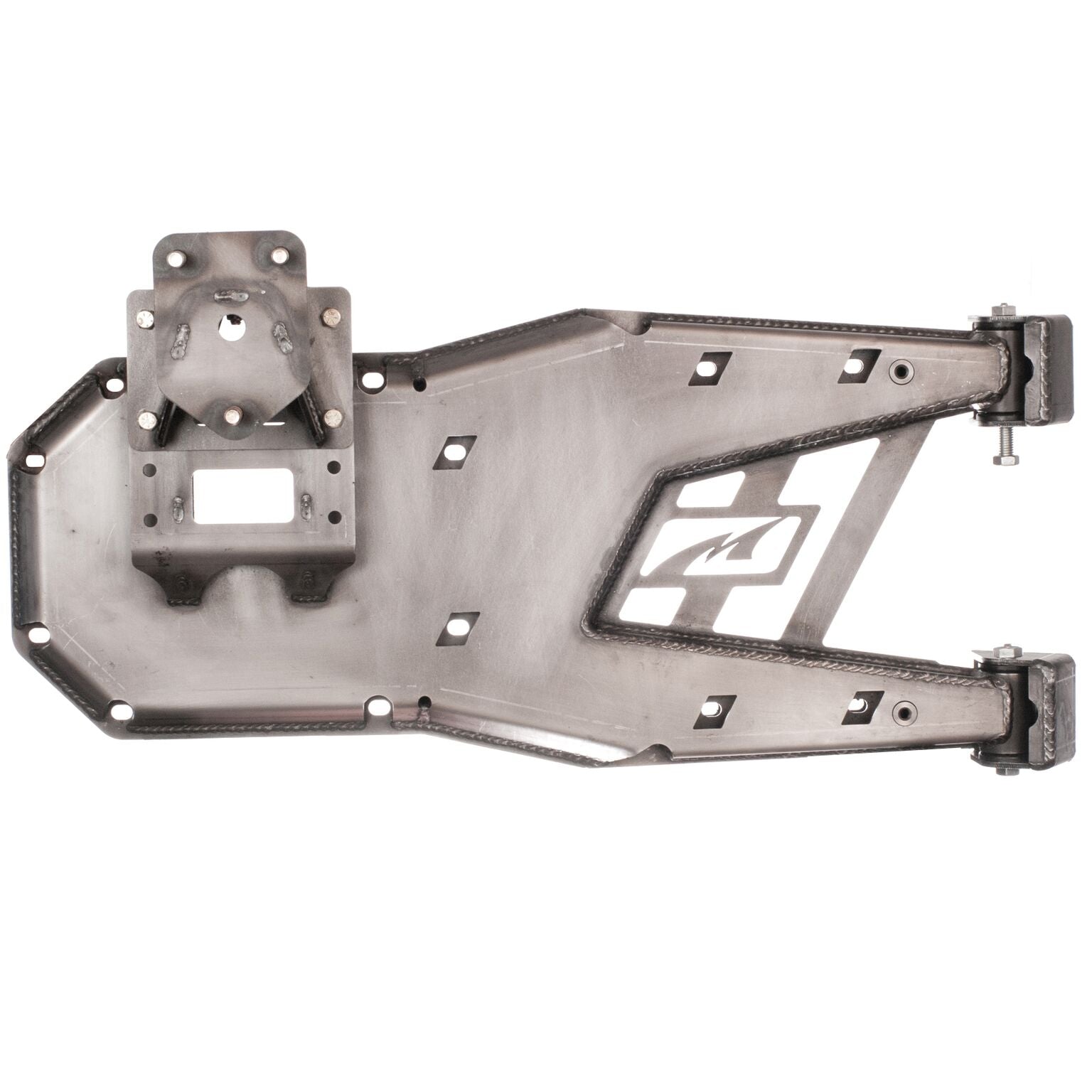

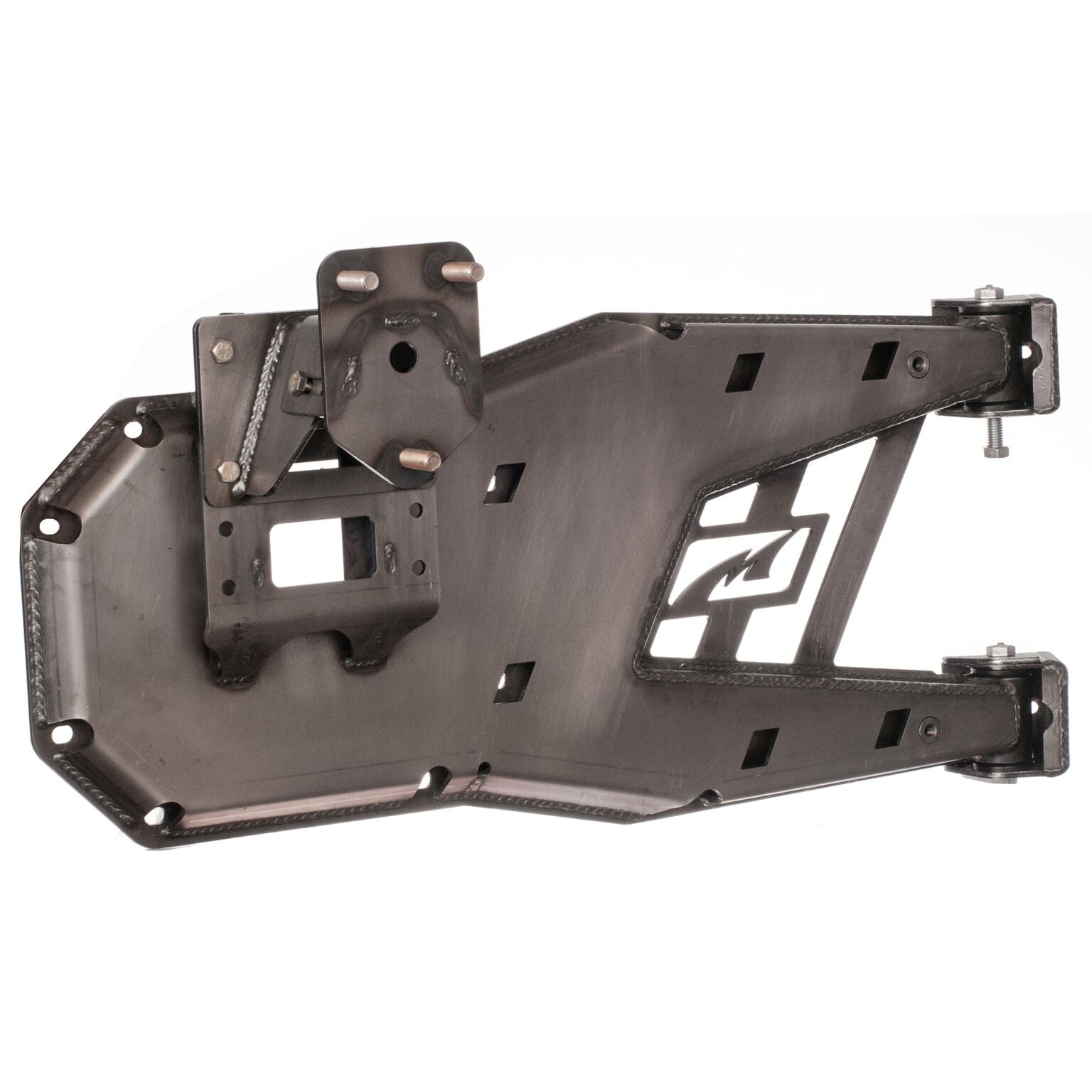

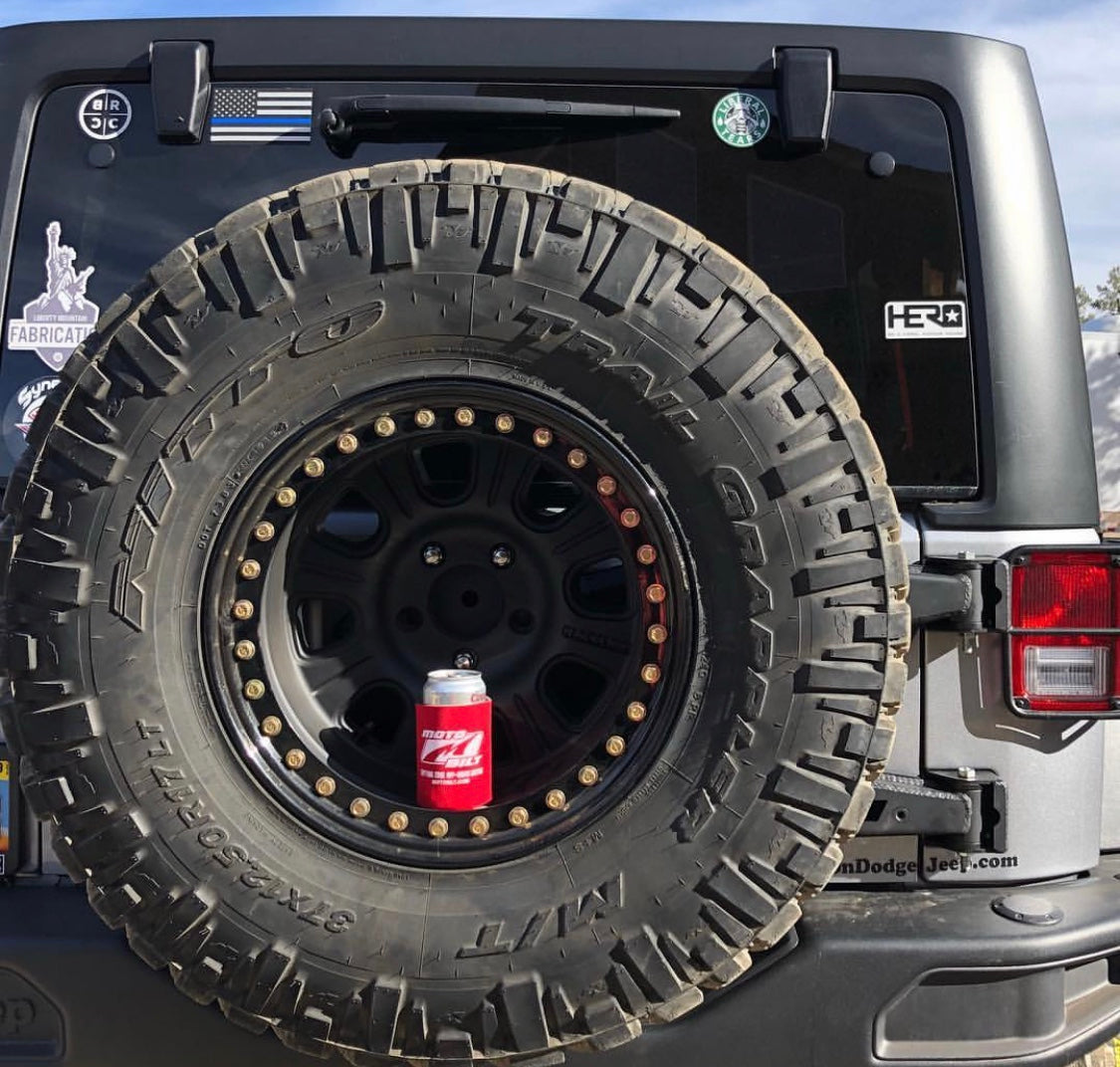

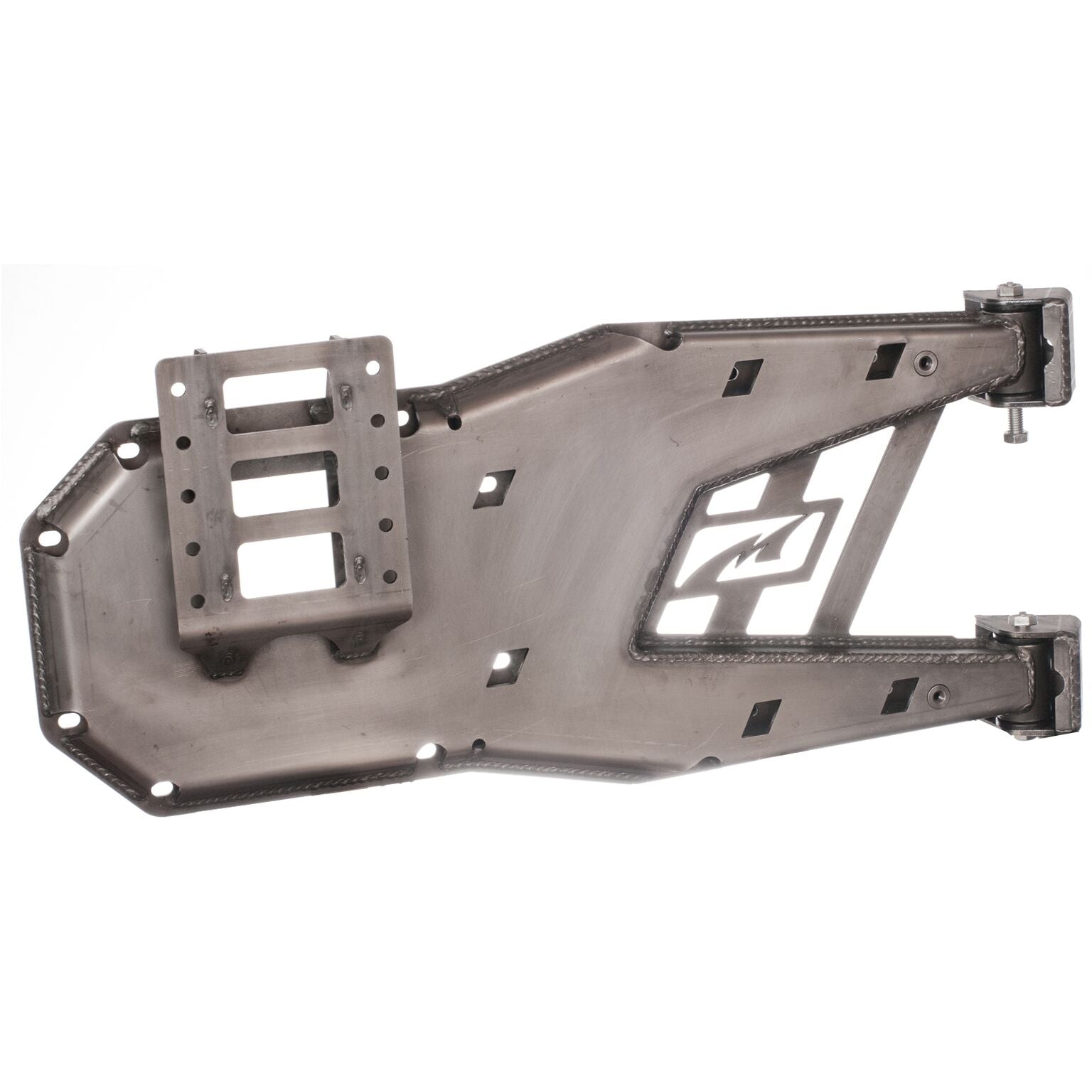

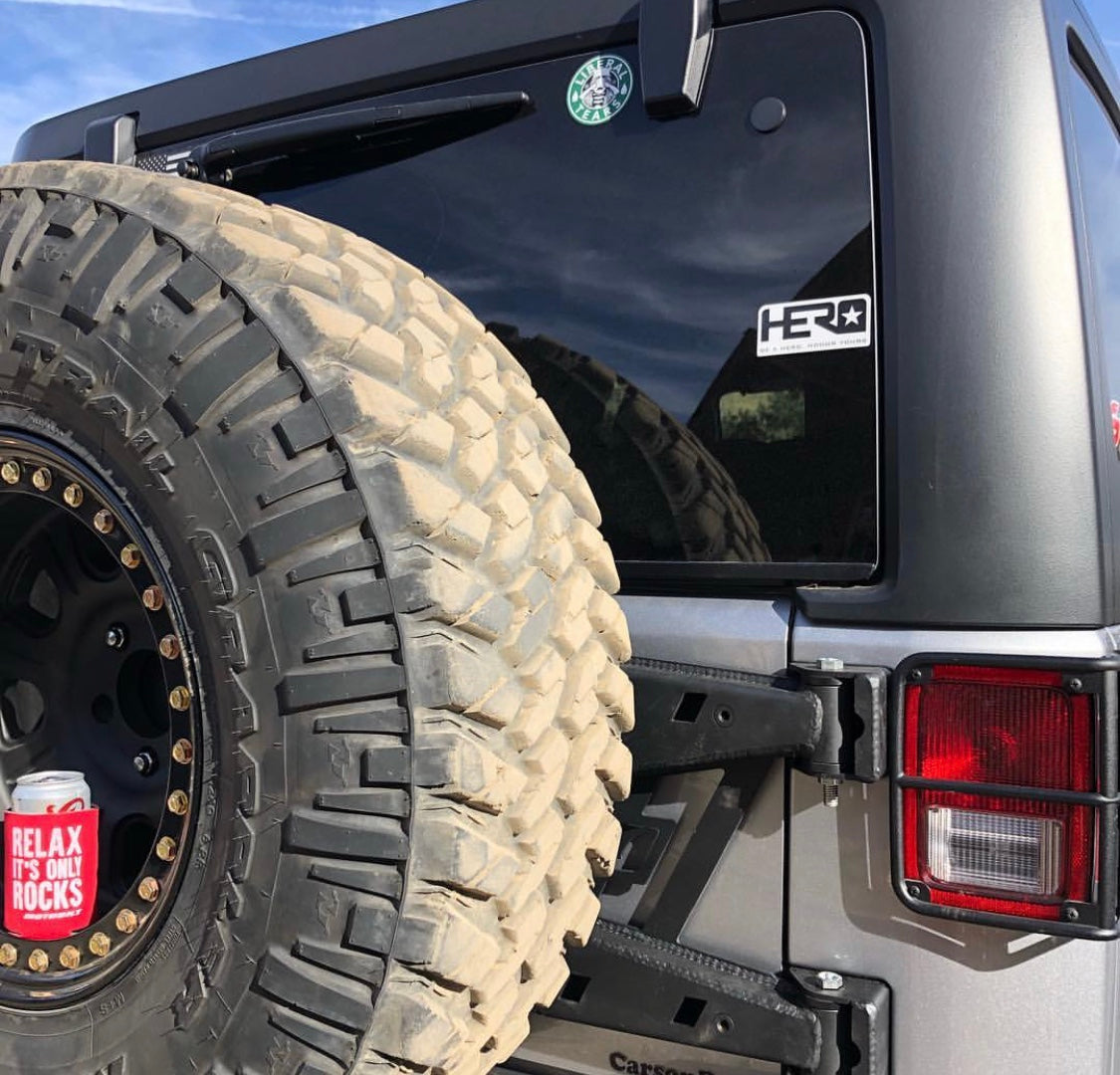

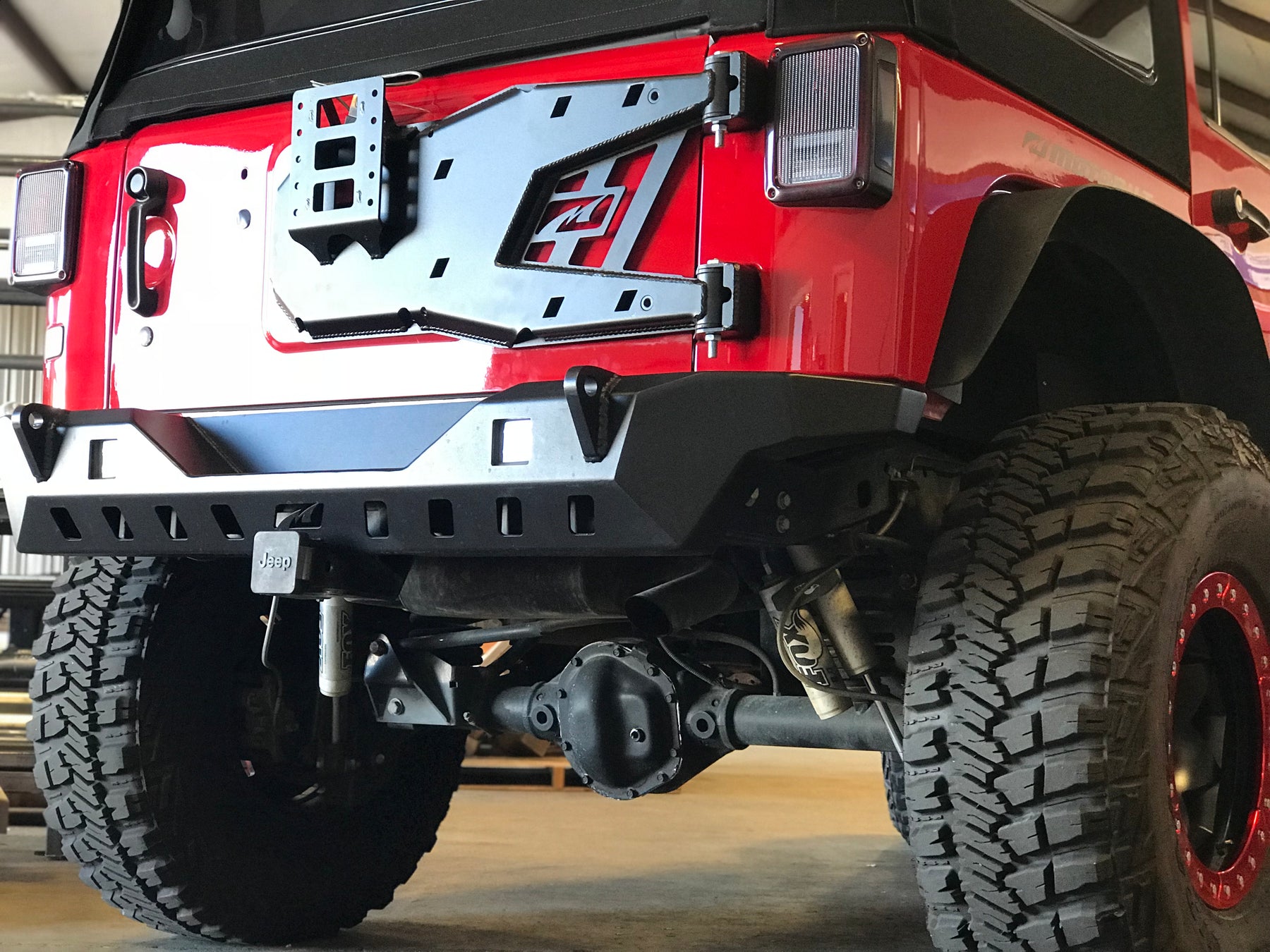

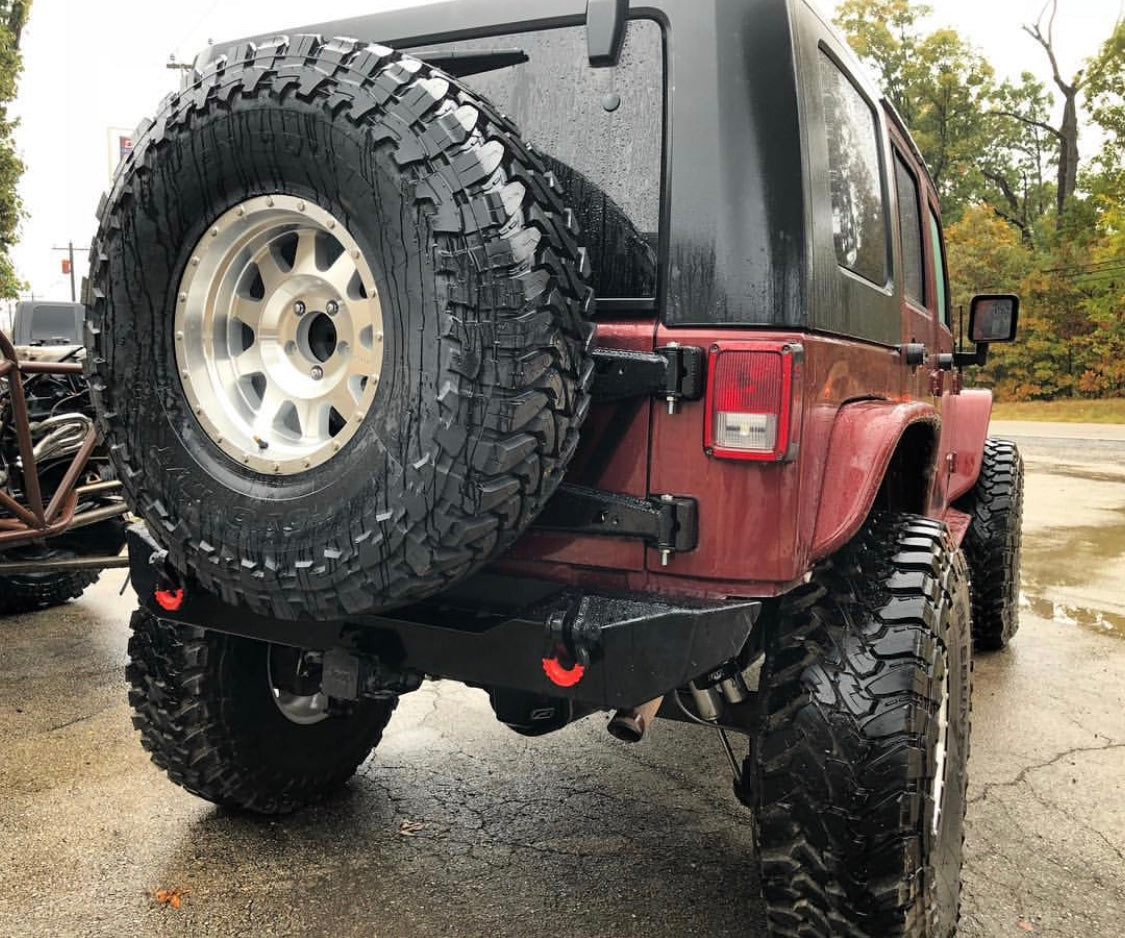

Motobilt introduces the Jeep JK and JKU 2007-2017 spare tire carrier for 8 x 6.5" wheel bolt pattern. With many people now swapping in 1 ton axles into their Jeep we now offer this version of the tire carrier to use the popular 8 x 6.5" bolt pattern.. This heavy duty tire carrier is a must have if you are running larger tires on your Jeep. The stock setup is not equipped to handle the extra weight of a larger tire and wheel setup. The new JK tire carrier was designed using cutting edge computer modeling software. We laser cut, cnc form, and hand weld each unit to ensure it is perfect. We also engineered it to install easily with basic hand tools. Included are our provisions for our aftermarket high lift jack mount part number MB1085.

Specifications

Weight: 60lbs (approx.)

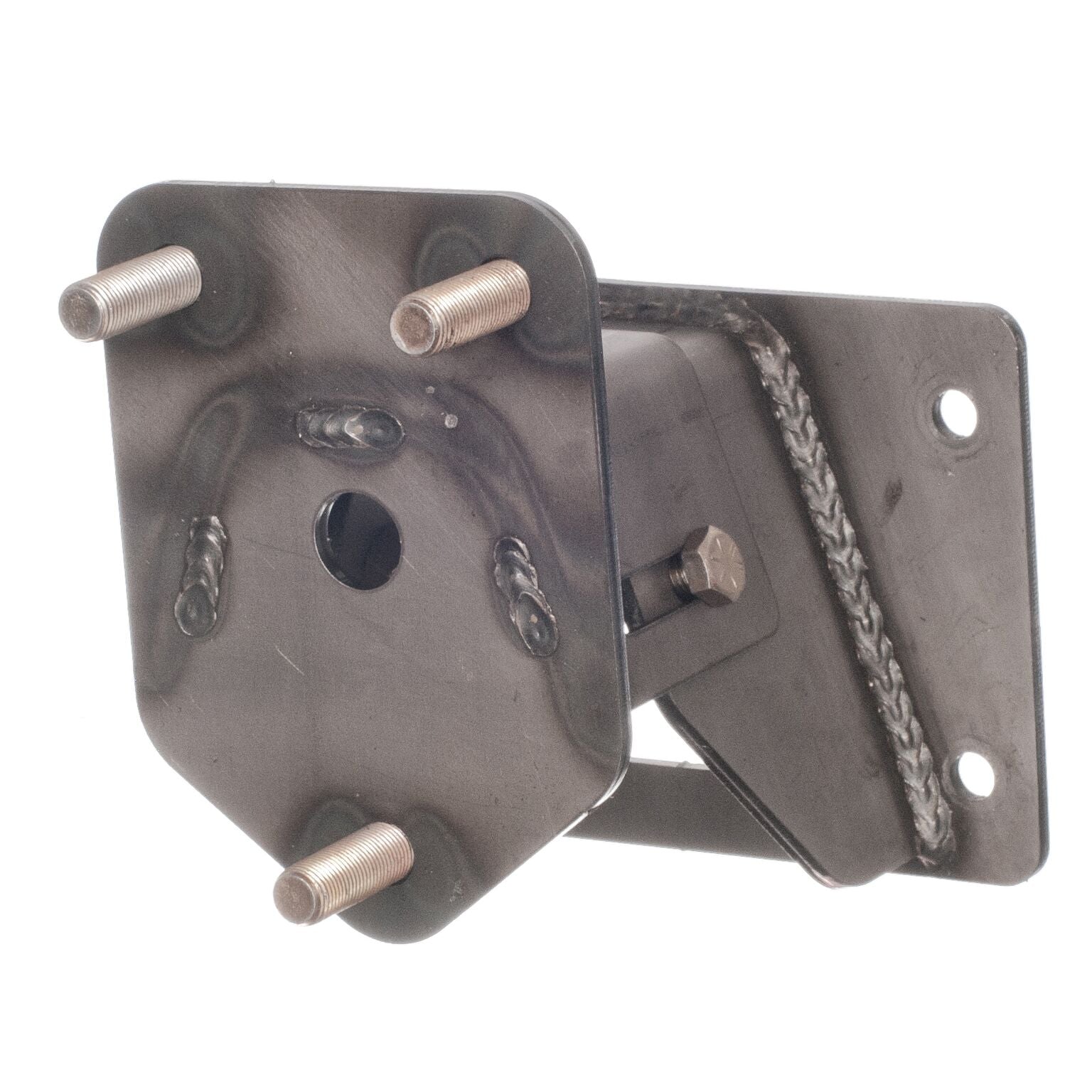

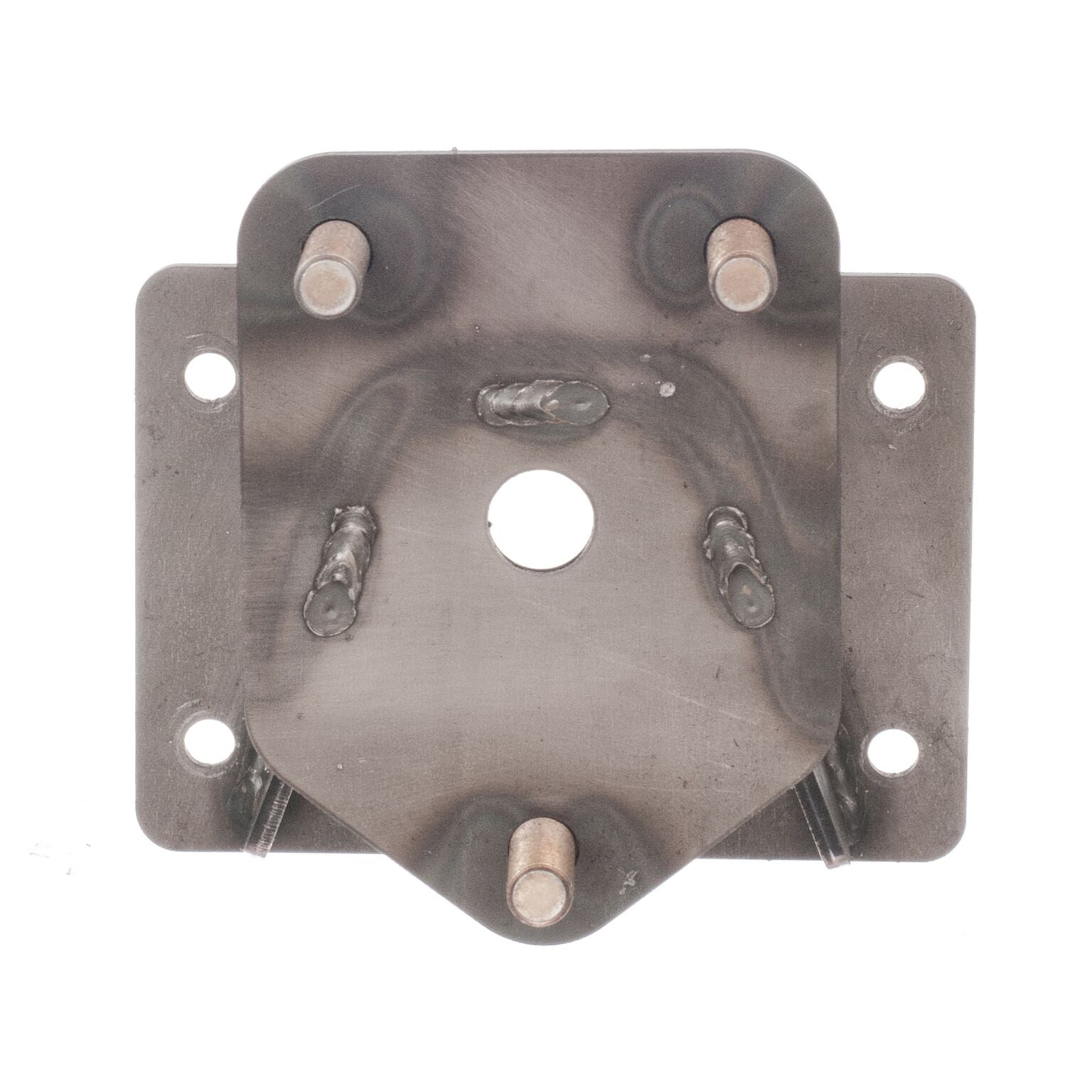

8 x 6.5 inch wheel lug pattern.
3/16 inch laser cut and cnc formed steel
CAD designed for perfect fit
Will hold up to a 40 inch tire and up to a 37 inch tire with high lift jack together if equipped. 3/8"-16 UNC Threads
CNC machine threaded inserts for Hi Lift Jack pre-installed.
12 mounting points vs the factory 4 mounting points

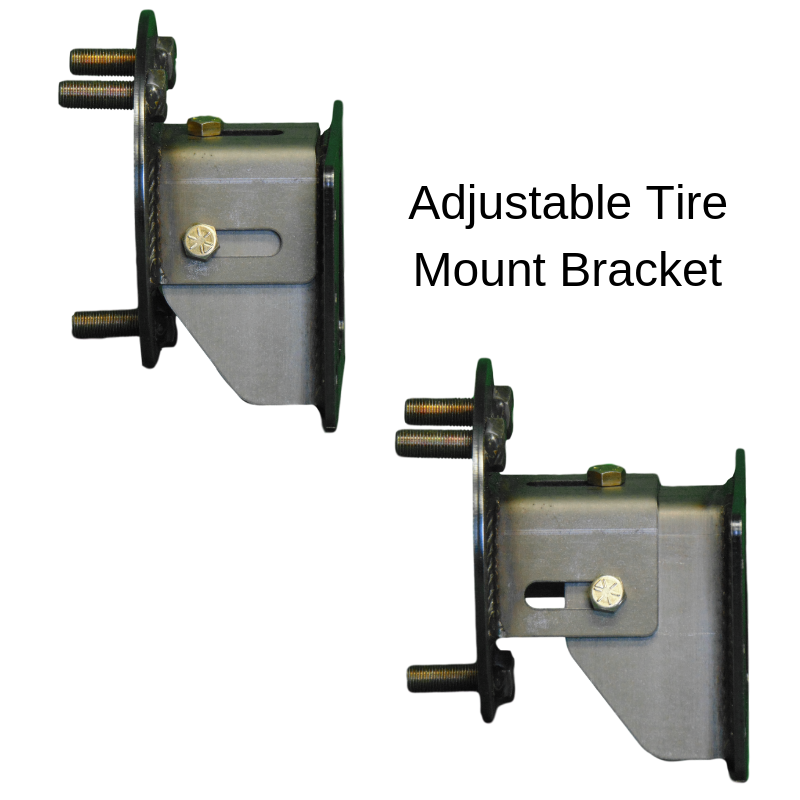

Multiple adjustments both vertically and front to back for optimal tire position.
Same wheel lug size and thread as stock sizes
License plate relocation kit MB2025 works perfectly with the mount.
Integrated design allows you to open and close easily with factory door handle.
Will work with factory bumper or aftermarket bumpers.

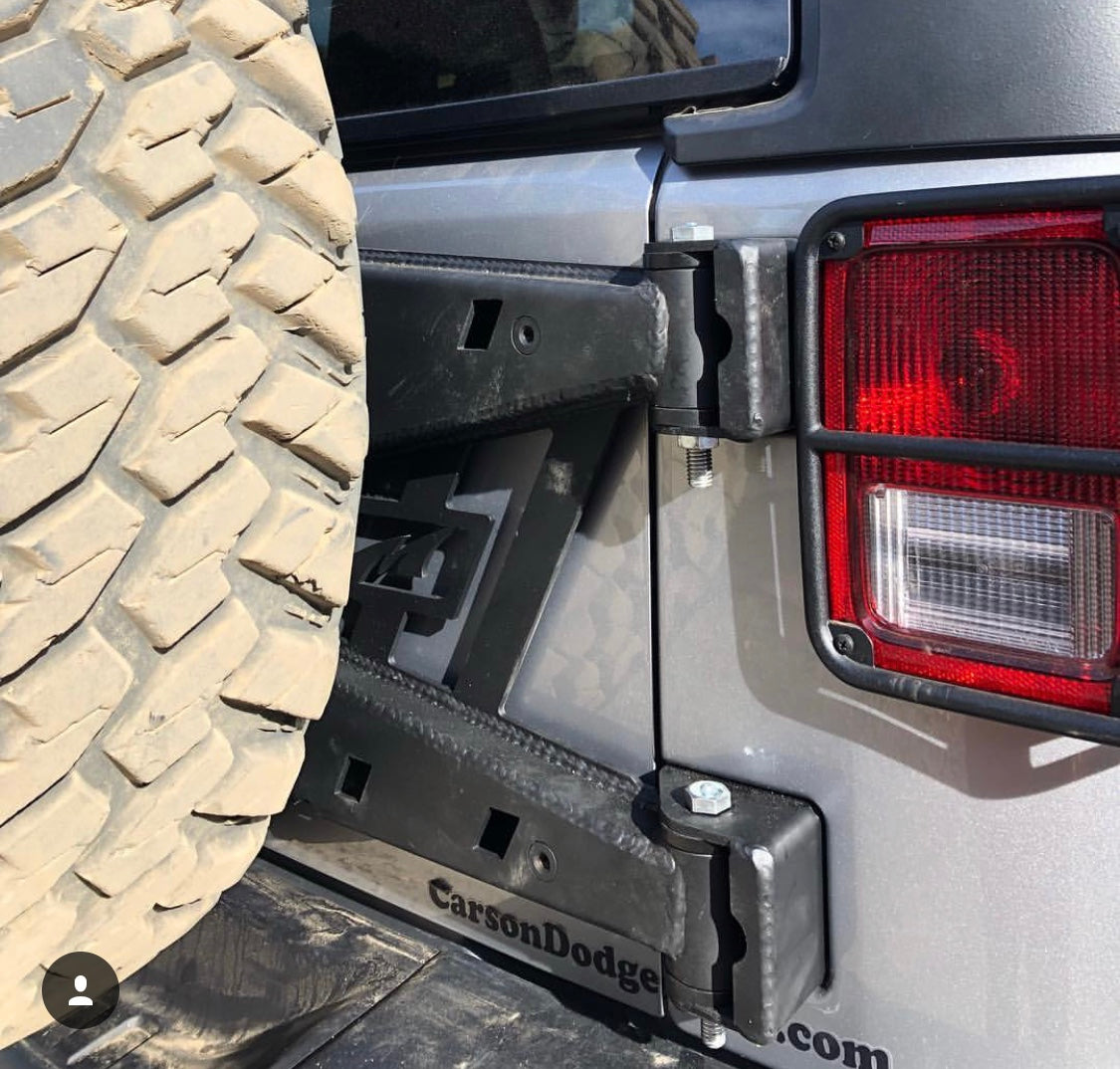

Greasable mounting bolts at pivot points on hinges
Delrin hinge bushings with steel inner liners
Includes necessary mounting hardware.
Includes hardware
Will not work with 3rd brake light in stock location
Weight = 56lbs
Our tires carriers are designed to fit a wheel backspacing of 4.25" to 5.5" with tires larger than stock. If you need a larger wheel backspacing, you can add a wheel spacer (not included).

Benefits:
Easy to open and close
Easy to bolt on Motobilt accessories
Increased load capacity through additional mounting points.
Adjustable tire position allows clearance for up to a 40 inch tire.

Related Parts-NOT included

Spare Tire Tag Relocation Mount PN# MB2025
High Lift Jack Mount PN# MB1085
Tag Delete Plug for Jeep JK/JKU PN# MB8003

Notes:

Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
High lift jack mount NOT included but can be purchased separately. Part number MB1085. With jack mount installed the largest tire that will fit is 37 inches.
After market tail light covers may interfere when fully opened.
Wheel studs are 9/16”-18

Product Components

Instructions

Assembly Instructions
