Full Length Rocker Guards with tube step for Jeep TJ

Full Length Rocker Guards with tube step for Jeep TJ

Name: Full Length Rocker Guards with tube step for Jeep TJ
Brand: Motobilt
SKU: MB1056-S
Price: 499.00 USD
Availability: InStock

25% OFF Regular price~~$499.00~~Sale price$374.25

Shipping calculated at checkout.

Unit Price: / Sku: MB1056-S

Fits: Jeep Wrangler TJ

Select Option:

Quantity:

View product details & documents

Product details

These Motobilt Jeep TJ full length rocker guards include a heavy duty steel step made out of 1.75 inch DOM tube. The step includes a steel plate with Grimple holes for extra grip when getting in and out of your Jeep. These rocker guards extend from the front fender all the way to the rear wheel well opening. The rocker guards are laser cut and cnc formed in house at Motobilt. We also counter sink all of the mounting holes and provide the necessary hardware for install.

Our rocker guards are formed so that they wrap under neath the body of your jeep and tie into the factory body mounts. This allows for the ultimate in under body protection and strength. We also slot the lower portion of the rocker guards to make it easy to clean out your rockers after a hard day of wheeling.

Compatible Corner Guards:

MB1055 Factory Cut Corner Guards
MB1057 Blank Corner Guards

Important information

Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Works with or without a body lift.

Product specifications

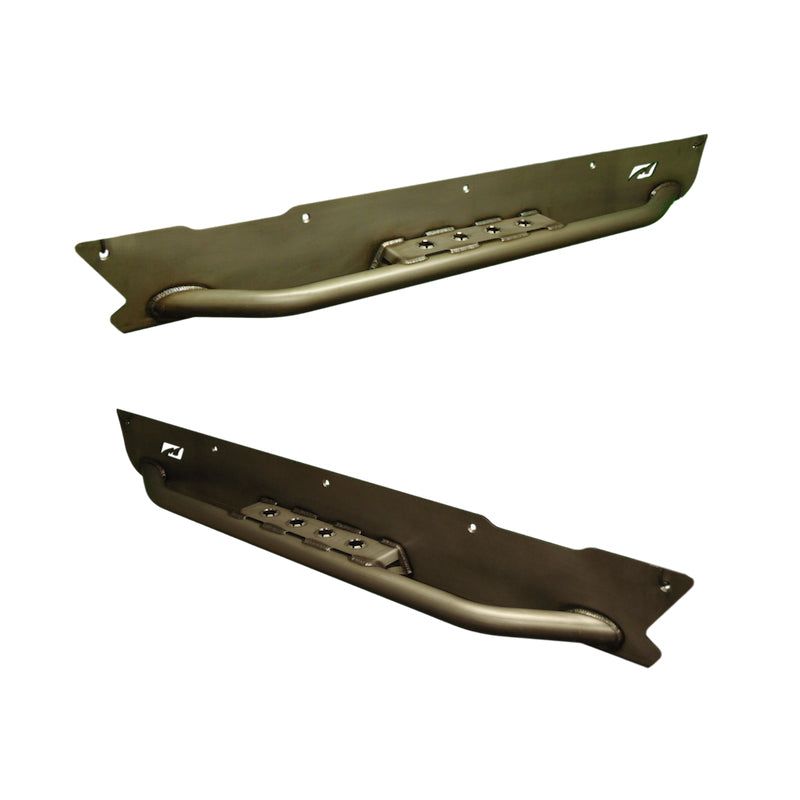

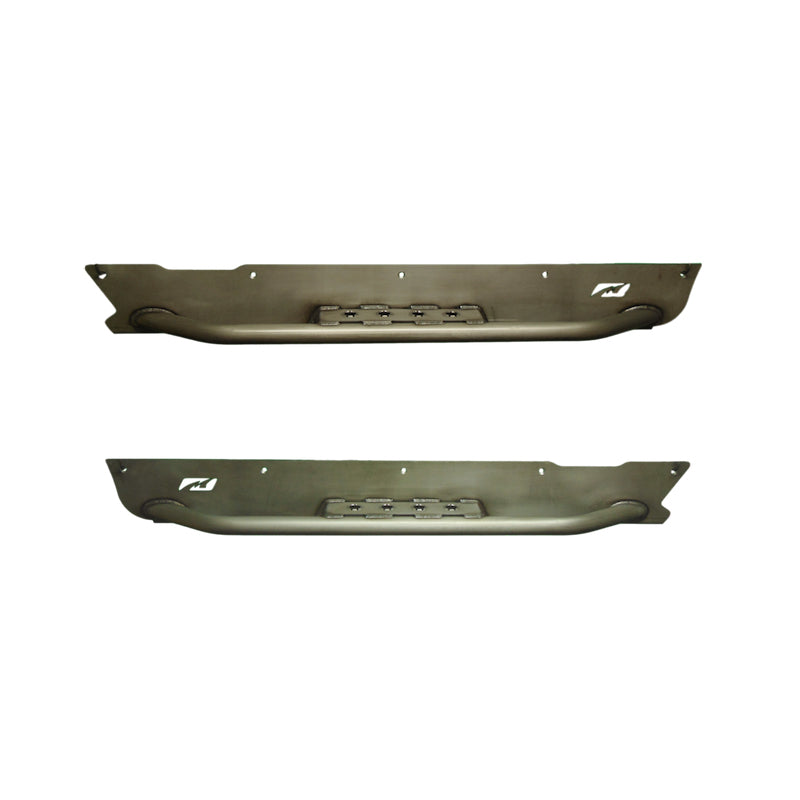

Jeep TJ full length rocker guards with step
Heavy duty steel step made out of 1.75 inch DOM tube
Sold as pair
Weight: 85lbs (approx.)

Notes

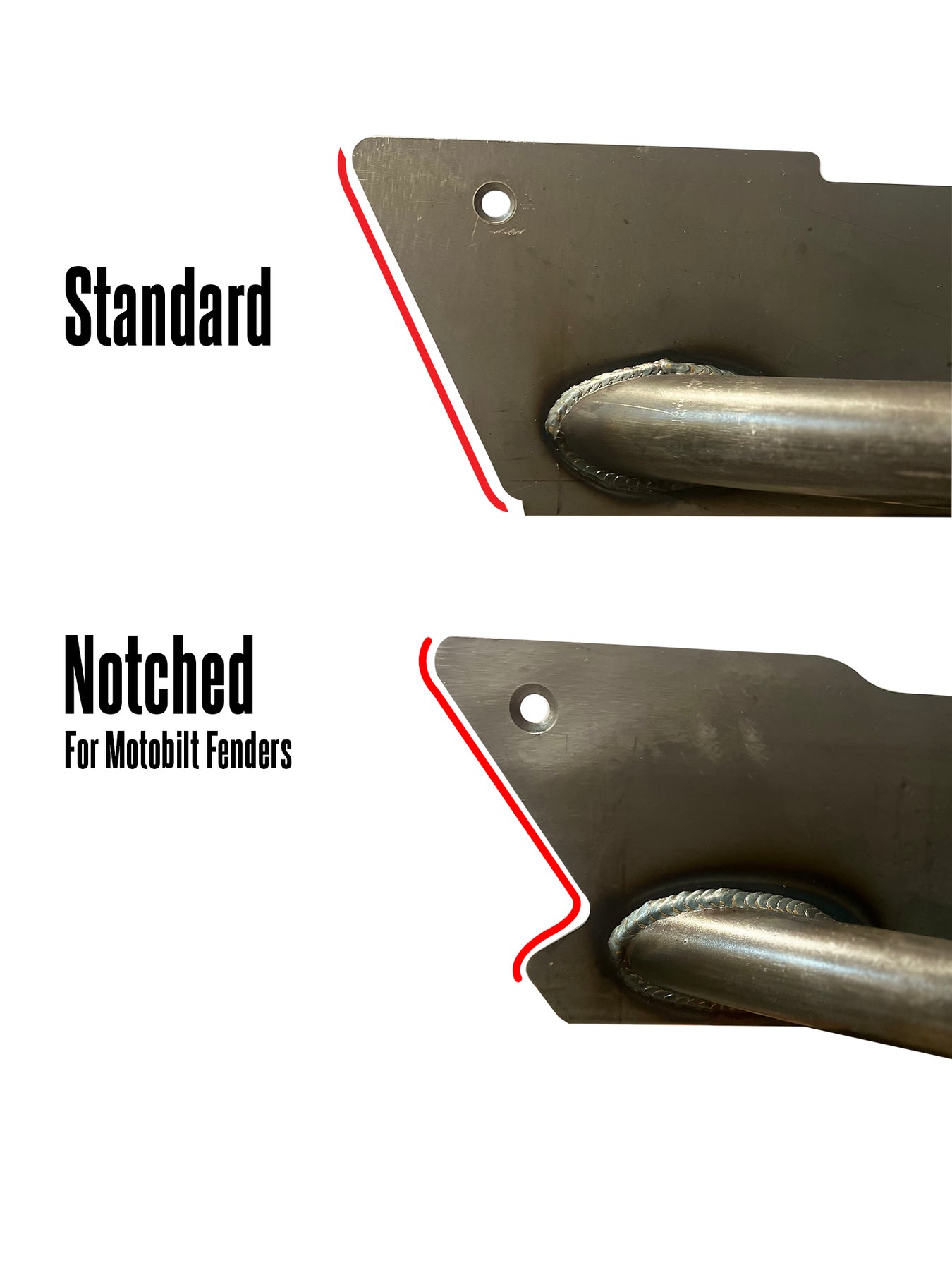

If running the Motobilt front fenders, then choose the drop down menu option for our fenders. They are shorter and have a notch cut out to clear the Motobilt fenders.

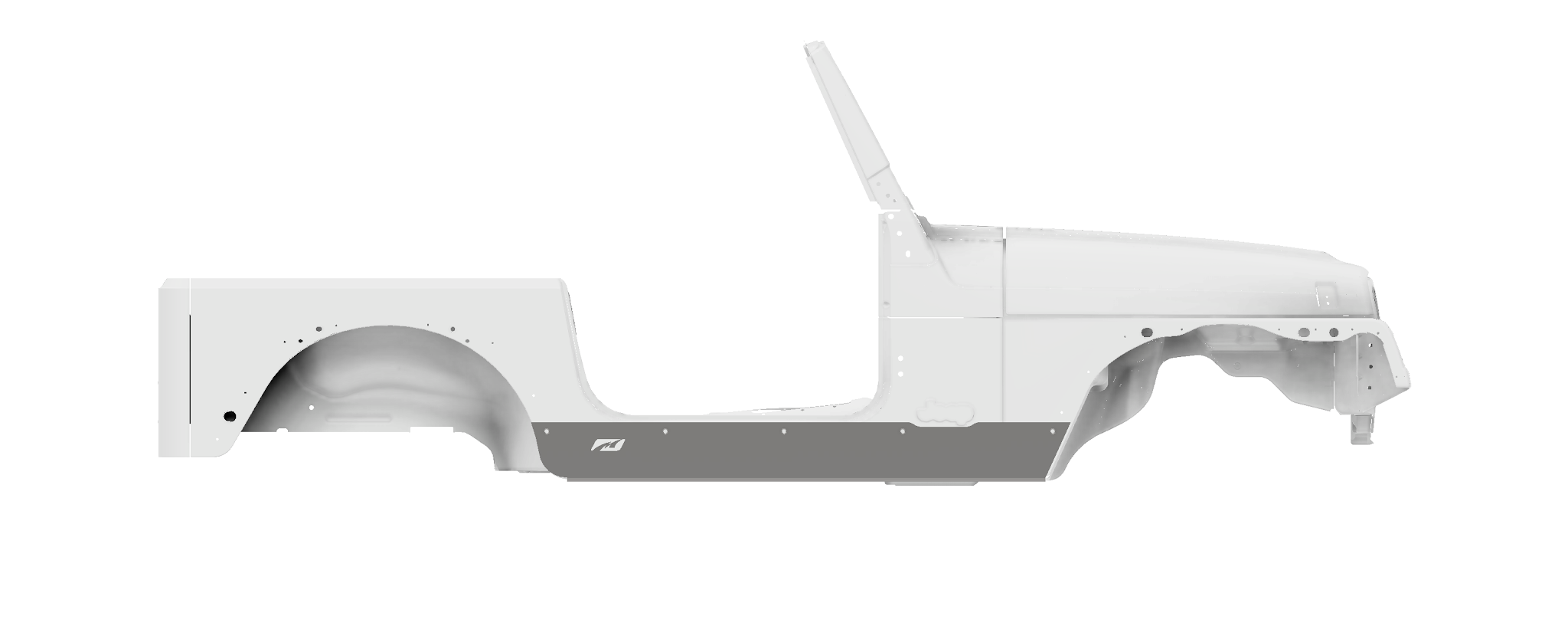

Full length rockers extend to the rear fender well opening and match the curve of the wheel well. See photos.

Additional product details & documents

Compatible Corner Guards:

MB1055 Factory Cut Corner Guards
MB1057 Blank Corner Guards

Note:

If running the Motobilt front fenders, then choose the drop down menu option for our fenders. They are shorter and have a notch cut out to clear the Motobilt fenders.
Full length rockers extend to the rear fender well opening and match the curve of the wheel well. See photos.
Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)

Specifications

Jeep TJ full length rocker guards with step
Heavy duty steel step made out of 1.75 inch DOM tube
Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
The proper drill size for the 5/16 inch Rivnuts is 17/32”.
Works with or without a body lift.
Sold as pair
Weight: 85lbs (approx.)
