Stubby Front Bumper for Jeep YJ / TJ / LJ

Stubby Front Bumper for Jeep YJ / TJ / LJ

Name: Stubby Front Bumper for Jeep YJ / TJ / LJ
Brand: Motobilt
SKU: MB1000
Price: 369.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Regular price $369.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1000

Fits: Jeep Wrangler YJ · Jeep Wrangler TJ / LJ

Installation difficulty: 2 / 5

Quantity:

View product details & documents

Product details

The Motobilt, Inc. Competition Stubby Front bumper is designed to fit both the Jeep YJ and TJ Wrangler. The bumper is a stubby design that stops at the edge of the frame rails. The front bumper has an integrated winch mount with mounting holes for both full size winches and the Warn RC comp winch. The bumper is 3D CAD designed, CNC Laser Cut from 3/16 inch high strength steel plate, and precision formed on a hydraulic press brake.

The bumper will accommodate the factory sway bar on the Jeep TJ. The end caps on the bumper allow enough clearance to give access to the cross member tube at the front of the frame rail for the mounting of an aftermarket swaybar. This bumper features massive 3/4 inch thick steel d-ring mounts. The d-ring mounts pass through the bumper body to allow our welders to weld the brackets on both sides of the bumper for additional strength.

Fits:

Jeep YJ 1987-1995, Jeep TJ 1997-2006, Jeep LJ 2004-2006

Important information

Uses factory hardware.

Product specifications

Stubby front bumper
Fits all year models of Jeep YJ/TJ/LJ
CNC Laser Cut 3/16 inch high strength steel plate
3/4 inch D-Ring mounts that pass through the bumper for added welding surface

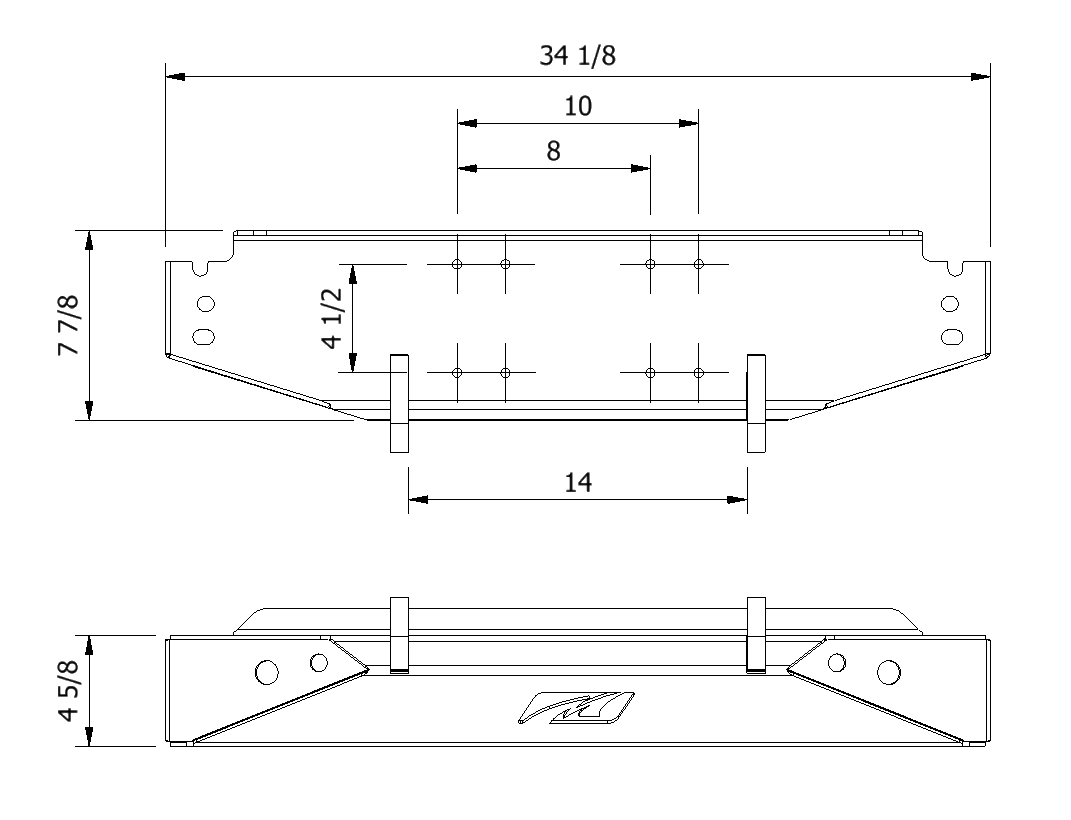

Bumper is super narrow at 34 inch wide
Ships bare metal so you can customize paint to your needs.
Fully welded.
Made in the USA
Sold as each.
Uses factory hardware.
Weight: 32lbs (approx.)

Notes

If installing a winch, MB1002 fairlead mount will also need to purchased
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
The Badlands Apex 1200 winch will not fit on this bumper as it interferes with the D-Ring mount.
The Warn VR and VR EVO series winch will require either a winch spacer or the D Ring mounts will need to be shaved for clearance.

Additional product details & documents

The bumper will accommodate the factory sway bar on the Jeep TJ. The end caps on the bumper allow enough clearance to give access to the cross member tube at the front of the frame rail for the mounting of an aftermarket swaybar. This bumper features massive 3/4 inch thick steel d-ring mounts. The d-ring mounts pass through the bumper body to allow our welders to weld the brackets on both sides of the bumper for additional strength.

Fits:

Jeep YJ 1987-1995, Jeep TJ 1997-2006, Jeep LJ 2004-2006

Features:

Stubby front bumper
Fits all year models of Jeep YJ/TJ/LJ
CNC Laser Cut 3/16 inch high strength steel plate
3/4 inch D-Ring mounts that pass through the bumper for added welding surface
Bumper is super narrow at 34 inch wide
Ships bare metal so you can customize paint to your needs.
Fully welded.
Made in the USA
Sold as each.
Uses factory hardware.
Weight: 32lbs (approx.)

Note:

Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
If installing a winch, MB1002 fair lead mount or the MB1141 fairlead will also need to be purchased.
The MB1002 does not work with the Warn VR Evo series.
The Badlands Apex 1200 winch will not fit on this bumper as the body interferes with the D-Ring mount.
The Warn VR and VR EVO series winch will require either a winch spacer or the D Ring mounts will need to be shaved for clearance.

Product Components

Instructions

Assembly Instructions
