LS Engine Builder Mount Kit

Name: LS Engine Builder Mount Kit
Brand: Motobilt
SKU: MB7015
Price: 99.00 USD
Availability: InStock

Regular price $99.00

Shipping calculated at checkout.

Unit Price: / Sku: MB7015

Quantity:

View product details & documents

Product details

Transform your rig with the power of an LS V-8 engine using the Motobilt DIY LS V-8 Swap Kit. Designed for enthusiasts and builders alike, this kit simplifies the engine swap process, providing you with the essential components to mount an LS V-8 into your vehicle. Whether you're upgrading your off-road beast or customizing your classic ride, our kit ensures a seamless integration.

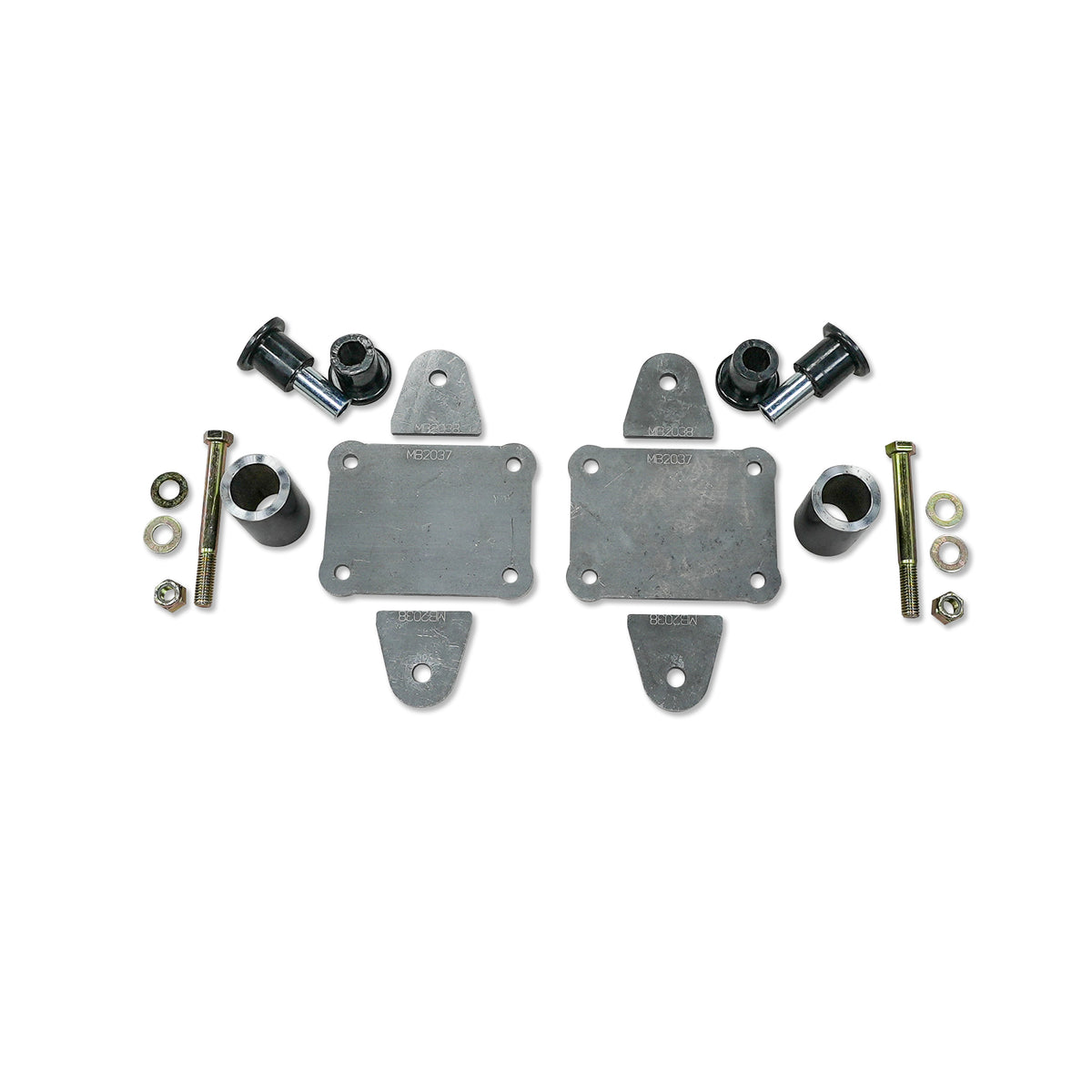

Kit Contents:

Two Steel DOM Tube Sleeves with Poly Bushings: Ensures a durable and flexible connection, accommodating engine movement and vibration for a smoother ride.
Four Mounting Tabs and Two LS V-8 Engine Specific Mounting Plates: Precision-engineered for a perfect fit to your LS engine, providing a solid foundation for your swap.
Grade 8 Hardware: Bolts 4.5 inch x 1/2 inch qty (2), Washers 1/2 inch qty (4), Nylock Nuts 1/2 inch qty (2)

Key Features:

DIY Friendly: Gives you the building blocks to create custom mounts for your LS conversion, offering flexibility in design and installation.
Heavy-Duty Construction: Features a 3” wide mounting width poly bushing within a 1/4” wall, 1-3/4” O.D. heavy-duty DOM tube steel outer sleeve for maximum durability.
Precision Engineered: LS/LQ engine mount brackets and tabs are CNC cut from 1/4 inch high-strength A36 steel plate, ensuring precise fitment and superior strength.
Versatile Design: Tabs measure 2.5 inches wide at the base, with the hole positioned 1.63 inches from the base to the center, accommodating various fabrication styles.

Installation Notes:

The kit arrives un-welded and in raw steel, requiring assembly and paint. This allows for customization to suit your specific project needs.
You will need to reuse your factory hardware or provide your own to mount the engine plate to the motor.
Finish your installation with DOM tubing or fabricate your own plate steel design to attach to the frame section, tailoring the fit to your vehicle.

Order now and unleash the full potential of your rig with an LS V-8 engine swap!
