Corner Armor with Tail Light System for Jeep JK 2 Door

The factory rear corners on a Jeep JK take a beating on the trail and quickly become a limitation when running larger tires. The factory sheet metal does not offer much protection, and the stock tail light placement leaves them exposed to damage.

Builders often end up cutting or modifying the rear corners for clearance, but without proper armor, the body is left vulnerable and the finished result lacks structure.

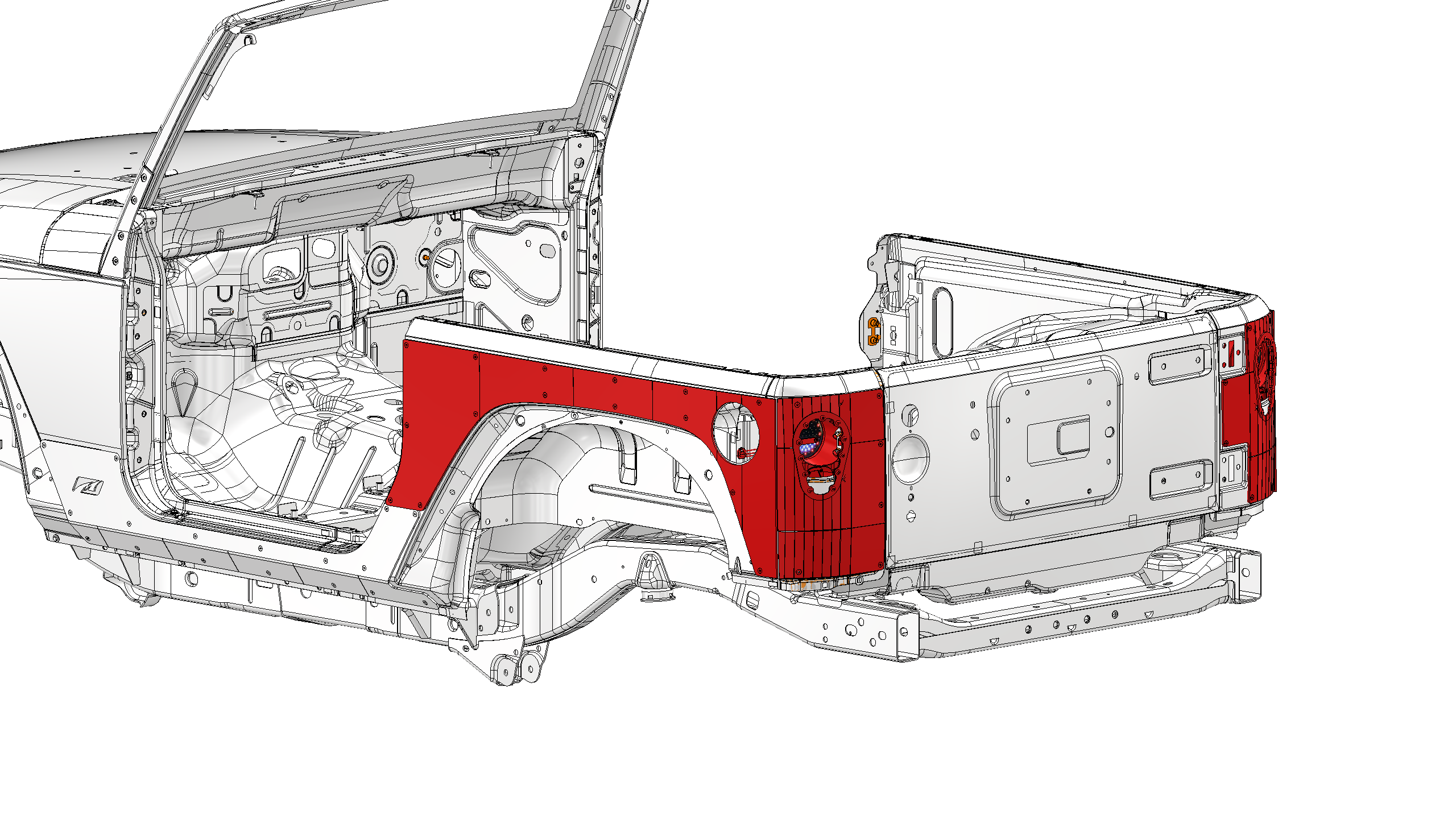

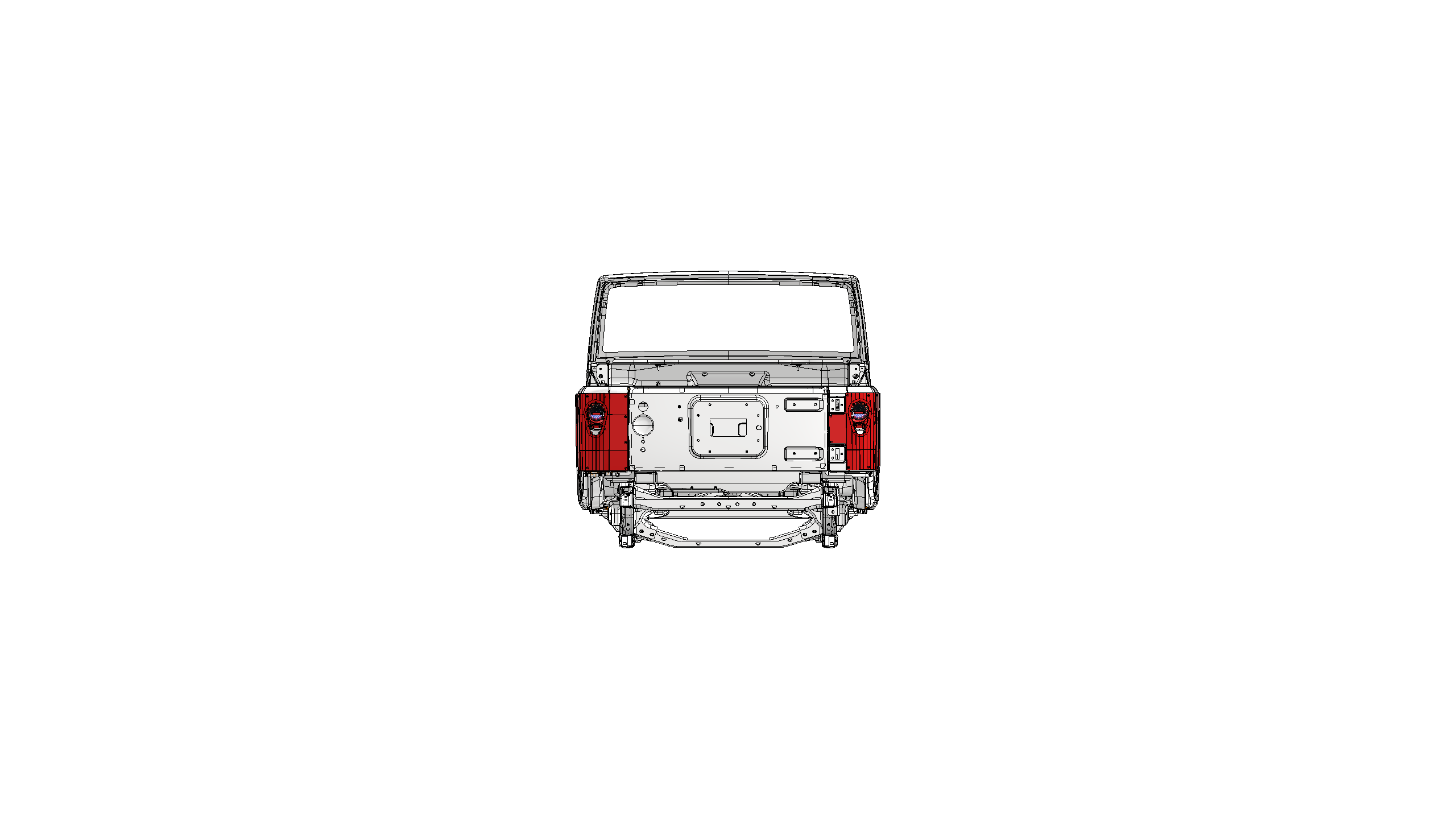

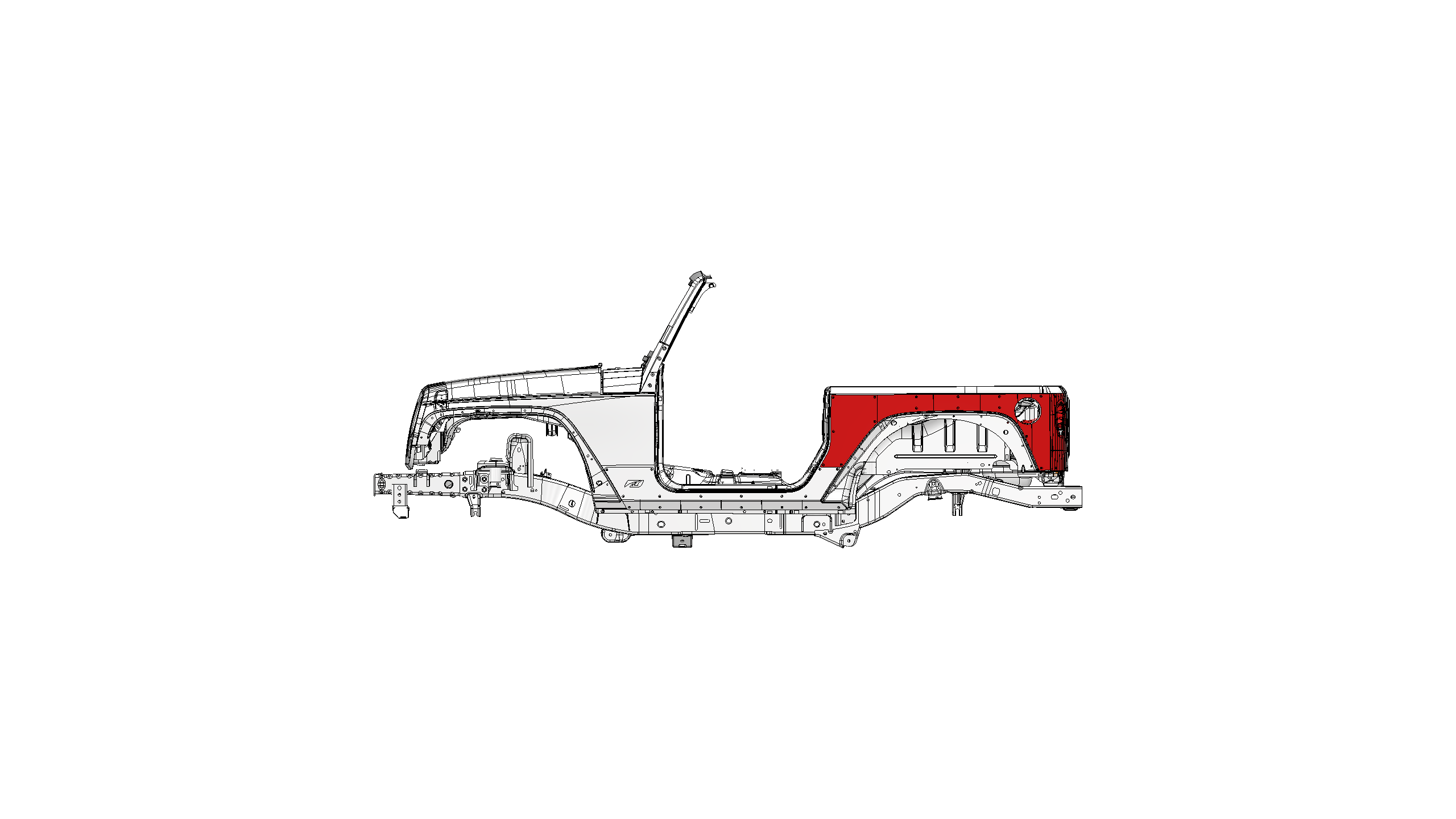

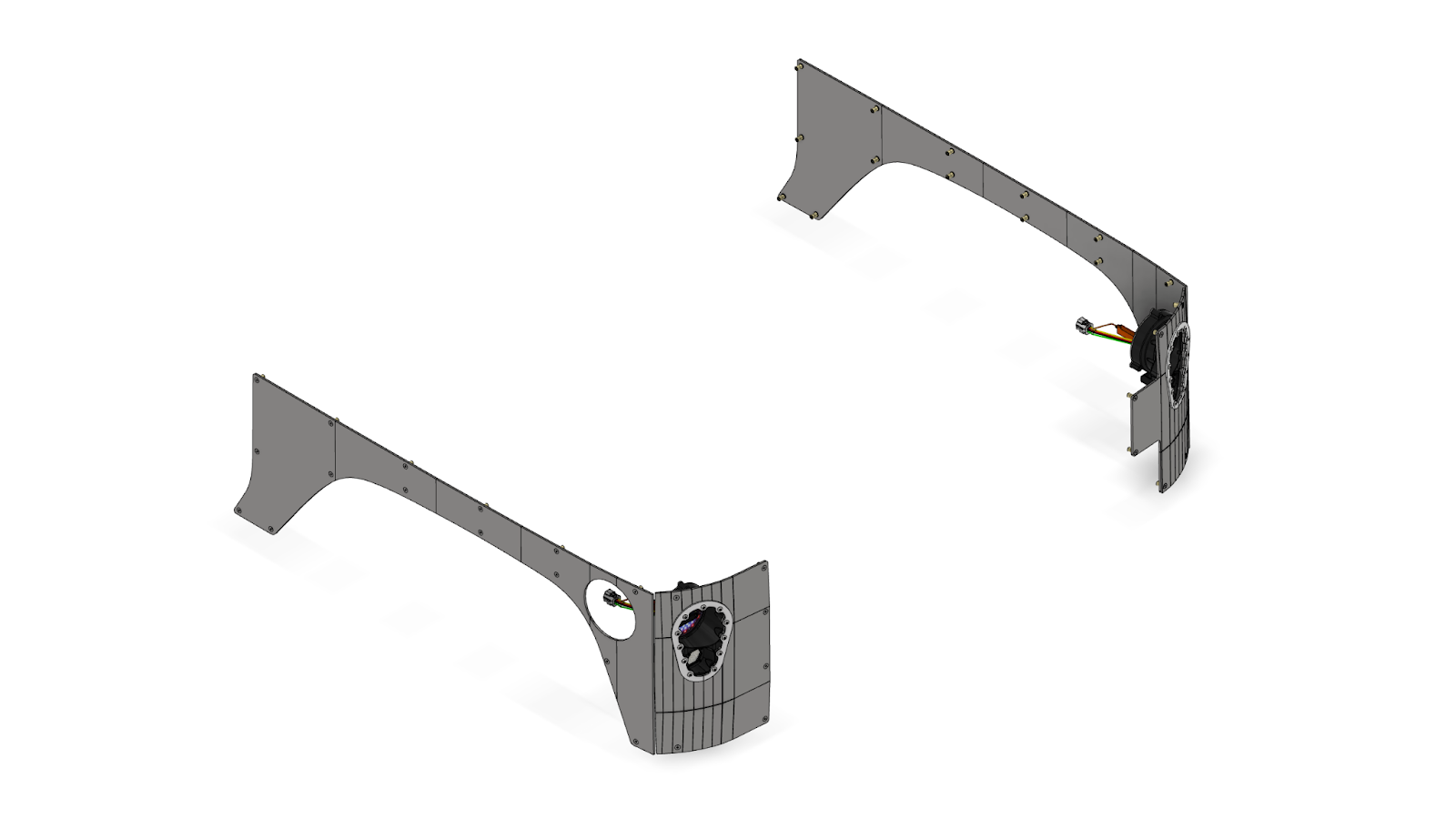

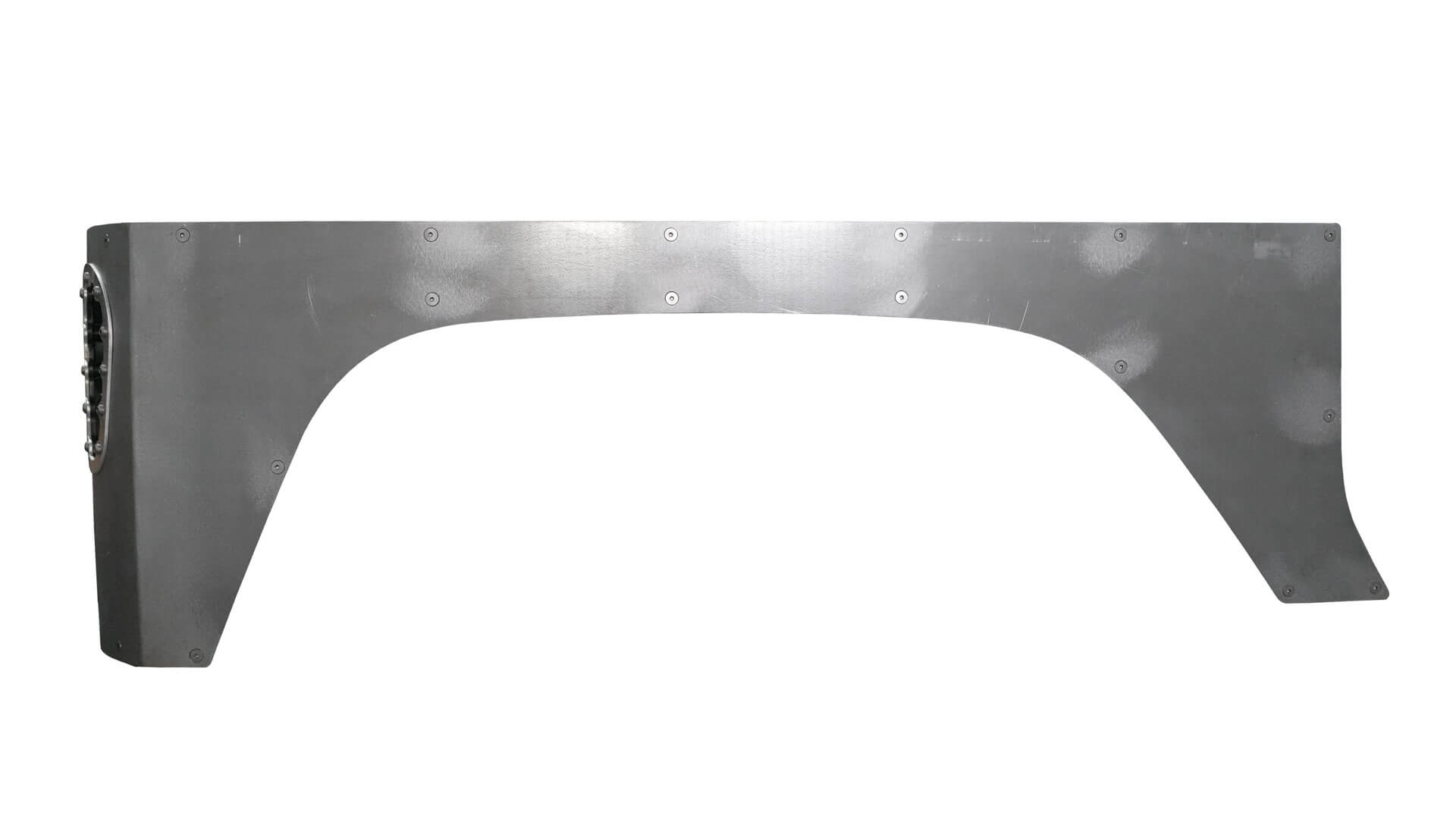

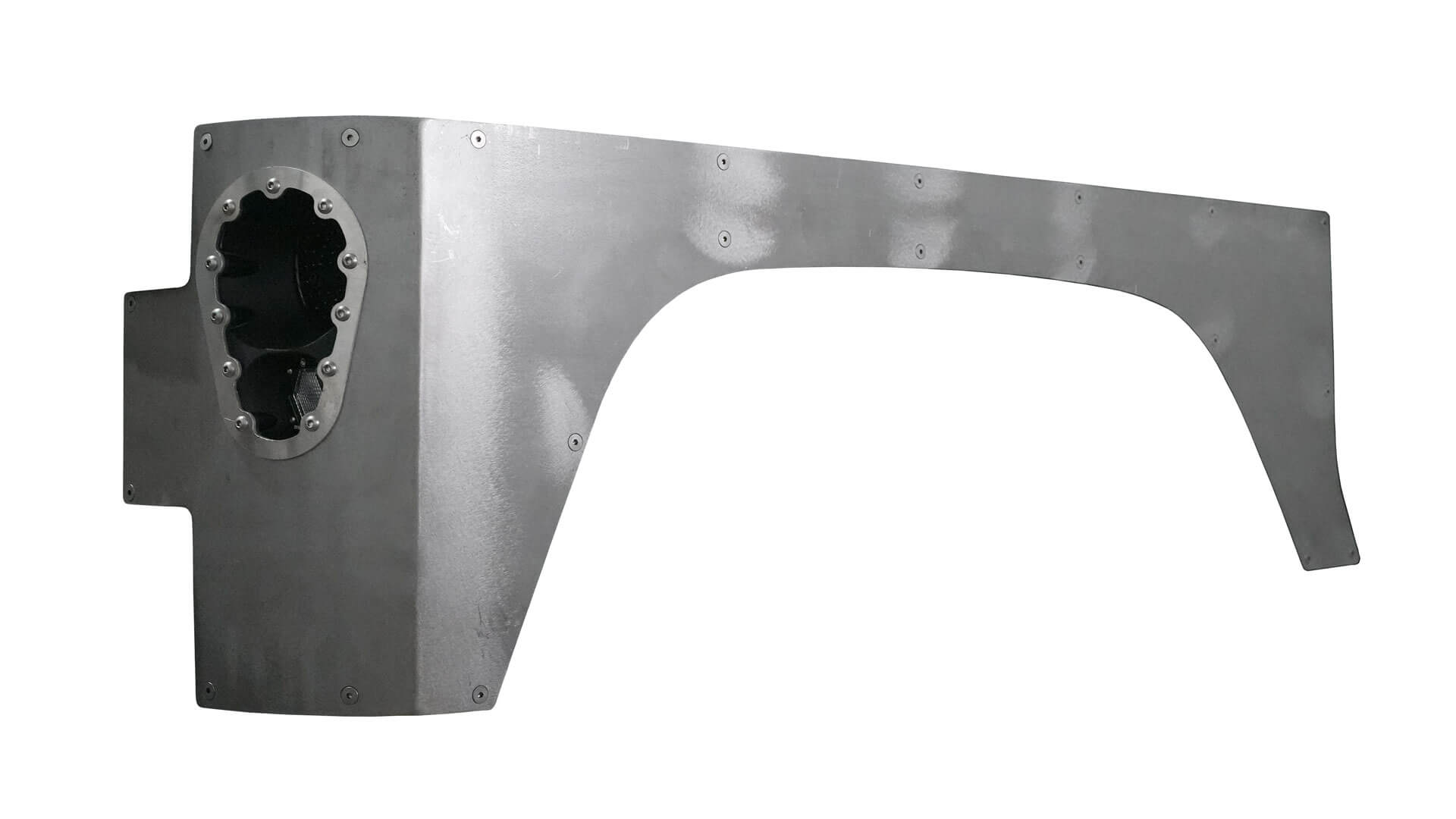

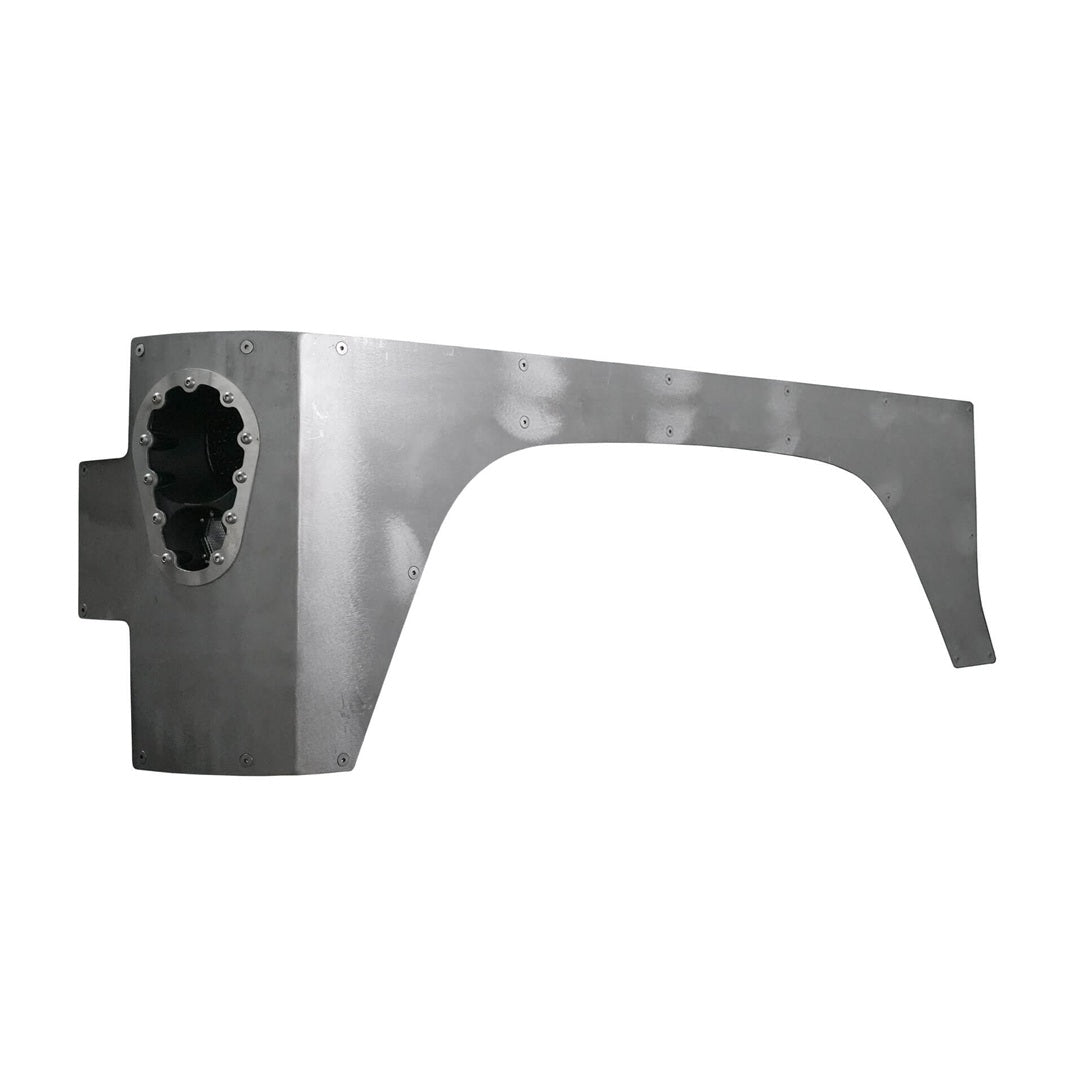

The Motobilt rear corner armor is designed to replace the factory corners with a 3/16 inch steel solution that adds protection while maintaining a clean body line. This system reinforces the rear of the Jeep and provides better durability in rock crawling environments.

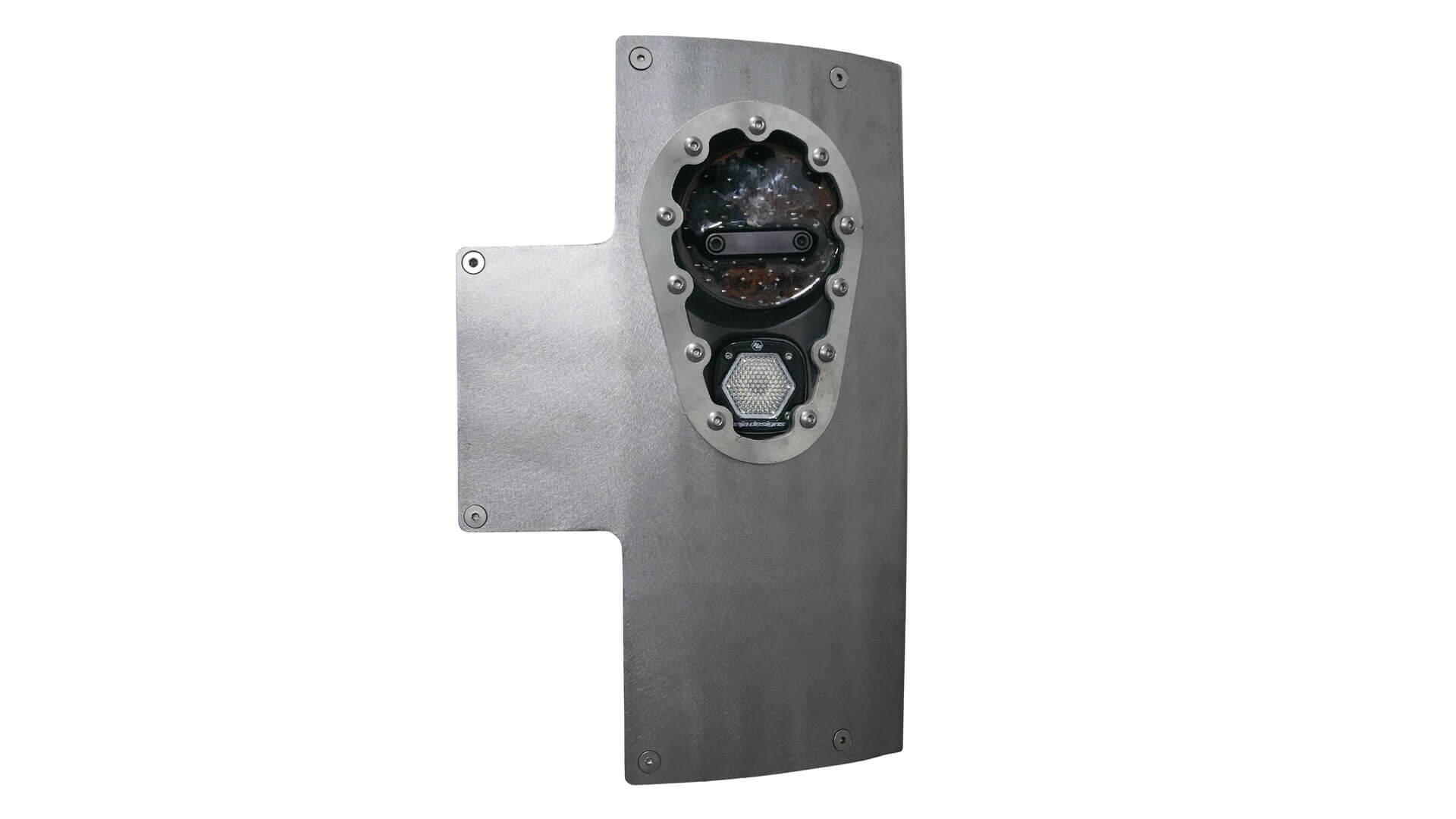

These corners also feature an integrated recessed tail light housing designed around the Motobilt MB6504 5 inch round tail lights. A dedicated pocket below the tail light includes a Baja Designs S1 light for auxiliary reverse lighting. This setup keeps the lights protected while improving visibility.

An aluminum trim ring bolts to the outside of the tail light, allowing you to customize the look with paint or finish to match the build. The overall design keeps the rear of the Jeep clean while adding function and protection.

This is a direct replacement style corner armor for builders who want to protect the rear of the Jeep while upgrading the lighting system.

Frequently Asked Questions

What do rear corner guards do on a Jeep JK?
They replace the factory sheet metal with thicker steel to protect the rear of the Jeep from trail damage.

What fender flares work with these?
The Crusher and Hatchet series will both work with these corners.

Do these tail lights require any wiring?
The 5" round tail lights with built in reverse light are plug n play. The auxilary Baja Designs S1's come with a wiring harness that you will need to install so that you can wire them to a switch to operate independently.

Do I have to cut the Jeep to install these?
Yes. Installation requires cutting the factory rear corners.

Do these work with a stock wheelbase JK?
Yes. These are designed specifically for stock wheelbase applications.
