Everyone loves to see the big items in a custom build like the cage, suspension, bumpers and more. When it comes to fabricating mounts for all of the small things like brake pedals a tremendous amount of time can be spent making one-off parts. The Motobilt Brake Pedal Mount for the Wilwood Froward Swing Dual Master Cylinder Pedal Assemblies is a great platform to base your mount from. We extended the edge facing the drive and added two bolt holes to attach a custom mount to. The bottom was also extended to allow room to weld to if needed. We did not cut holes in the top to allow plenty of room to weld bracing in place.

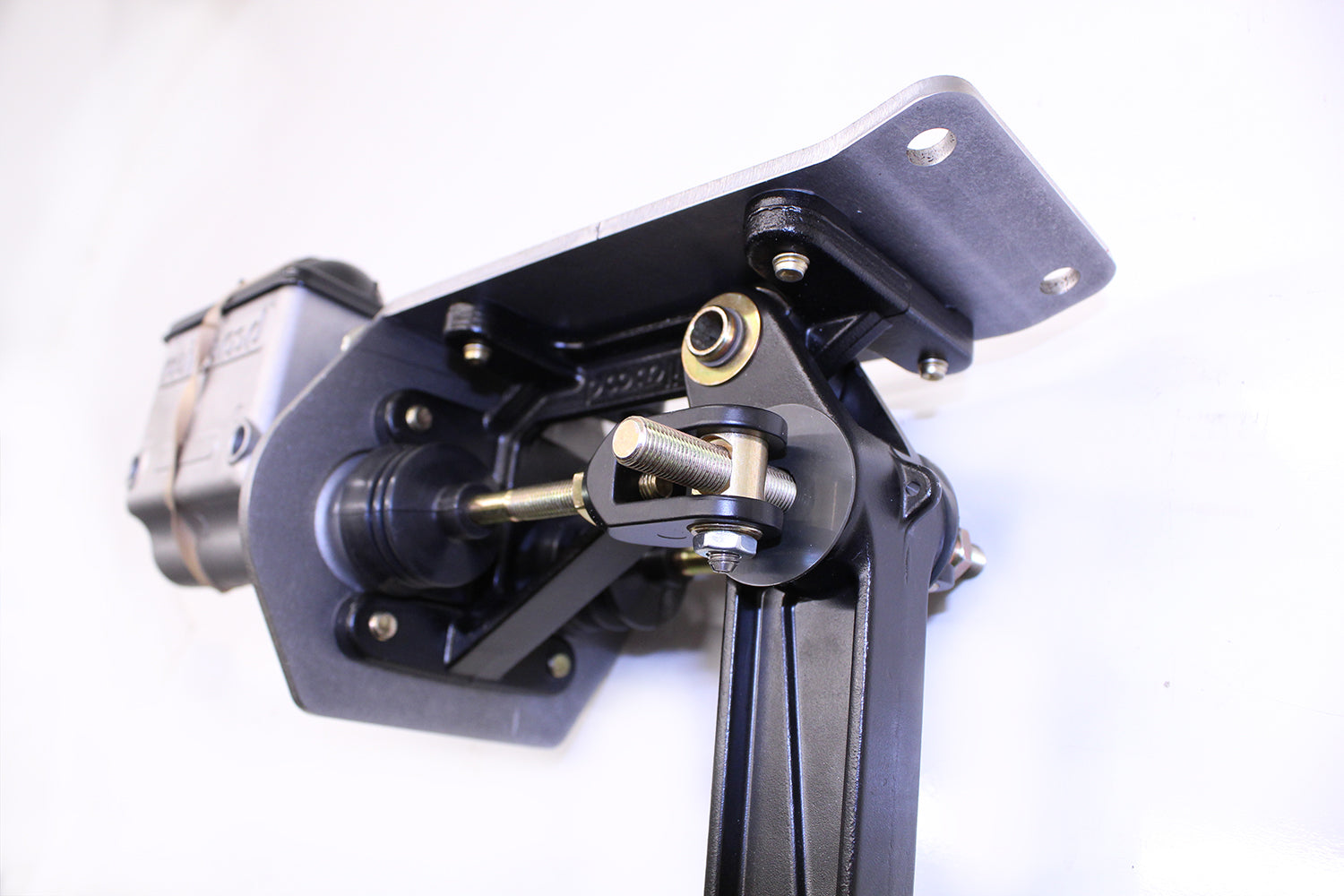

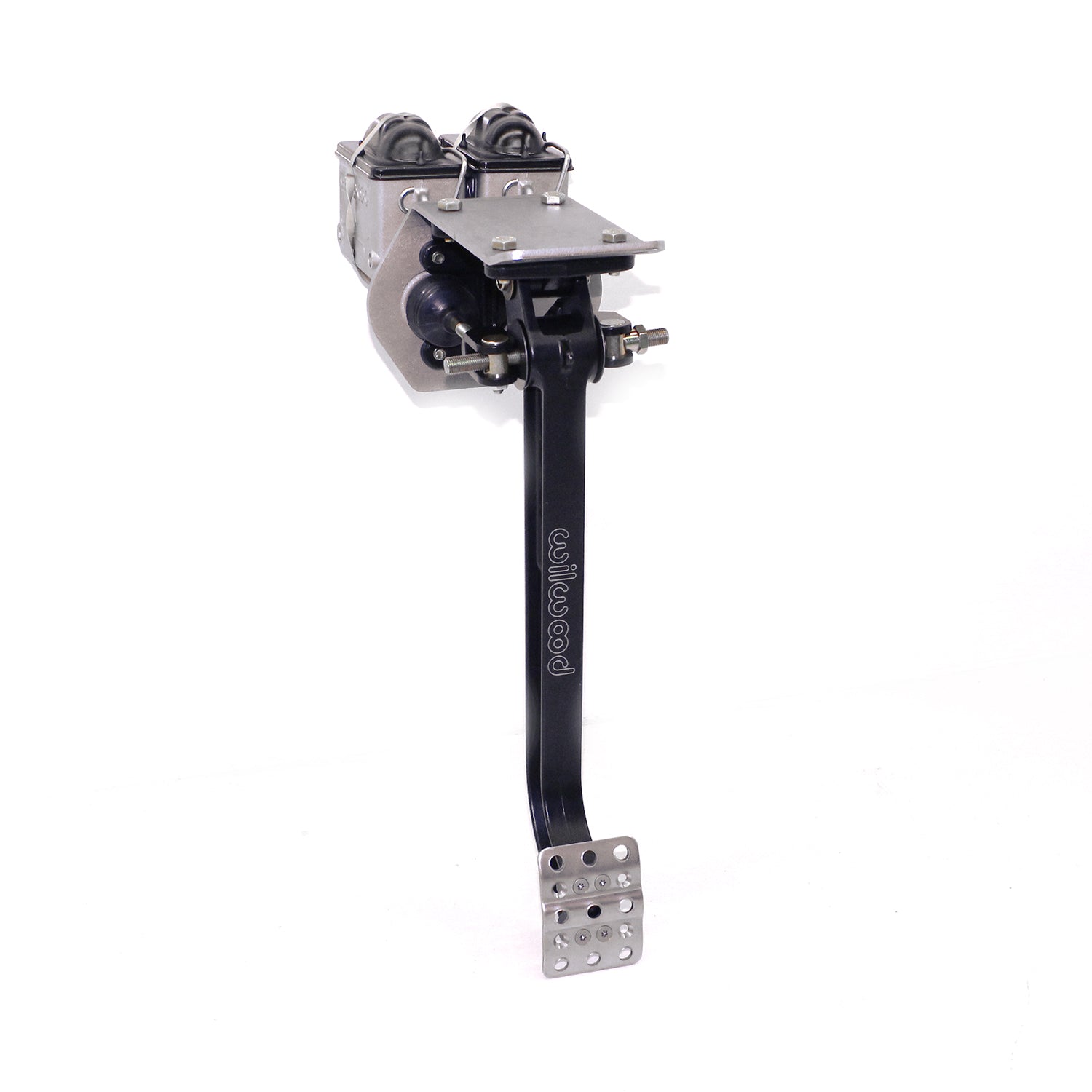

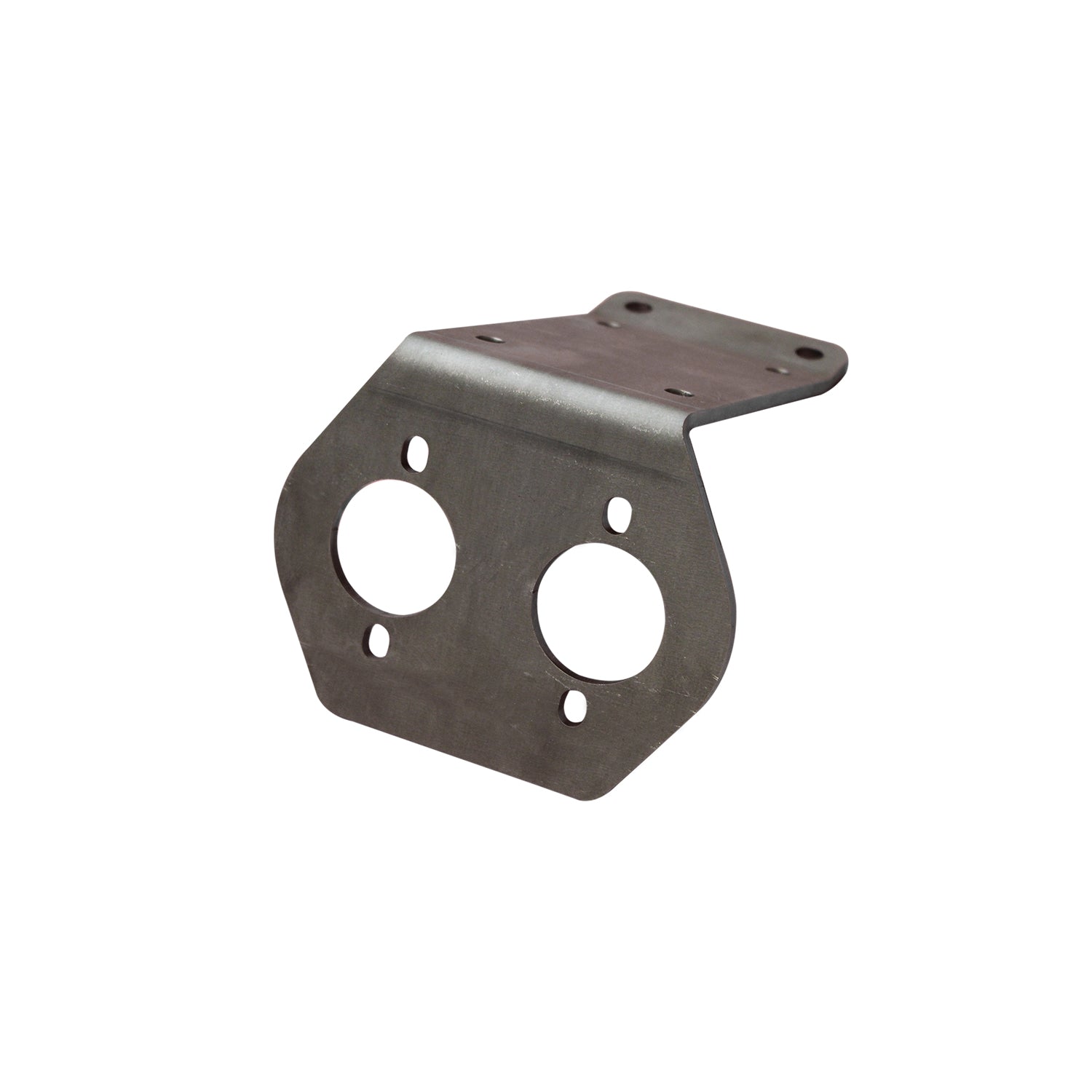

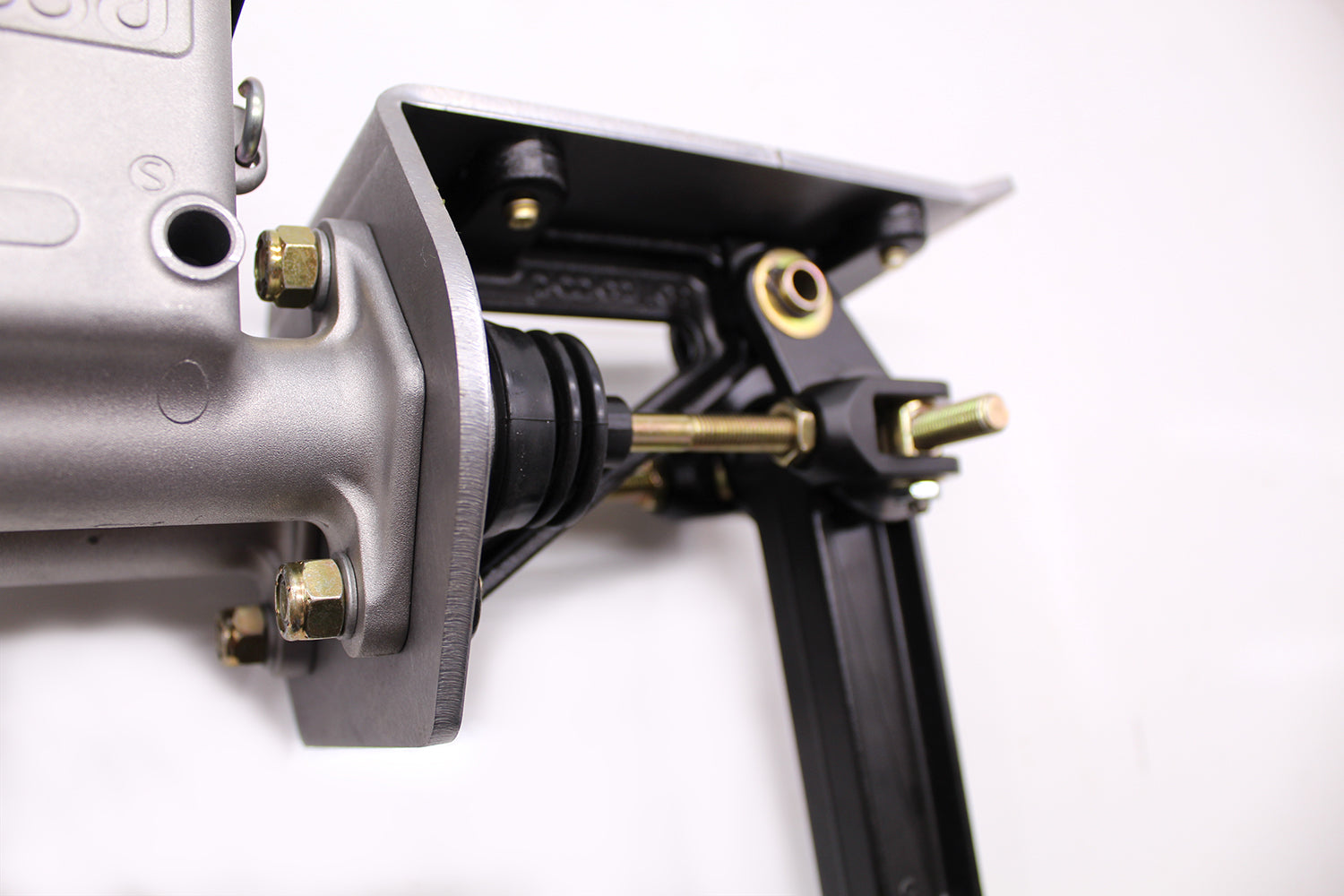

The bracket is made from laser cut and CNC formed 3/16” steel plate. The brace mounting holes are .375” and measure 2.50” on center. This part is a DIY builder part and will require you to add bracing to the part to secure it properly. Due to the wide variety of applications from full body vehicles to full tube chassis applications we do not provide instruction on how to mount it in your application. This part is sold bare steel. It does NOT include the brake pedal assembly or master cylinders. We show them to represent how the bracket works.
