Frame Preparation and Bracket Positioning

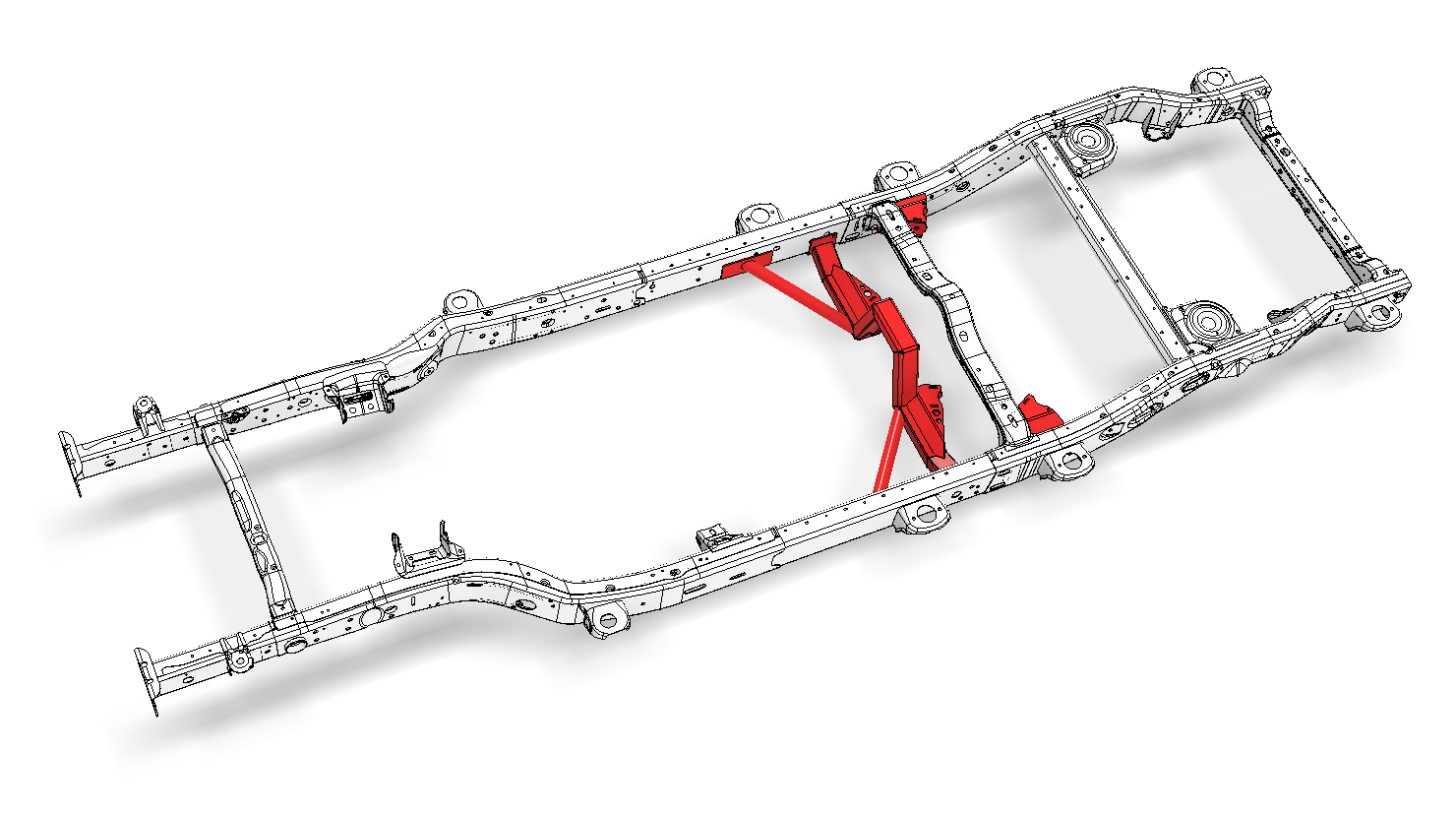

The MB7008 is designed to weld directly to the factory rear frame of a Jeep Wrangler JLU 4-door.

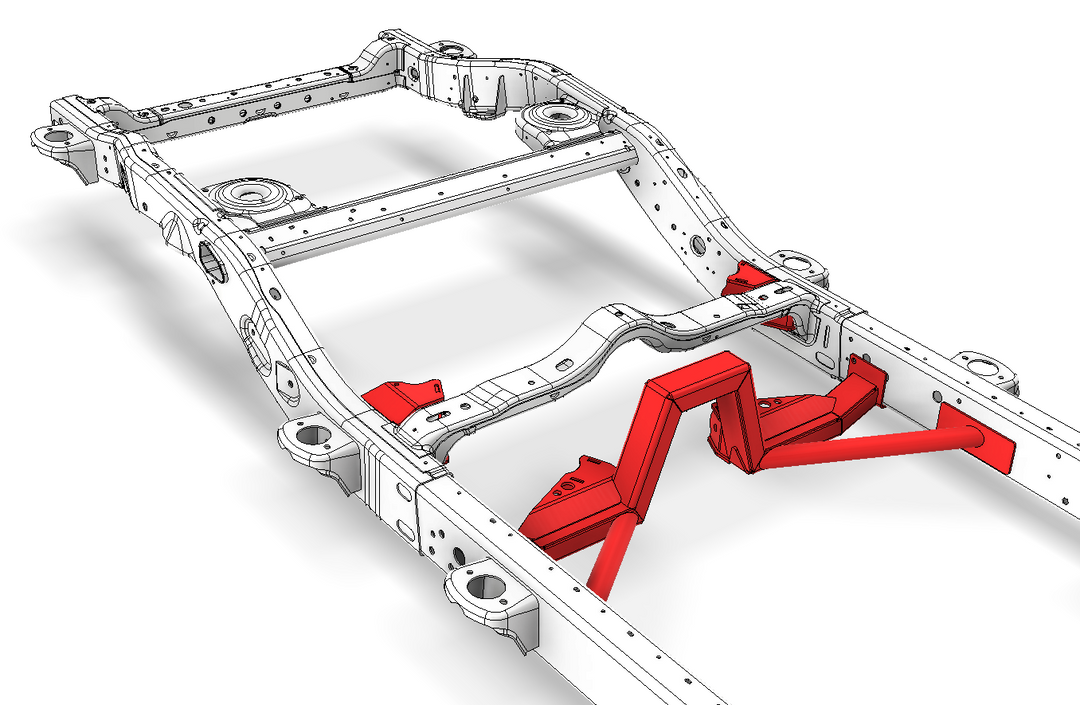

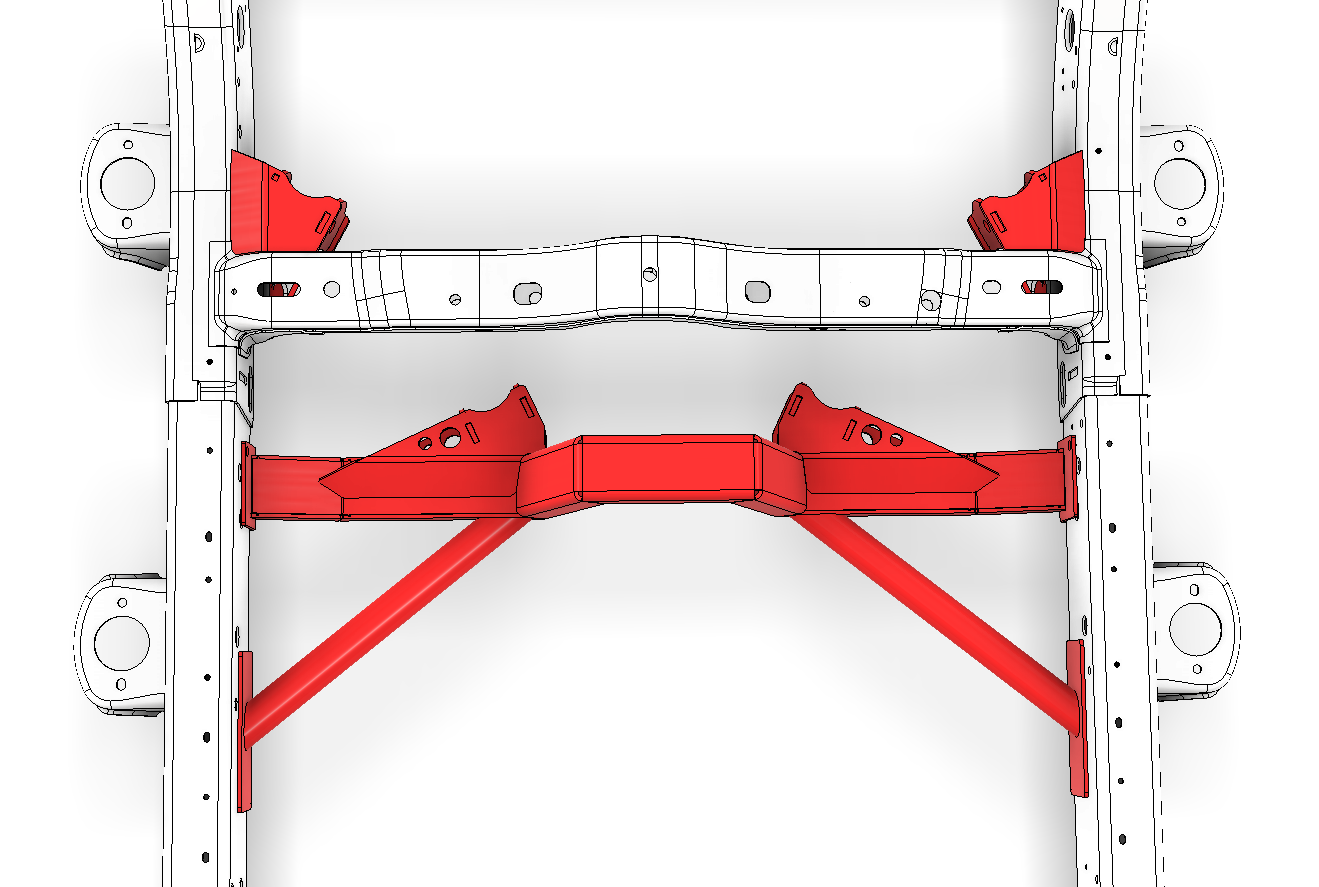

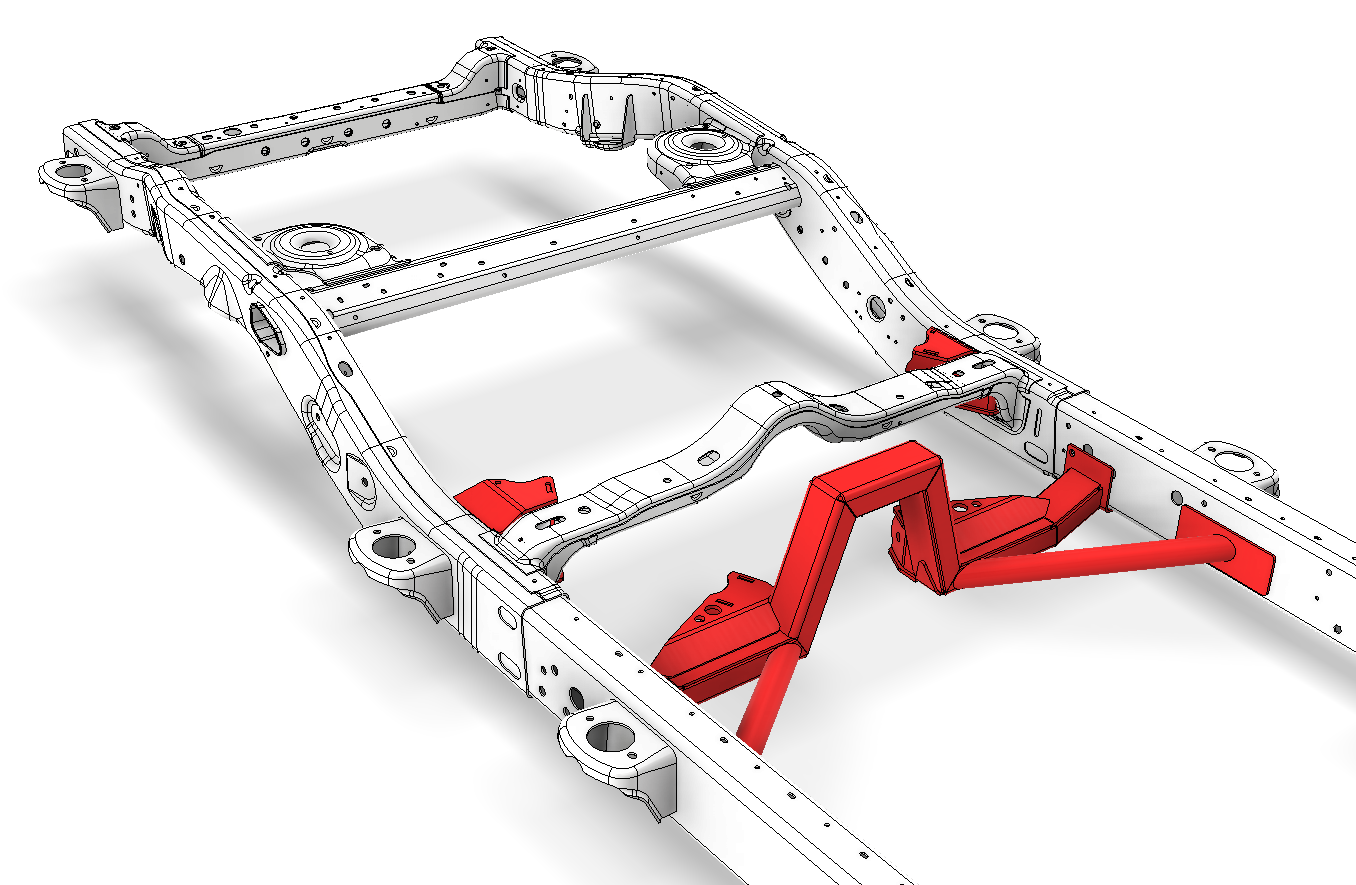

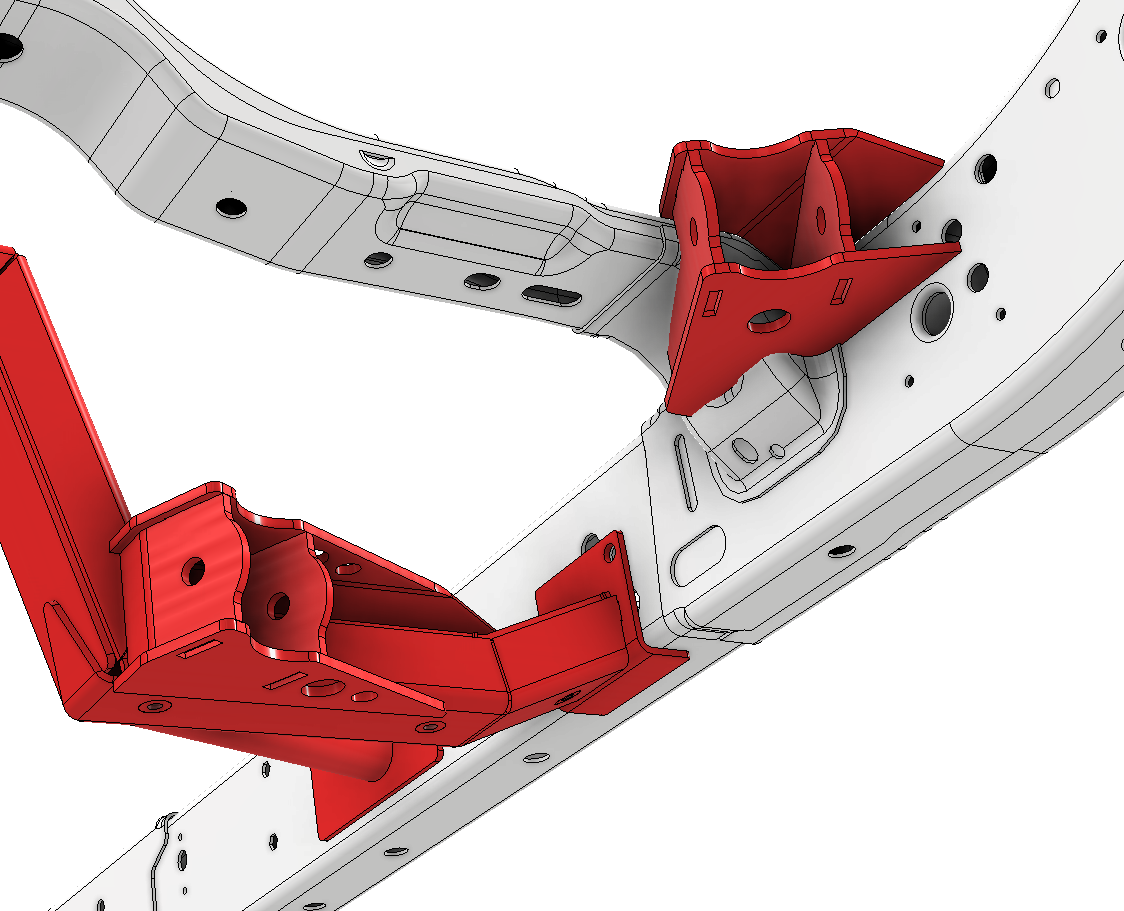

The bracket assemblies are supplied as fully welded subassemblies. They key into the supplied rear crossmember and are scribed to fit against the inside of the factory frame rails, helping establish their intended position during installation.
Professional welding is required. Proper frame preparation, alignment, and welding procedures are essential because these brackets support the rear suspension.
Rear Suspension Layout

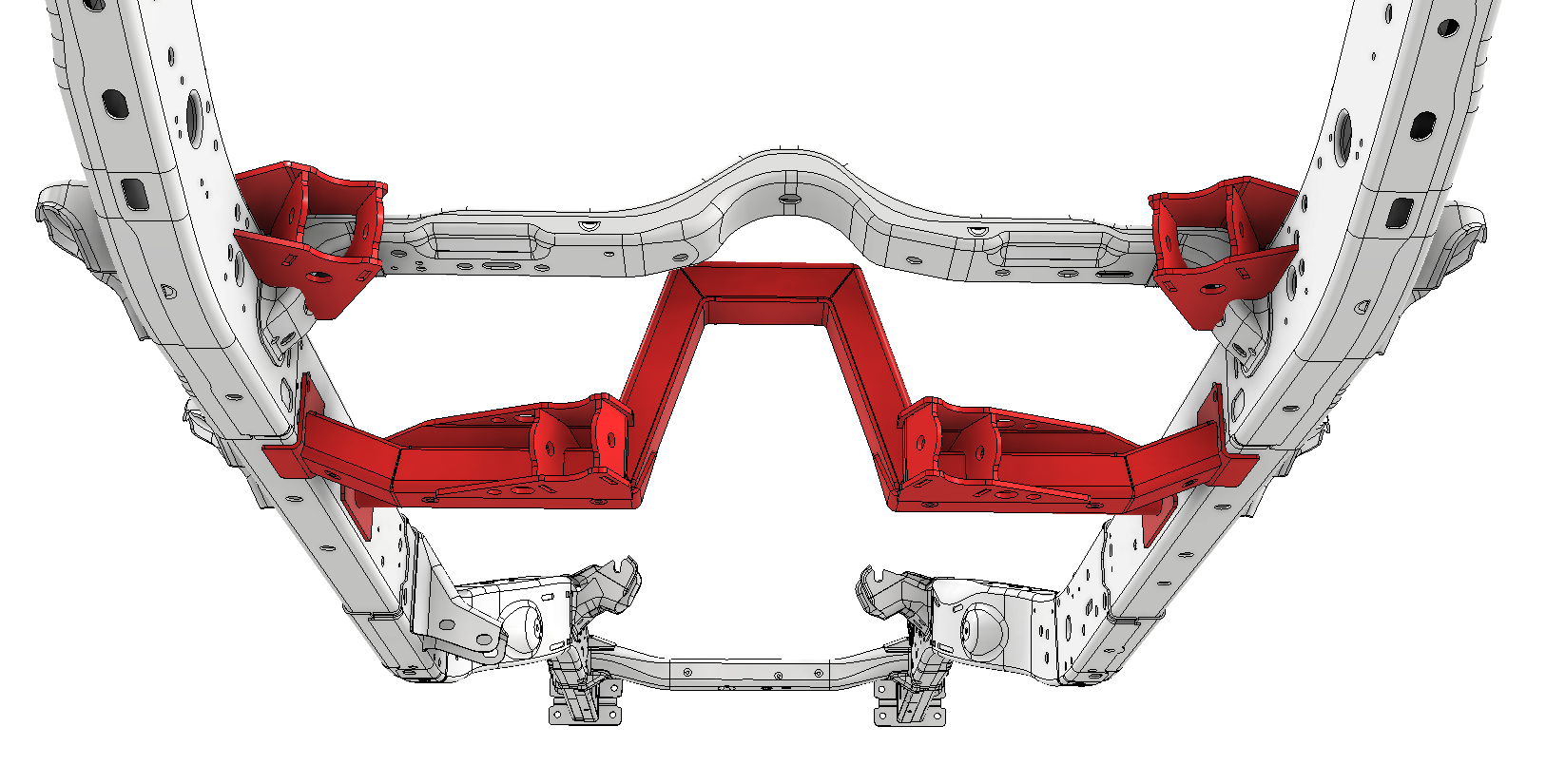

The MB7008 establishes the frame-side mounting locations for a double triangulated rear 4-link suspension.
All joint mounting locations are designed for 2-5/8" wide suspension joints with 5/8" diameter mounting holes. The holes can be enlarged if required by the selected joint hardware.
The recessed joint bolt arrangement helps protect the pivot hardware while keeping it accessible for maintenance and future service.
The kit is intended for custom rear suspension builds using larger axles. The complete suspension must still be configured around the selected axle, link lengths, joints, shocks, and intended suspension travel.
Coilover and ORI Strut Packaging
The Jeep JLU rear frame is narrower than the Jeep JK frame, providing additional room around the rear axle for suspension components.
Because of this frame layout, the MB7008 allows builders to package coilover shocks or ORI struts without replacing the entire rear frame with a back half kit.
Final shock and strut mounting locations must be verified as part of the complete suspension layout.
Fuel Tank Relocation
The factory passenger-side fuel tank occupies space required for the double triangulated rear 4-link suspension and must be removed.
Motobilt MB5026 is the related rear-mounted fuel cell system for this conversion. It includes an aluminum fuel cell, steel skid plate, and EVAP components.
The MB5026 is sold separately and is not included with the MB7008 bracket kit.
Installation Instructions Reference
Dedicated installation instructions for the MB7008 Rear 4-Link Suspension Bracket Kit are not currently available.
Customers can reference the Motobilt MB7006 installation instructions for guidance on installing the MB7008 frame-side brackets and rear crossmember. The MB7006 instructions provide a useful reference for understanding bracket positioning, component alignment, and the general installation process.
Because the MB7006 instructions cover a different kit, builders must verify all MB7008 component locations, frame fitment, and suspension geometry before final welding.
Professional welding is required for installation.
Final Assembly
Test fit all bracket assemblies and verify rear axle location, link angles, joint clearance, and shock packaging before final welding.
Confirm that suspension components do not contact the frame, crossmember, fuel system, or surrounding bodywork throughout the intended suspension travel.
The MB7008 ships in bare steel. Complete all welding and fabrication before applying paint or another suitable protective coating.
