As suspension demands increase on the Jeep JT Gladiator, the factory rear shock location becomes a limitation. Builders looking to run coilovers need additional height, stronger mounting points, and a redesigned structure to properly package the suspension. At the same time, the rear frame and body mount area remains a known weak point under heavy use.

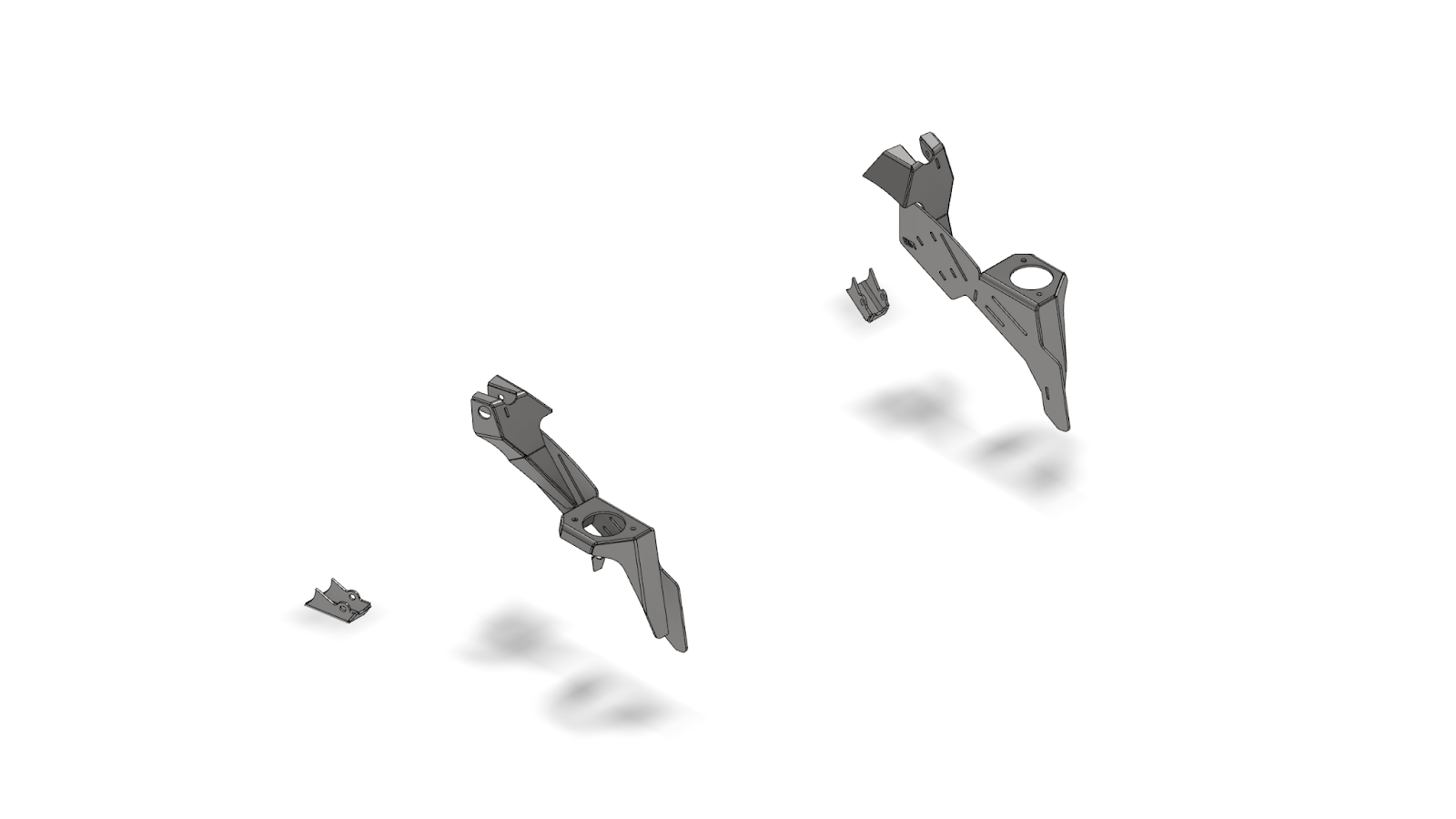

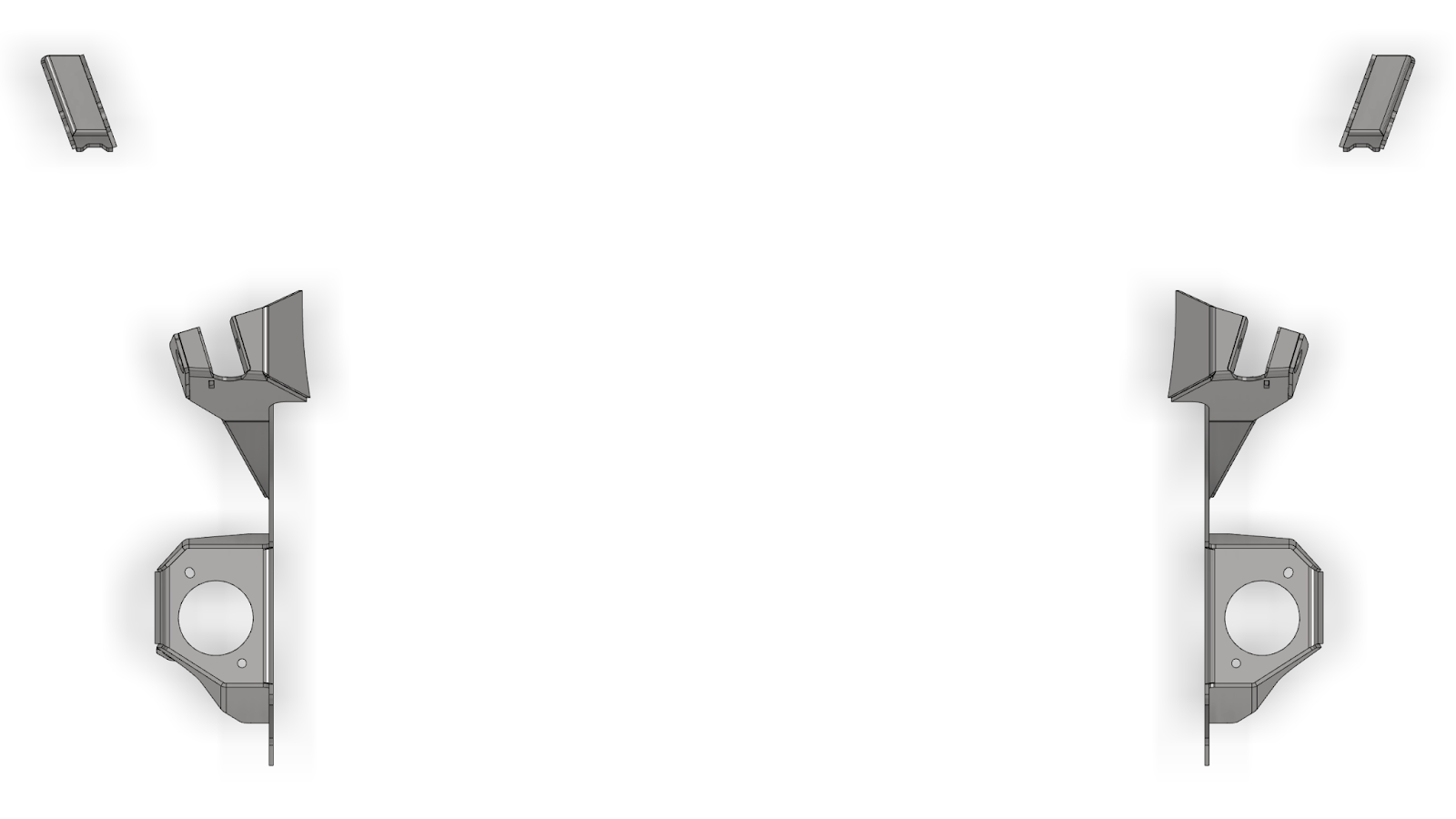

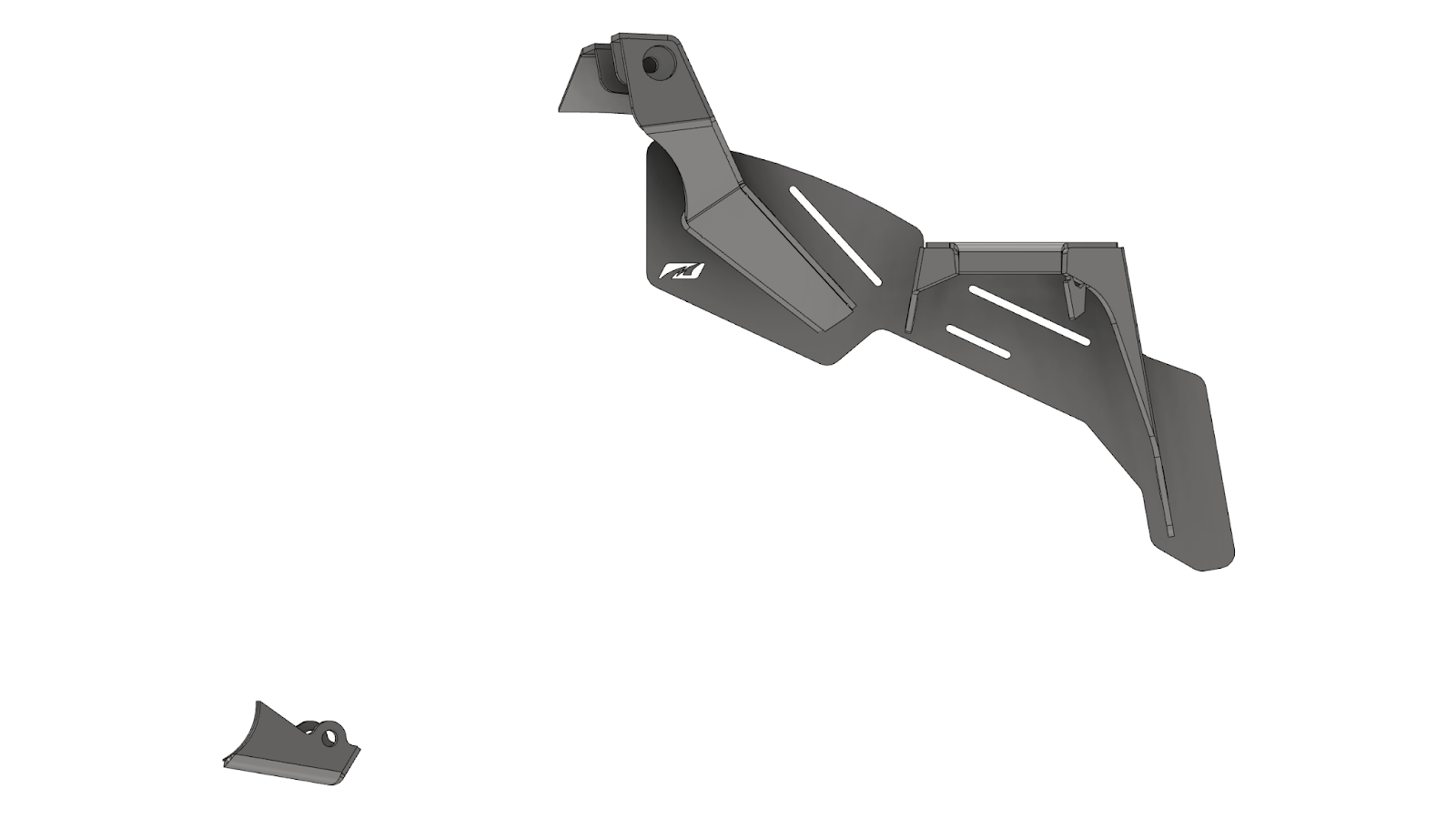

The Motobilt Rear Coilover Bracket Add-On was designed to address both of these issues. This system replaces the factory rear body mount location with a reinforced structure that creates a new mounting position for coilover shocks while strengthening the frame.

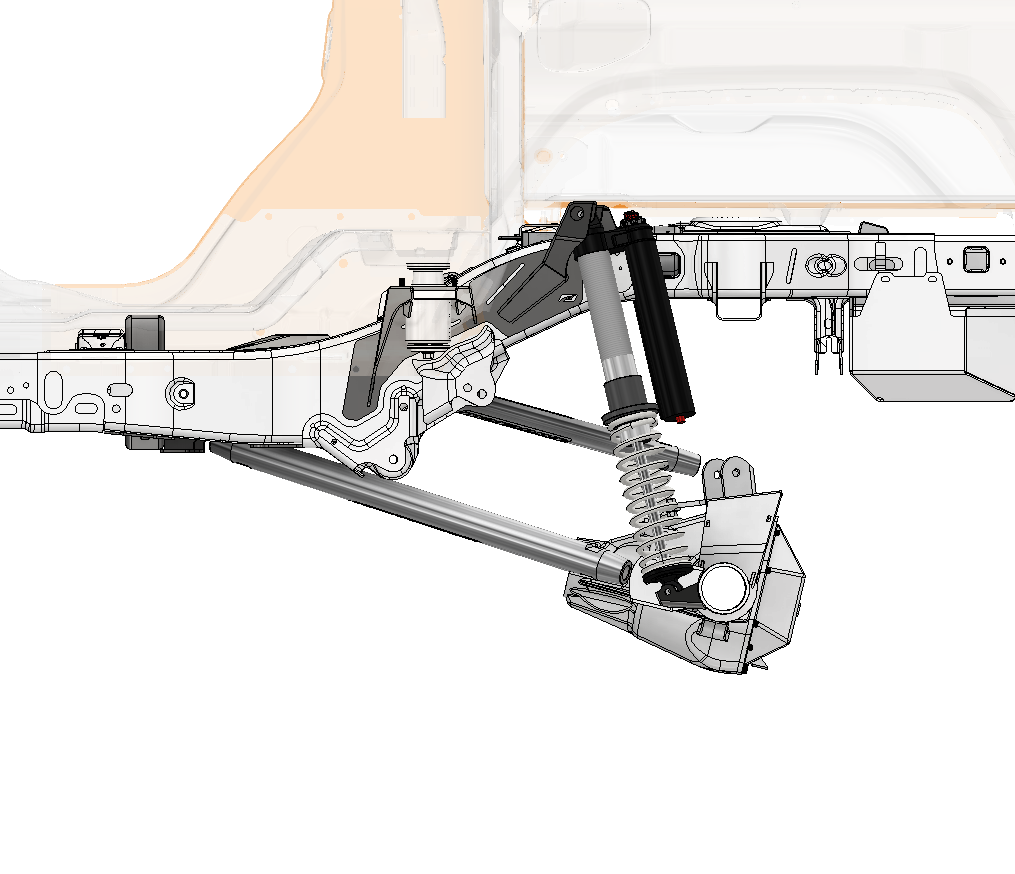

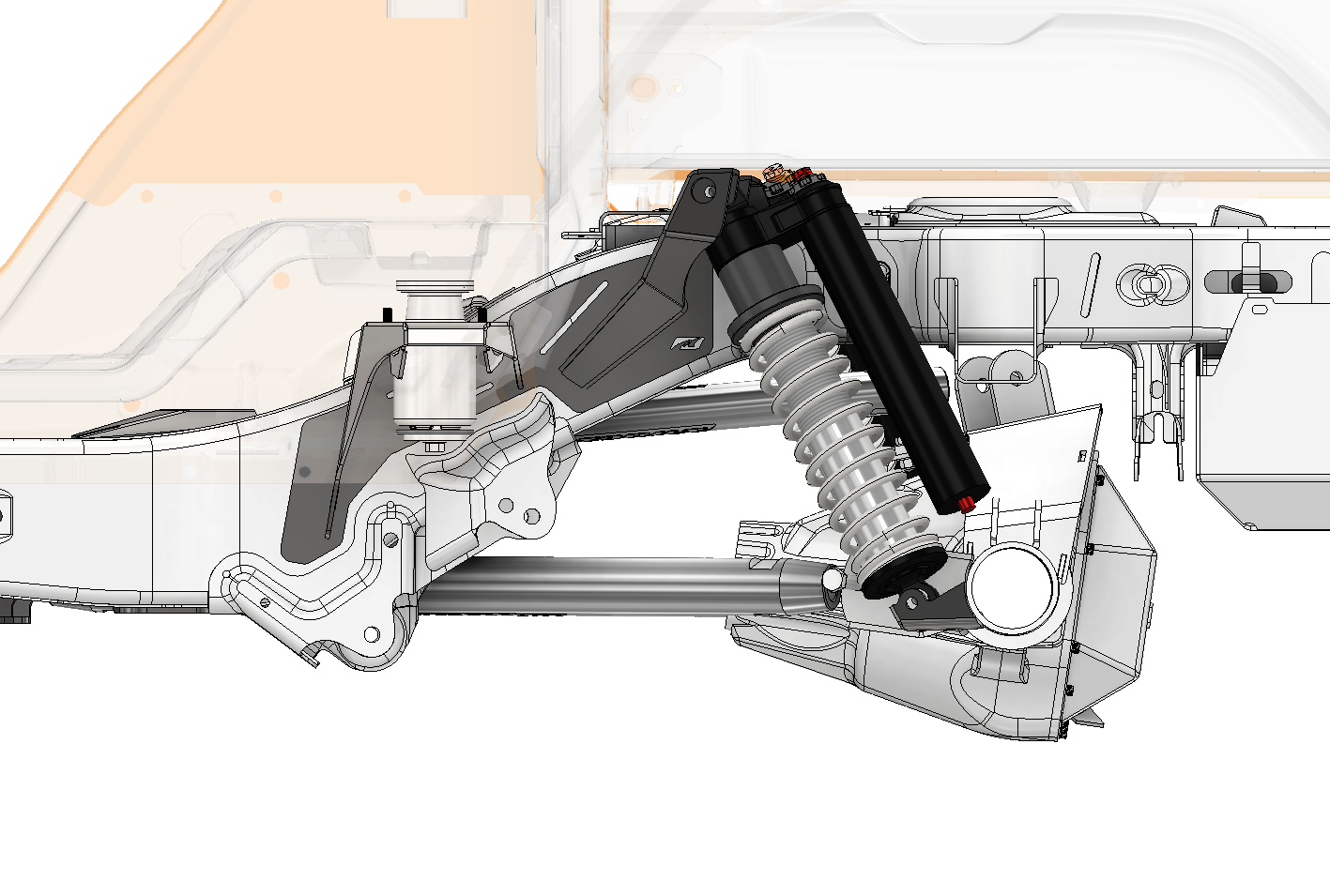

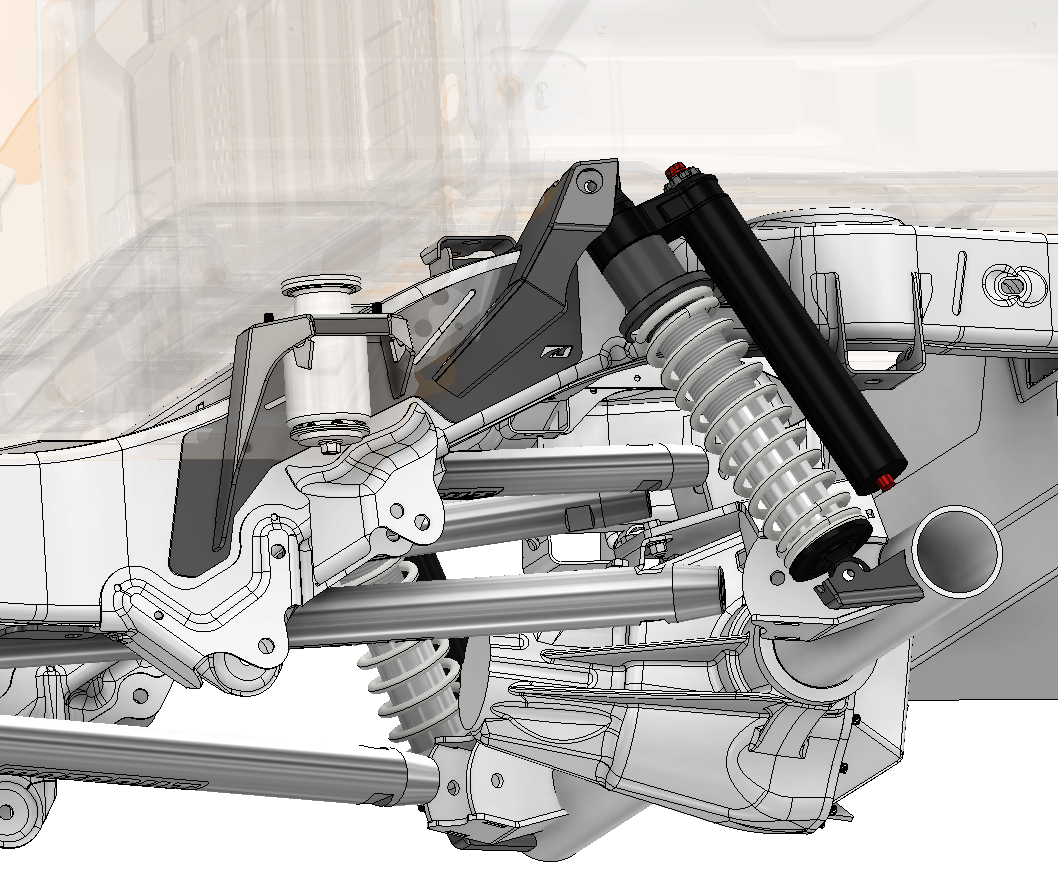

Unlike brackets that retain the factory shock position, this design raises and repositions the upper mount to accommodate 2.5 inch by 12 inch coilovers. The added height allows for proper shock travel and suspension geometry while maintaining a tight, functional layout in the rear of the chassis.

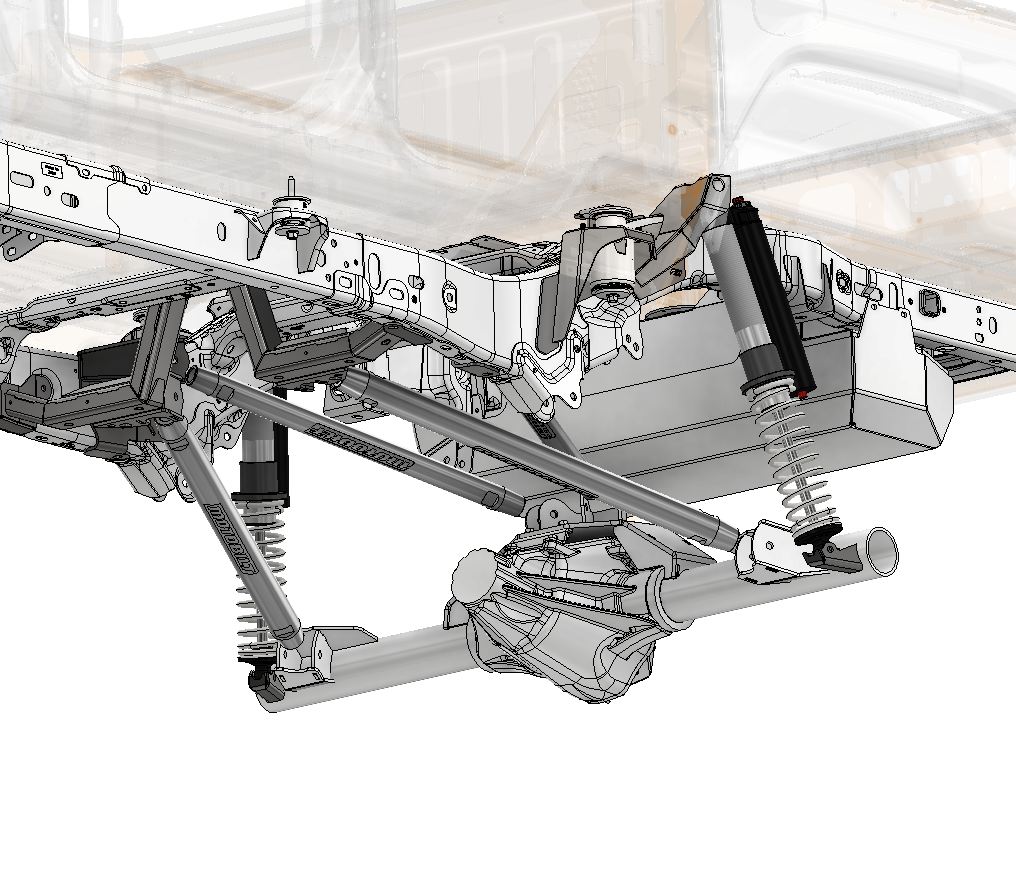

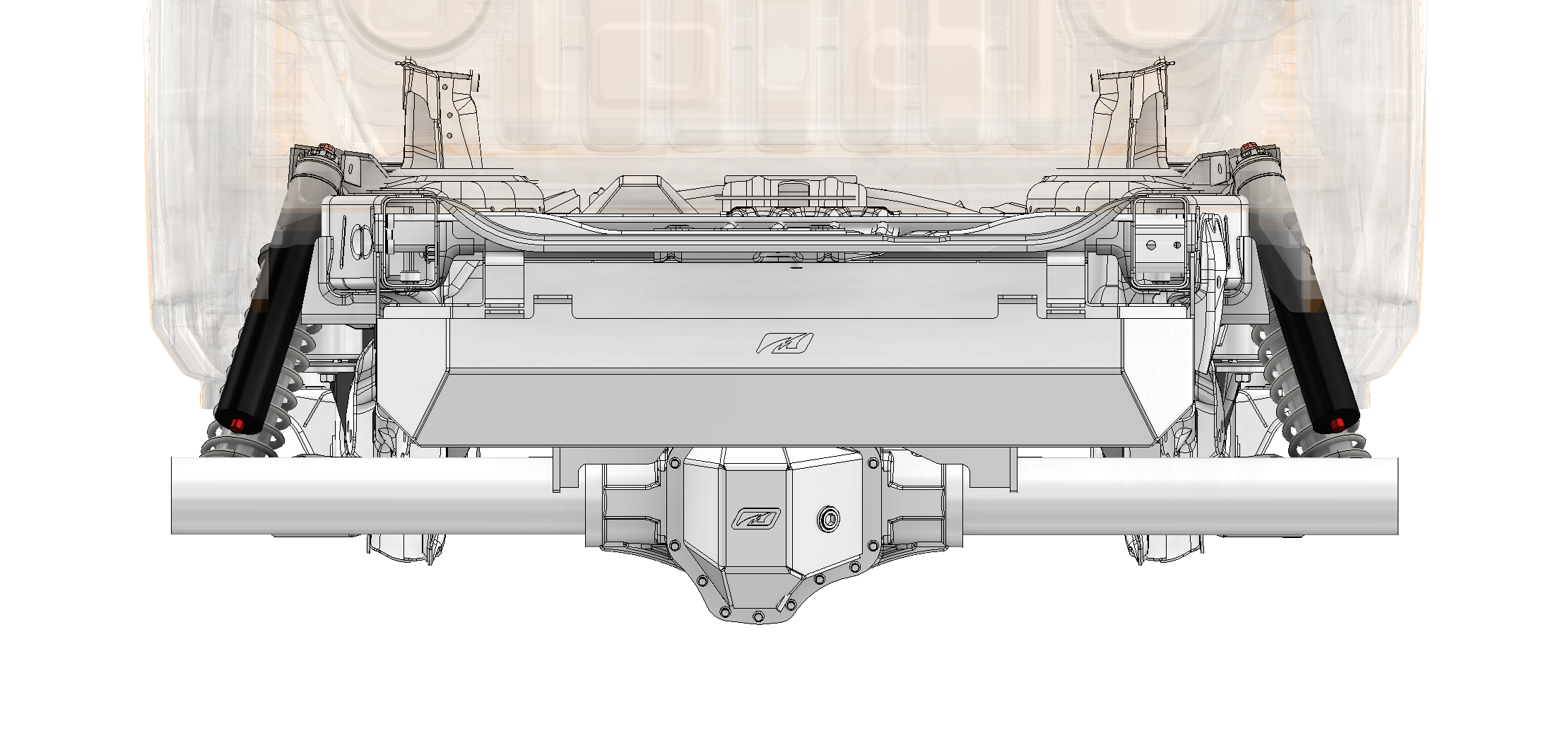

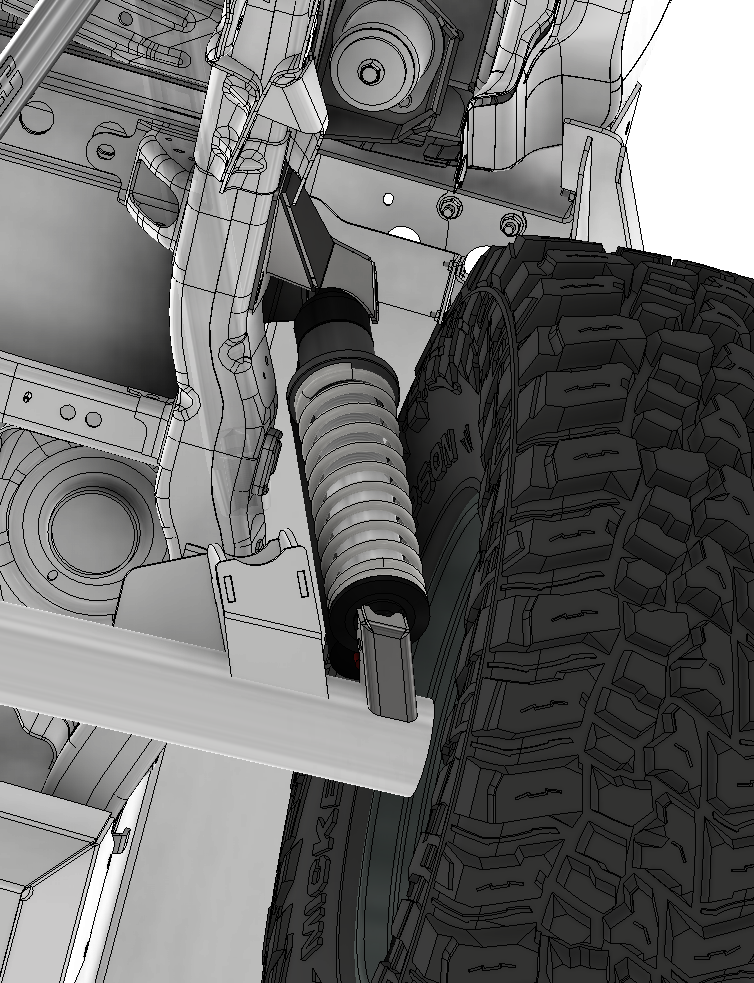

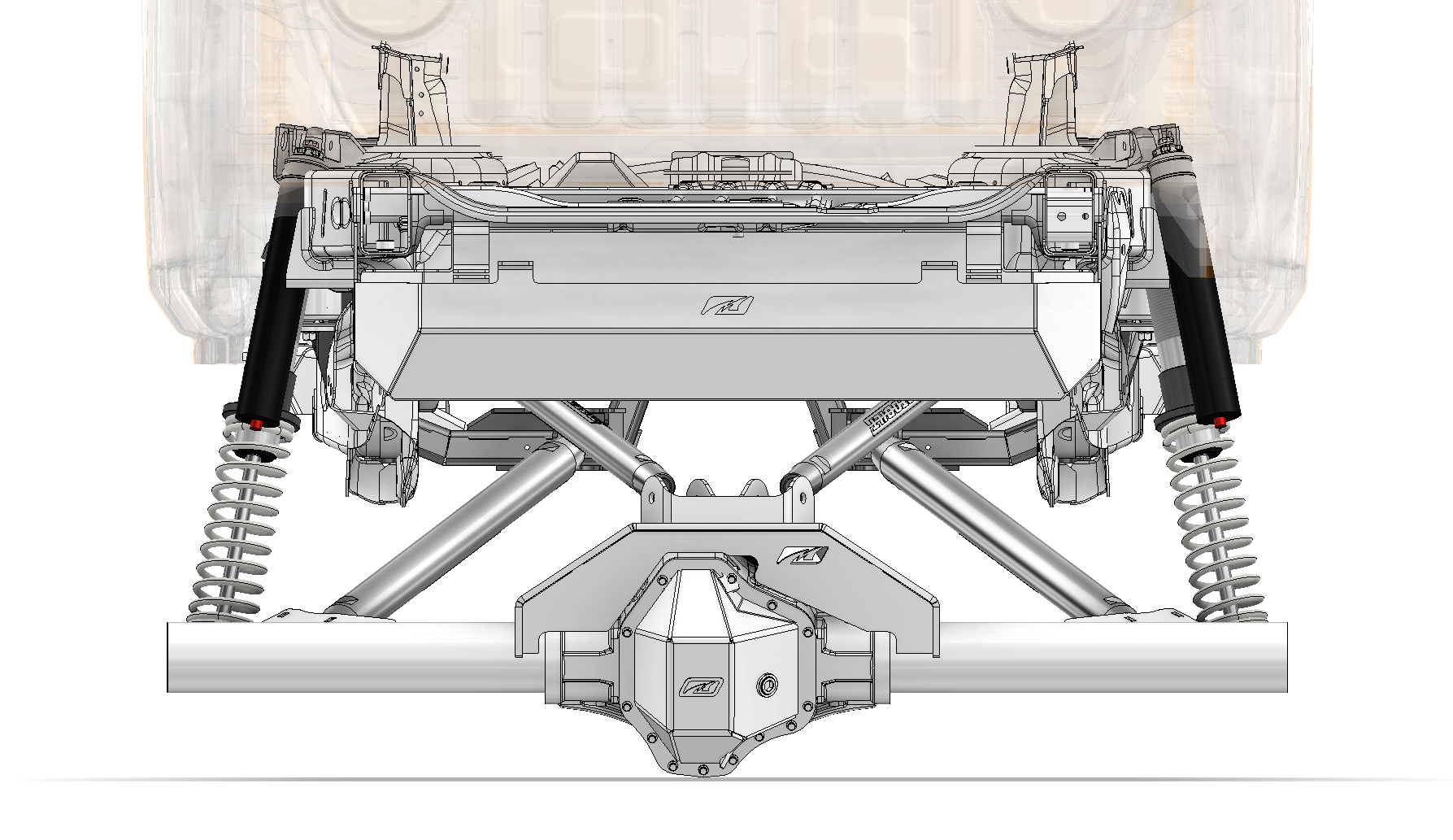

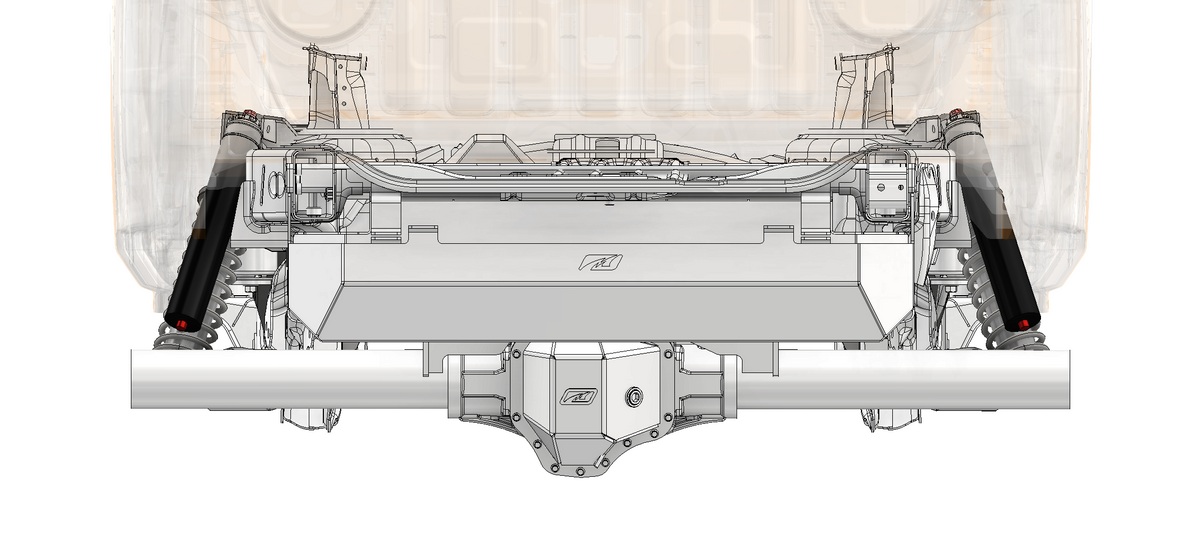

This kit also includes the axle side coilover mount, providing a complete solution for converting the rear suspension to a coilover setup. It creates a stronger, more capable mounting system designed for increased suspension loads and aggressive off-road use.
This is not a factory replacement bracket. It is a suspension upgrade and frame reinforcement system intended for builds moving beyond factory shock limitations.
Like all Motobilt components, this system was designed by builders who understand suspension packaging, frame stress, and real-world off-road performance.
Important Information
- Designed for Jeep JT Gladiator 2020+
- Converts rear suspension to coilover configuration
- Creates new upper mounting location for 2.5 inch x 12 inch coilovers
- Includes axle side coilover mount
- Replaces factory rear body mount location
- Reinforces frame at a known weak point
- Not designed to retain factory shock configuration
- Ships bare steel and must be coated before installation
- Requires welding and fabrication
Product Specifications
Vehicle Fitment
Jeep JT Gladiator 2020+
Material
A36 Steel
Dimensions
8.7 inch H / 5.9 inch W / 25.8 inch D
Weight
19.3 lbs
Manufactured
Made in the USA
Installation Notes
This system requires removal of the factory body mount and modification of the rear frame.
Proper coilover placement and suspension geometry should be planned before final welding.
This kit is intended for advanced builds and requires fabrication experience.
Frequently Asked Questions
What is the difference between this and the standard rear shock bracket?
This kit creates a new mounting position for coilovers, while the standard bracket retains the factory shock location.
Does this include everything needed for a coilover conversion?
It includes the upper frame mount and axle side bracket, but coilovers and additional suspension components are not included.
What size coilovers does this support?
This system is designed for 2.5 inch by 12 inch coilovers.
Does this reinforce the frame as well?
Yes. It strengthens the rear frame at the factory body mount location.
Is this a bolt-on kit?
No. This requires cutting, fitting, and welding.
