Roll Cage Tie-In with Poly Bushing Kit

Name: Roll Cage Tie-In with Poly Bushing Kit
Brand: Motobilt
SKU: MB2138
Price: 39.00 USD
Availability: InStock

Regular price $39.00

Shipping calculated at checkout.

Unit Price: / Sku: MB2138

Quantity:

View product details & documents

Product details

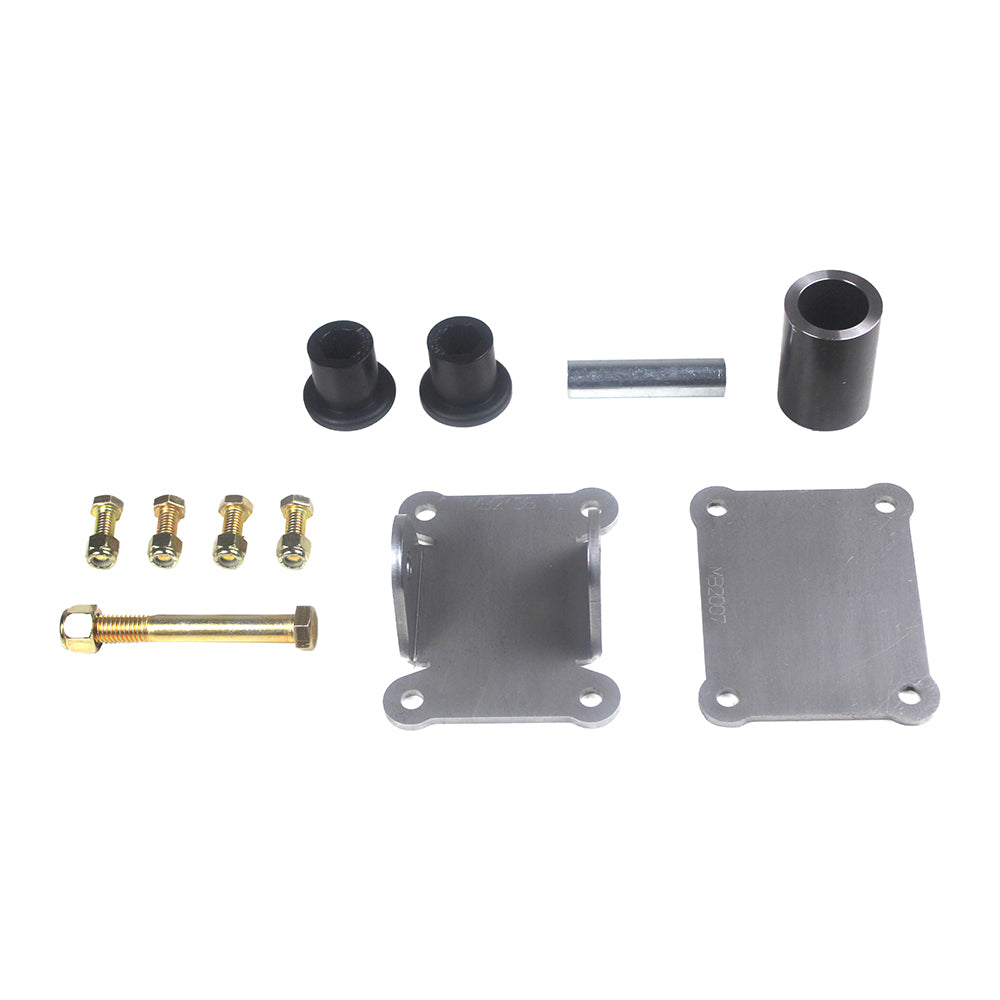

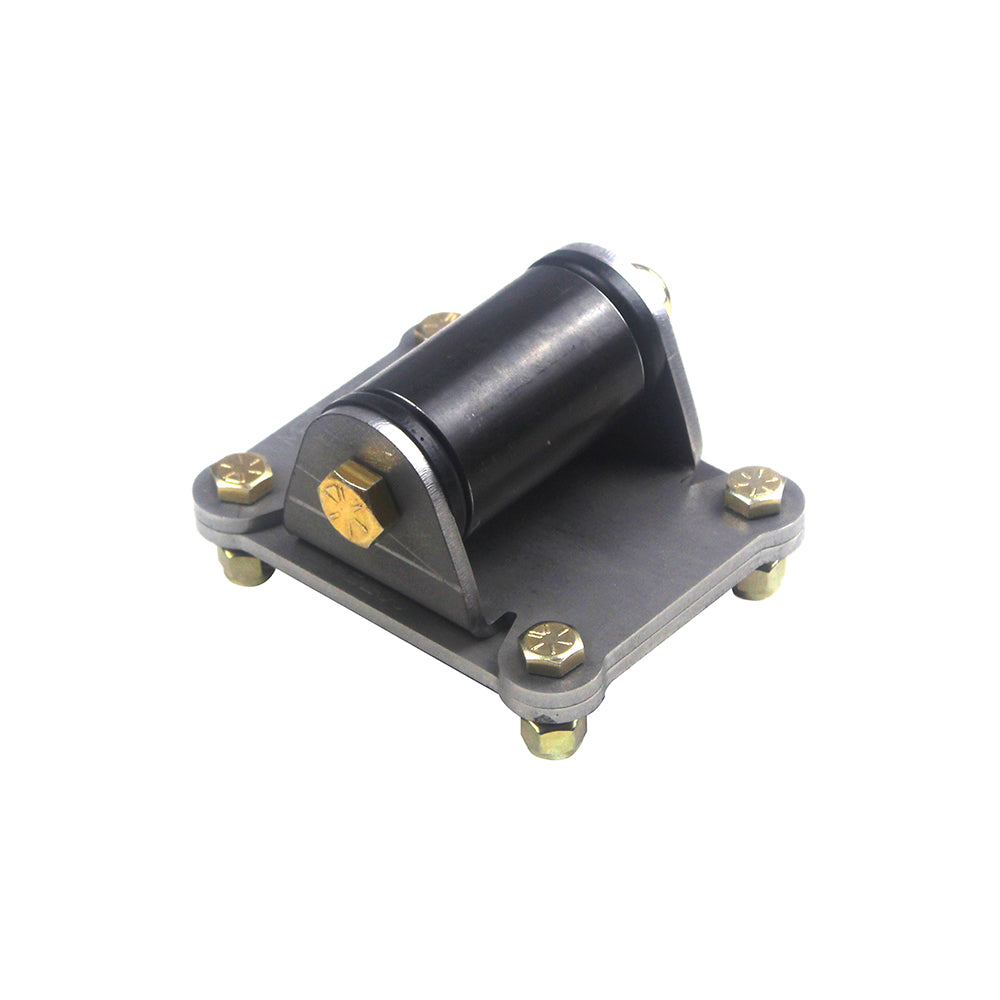

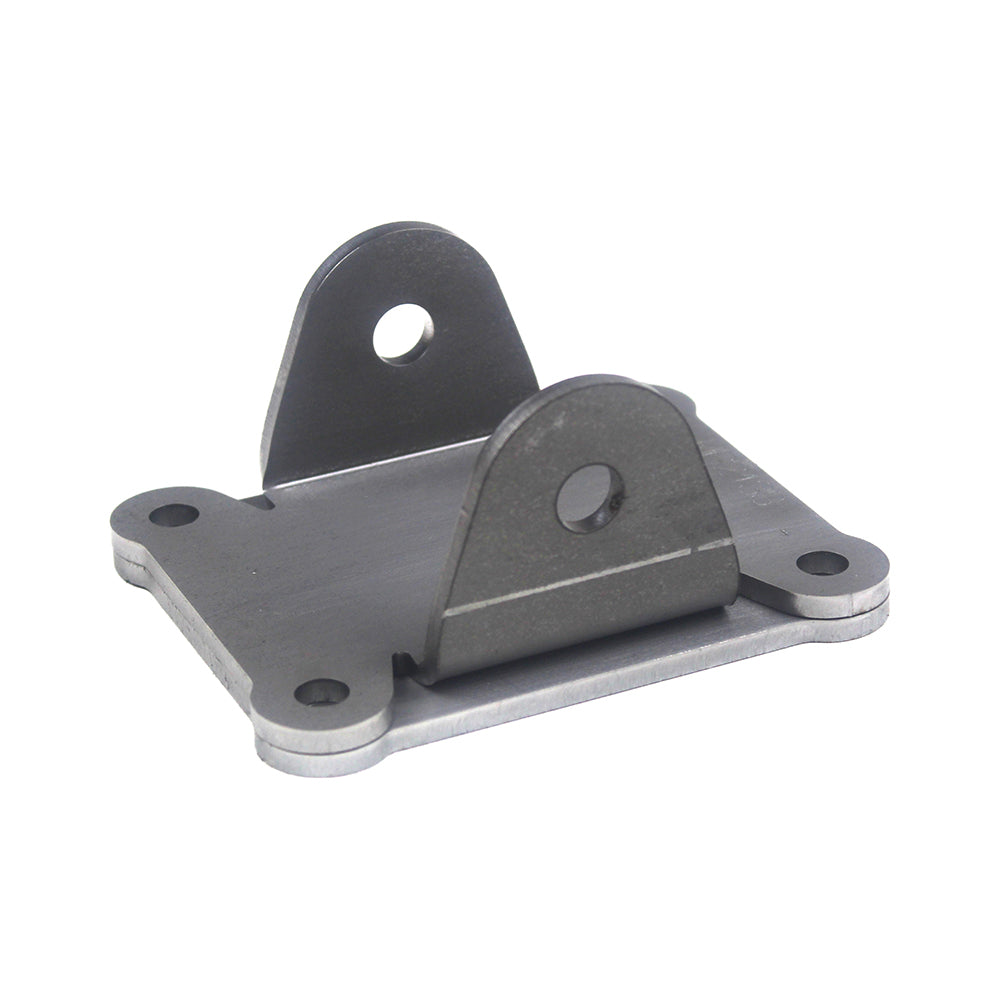

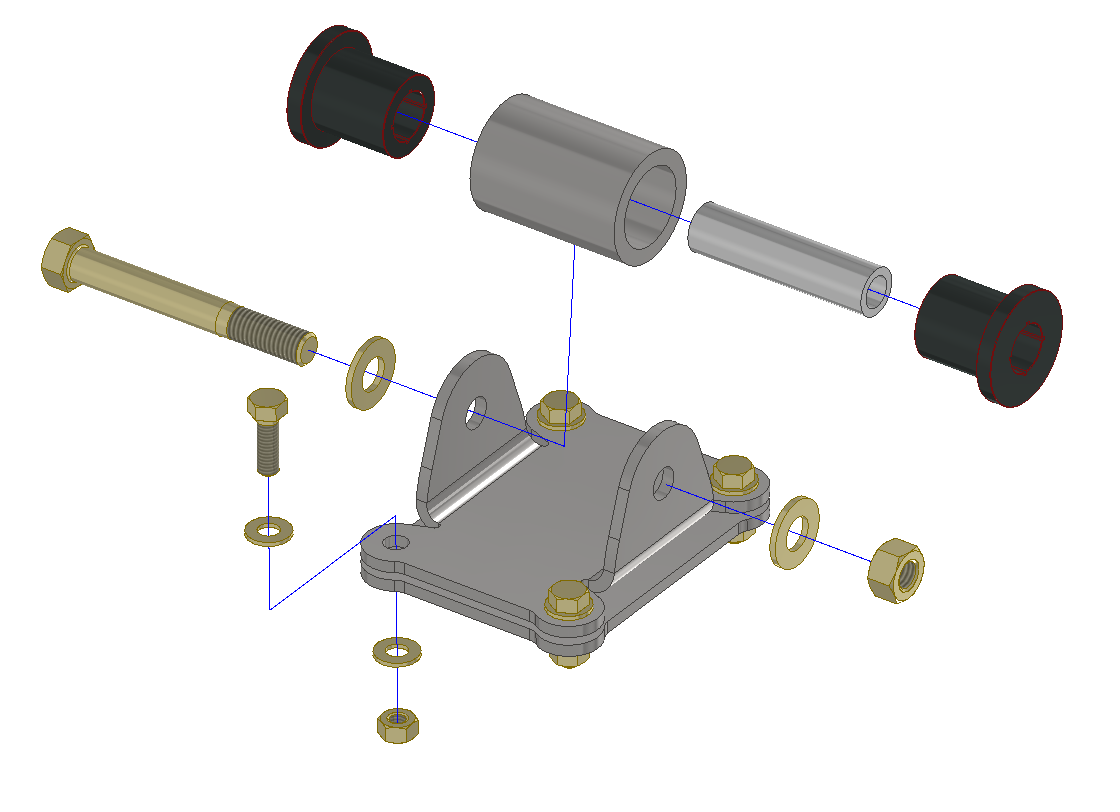

Motobilt has offered MB2007 Roll Cage Plates for years now. We have received requests to make it easier to tie cage mounting points to the frame. We designed the Roll Cage Bushing Mount to work with these plates. The Motobilt Roll Cage Bushing plates are sold in kit form. One MB2138 formed roll cage bushing plate and one MB2007 flat plate. Both plates are CNC laser cut here in house on our fiber laser from 3/16” steel plate. The bushing plate is then CNC formed on our press brake. This part is shipped bare steel ready for you to weld together. Additionally the outer and inner steel sleeves and poly bushings are included in the kit. Hardware for the kit is included.

Bolt pattern measures 4” x 3”
Hole diameter in cage plate is 3/8”
5/16" bolts included
Hole Diameter for poly bushing is 1/2”
1/2" bolt included

Product Components

Roll Cage Tie-In with Poly Bushing Kit
