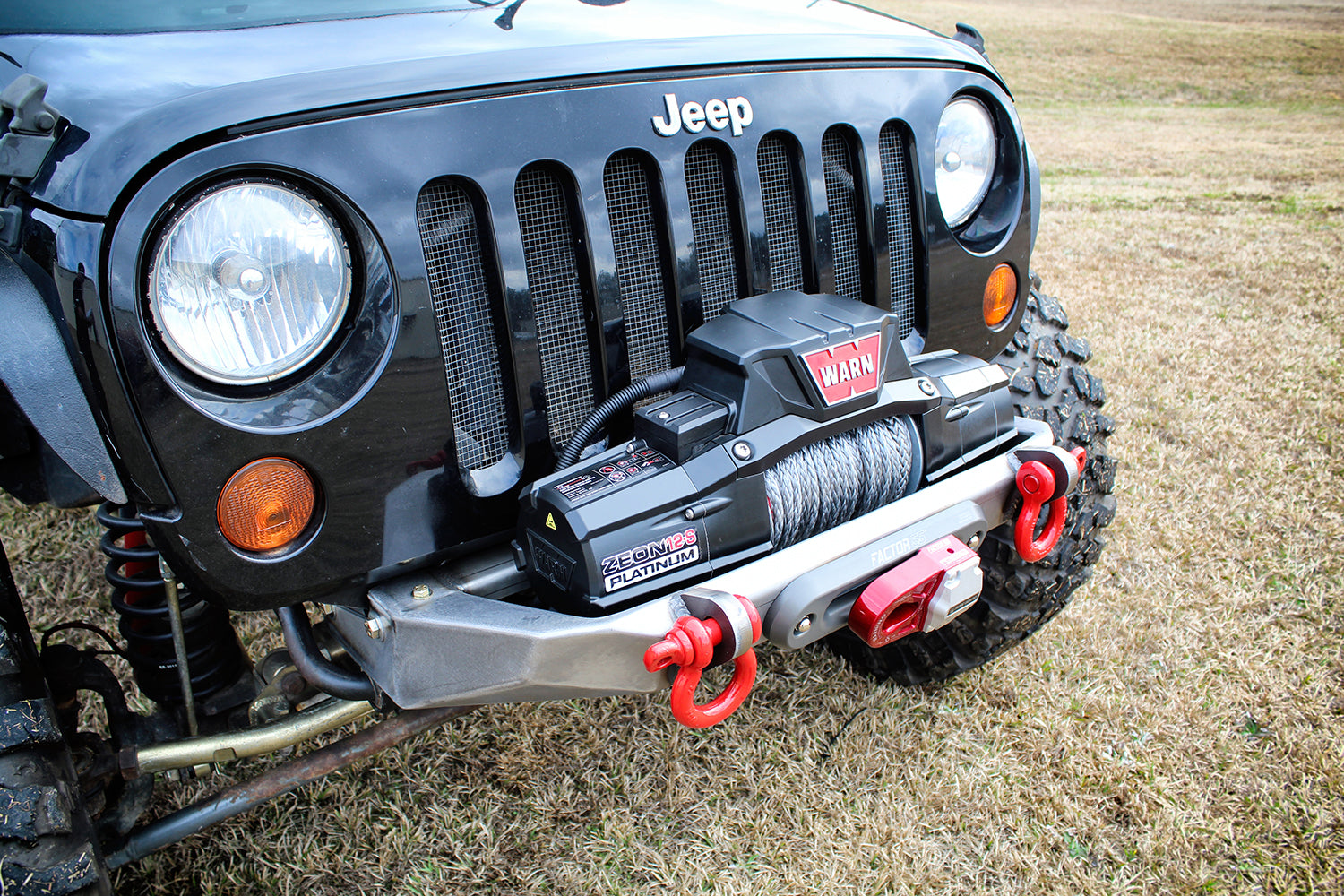

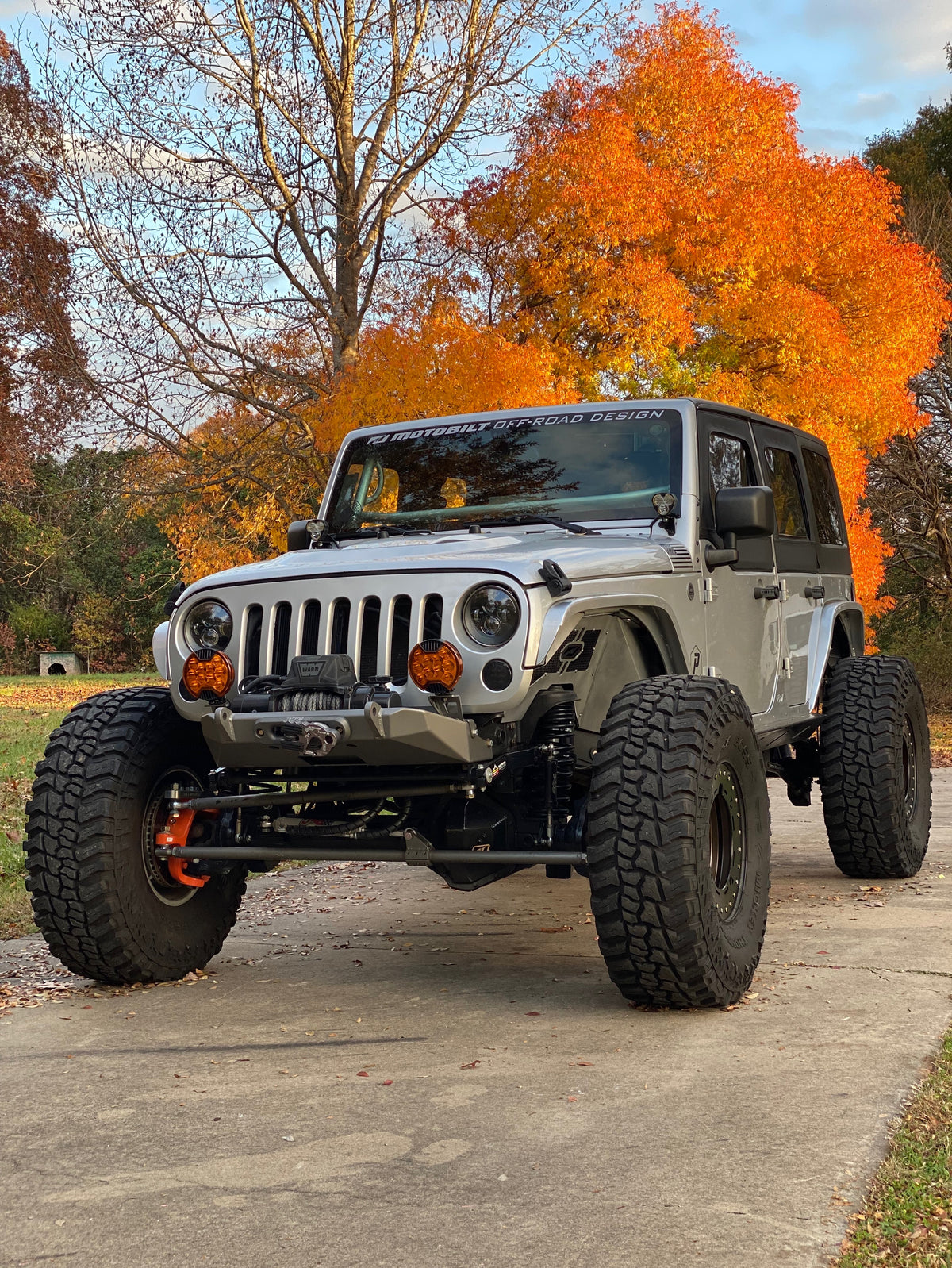

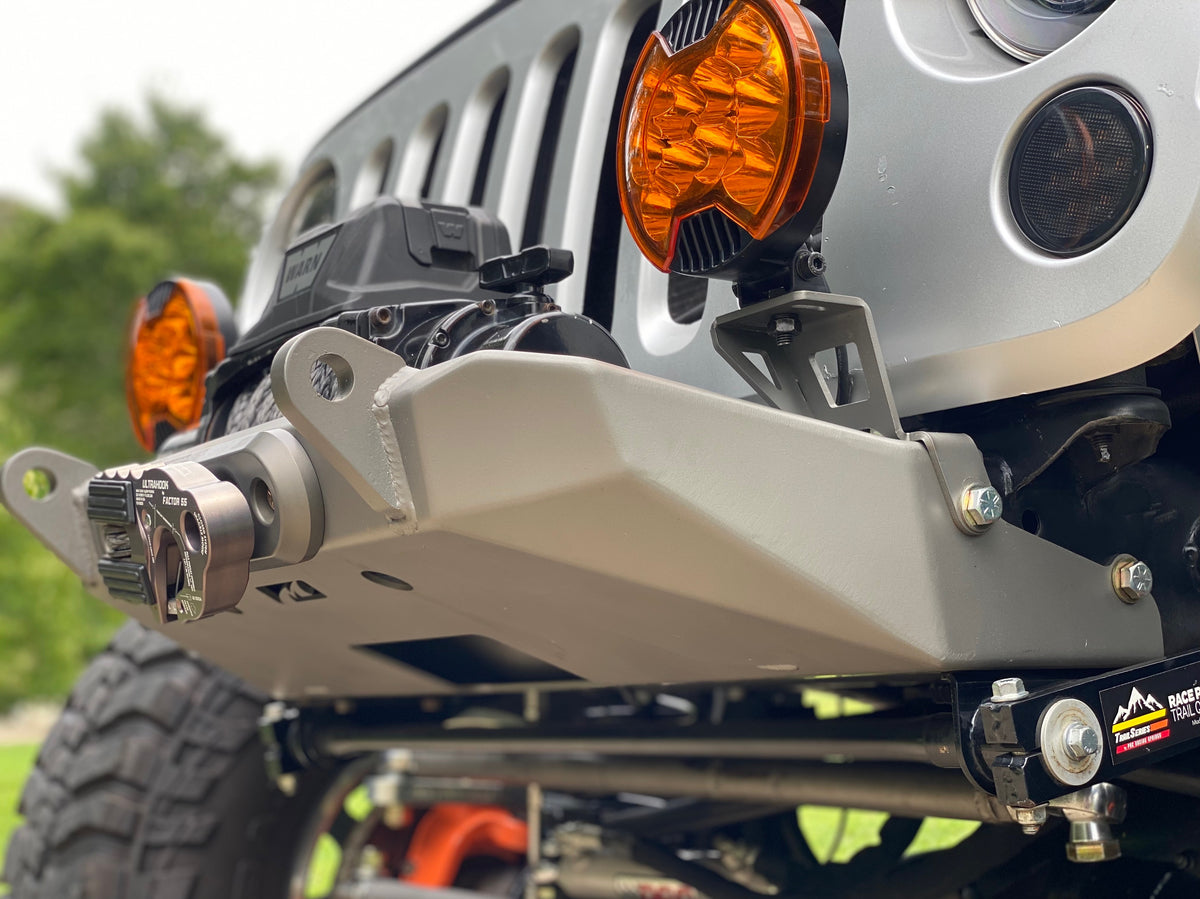

Frame Chop Front Bumpers are nothing new to the offroad community. Here at Motobilt we wanted to raise the bar a little. The Tomahawk front bumper was designed from concepts developed on the TJ Front Half Frame Kit we manufacture. Are you ready to take your Jeep JK, JL or Gladiator to the next level of style, function and capability?

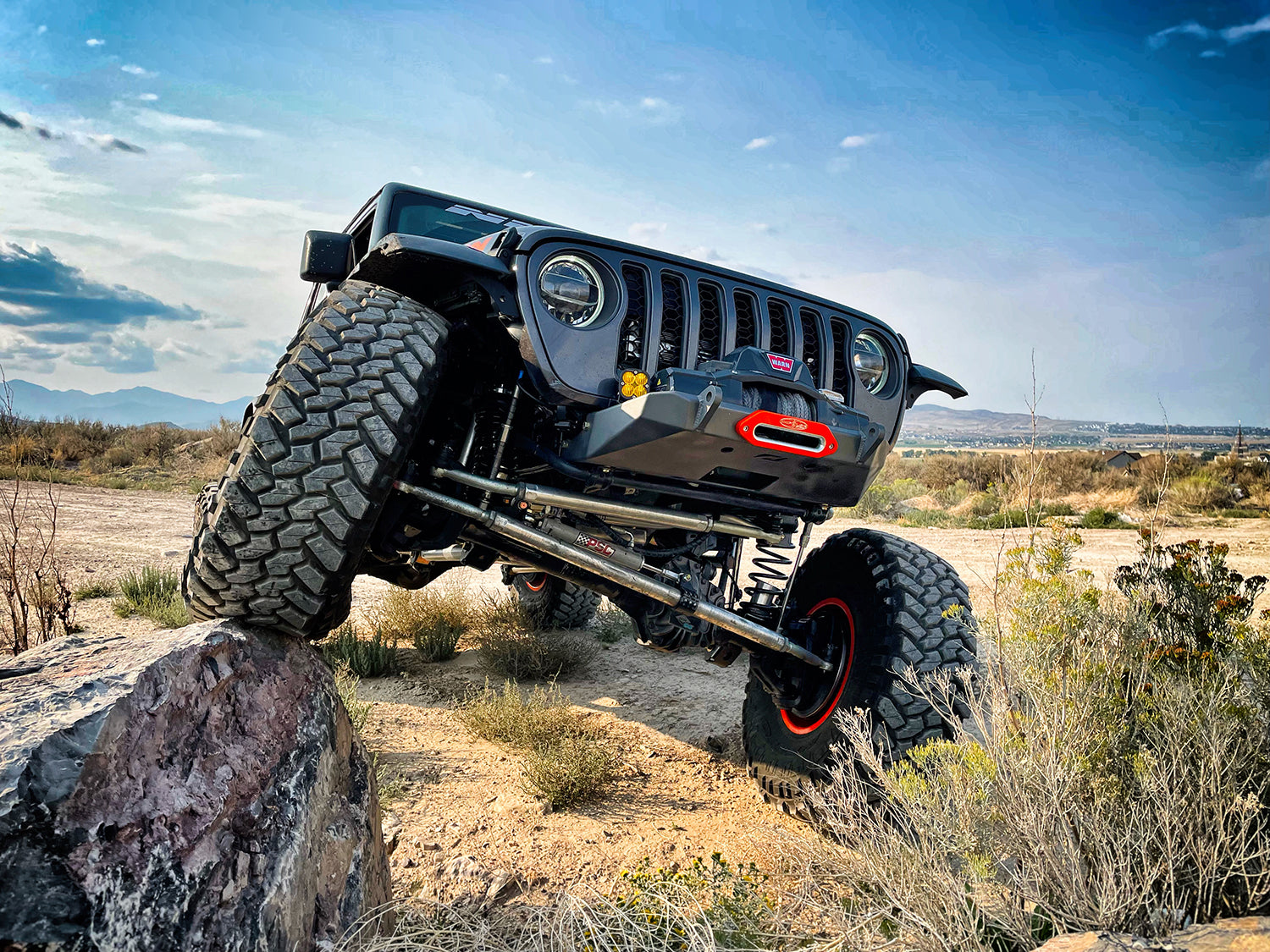

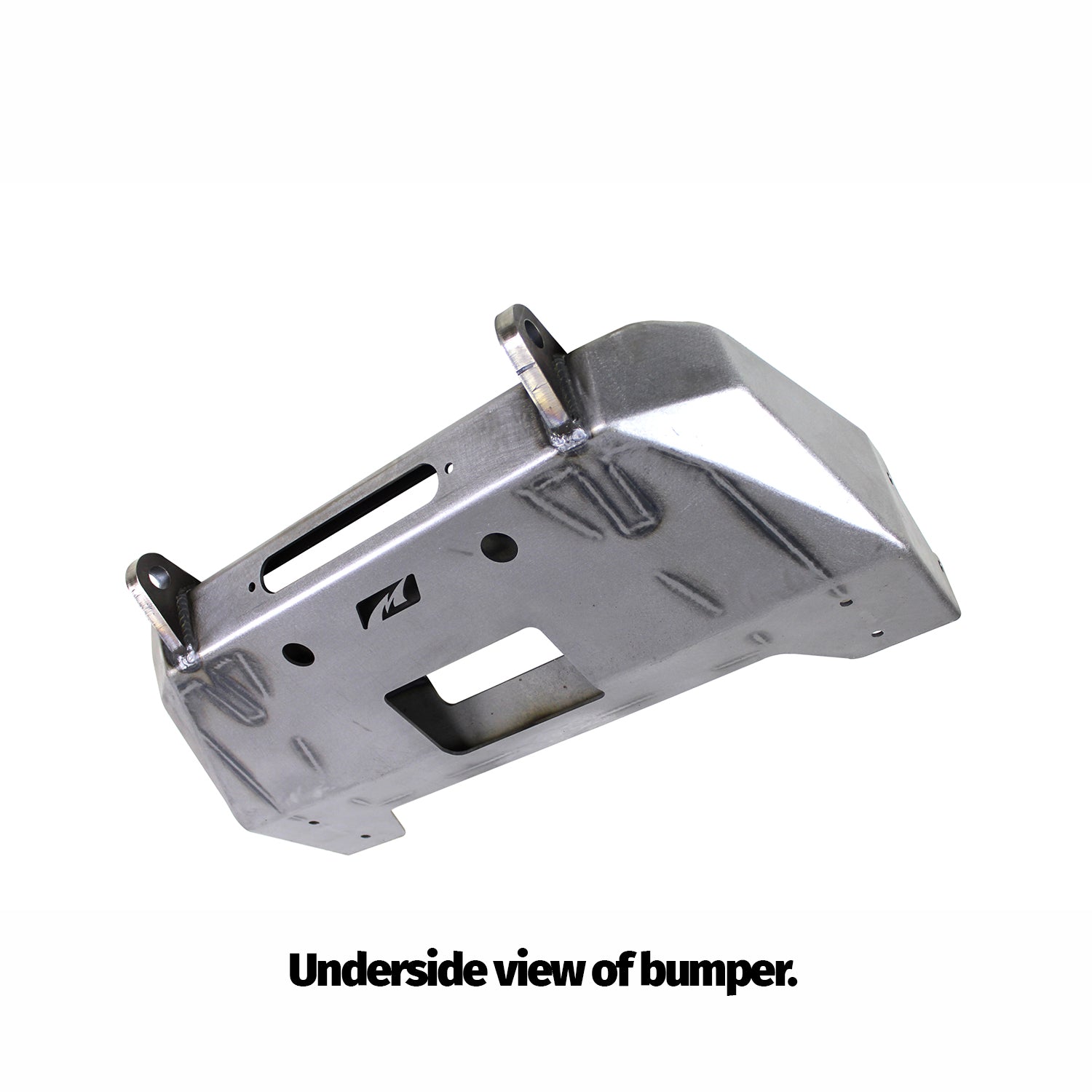

The Motobilt Tomahawk Front Winch Bumper offers many features for the avid off-roader. This original & unique front frame chop bumper design features an upswept shape that gives you more clearance & increased approach angle than any other bumper / frame chop bumper available on the market. We integrated a second opening in the underside of the bumper which allows you to route your winch line directly downwards to suck down your front suspension, which in turn, lowers your center of gravity, increasing your vehicles' ability to climb steep obstacles. This concept is widely used in competitive rock crawling.
Covering all Jeep Wrangler model years from 2007 through to current, this product fits all Jeep JK (2 door), JKU (4 door), JL (2 door), JLU (4 door) & Jeep JT Gladiator models. Permanent modification to & drilling of the frame is required. Slight clearance of the two forwardmost body mounts is required prior to installation.
A vacuum Pump Relocation Bracket is required on the Jeep JK / JKU 2012-2018 to install the Motobilt Tomahawk Frame Chop Bumper.
NOTE: You WILL NOT be able to return your vehicle back to factory bumpers after installation of this product.
Check out this video for all the details, install tips & more:
This product ships as bare steel. For an even stronger connection, this product can also be welded to the factory frame.
Our detailed installation instructions include color photos & step-by-step instructions to make your installation easy & fast.
Fits:
- Jeep Wrangler JK / JKU 2007-2018
- Jeep Wrangler JL / JLU 2018-Current
- Jeep Gladiator JT 2020-Current
Jeep JK/JKU Swaybar Compatibility:
You can reuse the factory swaybar, however, the Rubicon swaybar with the electronic disconnect IS NOT COMPATIBLE with this bumper.
This product is also compatible with the following Currie Antirock series swaybars:
OTHER Sway bar options from RockJock such as their Heavy Duty kits will fit as well!
Jeep JL/JLU/JT Gladiator Swaybar Compatibility:
The factory swaybar can be modified to fit this product, however, the Rubicon swaybar with the electronic disconnect IS NOT COMPATIBLE with this bumper.
This product is also compatible with the following Currie Antirock series swaybars:
OTHER Sway bar options from RockJock such as their Heavy Duty kits will fit as well!
Winch & Fairlead Compatibility:

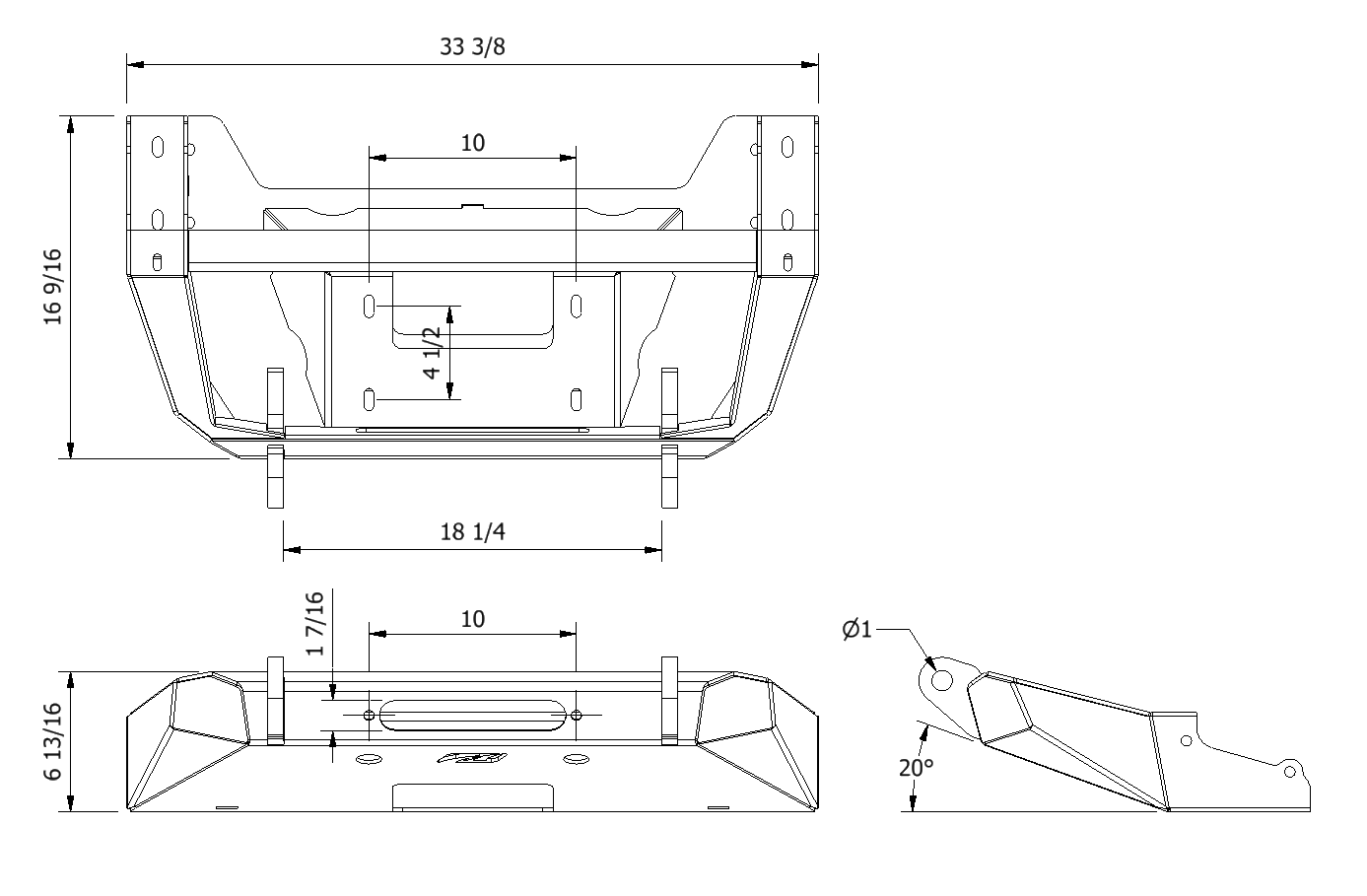

The winch mounting pattern measures 10" x 4.5"

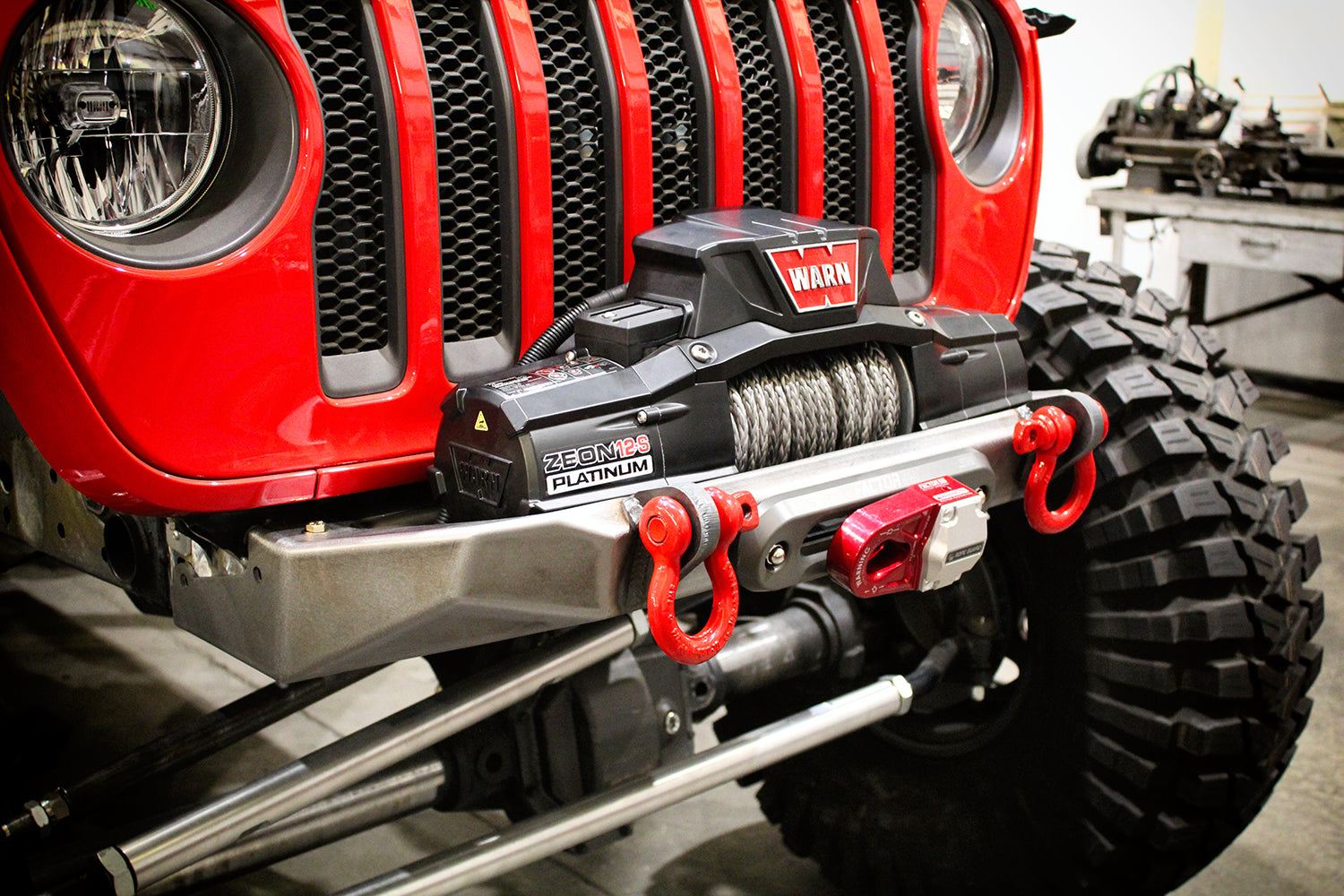

This product is designed to accept a variety of brand names & physical sizes of recovery winches, including the complete Warn Zeon, EVO product lines up to their largest Warn Zeon winch model, the Warn Zeon 12-S Platinum. This product IS NOT COMPATIBLE with the Warn MB8274 winch OR the CTI models. In fact, we recommend any offset winch NOT be used with the Tomahawk bumper. Yes the Badlands will fit this bumper.
The winch fairlead mounting pattern measures 10" center-to-center of the holes. This product is compatible with most Hawse Fairleads. We do not recommend using a roller fairlead with the Tomahawk Frame Chop Front Bumper.
We cannot cover all winches and variations. The bumper will fit other winches. One way of looking at it is if the larger Zeon 12k will fit a smaller M8000 would fit in the same place. We do have the winch mounting holes slotted to accommodate different shape winches.
Note:
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Specifications
Check out this video giving you all the features and installation tips
Features:
- High clearance upswept design
- Integrated winch mount
- Recessed holes for winch mounting
- Integrated fairlead mount
- Two winch routes
- Multiple swaybar mounting options
- Bolt on design (weld on optional)
- Ships as bare metal
- Weight: 62lbs (approx.)
Benefits:
- Increased approach angle
- Accepts multiple winch sizes & brands
- Winch routing straight down to axle
- Recessed winch mounting bolts will not get damaged
- Swaybar compatible
- Optional Bull Bar guards winch
- Fast & easy installation
- Can be color matched to your vehicle
Product Components
Options:
With Bull Bar Tube (MB1149-BB)
Light Bracket Mounts MB2157
Fairlead Light mount MB2154
Instructions
NOTES: If installing with no lift or just a small leveling kit there maybe slight rubbing if using the factory non rubicon sway bar.
Installation Instructions
