Name: Bat Wing Lower Triangulated 4 Link Mount LARGE
Brand: Motobilt
SKU: MB1520
Price: 99.99 USD
Availability: InStock

Regular price $99.99

Shipping calculated at checkout.

Unit Price: / Sku: MB1520

Quantity:

View product details & documents

Product details

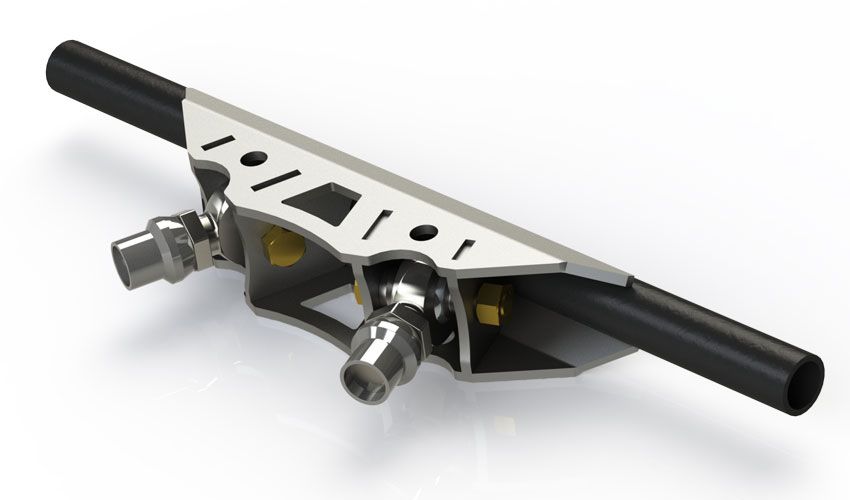

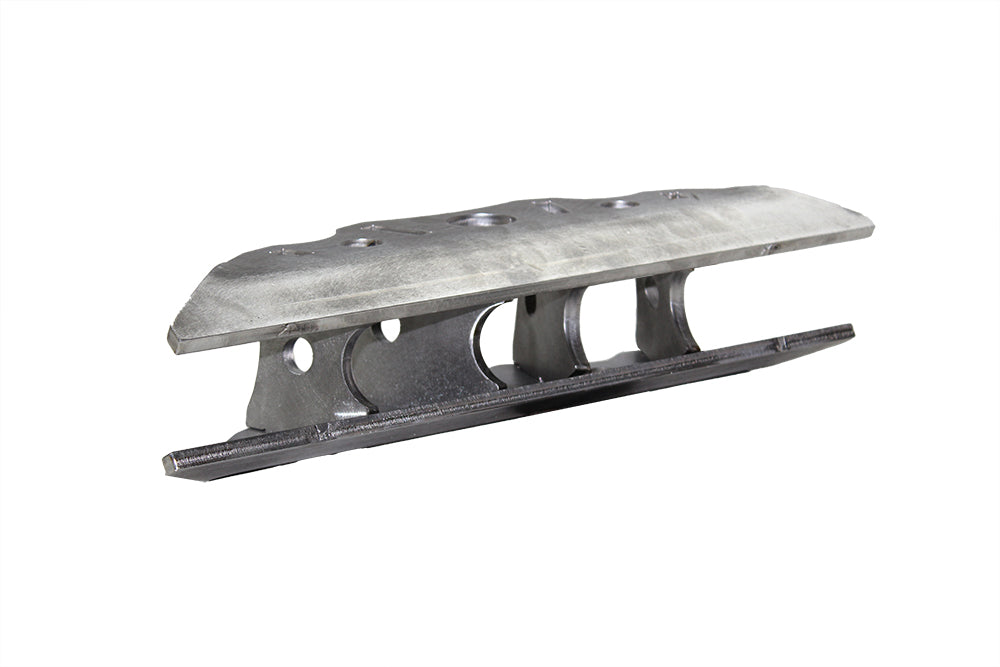

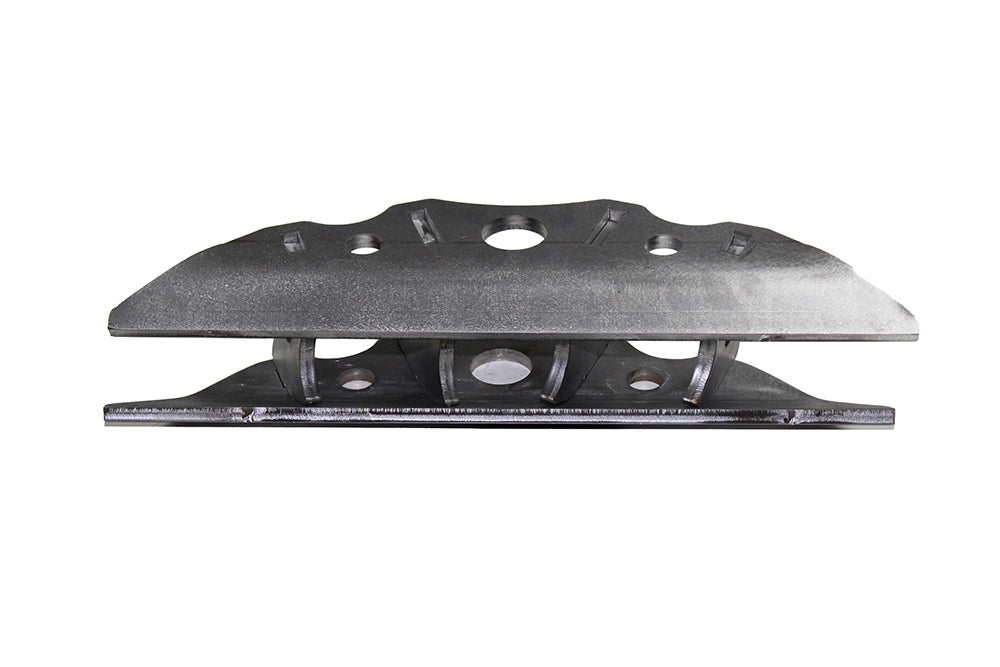

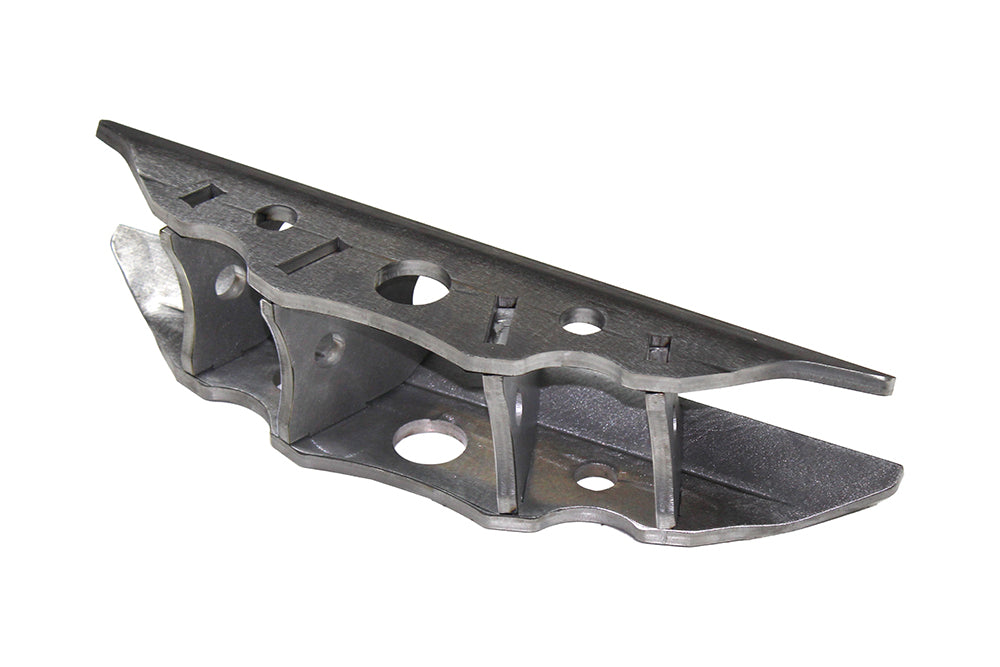

Building triangulated 4 link suspensions does not have to be difficult. Motobilt offers products to make fabricating 4 link suspensions easier for both the professional and DIY fabricator. The Large Link Mount System featured is designed to work with 1.25 x .1 rod ends with 1 inch x 3/4 inch high misalignment spacers. The mounting width of the pocket where the rod end slides into is 2.625 inch. The link mount is fabricated from 5/16 inch steel plate. The link mount is designed to work on 1.75 inch OD round tube.

The overall width of the link mount system is 18 inches to spread the load over a wider area. When installing we recommend using a min of .188 inch wall DOM tubing or thicker. You should also add tube gussets to further brace the mounting area. The overall height of the bracket once assembled is 3.88 inch tall (3.875 inch). The link mount is designed to angle the links out at 20 degrees per side totaling 40 degrees. With high misalignment spacers you can vary the actual mounting angle to the axle slightly.

This style link mount requires welding to install. Be sure to have a qualified person weld the parts in and design your suspension. The part is intended for off-road use on vehicles such as Jeep, rock crawlers, rock bouncers, mega trucks, and other vehicles requiring a triangulated 4 link suspension.

Product specifications

Large Batwing style link mount
Works with 1.25 x .1 rod ends with 1 inch x 3/4 inch high misalignment spacers
Mounting width of the pocket where the rod end slides into is 2.625 inch
Designed to work on 1.75 inch OD round tube
Overall width of the link mount system is 18 inches
Link mount is fabricated from 3/8 inch steel plate
Link mount is designed to angle the links out at 20 degrees per side totaling 40 degrees
Sold as each
Weight = 15lbs

Notes

The part is intended for off-road use on vehicles such as Jeep, rock crawlers, rock bouncers, mega trucks, and other vehicles requiring a triangulated 4 link suspension

Additional product details & documents

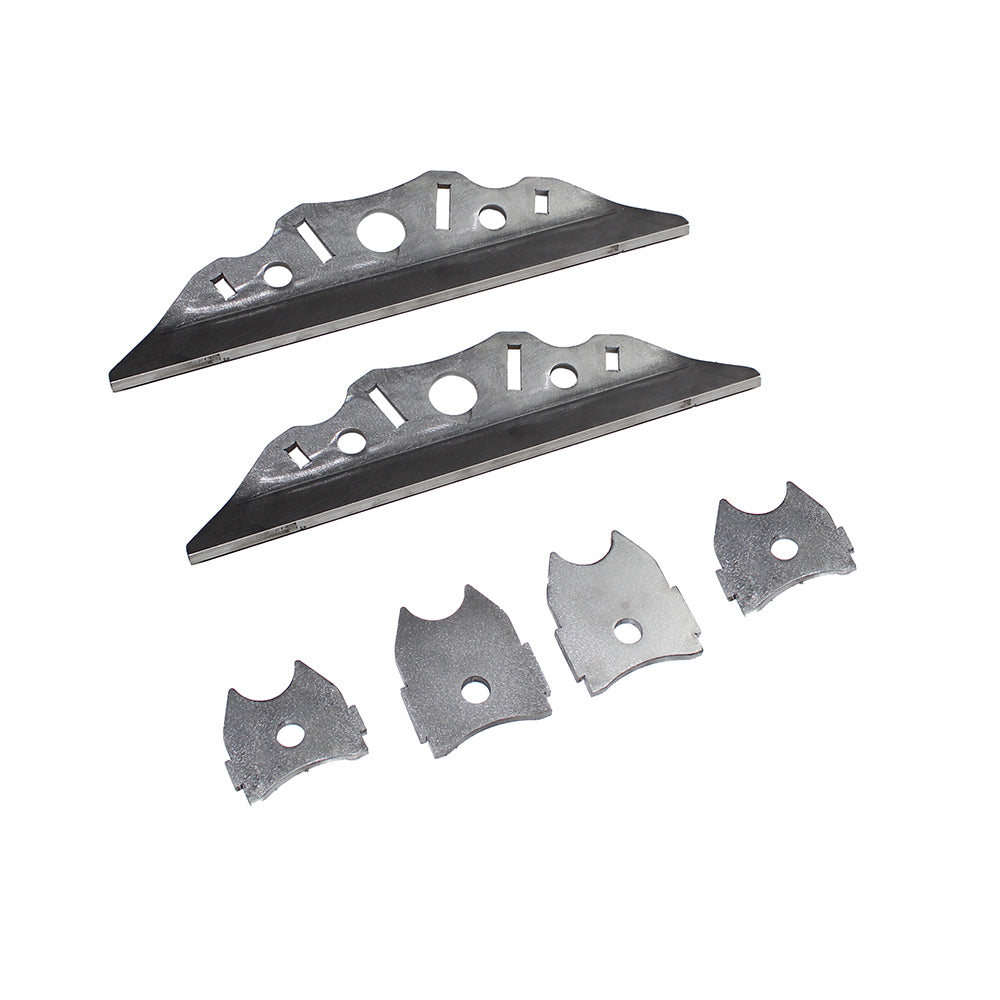

Product Components

Specifications

Large Batwing style link mount
Works with 1.25 x .1 rod ends with 1 inch x 3/4 inch high misalignment spacers
Mounting width of the pocket where the rod end slides into is 2.625 inch
Designed to work on 1.75 inch OD round tube
Overall width of the link mount system is 18 inches
Link mount is fabricated from 3/8 inch steel plate
Link mount is designed to angle the links out at 20 degrees per side totaling 40 degrees
Sold as each
Weight = 15lbs

Note:

The part is intended for off-road use on vehicles such as Jeep, rock crawlers, rock bouncers, mega trucks, and other vehicles requiring a triangulated 4 link suspension
