You’ve been there. The hole lines up, the bolt is ready, and the inside of the frame might as well be sealed shut. No way to get a hand in. No way to hold a nut. This is the moment these get pulled off the bench.
Boxed frames, closed sections, and tight structure are part of modern builds. Holding a nut inside those spaces is not realistic. These tools exist to place and control a nut in areas you cannot reach, without cutting access holes or settling for weak alternatives.

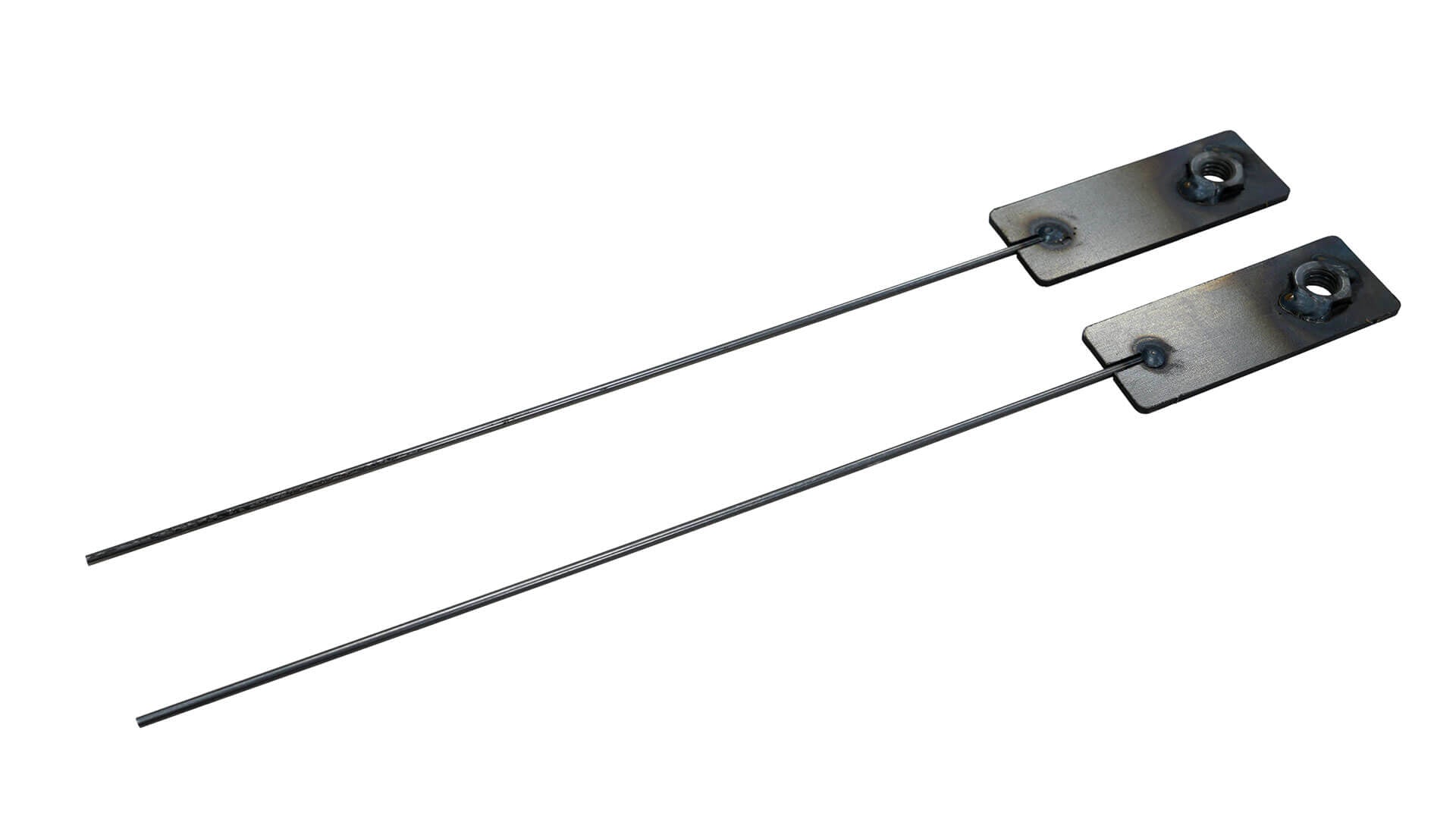

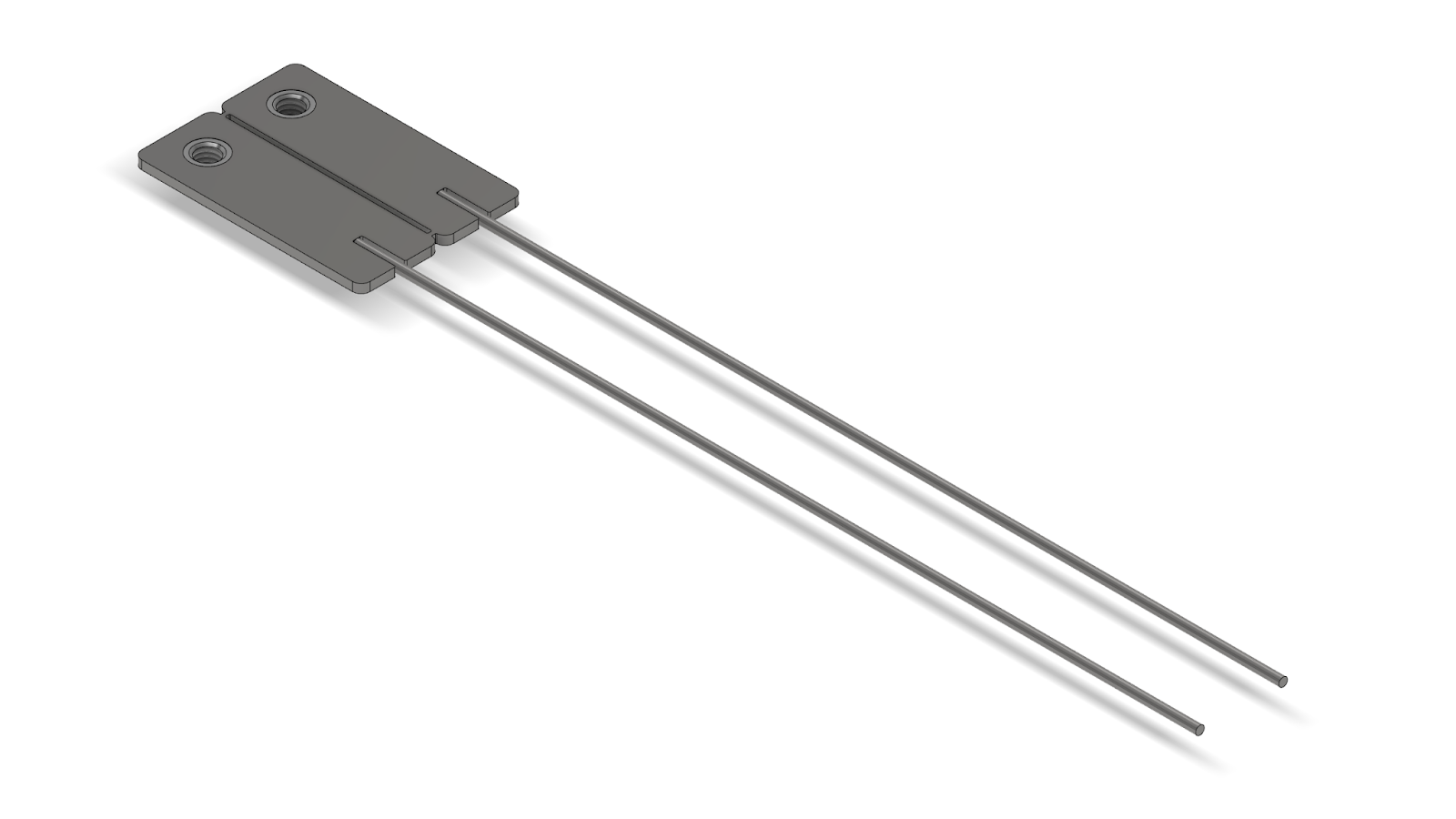

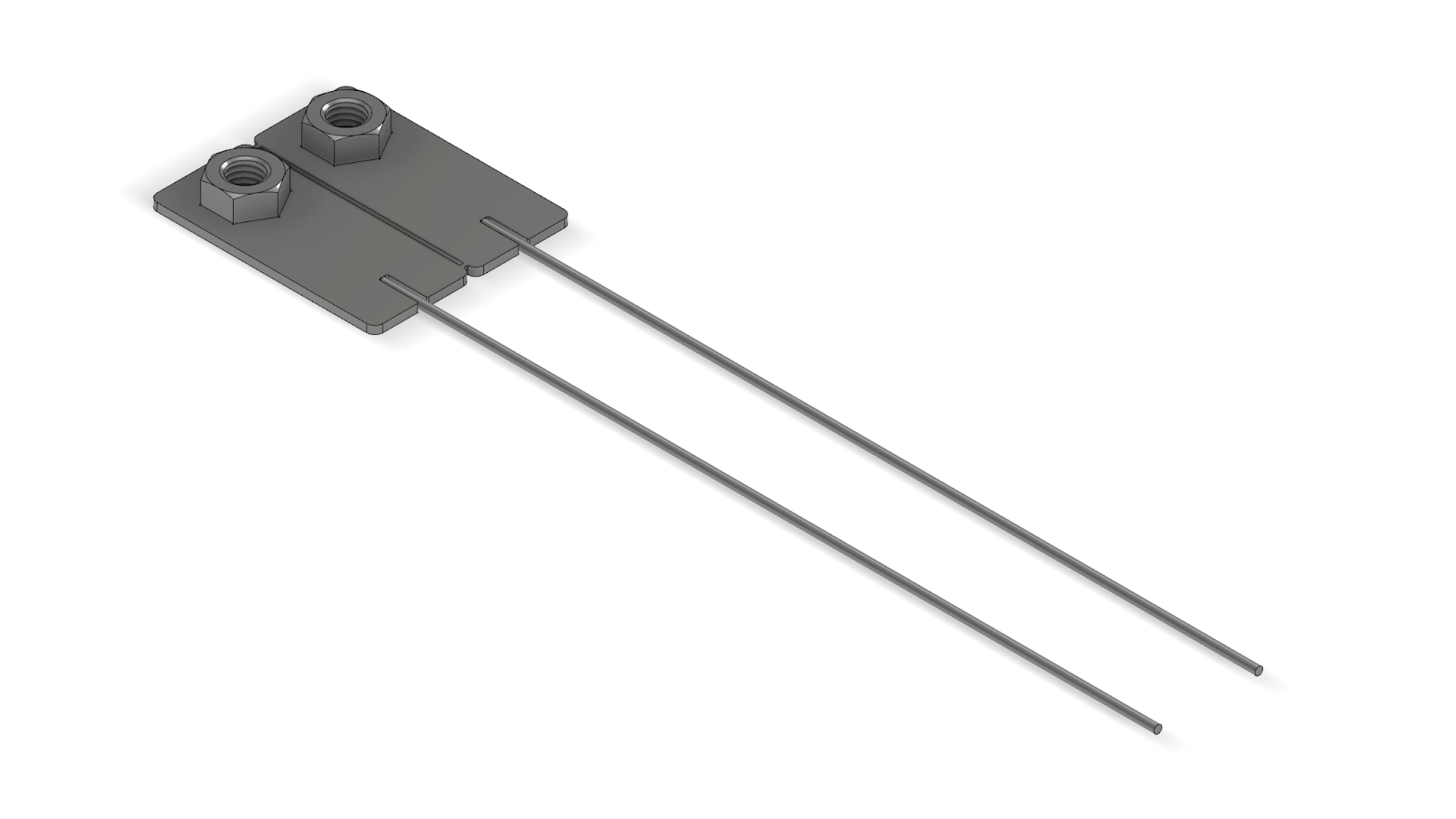

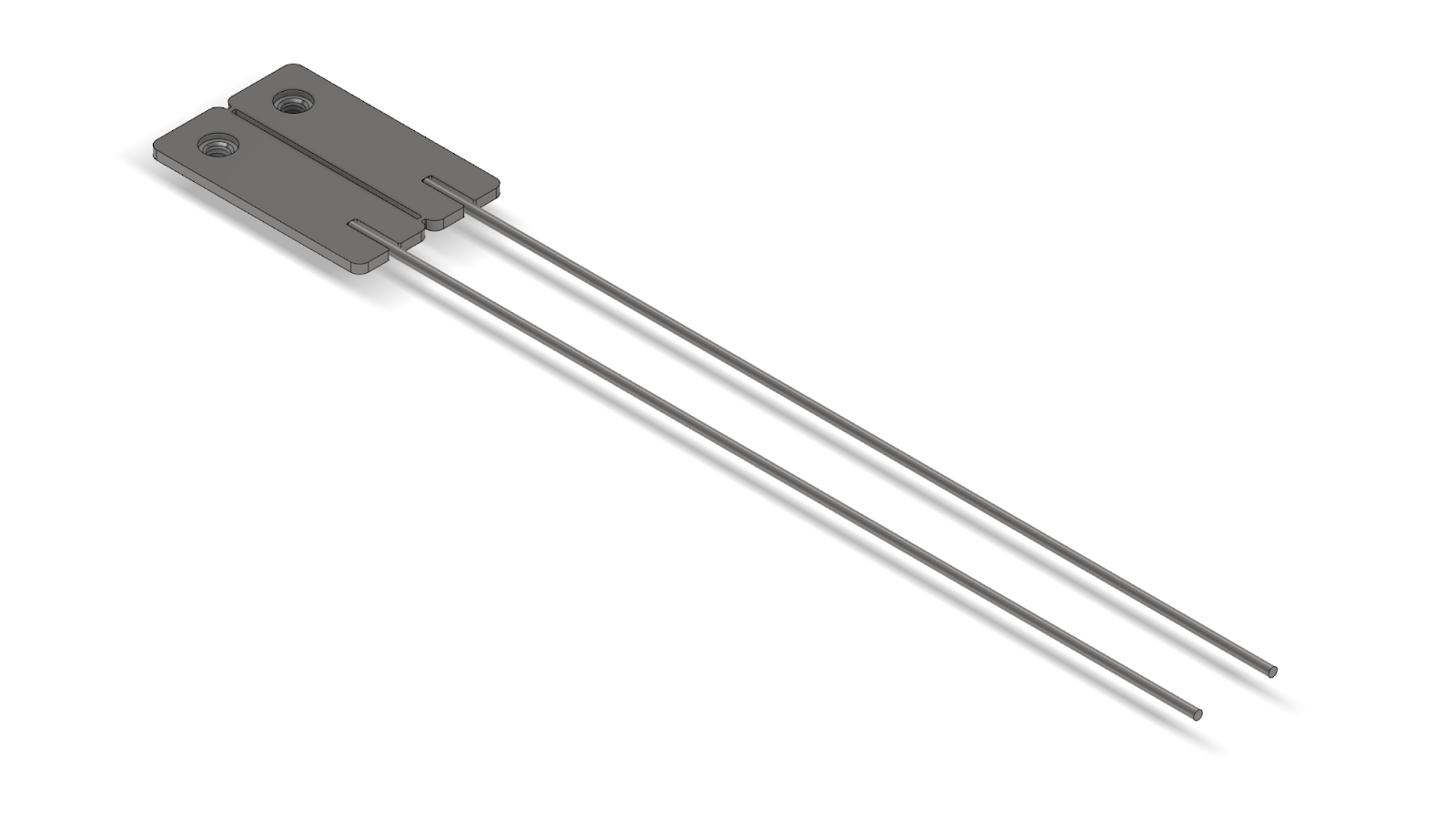

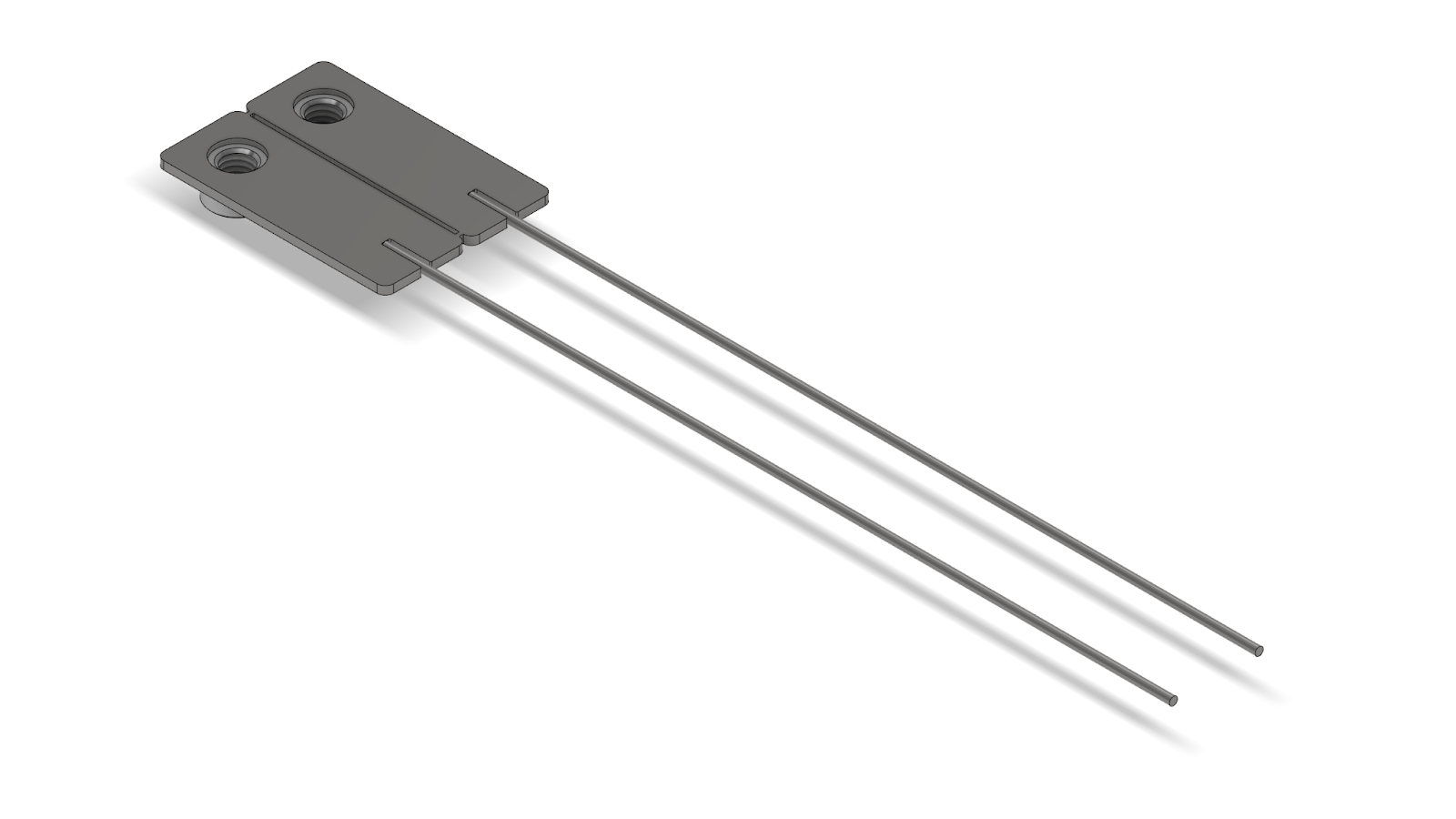

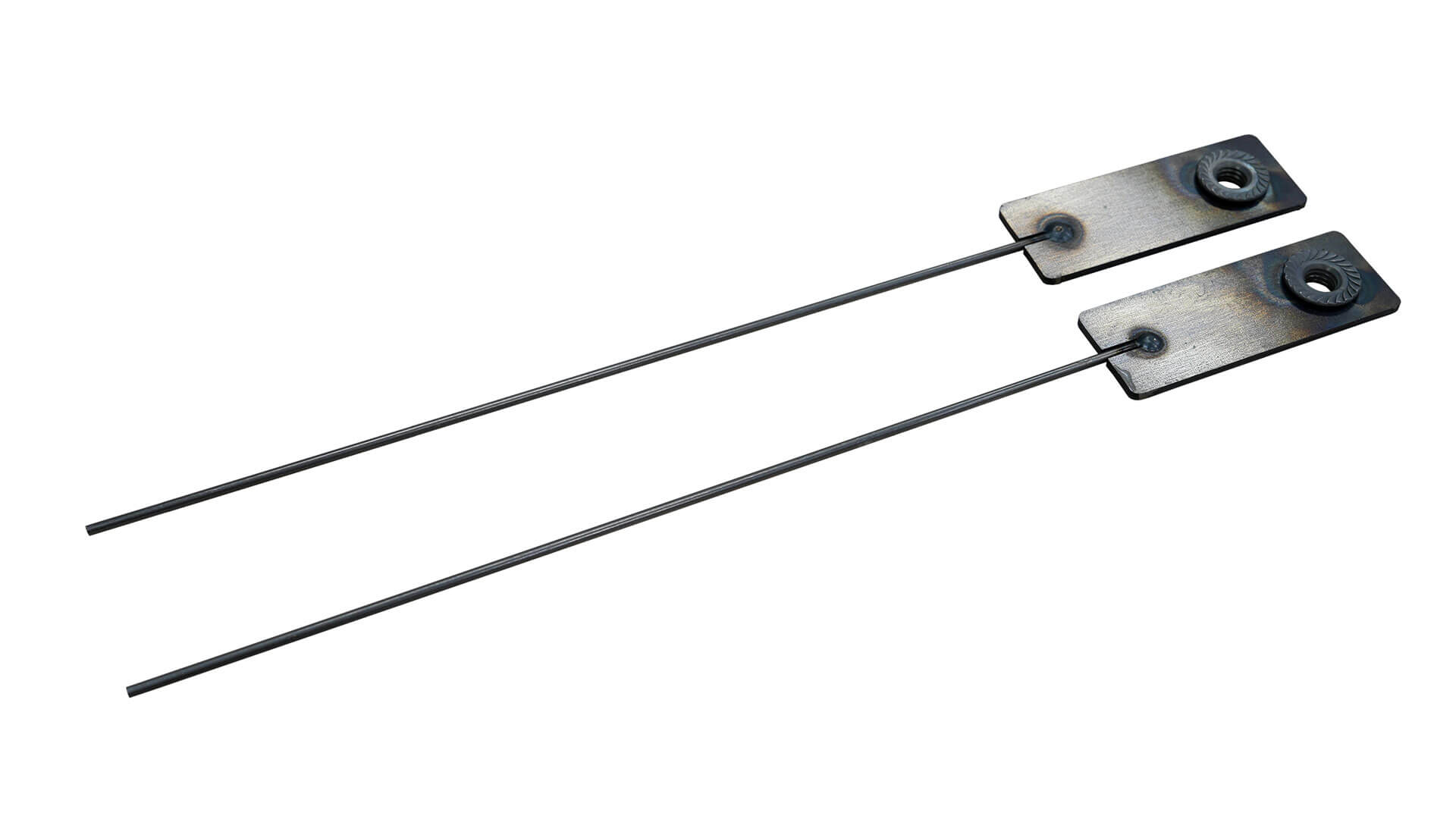

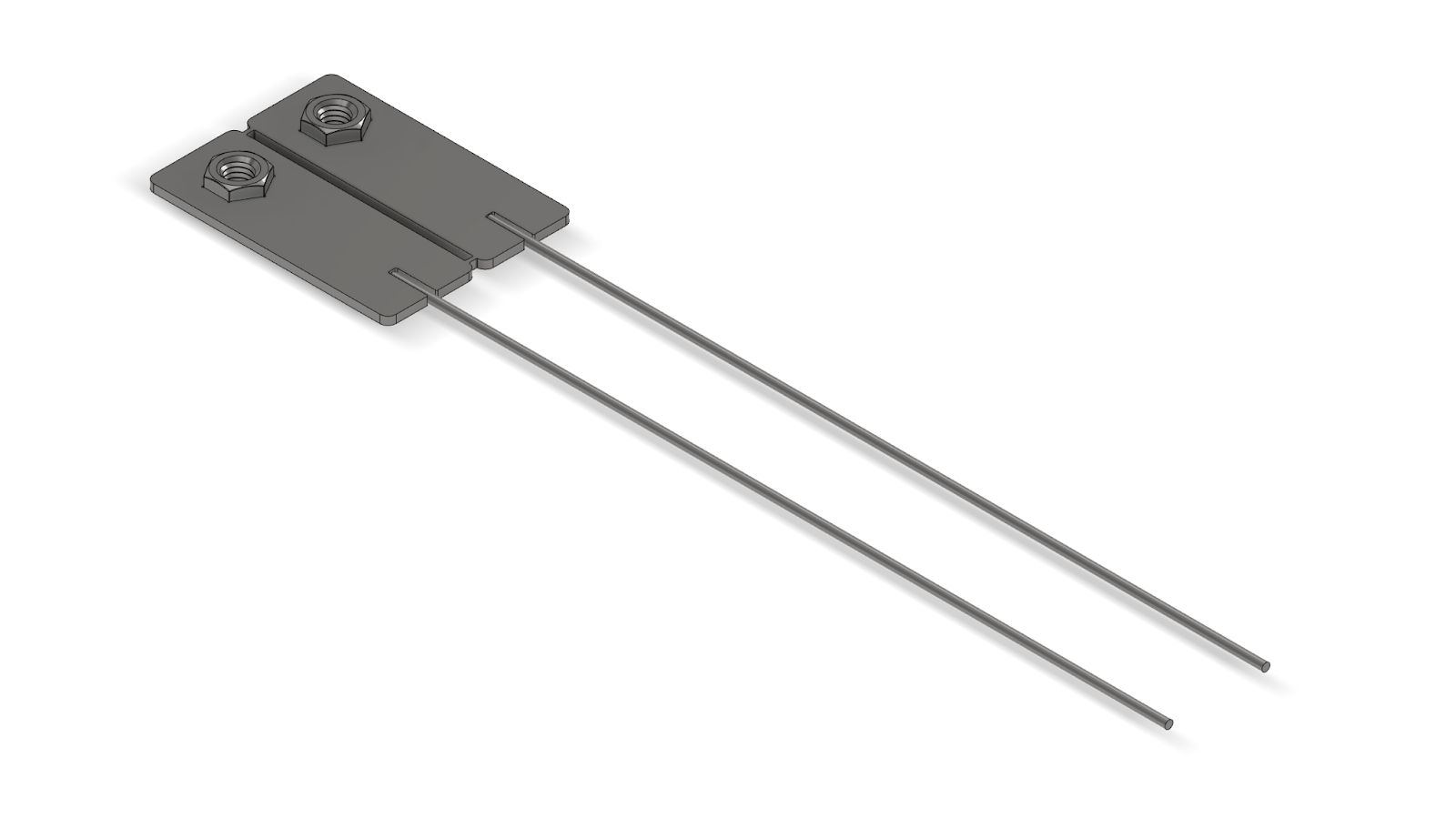

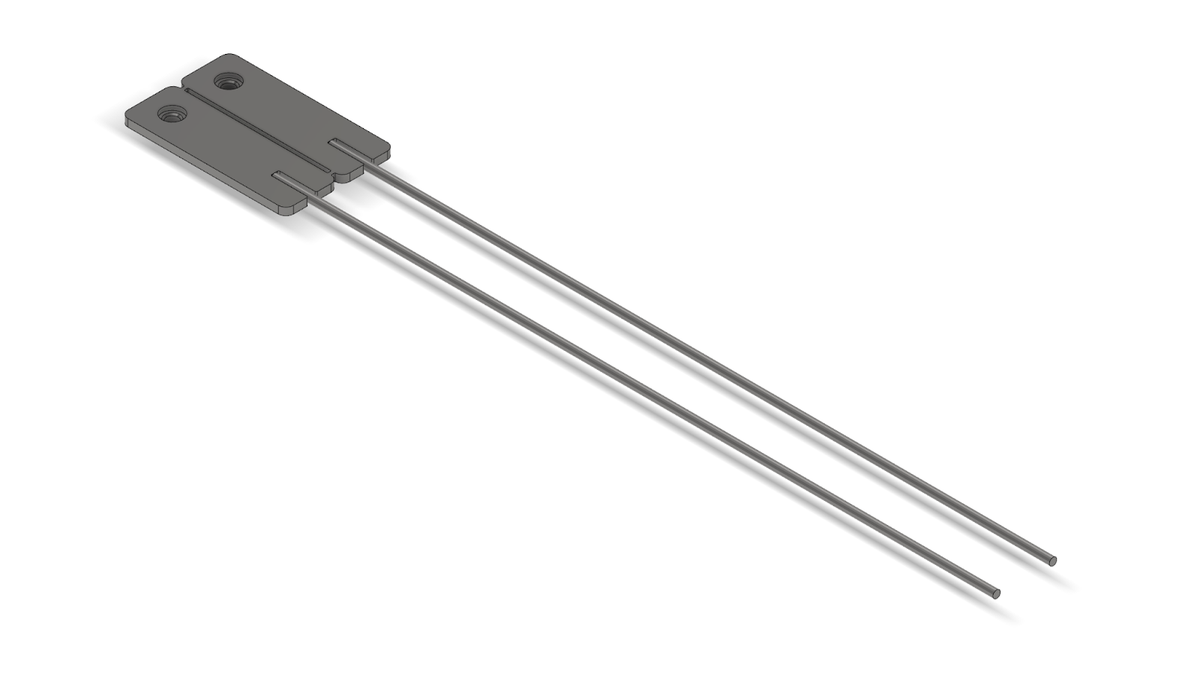

Each tool uses a welded nut with a large flange attached to a bendable rod. The rod allows you to guide the nut into position inside a boxed frame or enclosed structure. Once the bolt starts threading in, the flange contacts the inside surface and prevents the nut from spinning. From there, the bolt can be torqued normally. When the job is done, the rod pulls the nut back out or stays captured as intended by the application.
- Sold as a pair
- Constructed from A36 steel
- 12 inches of bendable rod for positioning
- Large welded flange to prevent nut rotation
- Made in the USA
Available Variants
- MB2208-250 – 1/4-20
- MB2208-3125 – 5/16-18
- MB2208-375 – 3/8-16
- MB2208-4375 – 7/16-14
- MB2208-500 – 1/2-13
- MB2208-625 – 5/8-11
Specifications
- Dimensions: 15 inches max height, 0.5 inches max width, 1.5 inches max depth
- Weight: 0.5 pounds
These are intended for custom and fabrication work where access is limited. The rod can be bent to suit the application and adjusted as needed during install. Simple design. No moving parts. Built for repeated use in real shop conditions.
When the frame is boxed and access is gone, this tool keeps the build moving without shortcuts.
