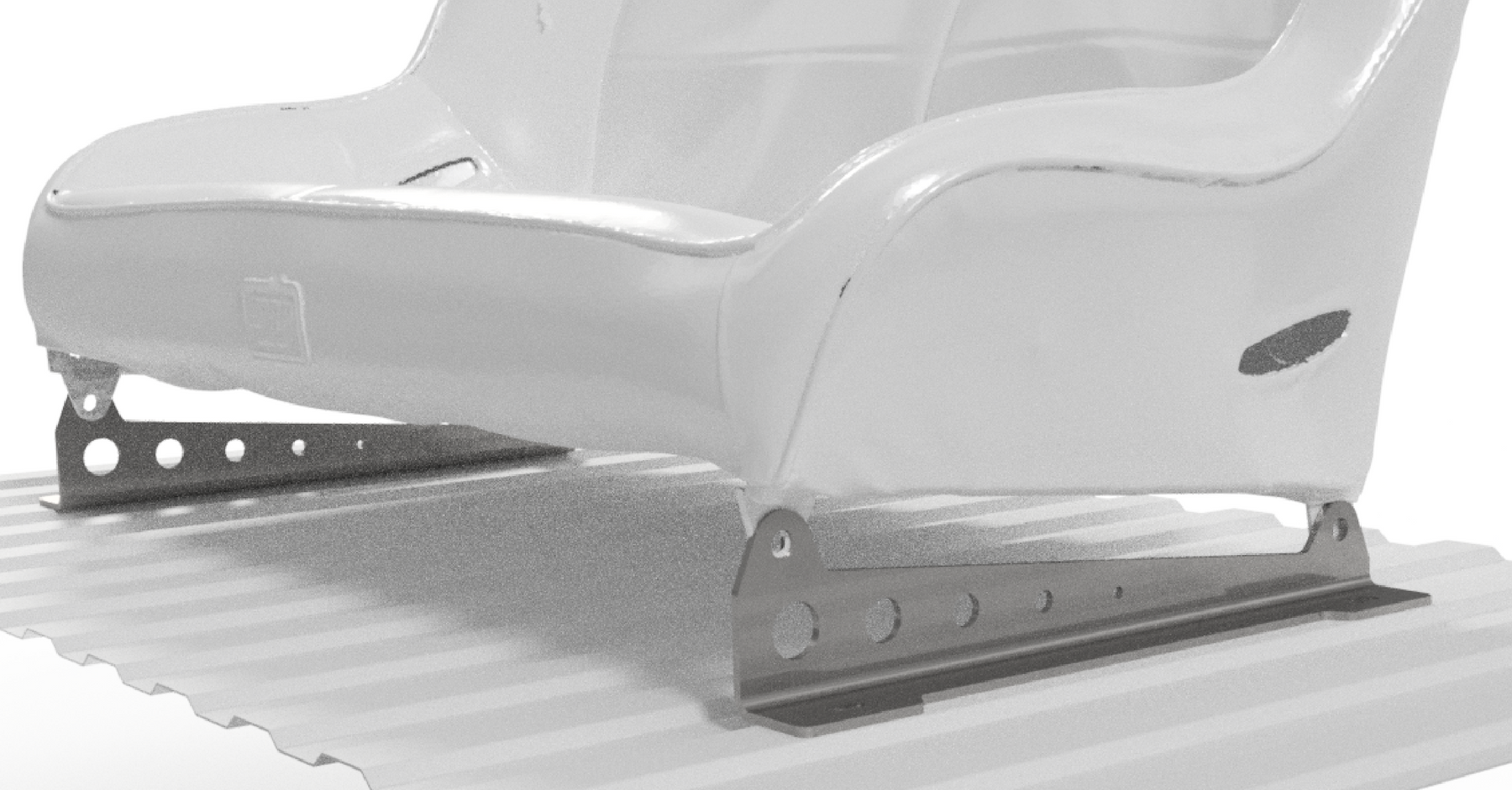

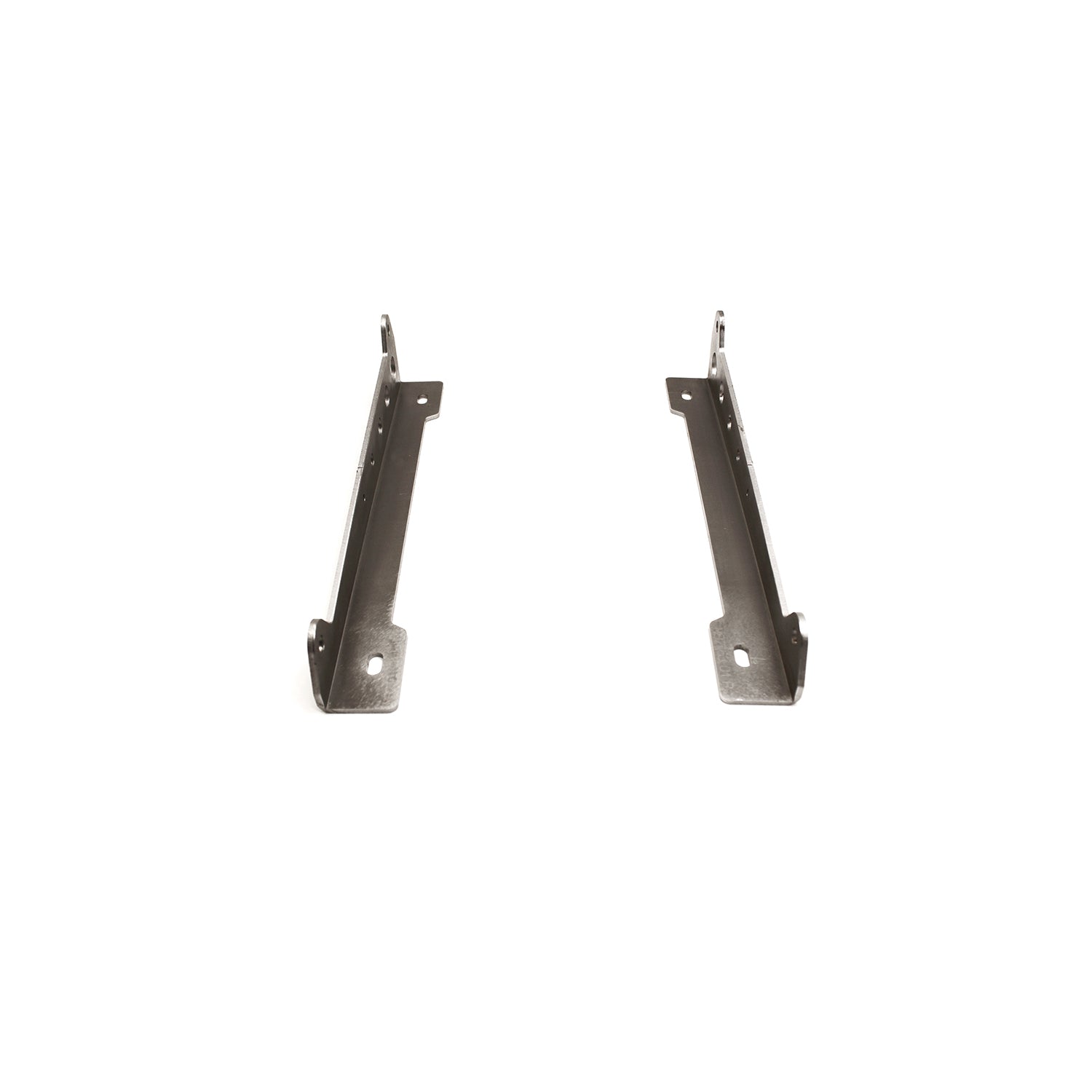

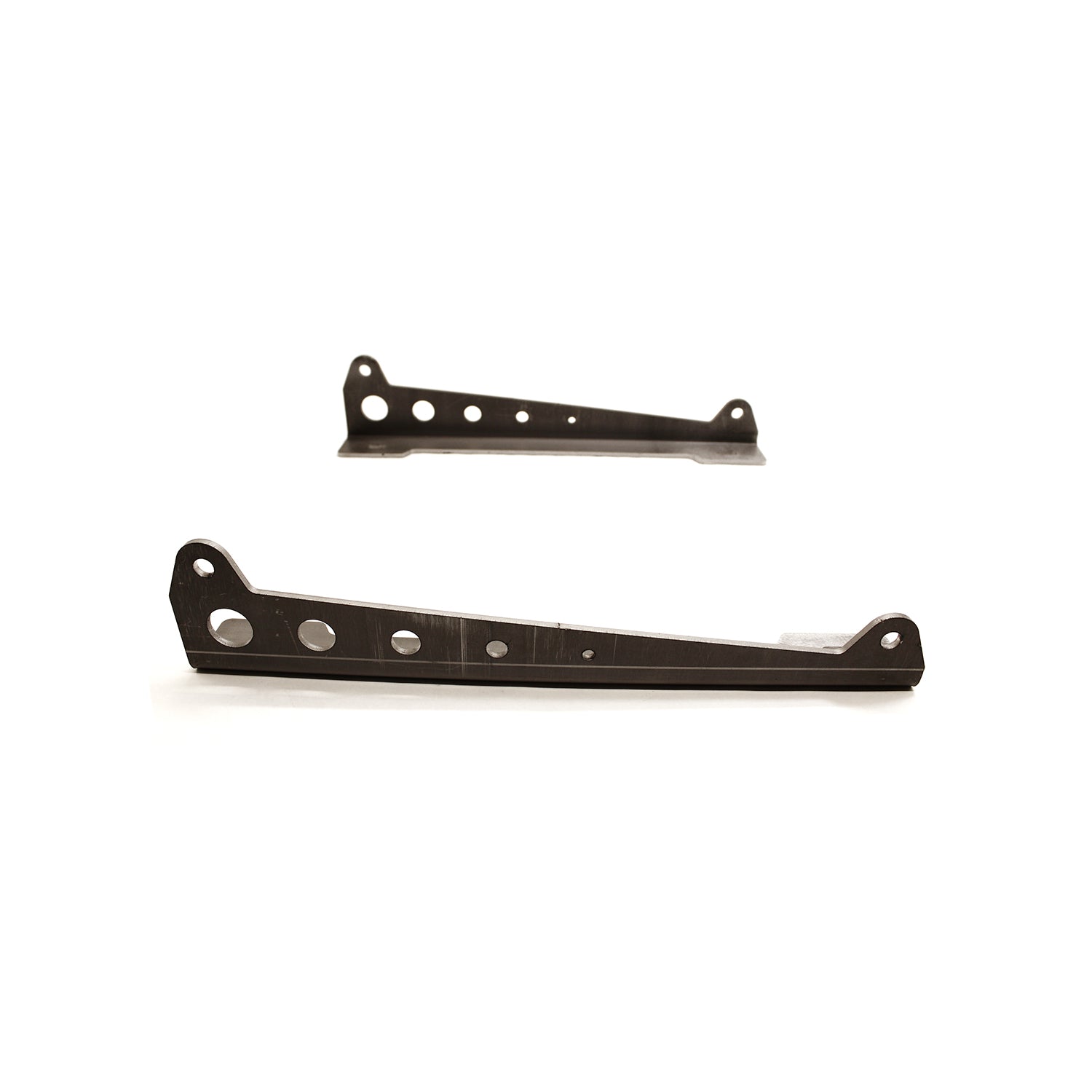

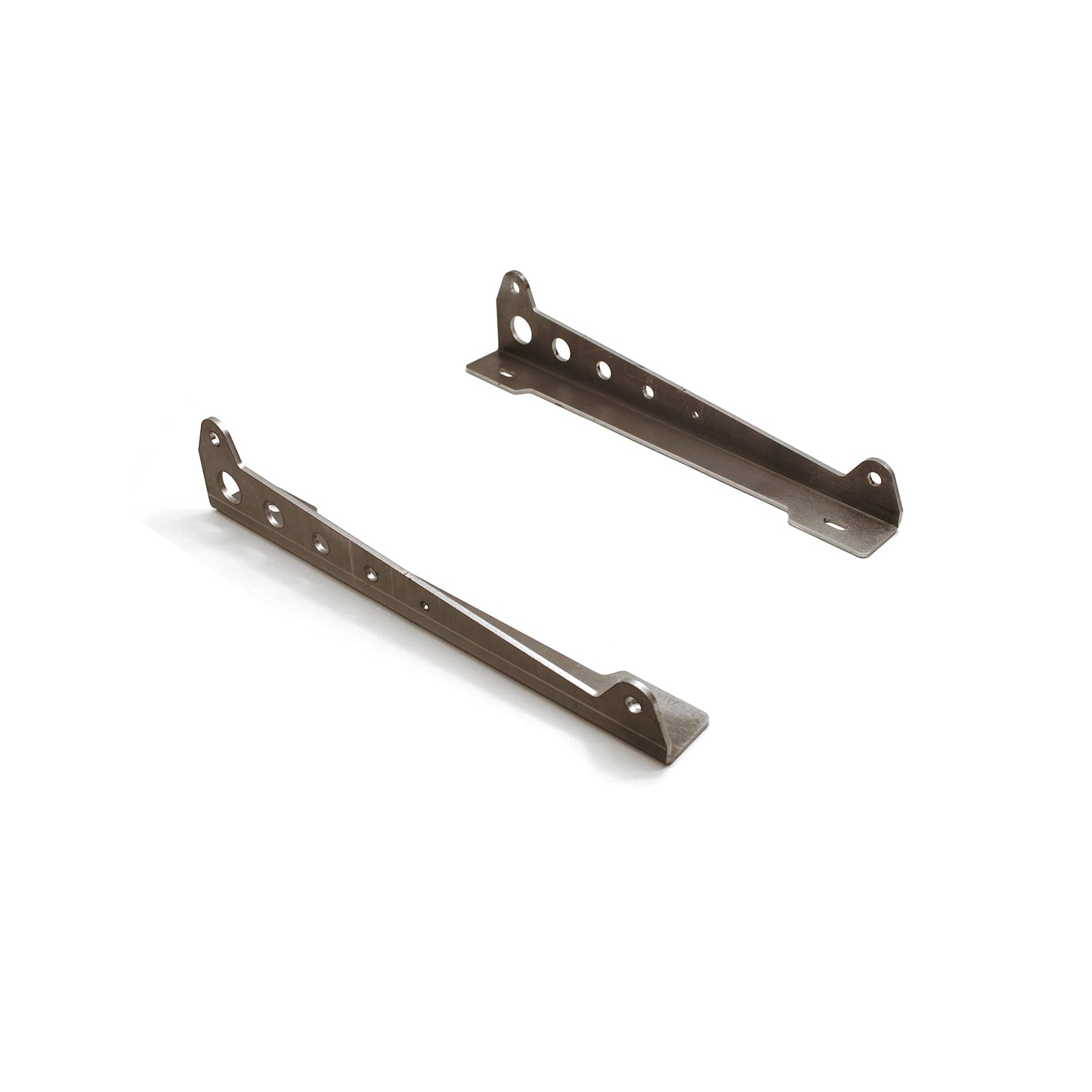

Mounting Seats like the PRP Rear Bench Seat does not have to be difficult. The Universal Rear Seat Bracket Kit is a quick way to mount your seat to a flat surface. The the bracket set can be installed angled in or out depending on your application. The brackets are laser cut from 3/16” steel plate. We ship them raw steel. The Universal Bench Seat Mounts can be welded on or bolted on. This kit includes a left and right side bracket. No hardware is included.
The seat bracket bolt holes measure 15” center to center where thyea bolt to the seat and 14” center where they would attach to the floor. The forward mount is 3” off the floor while the rear is 1.50” off the floor providing a slight rack to the seat for added comfort.
Notes:
Does NOT work with individual seats from PRP as they have a different mounting dimension.
