MB1089-8LUG

Spare Tire Carrier for Jeep JL - 8x6.5

$649.00
Shipping calculated at checkout.

Who needs this:

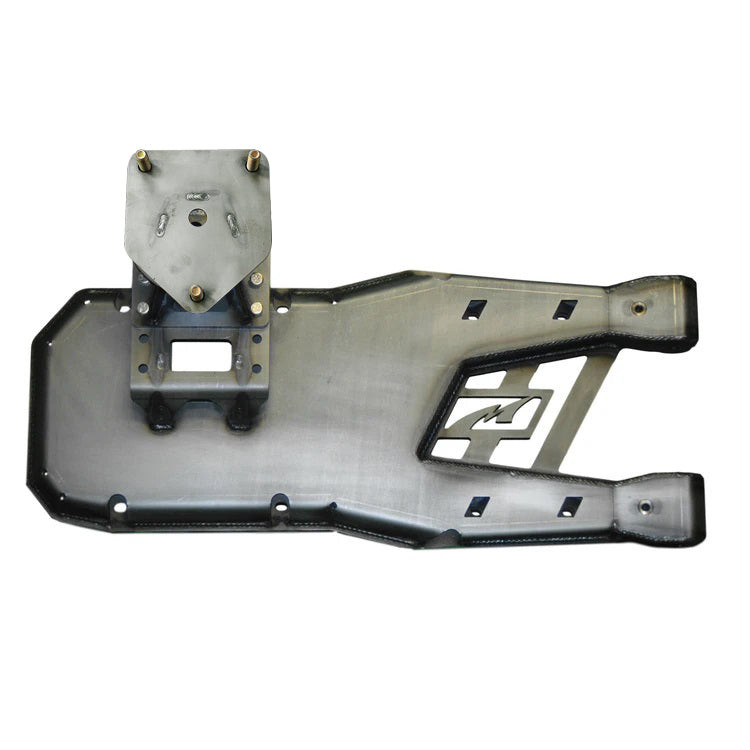

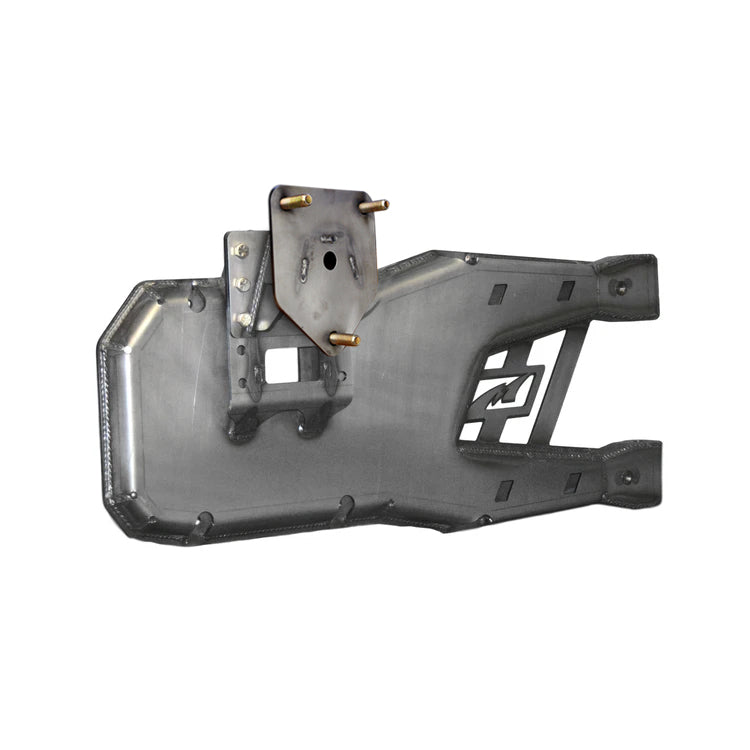

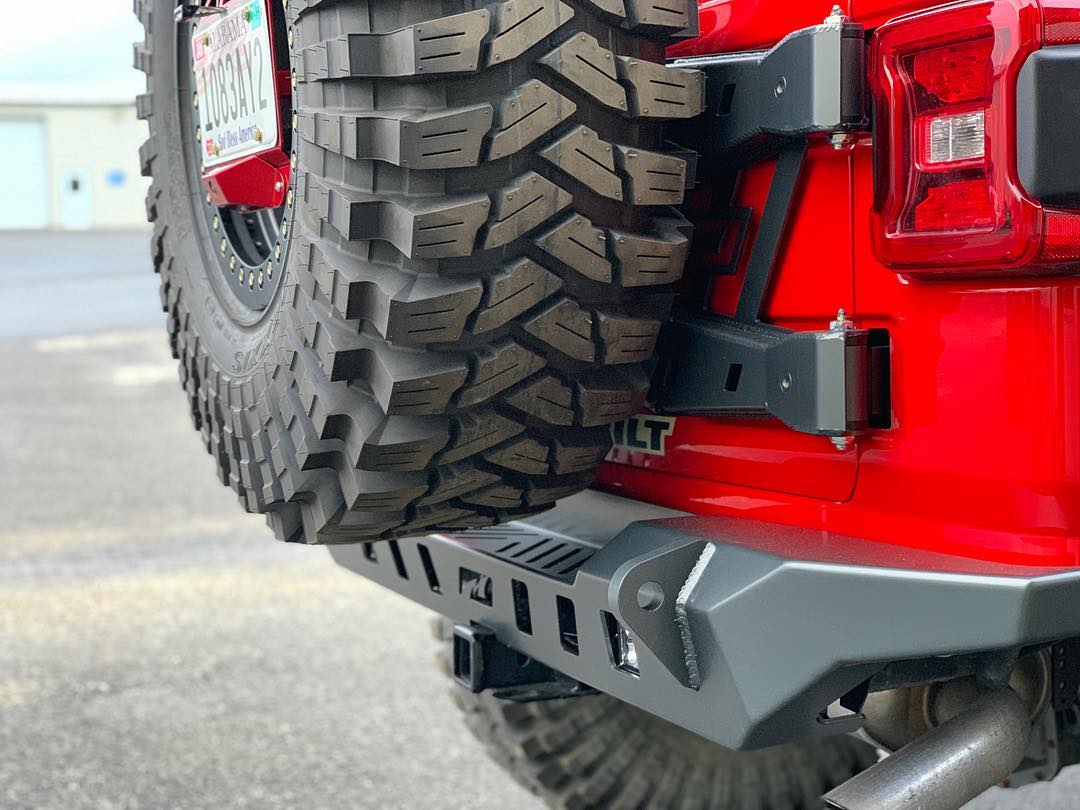

Motobilt introduces the Jeep JL 2018 + spare tire carrier for 8 on 6.5" wheel lug patterns.  With many people now swapping in 1 ton axles into their Jeep we now offer this version of the tire carrier to use the popular 8 x 6.5" bolt pattern.  It's a simple bolt-on solution that can be easily installed in a couple of hours, making it accessible to most Jeepers


Distinguishing Features:

Unlike many aftermarket carriers, the Motobilt JL Tire Carrier is constructed as one solid unit, eliminating the need for additional costly pieces. Bumper-mounted carriers often wear down quickly due to limited support, while other designs require complicated rod systems and constant adjustments. Our tire carrier offers the strength, simplicity, and reliability you need.


When should you use this? :

Use the Motobilt JL Tire Carrier when installing larger or heavier tire and wheel combinations, recommended for sizes up to 40 inches in diameter.


Considerations:

- Ships bare metal and requires painting or powder coating

- Factory tailgate catch must be removed

- Aftermarket tail light covers may interfere when fully opened

- High lift jacks do not fit the Jeep JL tire carrier accessory mounting holes as they may hit the tail light when fully opened.


Customer Testimonials:

Our satisfied customers run tire sizes up to 42" and hail from various locations, from Sand Hollow, Utah to Tokyo, Japan.


Why Motobilt:

At Motobilt, we pride ourselves in crafting every part of the tire carrier in-house, ensuring a quick and worry-free installation. Our commitment to superior engineering and fabrication guarantees that your larger tires and wheels will no longer be a concern. Trust in our expertise and enjoy the freedom to conquer any off-road adventure with confidence.


Upgrade your Jeep JL's tire carrier with the Motobilt JL Tire Carrier today and experience unparalleled strength, reliability, and peace of mind.


Specifications

  • Weight: 58lbs (approx.)
  • 8 x 6.5 inch Lug pattern for 1 ton axle swaps
  • 3/16 inch laser cut and cnc formed steel
  • CAD designed for perfect fit
  • Will hold up to a 40 inch tire.
  • 12 mounting points vs the factory 4 mounting points

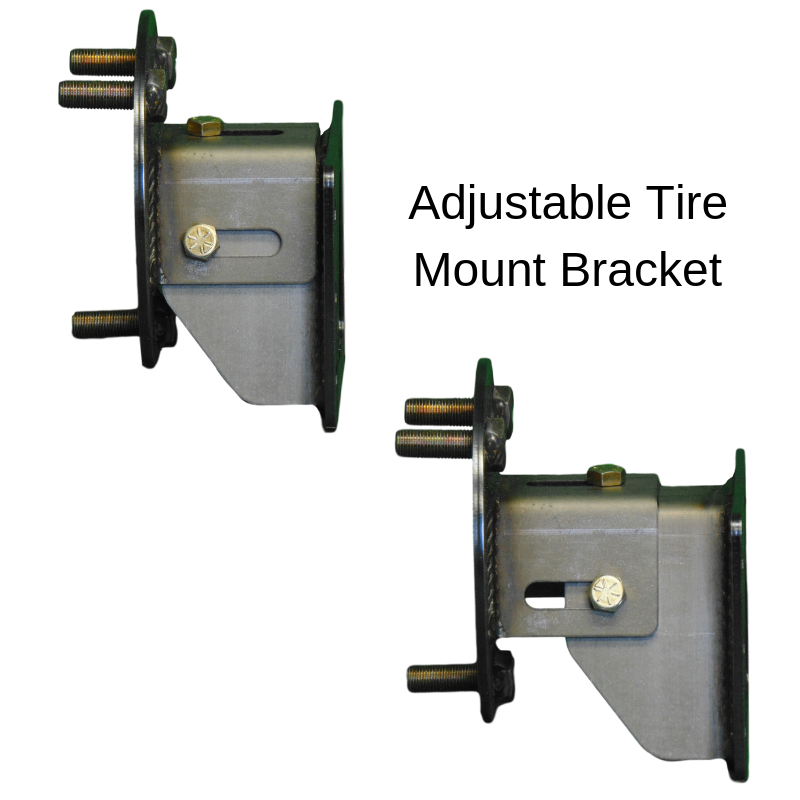

  • Multiple adjustments both vertically and front to back for optimal tire position.
  • Same wheel lug size and thread as stock sizes
  • Designed to work with License plate/camera mount relocation kit MB2115
  • Integrated design allows you to open and close easily with factory door handle.
  • Will work with factory bumper or aftermarket bumpers.
  • Greasable mounting bolts at pivot points on hinges
  • High density hinge bushings with steel inner liners
  • Includes necessary mounting hardware.
  • Includes hardware
  • Thread 3/8-16
  • Our tires carriers are designed to fit a wheel backspacing of 4.25" to 5.5" with tires larger than stock.  If you need a larger wheel backspacing, you can add a wheel spacer (not included).

Benefits:
Easy to open and close
Easy to bolt on Motobilt accessories
Increased load capacity.
Adjustable tire position allows clearance for up to a 40 inch tire.

Notes:

  • Ships raw steel. Must be painted or powder coated to prevent rust.  See (Steel-It)
  • Shims are used on the bottom hinge.
  • Factory tailgate catch must be removed.
  • After market tail light covers may interfere when fully opened.
  • 9/16”-18 thread pitch for the wheel studs.
  • Requires the use of the license plate/camera relocation kit MB2115

    Product Components

    Instructions

    Assembly Instructions Installation Instructions
