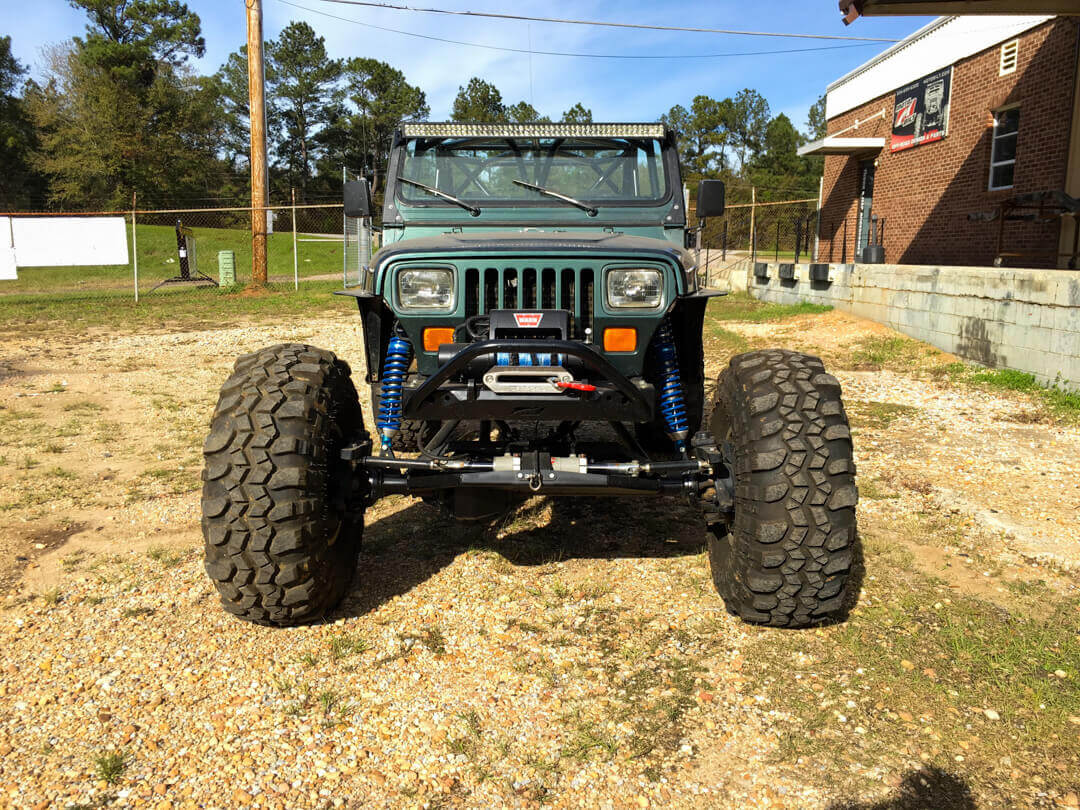

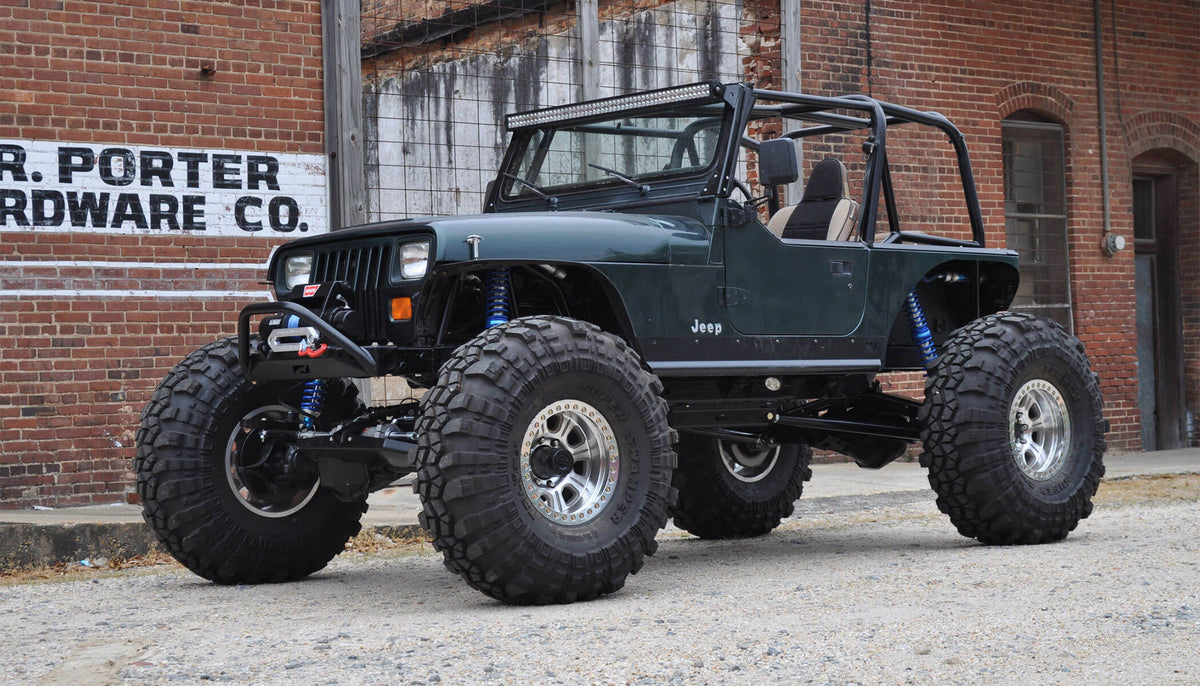

Green YJ Build

Green YJ

Motobilt

Green YJ

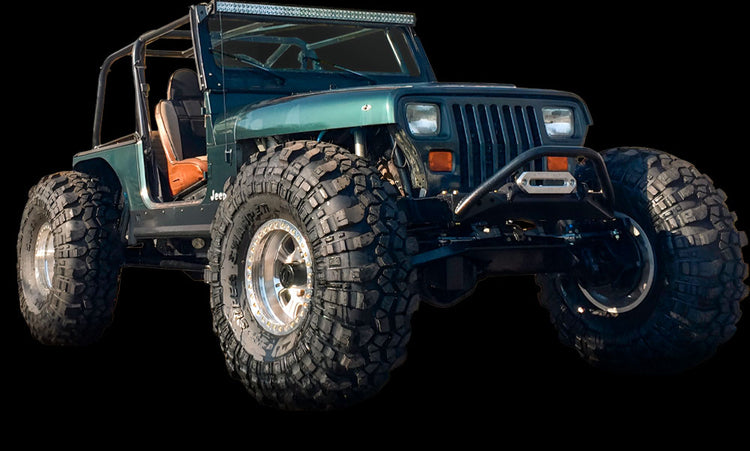

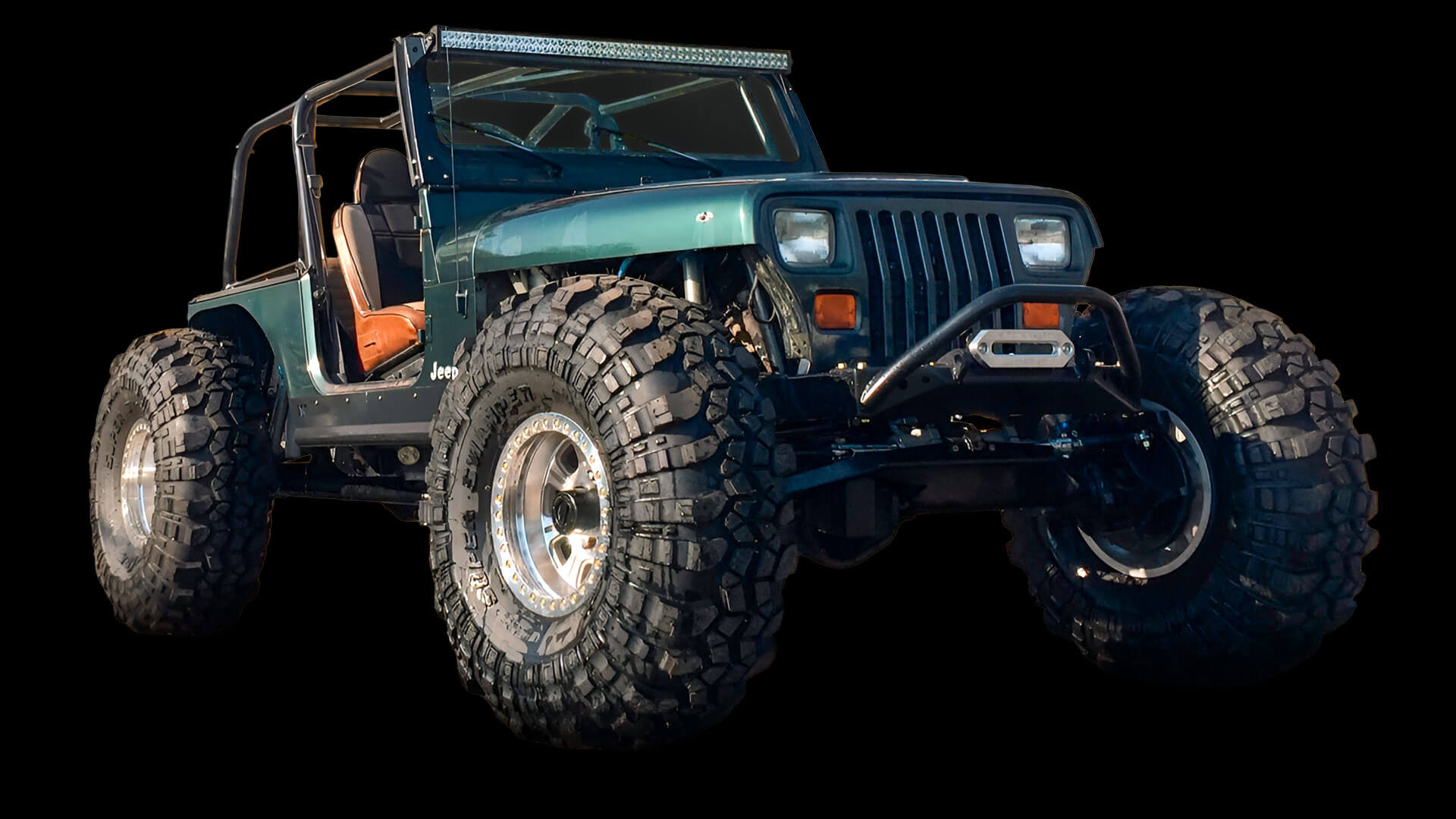

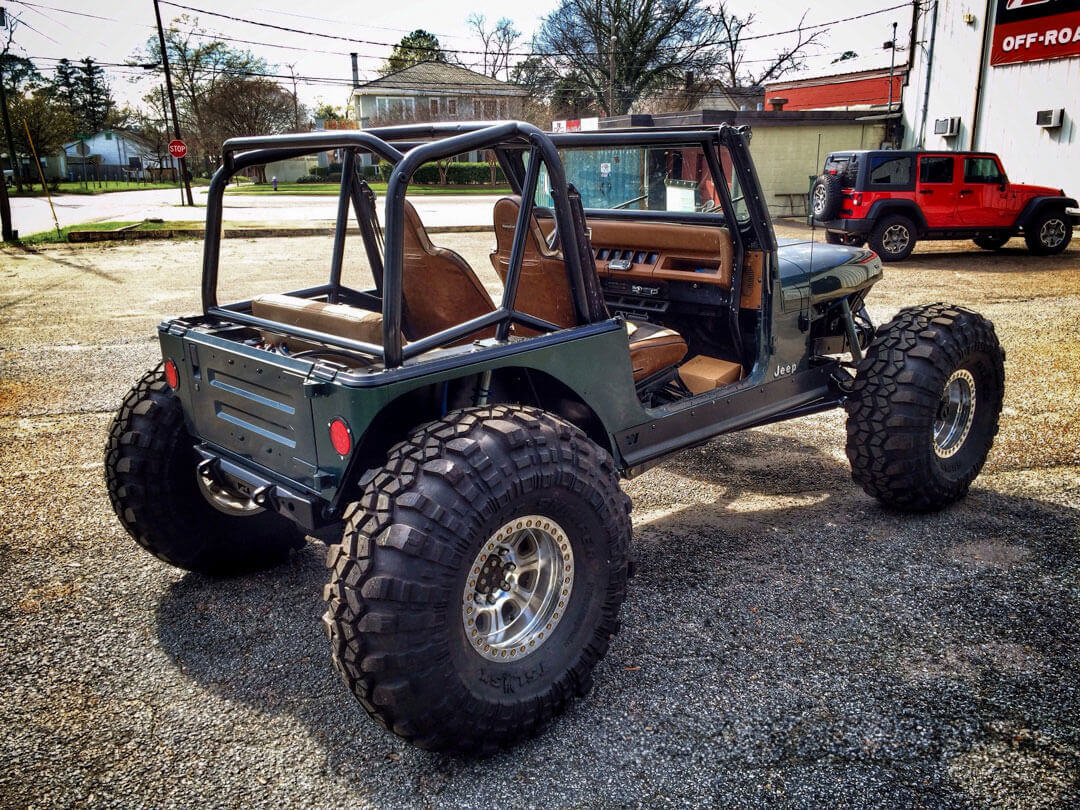

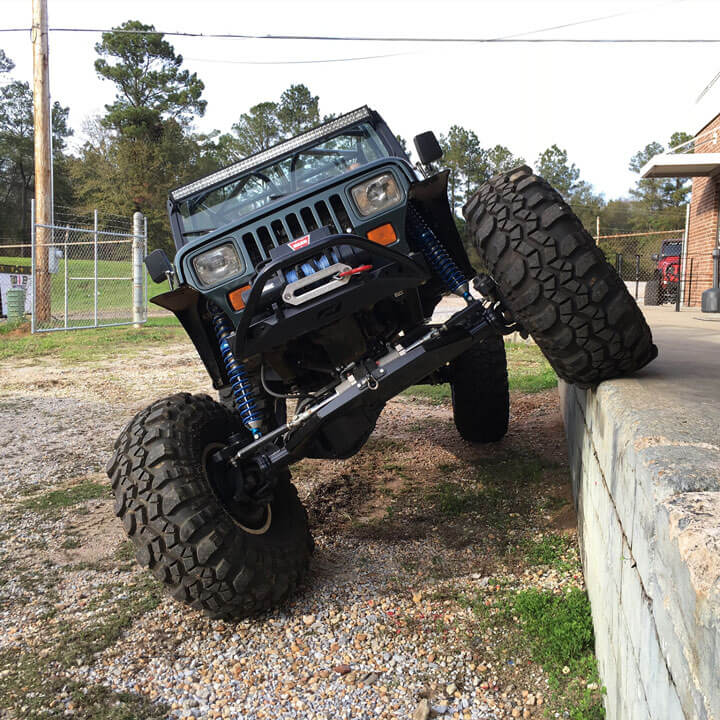

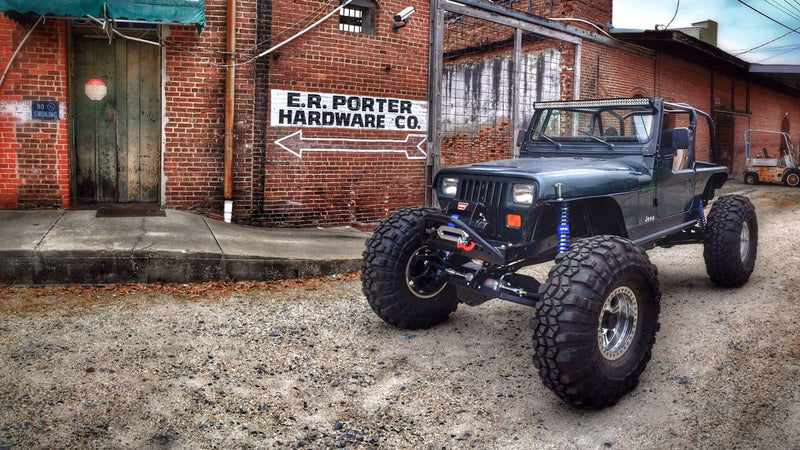

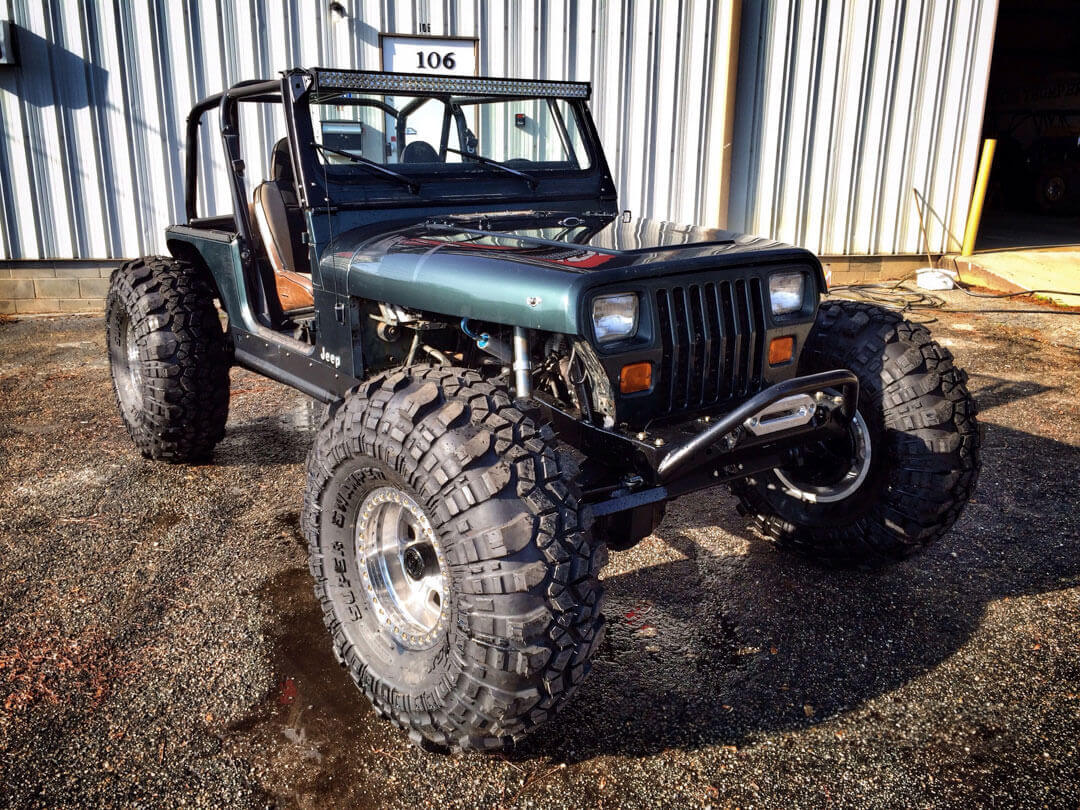

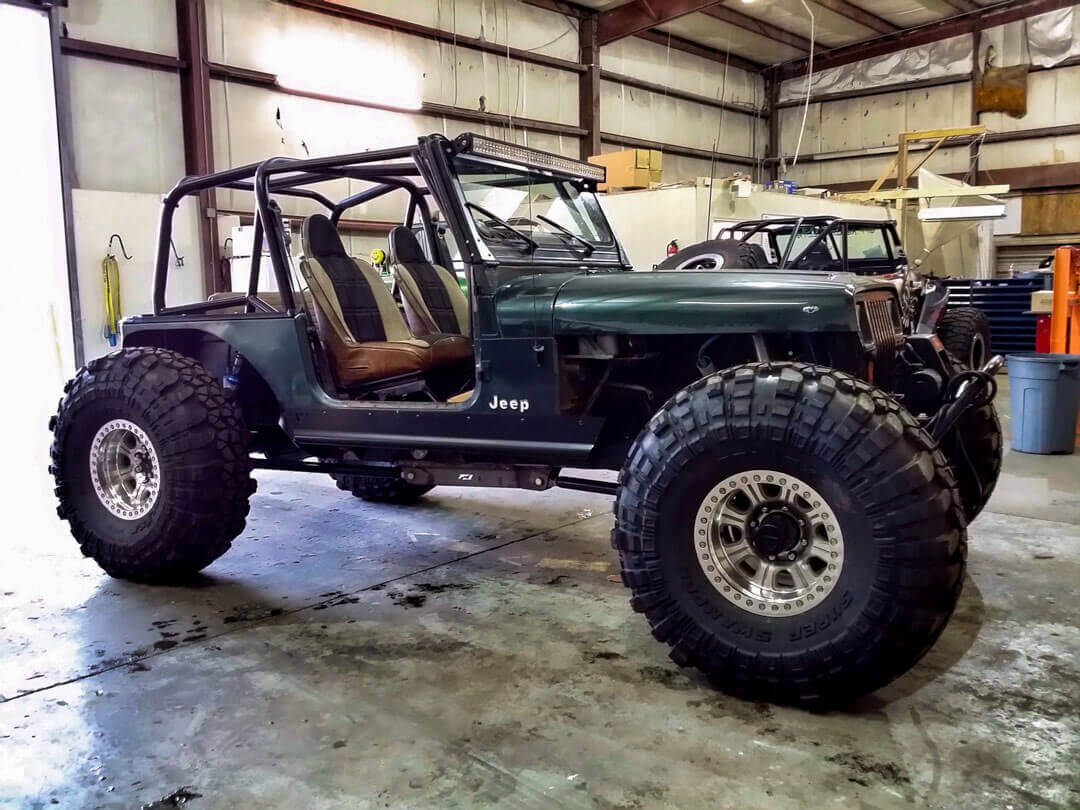

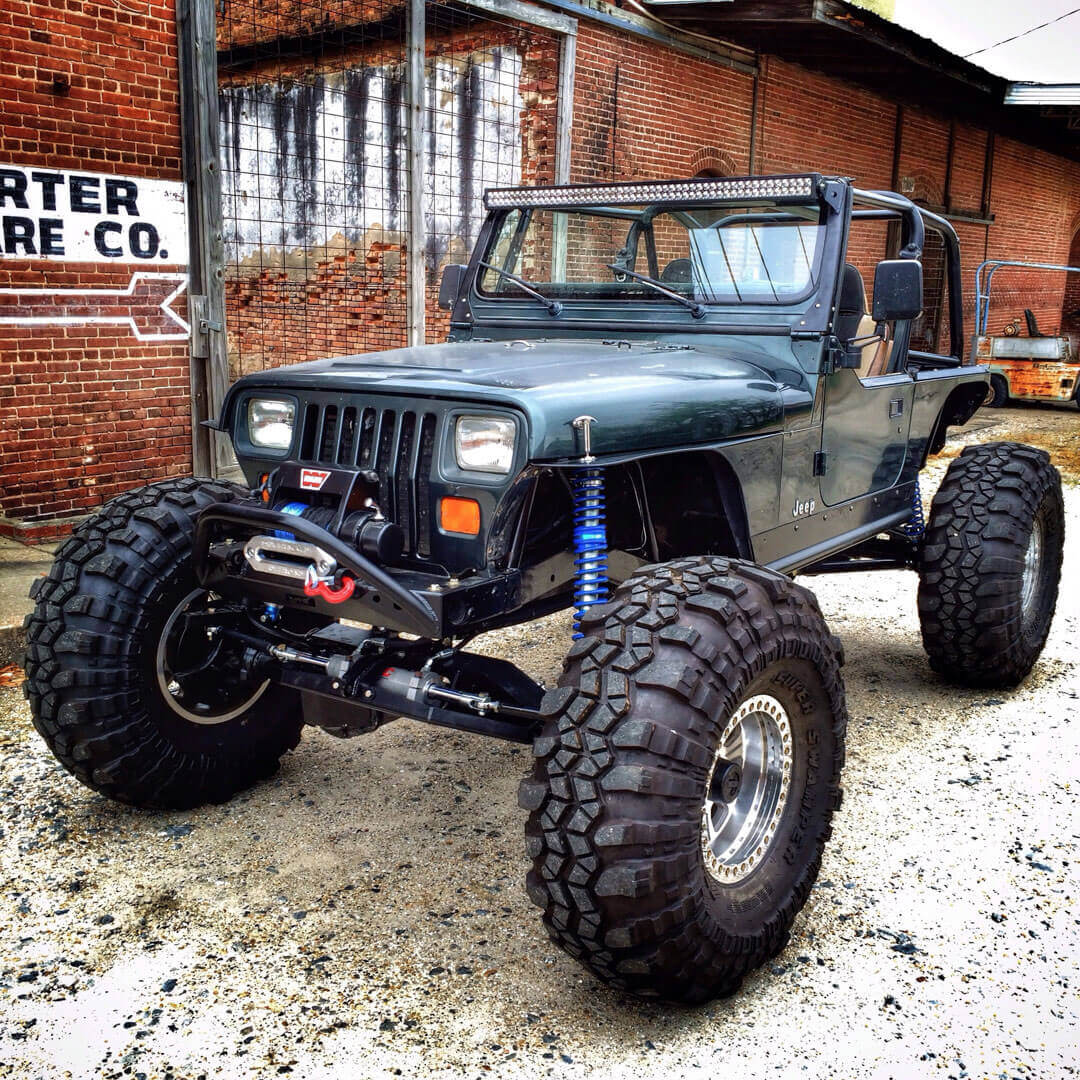

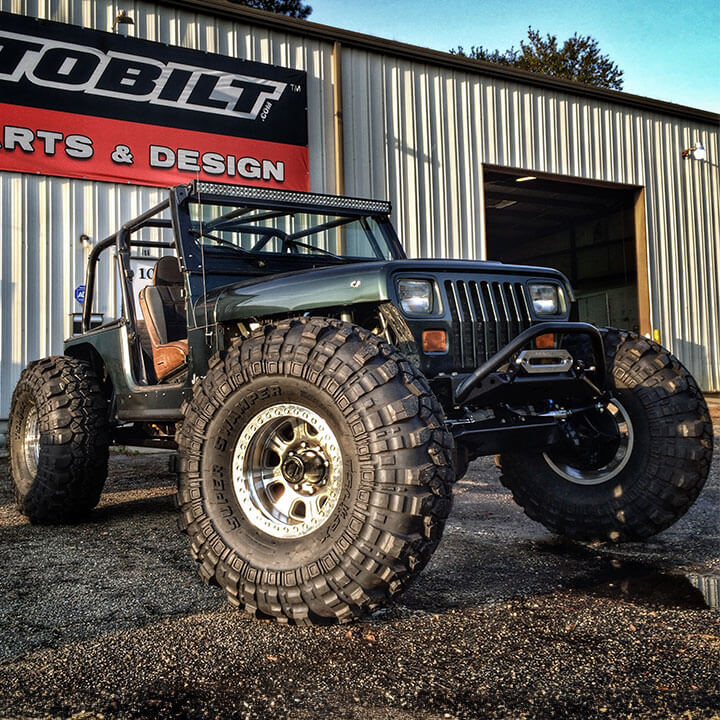

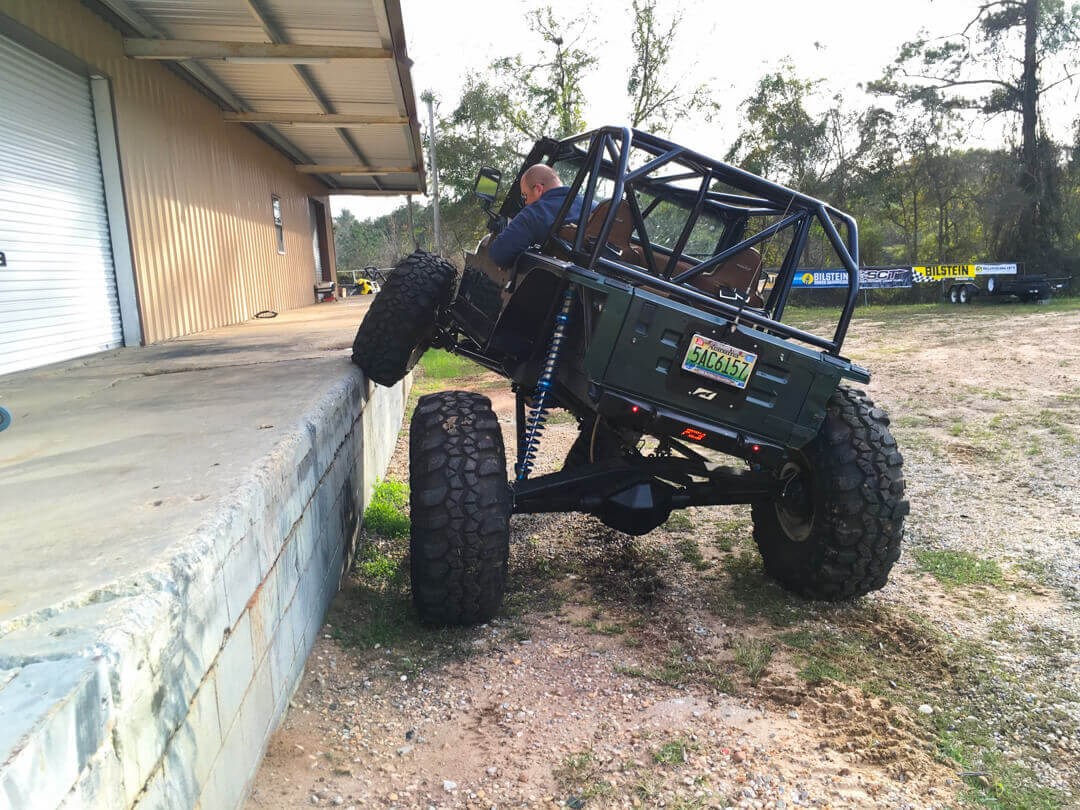

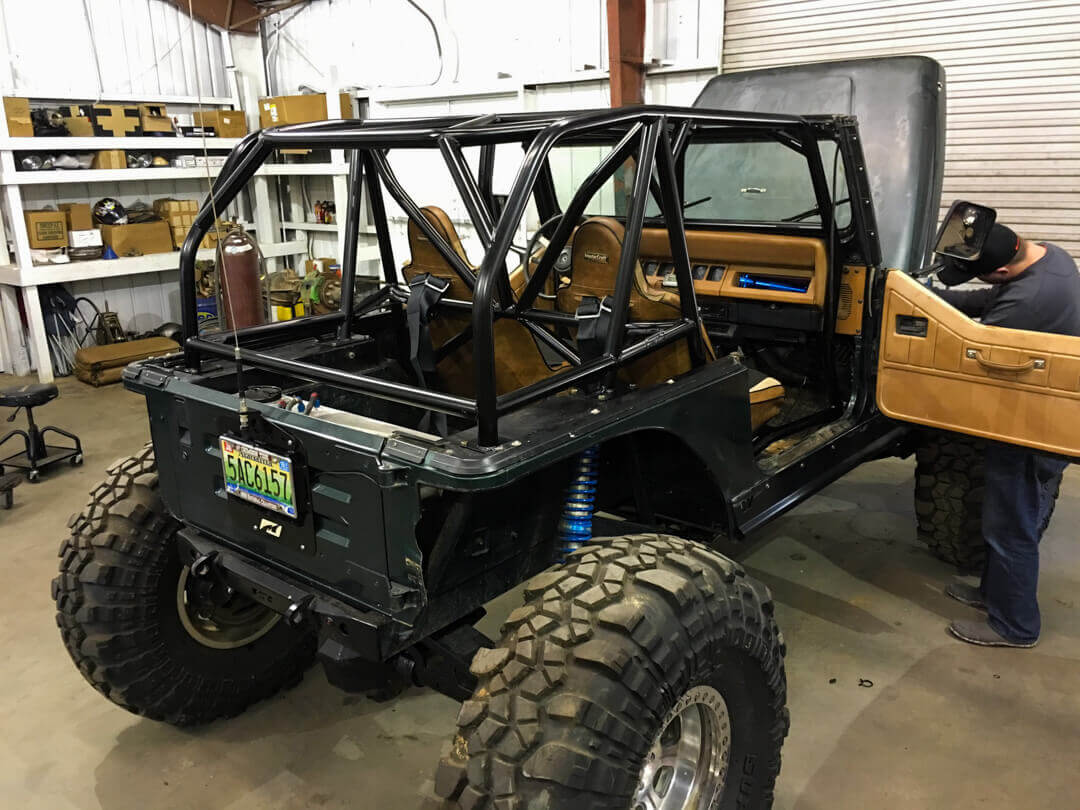

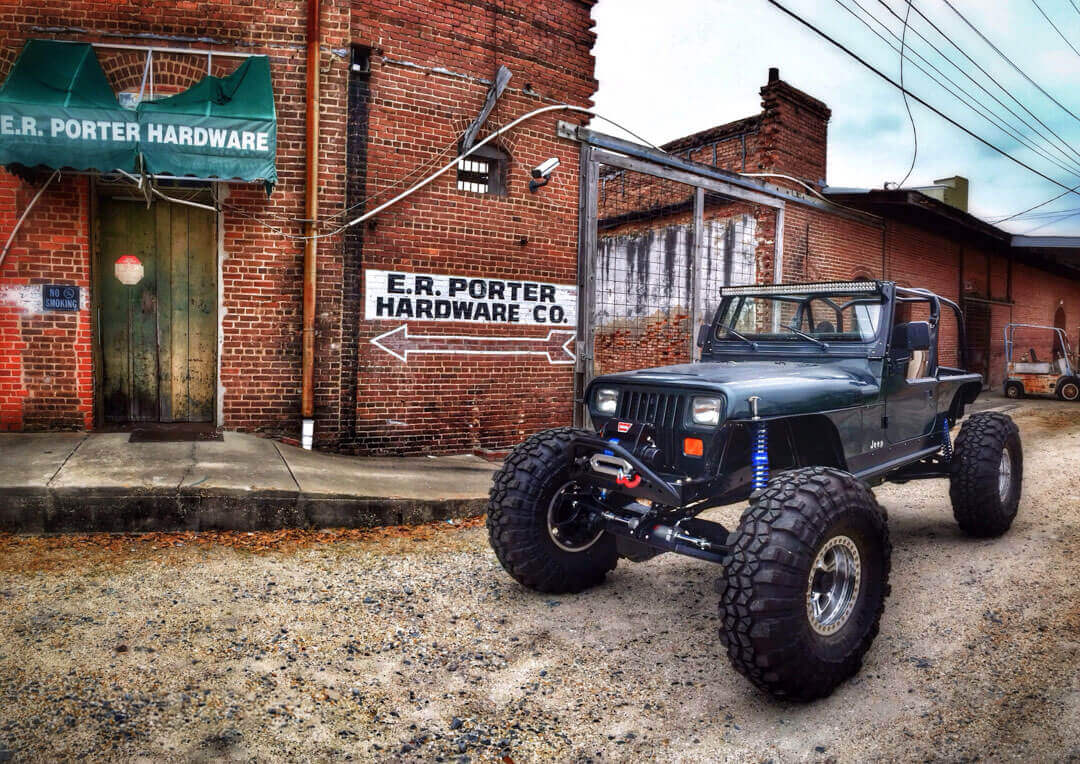

The OG Motobilt Green Jeep YJ reinvigorated the Jeep market by bringing the latest in 4 link and coil over suspension technology to the last leaf sprung era of Jeep Wranglers. The OG Green YJ was the source of many of Motobilt’s innovative and cutting edge designs that you see throughout our lineup today.

SHOP THIS BUILD

Back Half Frame Kit for Jeep YJ - Motobilt

MB3001

Back Half Frame Kit for Jeep YJ ~~$649.00~~ $486.75

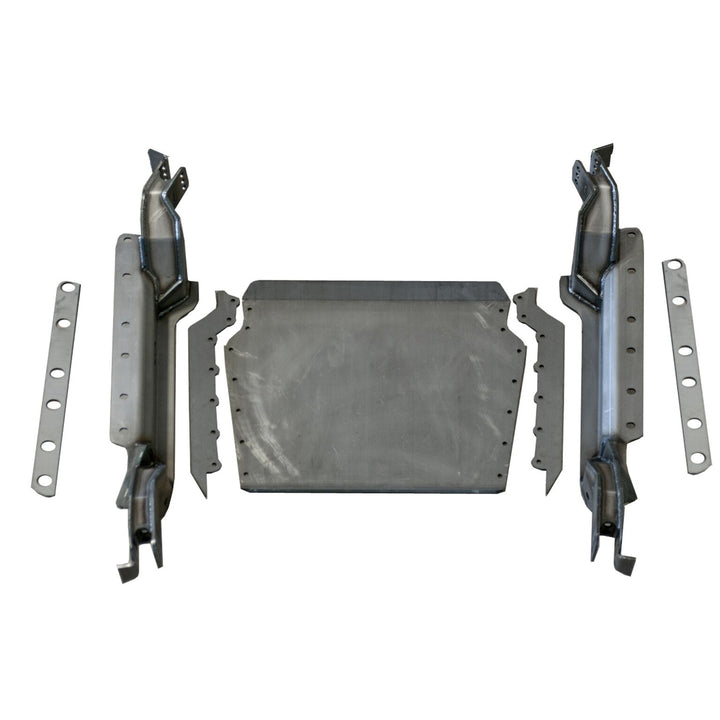

4 Link Suspension Mount Skid System for Jeep YJ - Motobilt

MB1503

4 Link Suspension Mount Skid System for Jeep YJ ~~$1,399.00~~ $1,049.25

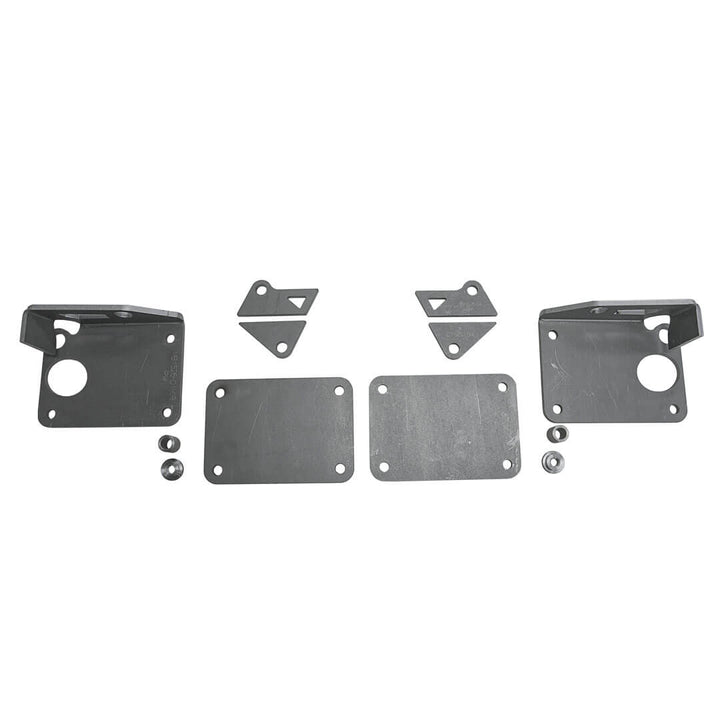

Coil Over Mount for CJ/YJ/TJ Rear Fender Top - Motobilt

MB1526

Coil Over Mount for CJ/YJ/TJ Rear Fender Top ~~$149.00~~ $111.75

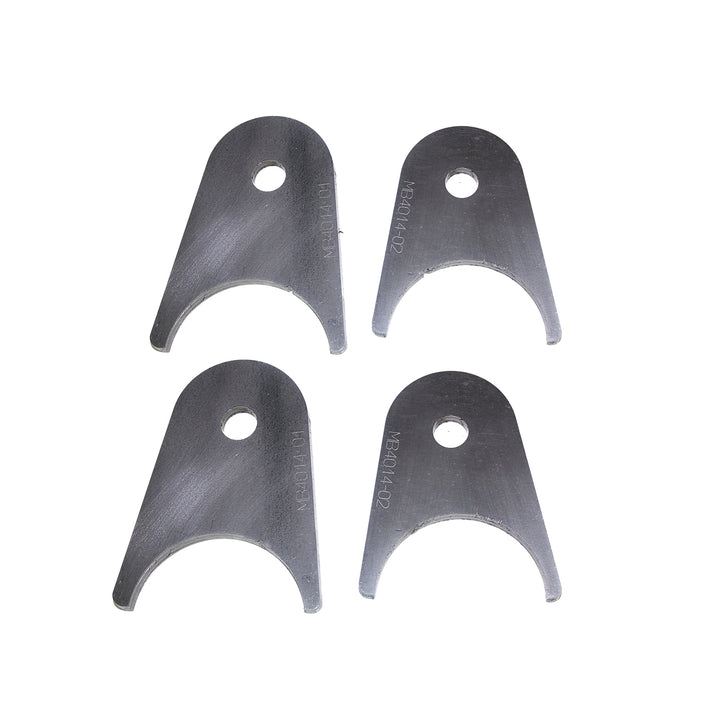

14 Bolt Lower Link Tab Kit for MB1503 or Universal - Motobilt

MB4014

14 Bolt Lower Link Tab Kit for MB1503 or Universal ~~$19.99~~ $12.00

High Clearance Rear Fender Tops for Jeep CJ / YJ - Motobilt

MB5501-H

High Clearance Rear Fender Tops for Jeep CJ / YJ ~~$289.00~~ $216.75

Choose options

Behind the Seat Fuel Cell w/ -AN Fittings for Jeep YJ - Motobilt

Behind the Seat Fuel Cell w/ -AN Fittings And Mount for Jeep YJ - Motobilt

MB5000-AN-MOUNT

Behind the Seat Fuel Cell w/ -AN Fittings And Mount for Jeep YJ ~~$679.00~~ $509.25

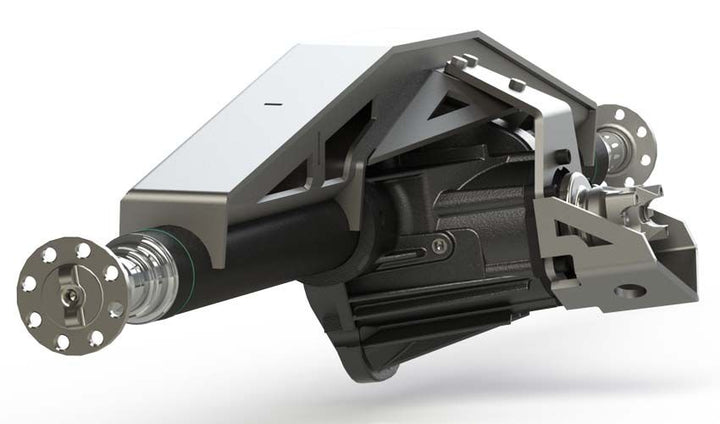

14 Bolt Axle Truss Competition Version - Motobilt

MB4003

14 Bolt Axle Truss Competition Version ~~$599.00~~ $449.25

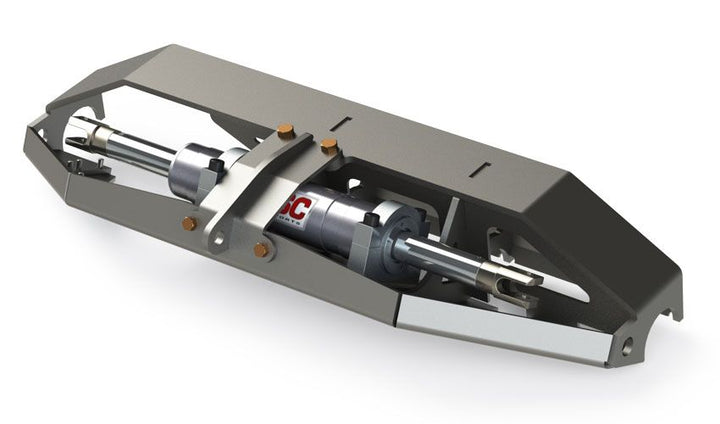

Chevy Dana 60 Front Axle Truss / Steering Ram Mount - Motobilt

MB4004

Chevy Dana 60 Front Axle Truss / Steering Ram Mount ~~$499.00~~ $374.25

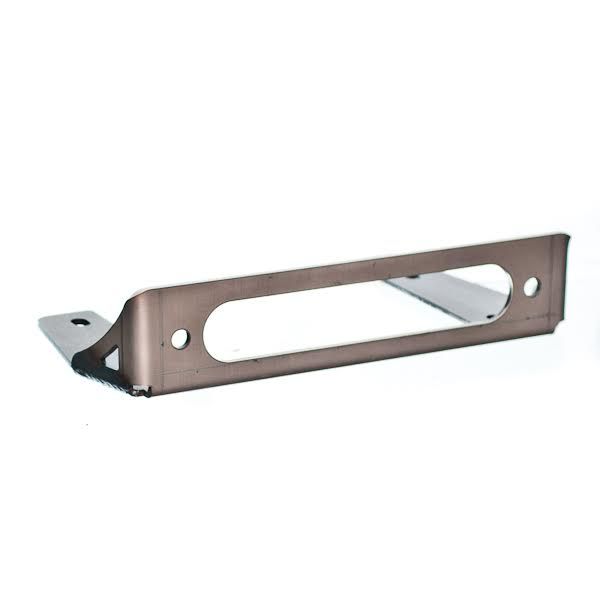

MB1002

Winch Fairlead Mount Bolt On ~~$40.00~~ $30.00

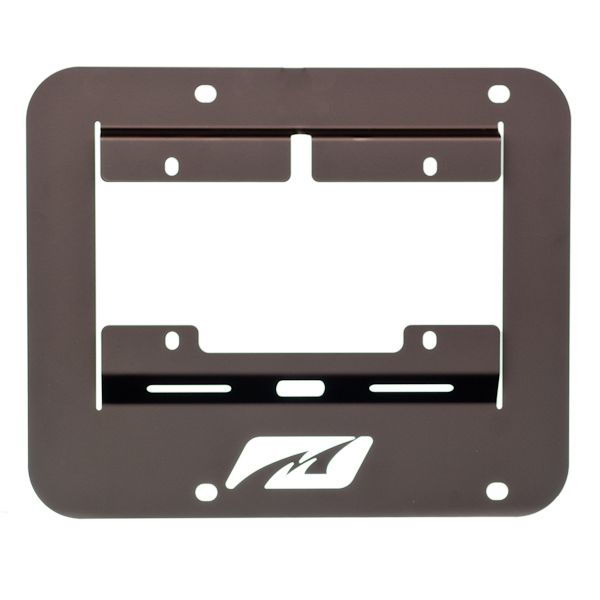

Spare Tire Delete Tag Mount for Jeep YJ / TJ / LJ - Motobilt

MB1047-P

Spare Tire Delete Tag Mount for Jeep YJ / TJ / LJ ~~$59.00~~ $44.25

Choose options

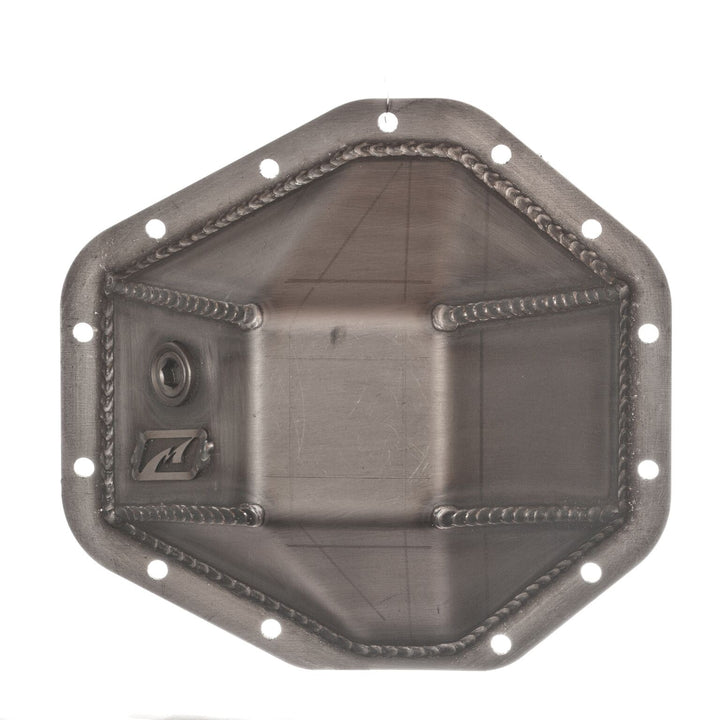

MB4067

13 Bolt Diff Cover ~~$149.00~~ $111.75

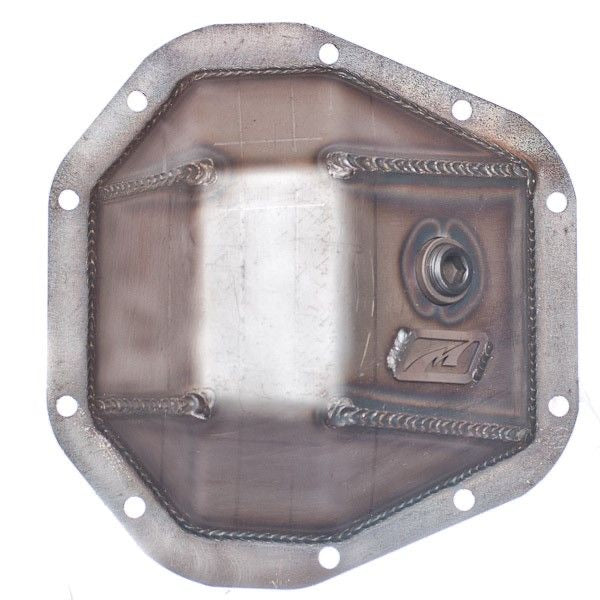

MB4010

Dana 60 Diff Cover ~~$149.00~~ $111.75

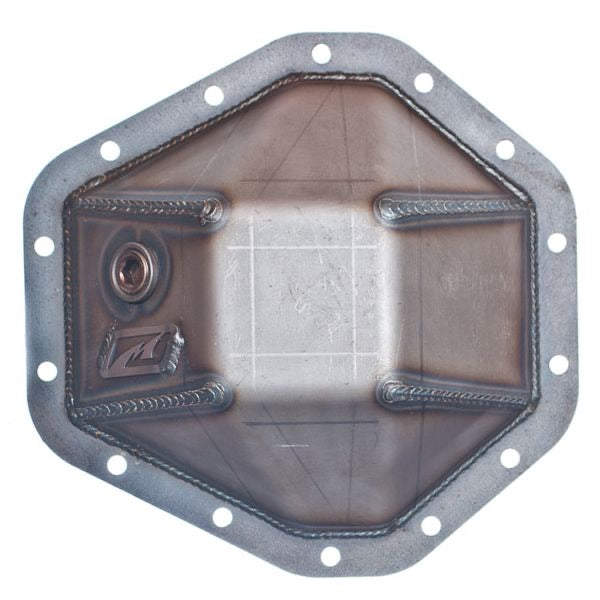

MB4012

14 Bolt Diff Cover ~~$149.00~~ $111.75

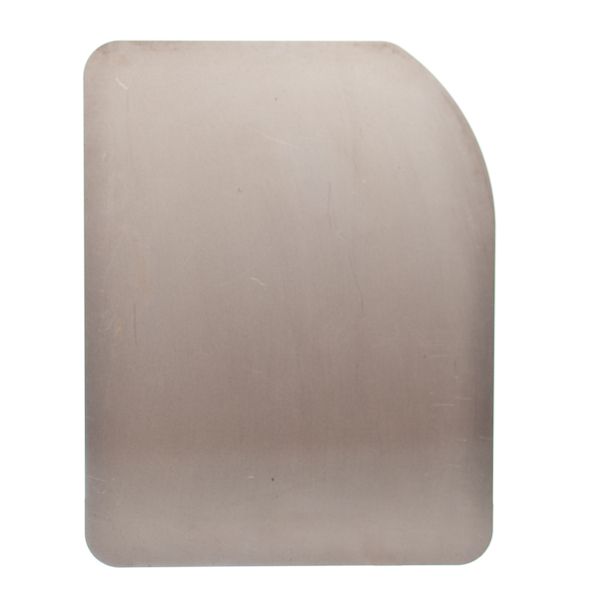

Tunnel Cover for Jeep CJ / YJ - Motobilt

MB5504

Tunnel Cover for Jeep CJ / YJ ~~$19.98~~ $11.99

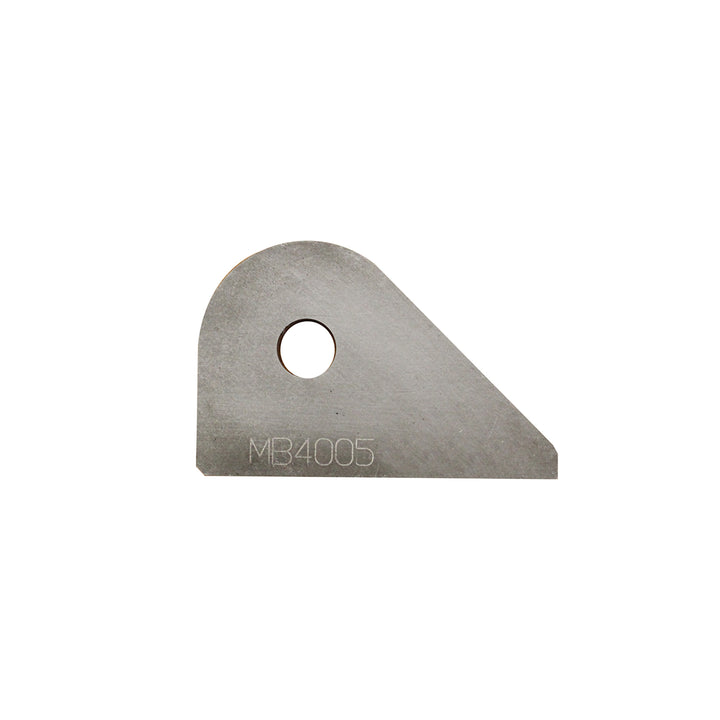

MB4005-1/2

Flat Bottom Link Tab ~~$2.99~~ $1.80

Choose options

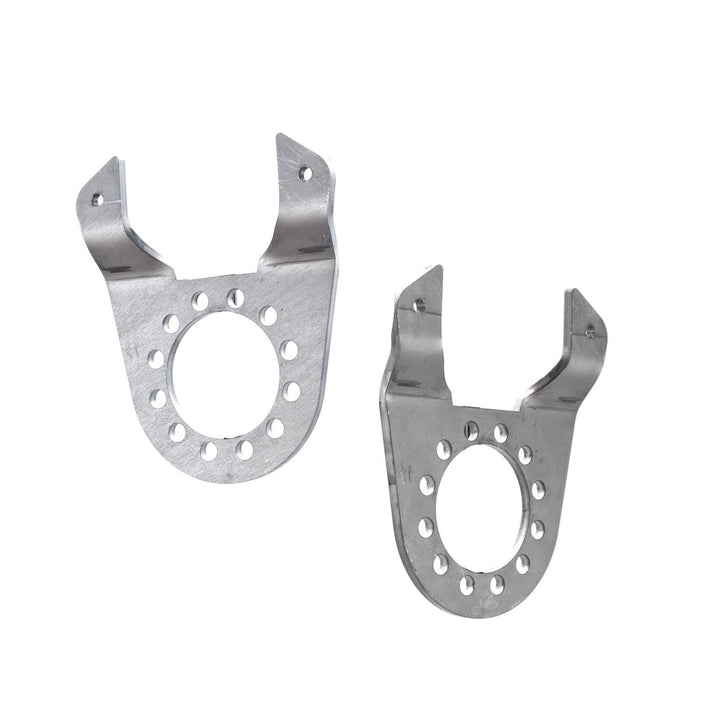

14 Bolt Full Float Disc Brake Conversion Brackets - Motobilt

MB4022

14 Bolt Full Float Disc Brake Conversion Brackets ~~$58.00~~ $43.50

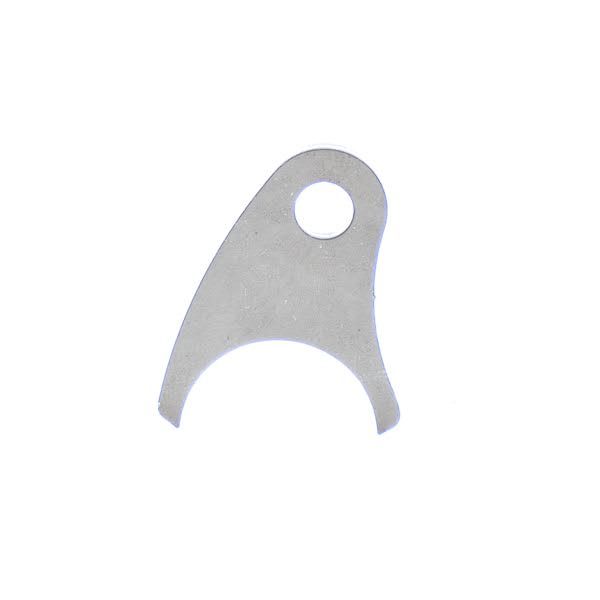

Curved Coilover Shock Tab for 1-3/4" Tube - Motobilt

MB2003

Curved Coilover Shock Tab for 1-3/4" Tube ~~$2.99~~ $1.80

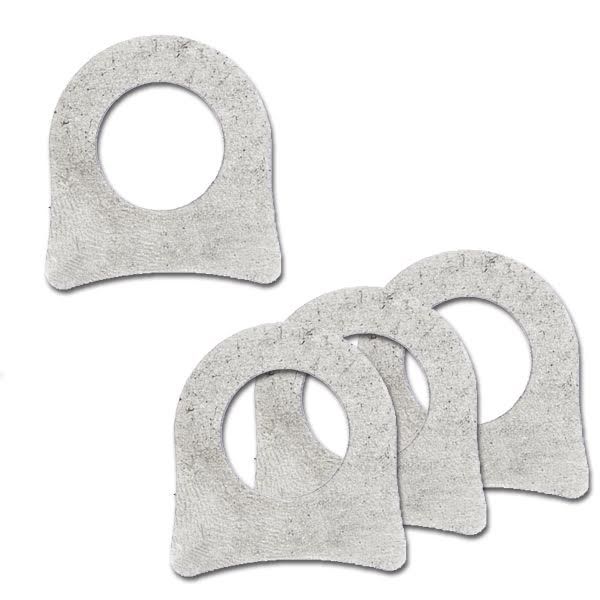

MB2083

Brake Line Tab ~~$3.99~~ $2.40

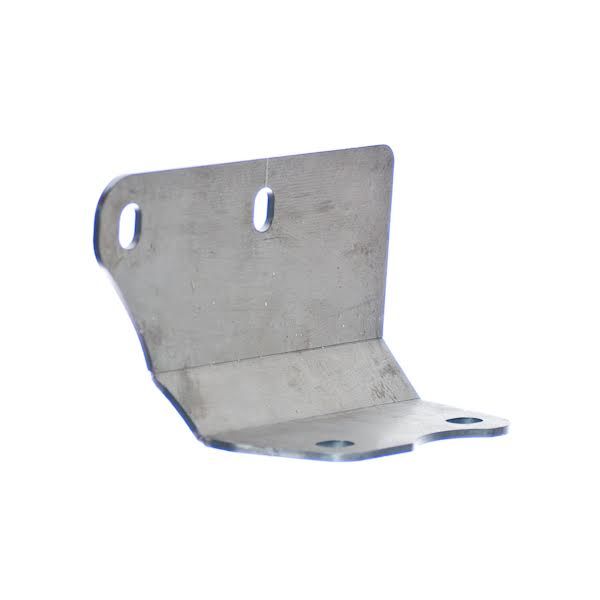

B-Pillar Cage Mount Fits Jeep CJ7 & YJ - Motobilt

MB3007

B-Pillar Cage Mount Fits Jeep CJ7 & YJ ~~$29.99~~ $22.50

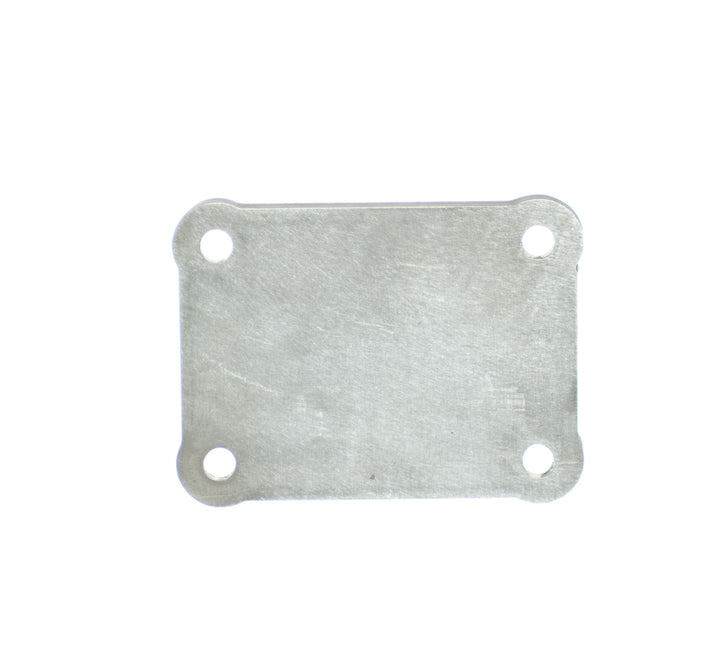

MB2007

Roll Cage Foot 4" X 5" ~~$3.99~~ $2.40

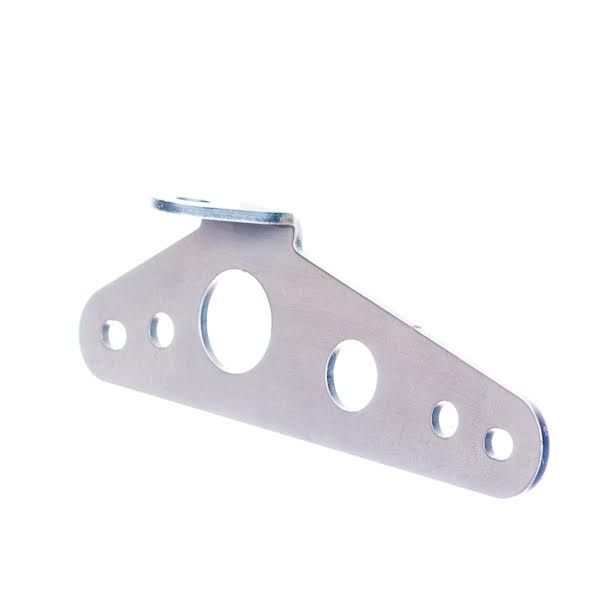

CB Antenna Mount for Jeep YJ / TJ / LJ - Motobilt

MB2063

CB Antenna Mount for Jeep YJ / TJ / LJ ~~$25.00~~ $18.75

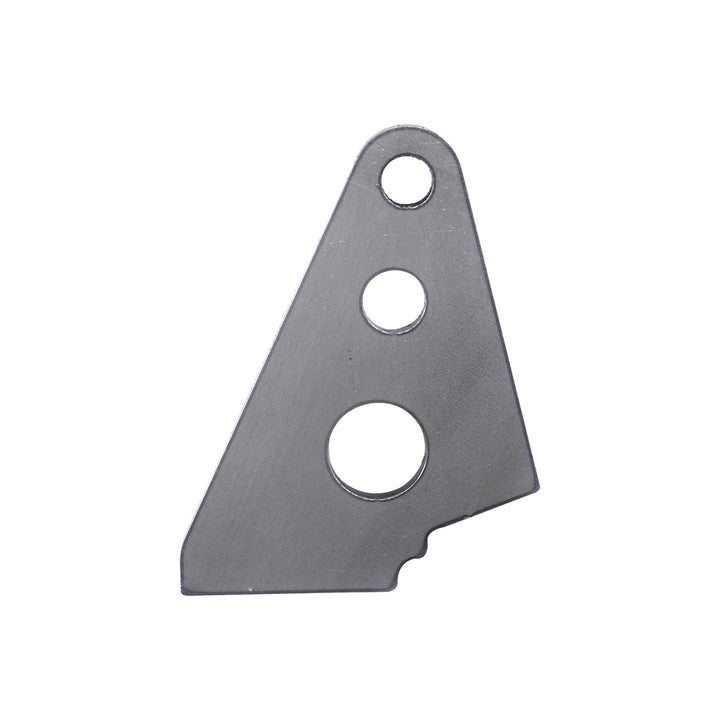

MB2006

Dana 60 Kingpin Coilover Tab ~~$3.99~~ $2.40

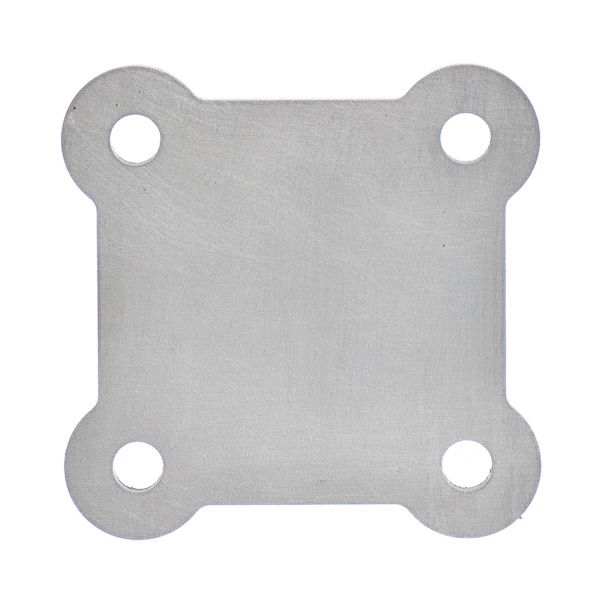

Small Roll Cage Mounting Foot - Motobilt

MB3022

Small Roll Cage Mounting Foot ~~$2.99~~ $1.80

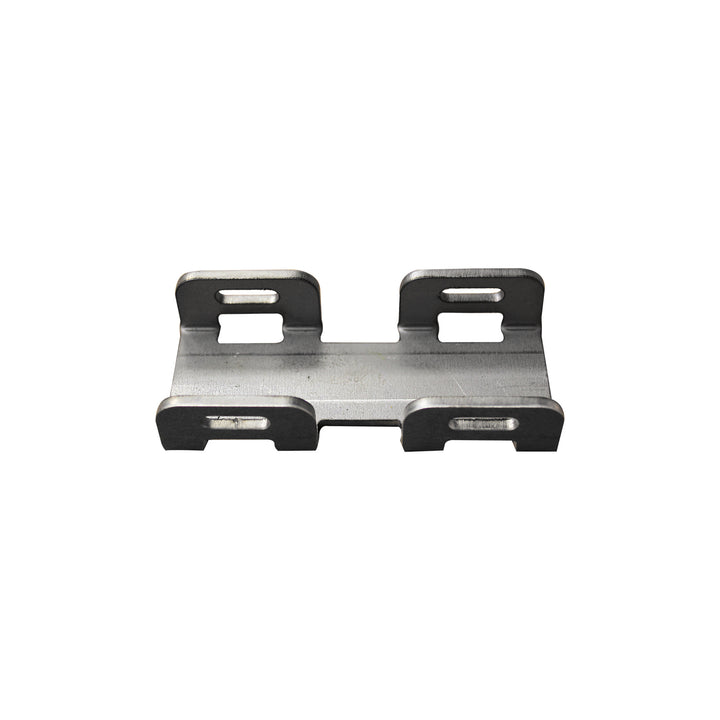

MB2081

Zip Tie Mount for Round Tube ~~$6.99~~ $5.25

Dana 60 Lower Link Mount Kit for MB1503 - Motobilt

MB4006

Dana 60 Angled Lower Link Mount Kit ~~$19.99~~ $12.00

4 Bolt Tube Flange for 1-3/4" OD Tube - Motobilt

MB3002

4 Bolt Tube Flange for 1-3/4" OD Tube ~~$3.99~~ $2.40

Cross Member Tab for YJ/TJ 4 Link Skid System - Motobilt

MB1503-20

Cross Member Tab for YJ/TJ 4 Link Skid System ~~$2.99~~ $1.80

Zip Tie Mount for Round Tube - Stainless Steel - Motobilt

MB2081-SS

Zip Tie Mount for Round Tube - Stainless Steel ~~$12.00~~ $9.00

Coil Over Shock Hoops 1-3/4” (1.75) DOM .120 Wall Tubing - Motobilt

MB1556

Coil Over Shock Hoops 1-3/4” (1.75) DOM .120 Wall Tubing ~~$229.00~~ $171.75

Build your Own

Get The Parts

If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.

View Full Collection

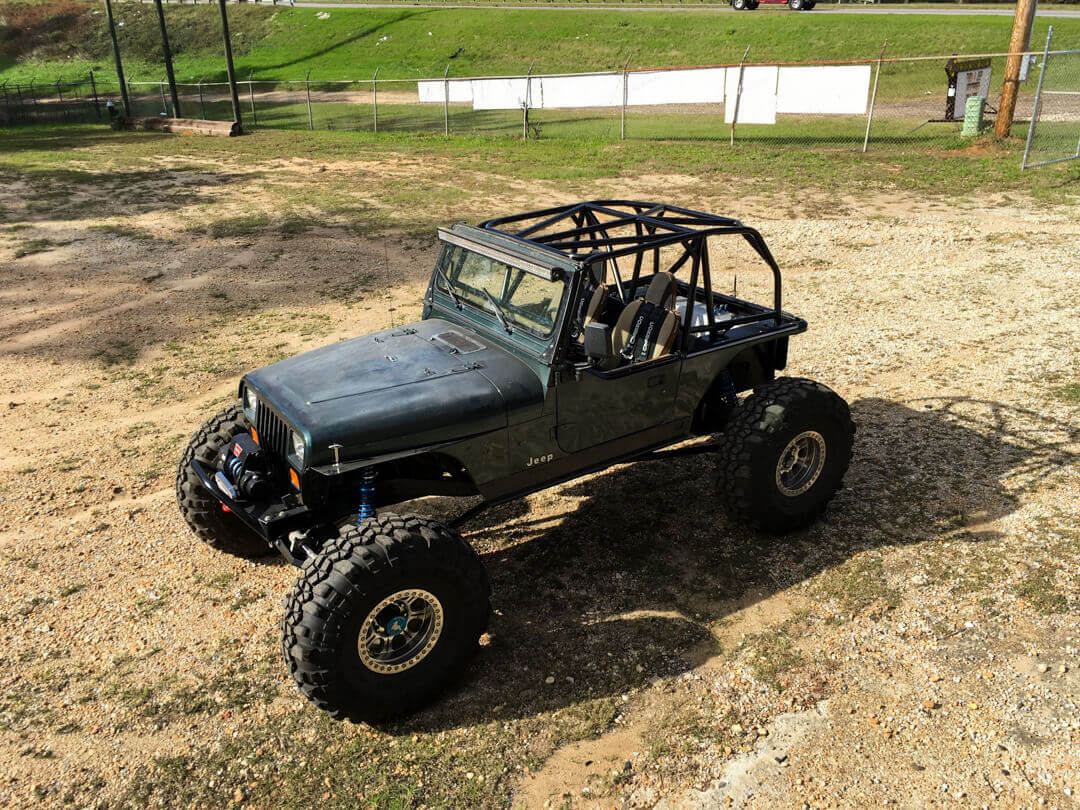

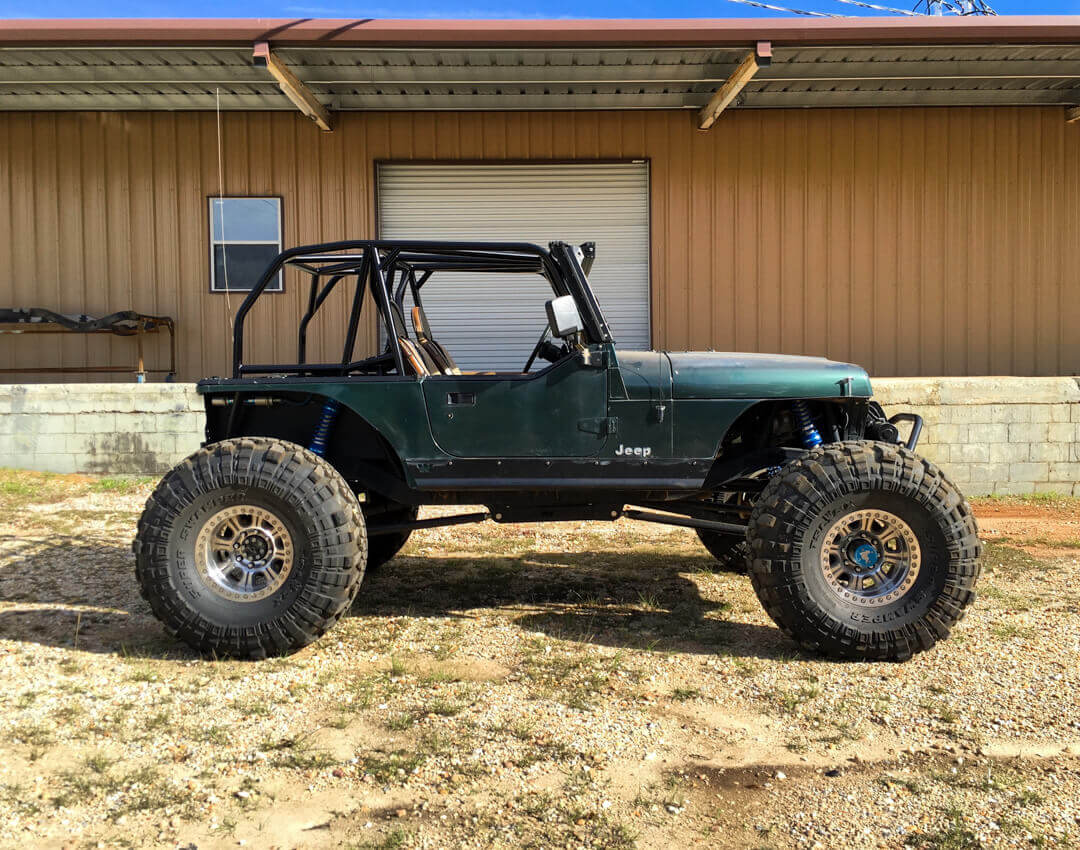

Green YJ

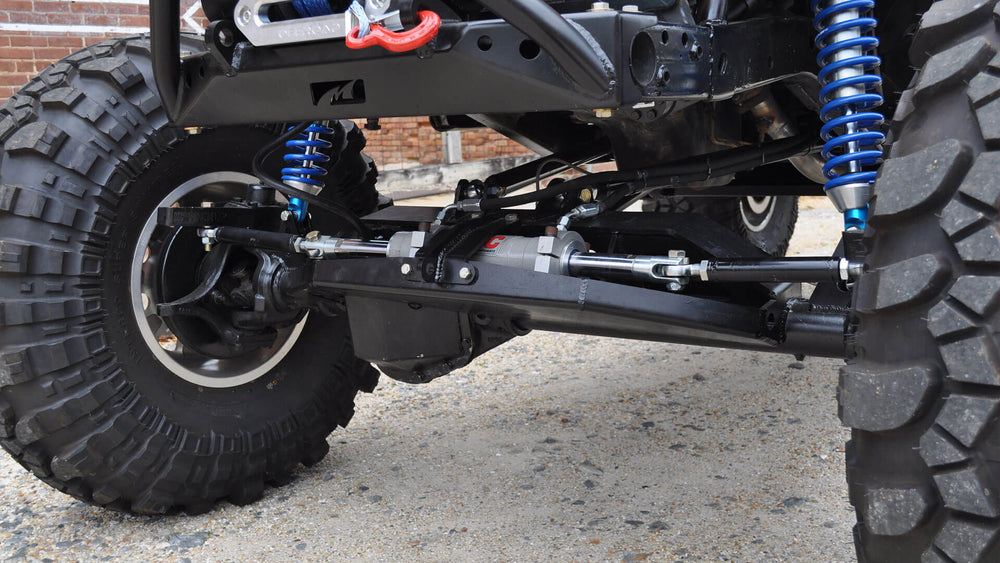

Drive Train

• Chevy V-8, Auto, Atlas II
• Chevy Dana 60 front axle 5.13 Gears Detroit Locker
• MB4004-Chevy Dana 60 Front Axle Truss/Steering Ram Mount
• MB4010-Dana 60 Diff Cover
• MB4006-Dana 60 Angled Lower Link Mount Kit
• MB2006-Dana 60 Kinpin Coilover Tab
• MB4005-5/8-Flat Bottom Link Tab
• PSC Full Hydraulic Steering with 2.5" Ram

• GM 14 Bolt rear axle with 5.13 gears and Detroit Locker.
• MB4003-14 Bolt Axle Truss Competition Version
• MB4012- 14 Bolt Diff Cover
• MB4022-14 Bolt Full Float Disc Brake Conversion Brackets
• MB2004-Flat Bottom Coilover Tab Offset
• MB4014-14 Bolt Lower Link Tab Kit for MB1503 or Universal
• MB4005-5/8-Flat Bottom Link Tab

• 1350 CV Drive shafts front and rear.

Green YJ

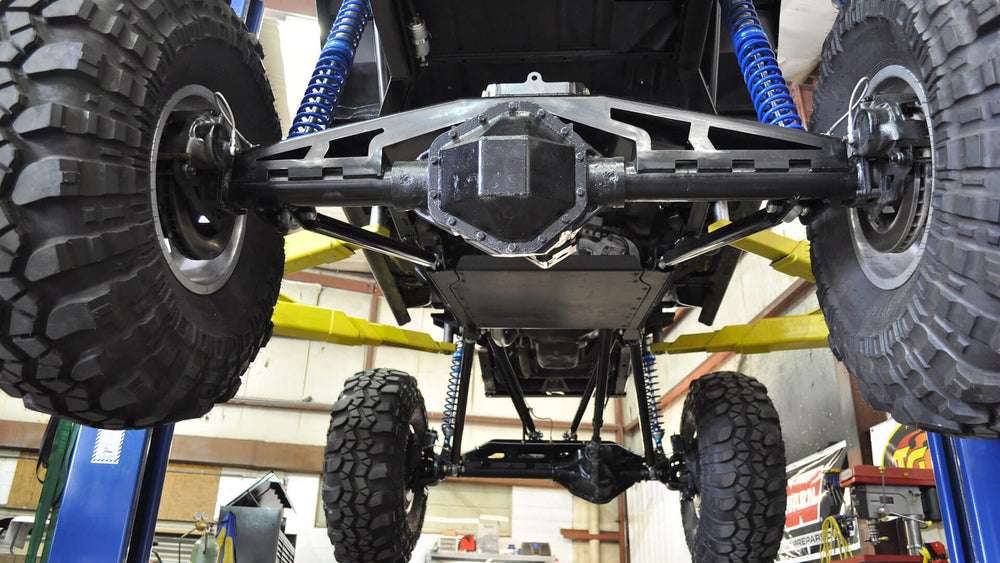

Frame/Suspension/Wheels

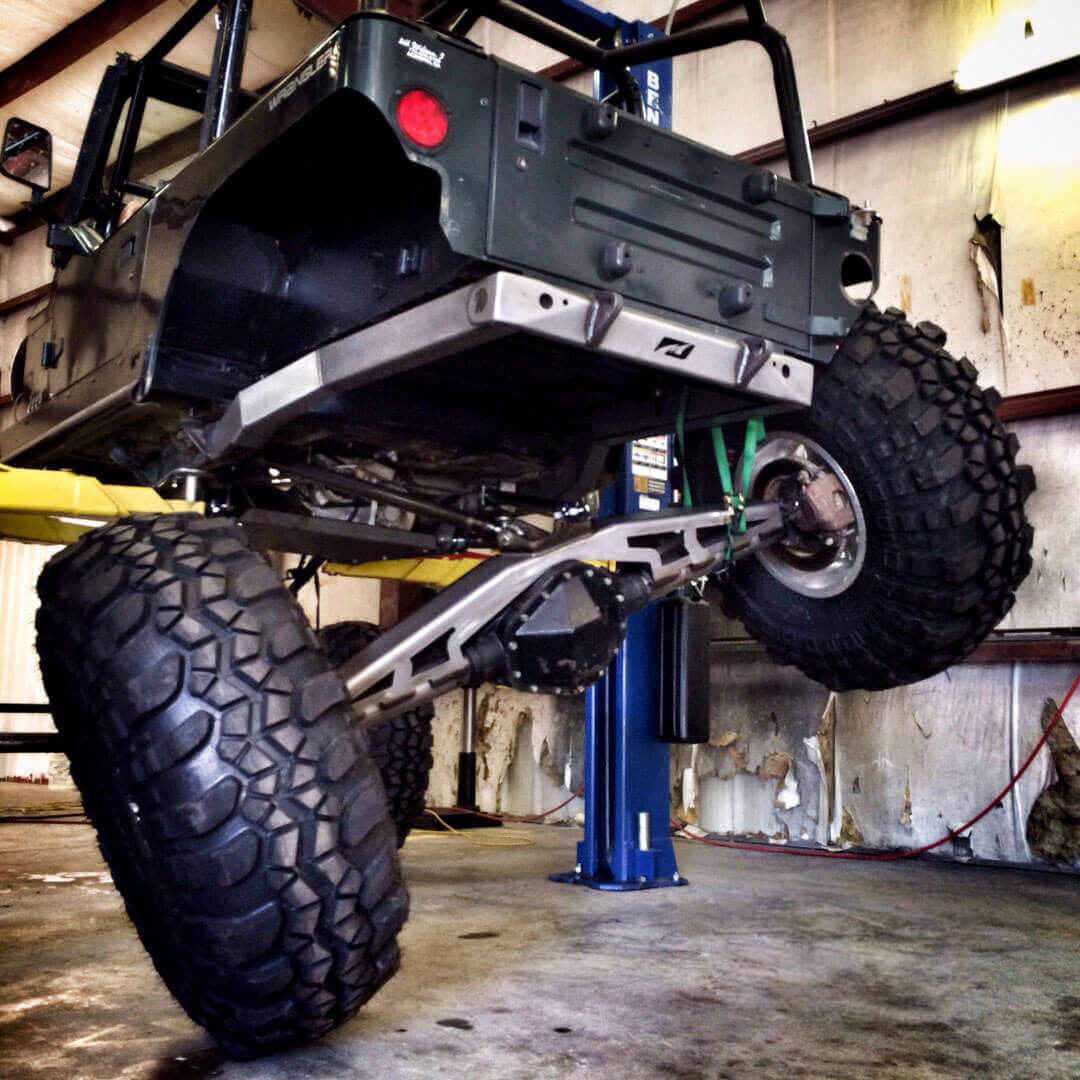

• MB1503-4 Link Suspension Mount Skid System for Jeep YJ
• MB3077-Universal Transmission Crossmember Kit
• 1.25 inch rod ends with 1 inch bolt hole for lower links. 2" x .250" Wall DOM Steel
• 1 inch to 3/4 inch 303 stainless high misalignment spacers measuring 2 5/8 inches in width
• 7/8 inch rod ends with 3/4 inch bolt holes. 1.75" x .250" Wall DOM Steel Uppers
• 3/4 inch to 5/8 inch 303 stainless high misalignment spacers measuring 1 3/4 inches in width
• King 2.0 14" remote reservoir coil overs in front and 16" travel in back.

Front Shock Hoops:
• MB1556-Coil Over Shock Hoops 1-3/4"

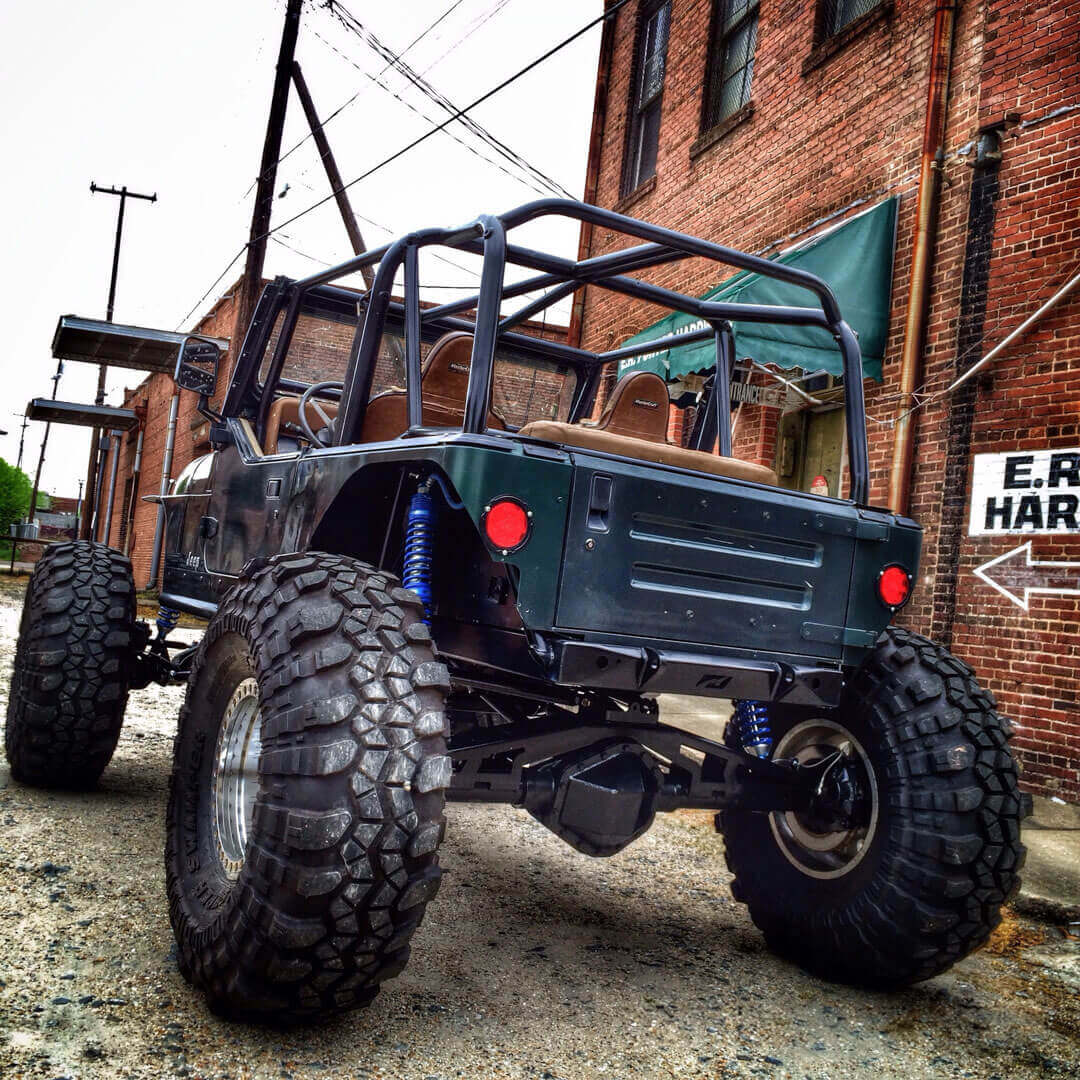

Rear Shock mount

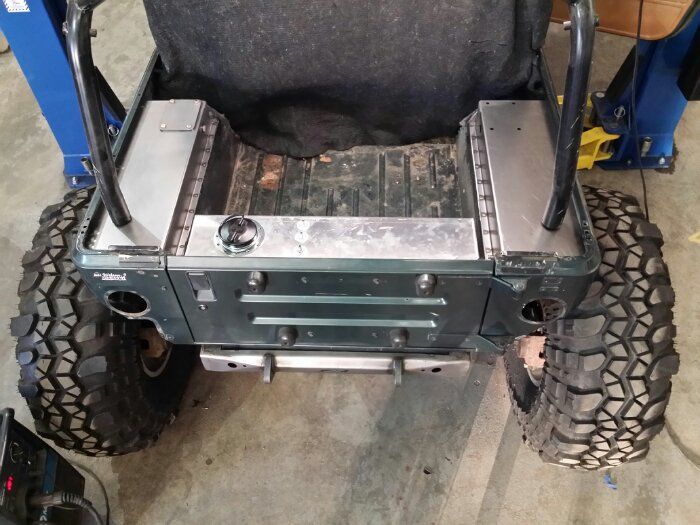

• MB1526-Coil Over mount for CJ/YJ/TJ Rear Fender Top used along with MB5501-H High Clearance Rear Fender Top
• Room for rear coil overs and axle stretch are possible due to the back half kit.

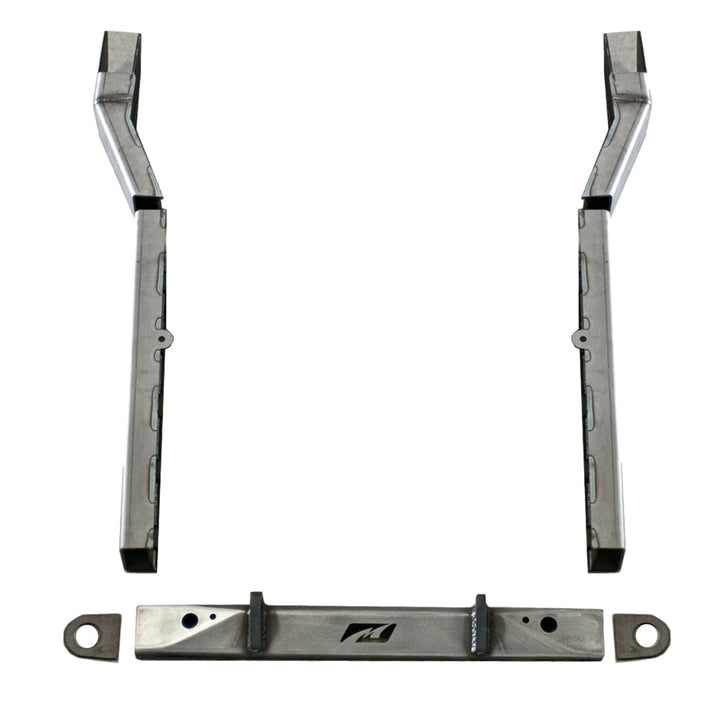

• MB3001-Back Half Frame Kit for Jeep YJ

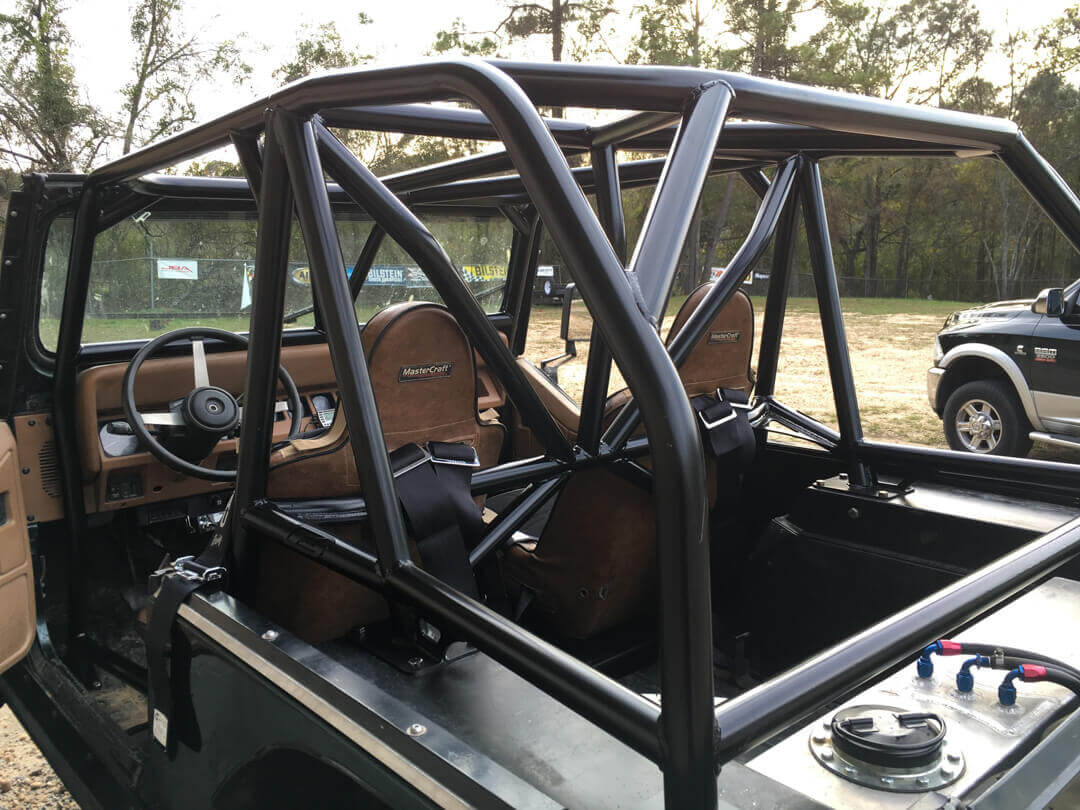

• Due to running a back half kit the fuel tank must be relocated so a fuel cell is mounted behind the rear seat.

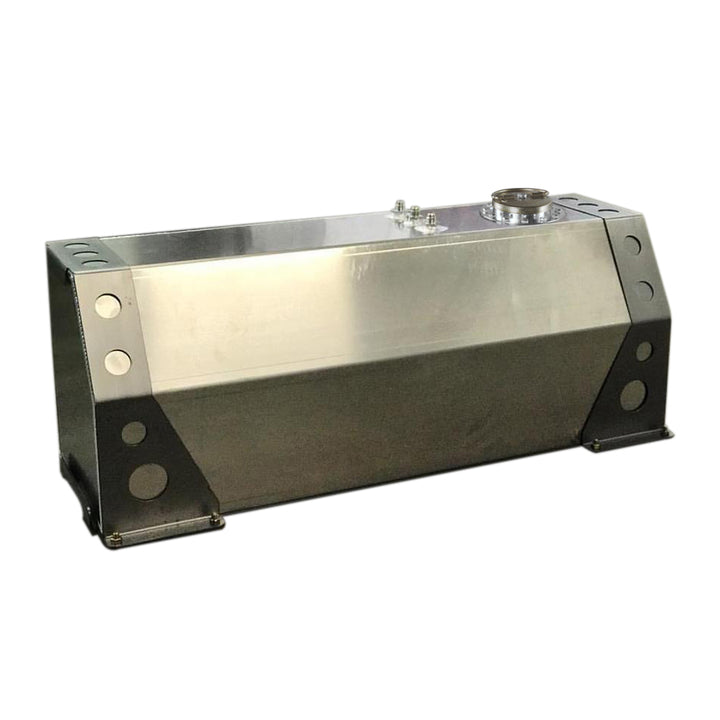

• MB5000-AN-Mount-Behind the Seat Fuel Cell w/AN Fittings and Mount for Jeep YJ
• MB1000-Stubby Front Bumper for Jeep YJ/TJ/LJ
• 43x14.50x17 Interco Super Swamper TSL SX Tires
• 17x9 Race Line Beadlock wheels 8x6.5
